Roborock Roborock S5 Series Manual de usuario

Roborock Robotic Vacuum Cleaner Manual

Please read this manual carefully before using the product and store it properly

Safety Information

Restrictions

This product is designed for indoor floor cleaning only, do not use it outdoors (such

as on an open-ended terrace), on any surface other than the ground (such as a

sofa), or in any commercial or industrial environment

Do not use this product on elevated surfaces without barriers such as the floor of a

loft, an open-ended terrace, or on top of furniture

Do not use the product when the ambient temperature is higher than 40℃, lower

than 4℃, or if there are liquids or tacky substances on the floor

Before using the product, move wires off the ground or place them to the side to

prevent them being pulled on by the cleaner

To prevent blocking the product and to avoid damage to valuables, remove

lightweight items (such as plastic bags) and fragile objects (such as vases) from

the floor before cleaning

Children should be supervised to ensure that they do not interfere with the product

This product is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or a lack of experience and

knowledge, unless they have been given supervisor instruction concerning use

of the product by a person responsible for their safety（CB）

Safety Information

This product can be used by children aged age 8 years and above and persons

with reduced physical, sensory or mental capabilities or a lack of experience

and knowledge once they have been given supervision or instruction

concerning the safe use of the product and understand the hazards involved.

Children should not play with the appliance. Cleaning and maintenance should

not be carried out by children without supervision（EU）

Keep the main brush cleaning tools out of reach of children

Do not place any object (including children and pets) on the product, whether

it is in operation or not

Keep hair, loose clothing, fingers, and all parts of the body away from openings

and moving parts

Do not use the product on burning objects (such as cigarette butts)

Do not use the product on high pile carpets (product effectiveness may also be

reduced on dark carpets)

Do not use the product to clean hard or sharp objects (such as glass and nails)

Do not carry the product using the laser scanner cap, main unit cover, or collision

buffer

Safety Information

The product must be switched off and the plug must be removed from socket-

outlet before cleaning or maintaining the appliance

Do not use wet cloth or liquids for cleaning the product

Do not use the mopping module on carpets

Use the product according to the manual. Any loss or damage caused from

improper use will be borne by the user

Battery and Charging

WARNING

For the purposes of recharging the battery, only use the detachable supply Unit

Roborock CDZ02RR or CDZ06RR provided with this product

Do not dismantle, repair or modify the battery or charging dock

Keep the charging dock away from heat (such as heating vents)

The battery must be removed from the product before it is disposed of

The product must be disconnected from the mains supply when removing the

battery

The battery must be disposed of safely. Do not discard waste batteries. Leave them

with a professional recycling organization

Do not wipe or clean the charger prongs with wet cloth or wet hands

Safety Information

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard

Make sure the product is powered off before shipment. Use of the original packaging

is advised

If to be left unused for a long period of time, fully charge the product and switch it off

before storing it in a cool, dry place. Charge it at least every three months to avoid

over discharging the battery

Table of Faults of Robotic Vacuum Cleaner

Item

Faults

Functions do not work

Main unit

Does not power on

Main brush, side brush, fan or main wheel issue

Charging dock

Main unit does not charge

Power cable

Charging dock has no power

Product Introduction

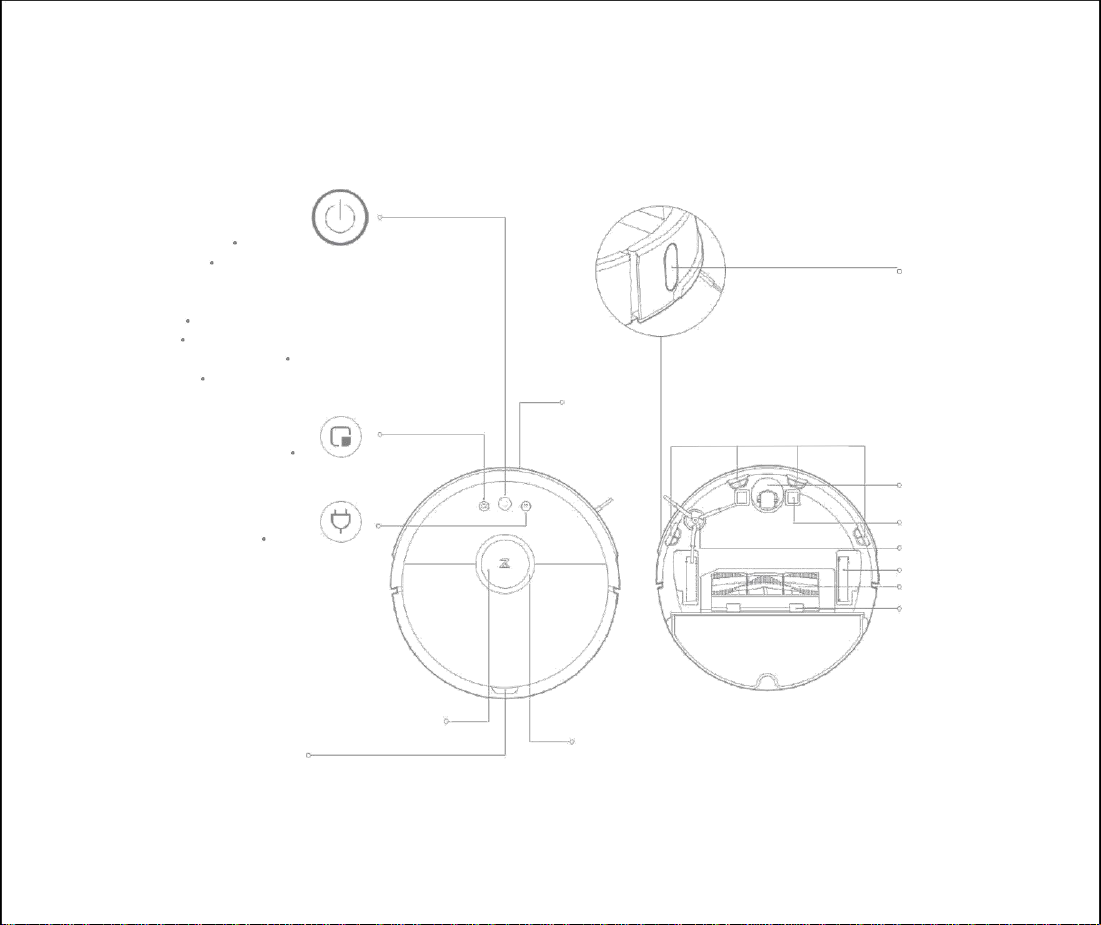

Main Unit

Cleaning On/Off

Short press to start cleaning Press

and hold to turn on or off

Circular indicator light

White: power ≥20%

Red: power ＜20%

Slow blinking: charging or launching

Red flash: fault status

Spot cleaning

Short press to start regional cleaning

Recharge

Short press to start recharging

Note:

Press any button to stop

the robotic vacuum during cleaning,

recharging, or spot cleaning

Reset WIFI

Press the spot cleaning button and

the recharge button at the same time

for 3 seconds

Open lid

LDS cover

bumper sensor

Wall sensor

Bumper

Cliff sensor

Omni-directional

wheel

Charging contact pieces

Side brush

Main wheel

Main brush

Buckle of main

brush cover

LDS *Laser distance sensor

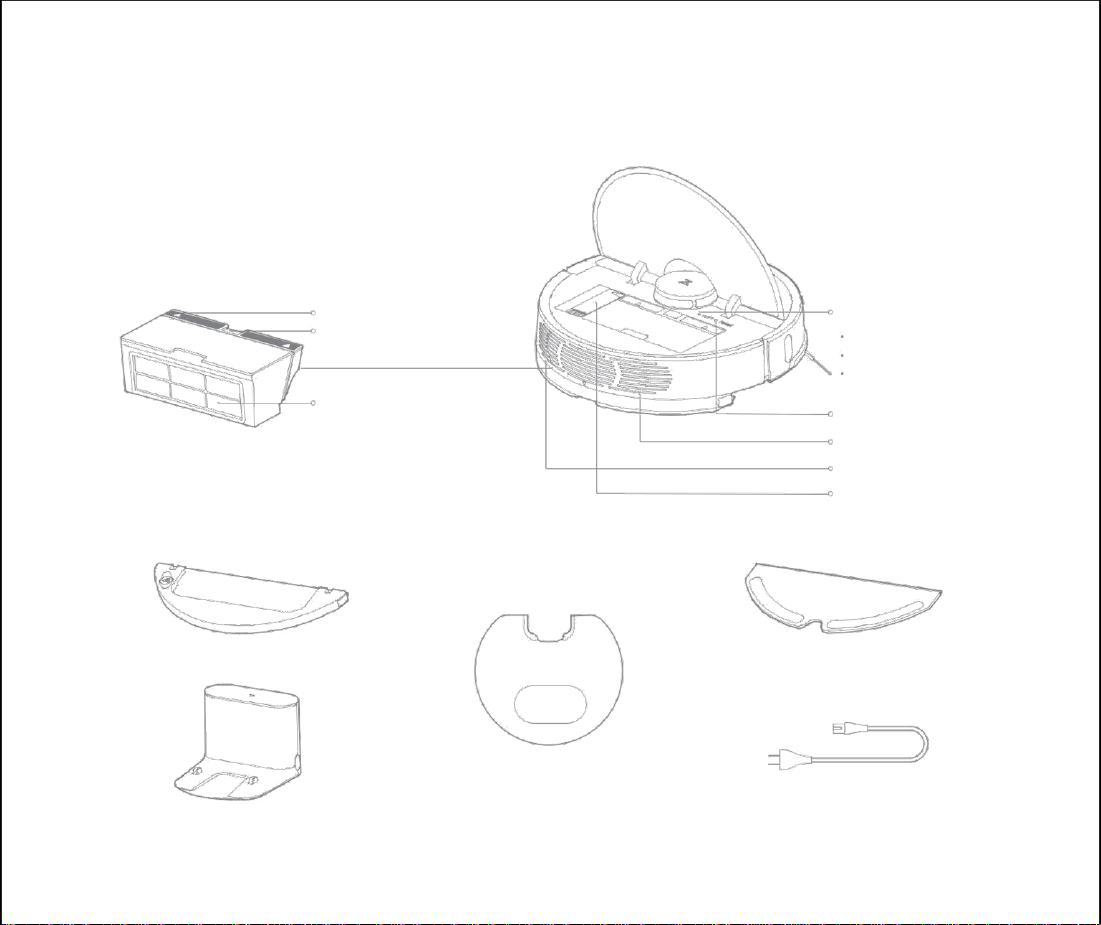

Product Introduction

Dustbin

Dustbin lid

Dustbin latch

Filter

Accessories

Water tank

Damp-proof mat

WIFI indicator light

Slow blinking: Waiting to connect

Fast blinking: Connecting

Stable light: WIFI is connected

System reset button

Speaker

Air vent

Main brush cleaning tool

Mop cloth

Charging dock

Power cable

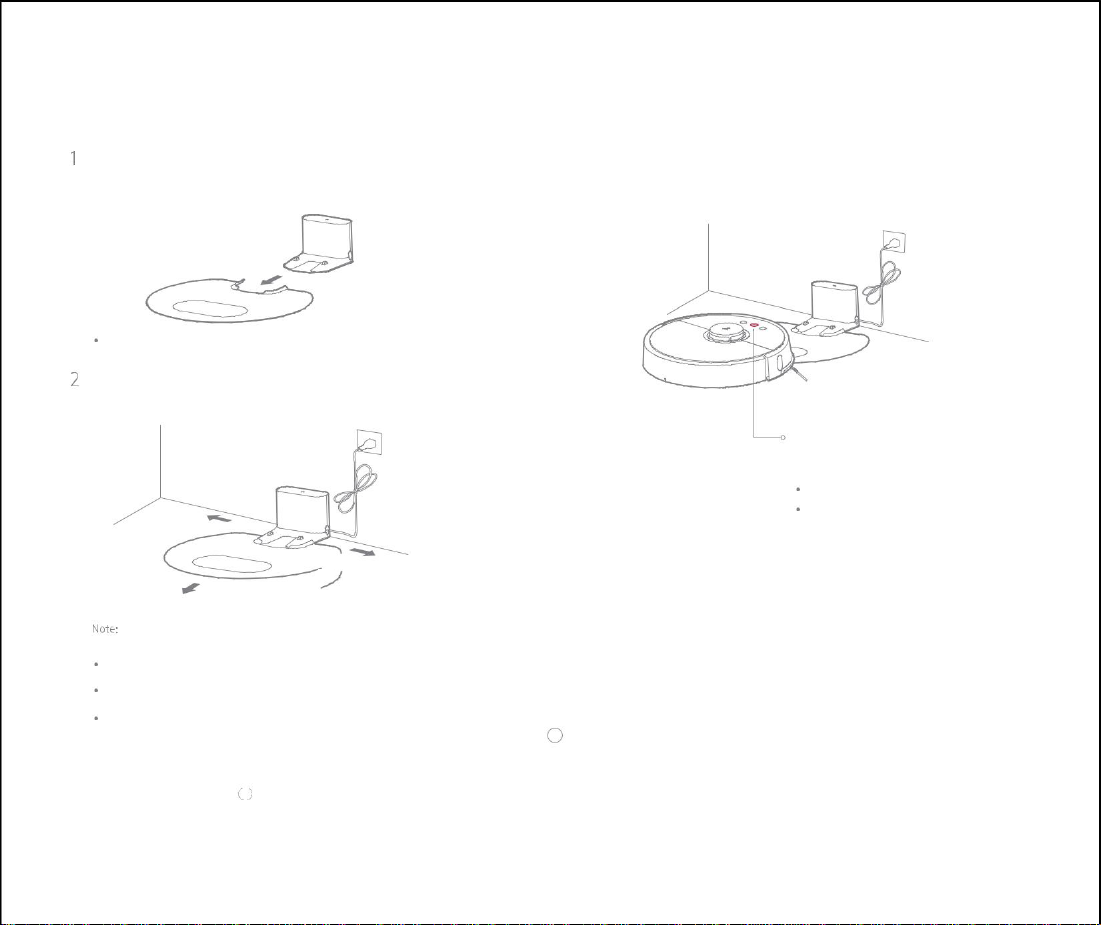

Installation

Connect the charging dock to the damp-

proof mat and make sure it connected

firmly.

The damp-proof mat keeps the floor dry after mopping

Place the charging dock on a level surface,

flat against a wall, plugged into a power

outlet.

More than 0.5 m

More than 1.5 m

Leave at least 20in (50cm) either sides, and at least 60in (150cm) in front of

the charging dock

Poor placement may cause the charging dock to be dragged by the product,

causing power dropout.

The charging dock indicator light switches on when plugged into a power outlet,

and is off when the when main unit is being charged.

3 Turn on and charge the machine

Press and hold the button to turn on the main unit.

After the indicator light has been on for a moment,

place the main unit on the charging dock to charge.

The product is equipped with a high-performance lithium-ion

rechargeable battery. Keep the product charged for maximum

battery performance.

The color of the circular light

indicator refers to the amount

of remaining power

White: ≥20%

Red:＜20%

Note: The product may not switch on when power is low. Connect it to

a charging dock before switching on.

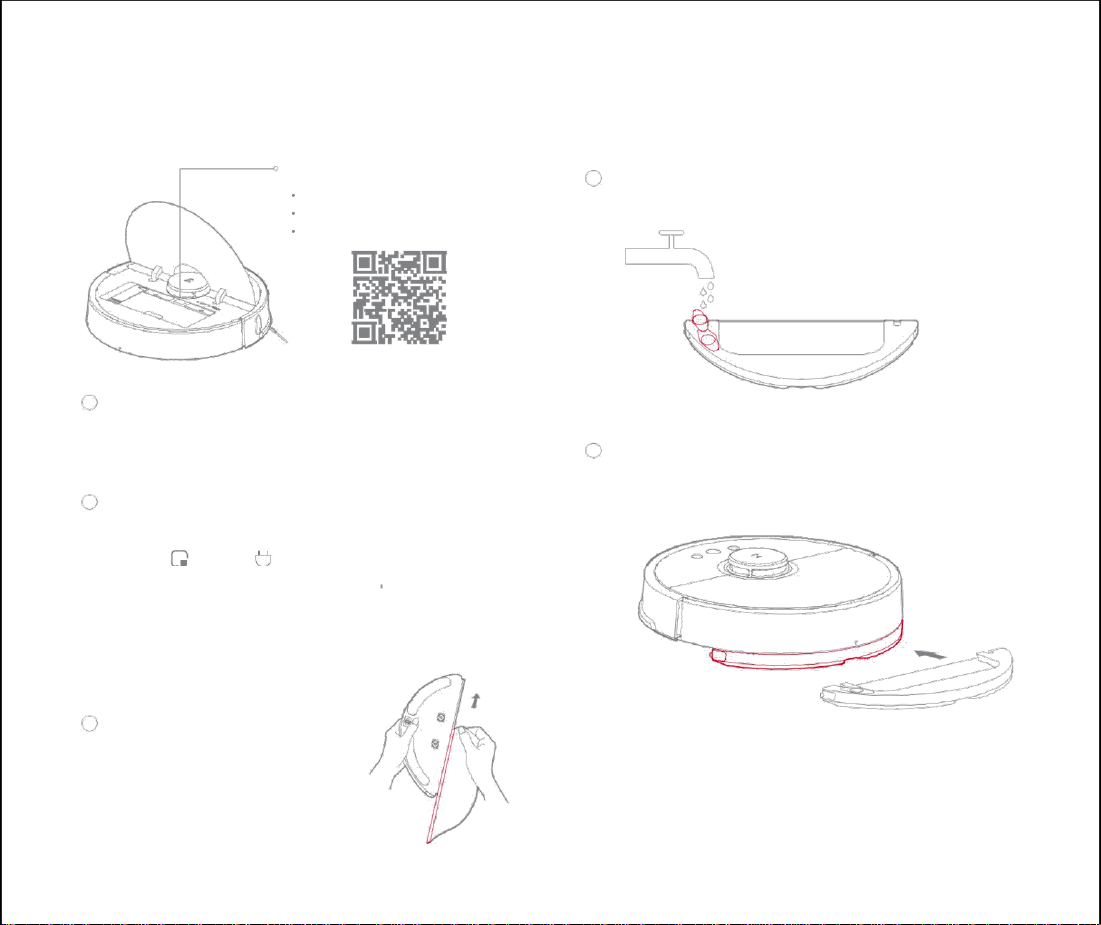

4 Connect to smartphone

The product is compatible with the Mi Home smarthome platform

and can be controlled in the Mi Home app. It supports the MIUI

system and can be linked with other Mi Home intelligent products.

Quick Setup

1 Download App

Search "Mi Home" in App store/Google play or scan the QR

code below to download and install the Mi Home app.

Installation

WIFI indicator light

Slow blinking: Waiting to connect

Fast blinking: Connecting

Stable: WIFI connected

Scan to download the APP

2 Add Device

Go to the "My Device" page of the Mi Home app and tap "+"

on the top right corner. Find newly added devices in the

"My Device" list

3 Reset WIFI

To Reset the WIFI to default, open the upper cover to check

the WIFI indicator status next to the reset button. Press and

hold the key and key until you hear "Reset WIFI ".

Resetting is completed when the WIFI indicator flashes

slowly. The product will enter a pending connection state.

Install the mopping module

Install the mop cloth: Wet the

mopping cloth and wring it until it

doesn't drip.

Slot it firmly into the water tank

2 Fill the water tank: Open the stopper, fill the tank with

water, and close the stopper

3 Install the module: Attach the module to the bottom of the main

unit following the alignment markers on the mopping module.

You will hear a click when it is installed properly

Note: For optimum mopping, first vacuum the mopping area three times.
