Robe Strobe IP Manual de usuario

Version 1.

Strobe IP

Table of contents

1. Safety instructions ...................................................................................................................................................... 3

2. Fixture exterior view ................................................................................................................................................... 5

3. Installation .................................................................................................................................................................. 5

3.1 Connection to mains ............................................................................................................................................. 5

3.2 Mounting the fixture ............................................................................................................................................ 5

3.3 DMX 512 connection ............................................................................................................................................ 7

4. Control menu .............................................................................................................................................................. 8

4.1 Fixture Address ..................................................................................................................................................... 8

4.2 Fixture information ............................................................................................................................................... 8

4.3 Personality ............................................................................................................................................................ 9

4.4 Manual mode ...................................................................................................................................................... 10

4. 5 Test sequences................................................................................................................................................... 10

4.6 Stand-alone setting ............................................................................................................................................. 10

4.7 Special functions ................................................................................................................................................. 11

5. Strobe and Special effects running ........................................................................................................................... 13

5.1 Strobe ................................................................................................................................................................. 13

5.2 Special effects ..................................................................................................................................................... 13

6. Technical specifications ............................................................................................................................................ 16

7. Cleaning and maintenance ....................................................................................................................................... 19

7.1 Replacing a fuse .................................................................................................................................................. 19

7.2 Disposing of the product .................................................................................................................................... 19

Strobe IP

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE POWERING OR INSTALLING YOUR Strobe IP!

Save it for future reference.

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure

safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this

manual.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual

or any unauthorized modification to the device.

Unauthorized modification will void warranty.

This device is for professional use only. It is not for household use.

1. Safety instructions

DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!

Make sure that the available voltage is not higher than stated on the rear side of the fixture.

This fixture should be operated only from the type of power source indicated on the marking label. If you are not

sure of the type of power supplied, consult your authorized distributor or local power company.

Always disconnect the fixture from AC power before servicing or cleaning internally.

Do not overload supply line as this can result in fire or electric shock.

Make sure the power/data cable is never crimped or damaged by sharp edges. Check the fixture and the

power/data cable from time to time.

Do not install the unit near an open flame.

Refer servicing to qualified service personnel.

Do not connect this fixture to a dimmer pack.

WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to completely

remove power from unit when not in use or before cleaning or servicing the fixture.

This fixture falls under protection class I. Therefore, this fixture has to be connected to a mains socket outlet

with a protective earthing connection.

Warning! Risk Group 2 LED product according to EN 62471.

LED light emission. Risk of eye injury.

Do not look straight at the fixture´s LEDs during operation. The intense light beam may damage your eyes.

Keep combustible material at least 0.3 m away from the fixture.

Strobe IP

If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on

immediately. The arising condensation of water might damage your device. Leave the device switched off until it

has reached room temperature.

Avoid brute force when installing or operating the fixture.

To guard against epileptic seizure:

Do not operate the fixture near stairways. Provide advance notice that strobe lighting is in use. Avoid extended

periods of continuous flashing, particularly at frequencies of 10 to 20 flashes per second

When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.

Avoid using the unit in locations subject to possible impacts.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

Do not block the front glass cover with any object when the fixture is under operation.

The fixture body must never be covered with cloth or other materials.

The fixture becomes very hot during operation. Allow the fixture to cool approximately 30 minutes prior to

manipulate servicing or maintenance.

Operate the fixture only after having familiarized yoursef with its functions. Do not permit operation by persons

not qualified to operate the fixture. Most damages are the result of unprofessional operation!

Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!

Please use the original packaging if the fixture is to be transported.

If this device will be operated in any way different to the one described in this manual, the product may suffer

damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,

burns, electric shock etc.

Strobe IP

2. Fixture exterior view

3. Installation

3.1 Connection to mains

Fixtures must be installed by a qualified electrician in accordance with all national

and local electrical and construction codes and regulations.

This device falls under class one and must be grounded!

The Strobe IP is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power

source from 100-240V (CE) or 100-277 V (US). The fixture must be connected to a non-dimmable power source in

order to avoid damage to its internal power supply and other electrical components.

Connect the fixture to the mains by means of inbuilt power cord with the plug.

3.2 Mounting the fixture

The Strobe IP can be arranged in any position/orientation without altering its operation characteristics. The LED

module can be tilted to desired position by means of the tilt lock. Use an Allen key 6 to adjust desired tilt position.

Head with LED array

2. Tilt lock

3. Base

4. Power and DMX connection

5. Rubber legs

Strobe IP

The fixture is equipped with two pairs of rubber legs for standing on the floor or can be fastened on a non-

flammable surface by means of the Surface Mount Adapter Strobe IP (optional accessories).

Before installing the Surface Mount Adapter Strobe IP (1), remove both rubber legs holders (1) by unscrewing the

four screws (2).

Screw the mounting adapter (3) to the base of the fixture by means of the six screws M8x20 (4).

Ensure that the structure to which you are attaching

the fixture is secure.

Caution: Overhead installation requires experience. Fixtures may cause severe injuries when crashing down! If you

have doubts concerning the safety of a possible installation, do not install the device and consult installation with

an expert.

Strobe IP

3.3 DMX 512 connection

The fixture is equipped with 5-pin XLR connectors for DMX input/output.

Only use a shielded twisted-pair cable

designed for RS-485 and 5-pin XLR connectors in order to connect the controller with the fixture or one fixture

with another.

Wiring of the XLR connectors:

XLR socket: XLR plug:

To build a DMX chain

1. Connect the DMX output of the controller directly with the DMX input of the first fixture in the DMX chain.

2. Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture.

3. Always connect the DMX output with the input of the next fixture until all fixtures are connected.

Do not overload the link. Max. 32 fixtures may be connected on a DMX link.

Caution: Terminate the link by installing a termination plug in the output of the last fixture. The termination plug is

a male 5-pin XLR plug (IP 66 rating) with a 120 Ohm resistor soldered between Signal (–) and Signal (+).

Warning:

Fixture´s XLR connectors are dust and water protected according to IP 67 by mating with related XLR cable

connectors.

They cannot stay disconnected outdoor. DMX output connector (XLR female) at the last fixture in a DMX line

has to be covered with the rubber cap before inserting a terminator. The rubber cap does not supply the

terminator.

The XLR terminator (male) has to be dust and water protected.

If the fixture is to be outdoor without connecting to DMX line, always interconnect its DMX input with DMX output

to keep declared IP rating of XLR connectors.

–

Shield

2 - Signal (-)

3 - Signal (+)

4 – Not connected

–

Not connected

Strobe IP

4. Control menu

The Strobe IP is equipped with a 4-segment LED display which allows you to set the fixture´s behaviour according

to your needs, obtain information on its operation, control all range of effects and program it

in stand-alone mode.

The four control buttons have the following functions:

- ESCAPE button-leaves menu without saving changes.

- ENTER button- enters menu, confirms adjusted values and leaves menu.

- UP and - DOWN buttons - move between menu items on the same level, sets values.

After switching the fixture on, display shows current DMX address.

4.1 Fixture Address

Use this menu to set the DMX address of the fixture.

dM.Ad. --- DMX addressing. Select this submenu to set a DMX start address.

To set a DMX address.

1. Use UP/DOWN buttons to find “ A001“ menu.

2. Press the ENTER button.

3. Use the UP/DOWN buttons to select desired start address.

4. Press the ENTER button to confirm the choice.

Note: After switching on, the Strobe IP will automatically detect whether DMX 512 data is received or not.

If there is no data received at the DMX input, the display will start to flash the set address.

DM.Pr. --- DMX preset. Select this menu item to set a desired DMX mode.

4.2 Fixture information

Use this menu to read useful information about the fixture status.

To display desired information.

1. Use the UP/DOWN buttons to find the “ InFo“ menu.

2. Press the ENTER button.

3. Use the UP/DOWN buttons to select the required menu item.

4. Press the ENTER button to confirm the choice.

Po.ti. --- Power On Time. Use the menu item to read the number of operation hours of the fixture.

totL - the function shows the total number of the operation hours since the Strobe IP has been fabricated.

rESEt - the function shows the number of the operation hours since the counter was last reset.

In order to reset this counter to 0, you have to press and hold the UP and DOWN buttons and at the same

time press the ENTER button.

VErS. ---Software Versions. Select this function to read the software version of the fixture processors.

ICI.b. --- display processor 1

IC2.b. --- display processor 2

Strobe IP

IC3.L. --- LED processor 3

IC4.L. --- LED processor 4

ViFi --- Wireless DMX module (if installed)

tEMP --- Fixture Temperatures. Select this menu to read the temperatures of the fixture:

bASE. --- temperature of the fixture inside

Cur.t. --- the current temperature of the fixture inside.

Hi.tE. --- the menu item shows the max. temperatures of the fixture inside since

the fixture has been fabricated.

rSEt --- the menu item shows the maximum temperatures of the fixture inside since the counter

was last reset. In order to reset this counter to 0 you have to press and hold the UP and DOWN

buttons and at the same time press the ENTER button.

LEdS. --- temperature of the LEDs PCB.

Cur.t. --- the current temperature of the LEDs PCB.

Hi.tE. --- the menu item shows the max. temperatures of the LEDs PCB since

the fixture has been fabricated.

rSEt --- the menu item shows the maximum temperatures of the LEDs PCB since the counter

was last reset. In order to reset this counter to 0 you have to press and hold the UP and DOWN

buttons and at the same time press the ENTER button.

dM.In.---DMX values. Select this function to read DMX values of each channel received by the fixture.

4.3 Personality

Use this menu to modify the Strobe IP operating behaviour.

DM.Pr. --- DMX preset. Select this menu item to set a desired DMX mode. Please refer to the chapter "DMX

protocol" for detail description of each DMX mode.

dM.In. --- DMX input. Select this menu item to select desired DMX input:

UirE --- Wired DMX.

UirL --- Wireless DMX

UrLo --- Wireless DMX –> wired DMX. The fixture receives wireless DMX signal and sends it to its

DMX output connector. Next fixtures can be connected to this fixture by DMX cable (fixture works

as a Wireless-DMX converter.

F.tin. --- Max. Fade time. Select this menu item to set a desired max. fade time (0-25.4 sec.). This adjusted fade

time influences fade of dimmer during DMX operation:

If time between two receiving DMX values is > than fade time set in the item “M Ftime“, the entire adjusted fade

time will be used.

If time between two receiving DMX values is < than fade time set in the item“M Ftime“, the adjusted fade time will

be reduced to fill entire time between the two receiving DMX values.

e.g “F.tin“=2sec. and fixture has received dimmer=0 DMX, after 5 seconds will receive dimmer=255 DMX. It means,

that dimmer will go to full intensity during 2 seconds.

“F.tin.“=8 sec. and fixture has received dimmer=0 DMX, after 5 seconds will receive dimmer=255 DMX. It means,

that dimmer will go to full intensity during 5 seconds. (Max, fade time is reduced from 8 sec. to 5 sec.).

DiSP. --- Display adjusting. This function allows you to change the display settings.

d.On --- this function allows you to keep the display on or to turn off automatically 2 minutes

after last pressing any button on the control panel.

Strobe IP

d.Int. --- select this function to adjust the display intensity (6-min.,100-max.).

turn --- select this function to used to rotate menu 180 degrees from current orientation.

di M.c. --- Dimmer curve. Use this menu item to set desired dimmer curve:

Lin --- linear

SqL --- square law

tnP.u. --- Temperature unit. Use this menu in order to display the fixture temperatures in desired units: °C or °F.

In.Po. --- Init effect positions. Use this function to set all effects to the desired positions to which they will move

after switching the fixture on (without DMX signal).

dF.SE. --- Default Settings .The menu item sets all fixture parameters to the default (factory) values.

4.4 Manual mode

Use this menu to control all channels via buttons of the control board.

Items in this menu depend on selected DMX mode.

To control fixture channels.

1. Use the UP/DOWN buttons to find “ Man.C“ menu.

2. Press the ENTER button.

3. Use the UP/DOWN buttons to select desired effect (channel).

List of control channels:

“dinr“ - a coarse dimmer

“din.F” a fine dimmer

“dUrA.” – a duration

“rAtE.” – a rate

“SP.EF.” – special effects

“SP. FU.” – special functions

“Zo.EF.” – zone effects

“Z.E.SP.” – a zone effects speed

“CoL. 1” – a zone 1 intensity

“CoL. 2” – a zone 2 intensity

“CoL. 3” – a zone 3 intensity

“CoL. 4” – a zone 4 intensity

“CoL. 5” – a zone 5 intensity

“CoL. 6” – a zone 6 intensity

4. Press the ENTER button and use the UP/DOWN buttons to set value , press the ENTER button to confirm it.

4. 5 Test sequences

Use this menu to run demo-test sequences without an external controller, which will show you some possibilities

of using the Strobe IP.

4.6 Stand-alone setting

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de DJ de Robe

Robe

Robe Anolis Calumma S MC Manual de usuario

Robe

Robe Anolis Calumma Remote M MC Manual de usuario

Robe

Robe ROBIN T11 MFS Manual de usuario

Robe

Robe Painte Manual de usuario

Robe

Robe ANOLIS Side Eminere 2 Wireles DMX Manual de usuario

Robe

Robe Divine 60 UV Manual de usuario

Robe

Robe picklePATT ES Manual de usuario

Robe

Robe Spot 575 XT Manual de usuario

Robe

Robe Robin Tarrantula TW Manual de usuario

Robe

Robe ROBIN MegaPointe Wireless DMX Manual de usuario

Robe

Robe Robin CycBar 12 Manual de usuario

Robe

Robe ANOLiS Eminere Remote UV 2 Manual de usuario

Robe

Robe CitySource 96 WDMX Manual de usuario

Robe

Robe redwash 3-192 Manual de usuario

Robe

Robe Spot 575 XT Manual de usuario

Robe

Robe POINTE 280 Manual de usuario

Robe

Robe CityLine 48 Manual de usuario

Robe

Robe ColorSpot 575 AT Manual de usuario

Robe

Robe ROBIN ParFect 150 TW Manual de usuario

Robe

Robe ColorSpot 2500E AT Manual de usuario

Robe

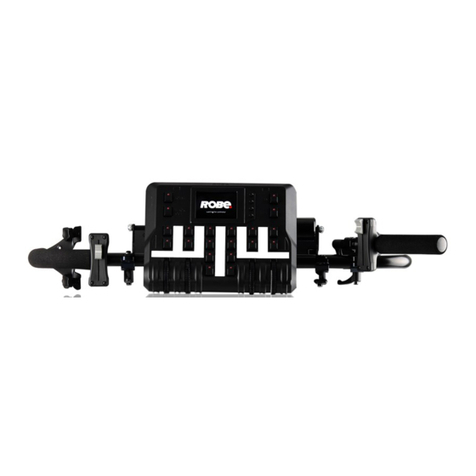

Robe ROBIN BMFL LightMaster Side Manual de usuario

Robe

Robe ROBIN ParFect 100 SmartWhite Manual de usuario

Robe

Robe pixelPATT Manual de usuario

Robe

Robe ColorStrobe IP Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
