Microwave Oven

Operation Manual

WK25-M601

Product Overview---- -- -- ------- -- -- -- ----- -- -- -- ---1

Product Features -- ------- -- -- ------- -- -- ------- -- -1

Product Structure- ----- -- -- -- ----- -- -- -- ------- -- -- -2

Product Parameters---------------------------------2

Important Safety Notes------------------------------3

Cooking Utensils-----------------------------------10

Function Introduction- - - - ----- -- ------- -- -- ------- -- 11

Installation Environment-----------------------------15

Installation Methods--------------------------------16

Clean and Maintenance- -- ------- -- -- ------- -- -- ----17

General Trouble-shooting------- -- -- ------- -- -- ------18

Circuit Diagram-- -- ------- -- -- ------- -- -- ------- -- -18

CONTENTS

1.Handle 2.Door Latch 3.Door Screen 4.Cavity 5.Oven Front Plate 6.Safety

Interlock System 7.Control Panel 8.Display Window 9.Grill Rack 10.Touch Button

11.Glass Turntable 12.Roller Ring 13.Turntable Shaft

Product Overview

Product Features

■ Stainless steel cavity, anti-fingerprinter and durable, easy clean.

■ Micro-computer control, procedural function, easy operation.

■ Finger-touch button with red indicator , simple control screen.

■ Heat food rapidly, keep nutrition.

■ Glass turntable, makes food heating equally.

■ Bake food by lightwave, make food friability.

■ Child lock function, avoid children from accident.

Note: 1. The data is only for reference. Please check the sticker on the product for specification.

.ROBAM keeps right to alter design or specification.2

Product Structure

Product Parameters

Item No.

Rated Power Input (Grill)

Microwave Frequency

Microwave Power Output

Capacity

Net weight

WK25-M601

220-240V～ 50Hz

950W

2450MHz

800W

25L

Approx. 18kg

Rated Voltage and Frequency

1300W

Product Size(mm) 592(W)×390(H)×400(D)

The diagram only for reference.

Accessory

Microwave Oven Microwave Oven

Dear users:

We would like to take this opportunity to give us sincerely wishes for your

supports of ROBAM microwave oven. We propose that you should read this operation

manual carefully and keep it properly for future reference before installation and

operation.ROBAM specializes in home appliances , such as range hood, tableware

disinfection, gas hob , and so on. Based on advanced design ideas, integrated design

and optimum sculpt, our products have many advantages, for example, health,

environmental protection and saving energy.

Rated Power Input (Microwave)

Important safety symbols:

Important Safety Notes

To avoid injury or property loss, this instruction records the correct and safe operation

method. All the marks, including icons and symbols are to help users to understand it.

Before operation, please read relevant identification, and strictly comply with it. Please

keep this manual properly for future reference.

It is possible to cause personal dangers ,serious injury or fire.

It is possible to cause personal injury or property loss.

It is extremely possible to cause personal dangers, serious injury or fire。

Note

Forbid

This symbol means prohibition, which should be placed near the target contents.

This symbol means compulsory actions.

danger

warning

Caution

1.Before installation, please confirm followings:

Make sure all the packing materials are

removed from the microwave oven.

If not, it may cause fire and

burning.

Large-sized packaging plastic bags are

prohibited to be placed within the reach of

children.

If put packaging plastic bags on

the head, it would result in

suffocation.

Keep off flammable and non-heat resisting

substances.

Keep off from non-heat

resisting substances such as

curtain and carpet, which would

result in deformation when

heated.

NoteNote

Forbid

If the door or door seals are

damaged, the oven must not

be operated until it has been

repaired by a competent

person;

Warning

Important Safety Notes

2.Before operation, please confirm followings:

Open the door, check the door latch is

workable or not.

If the door can not be opened,

or the latch is damaged, please

do not use the microwave oven.

Forbid

The inner side of the door plate whether

bend or not.

If there are slightly bent or

deformed, please do not use

the microwave oven.

Forbid

Details for cleaning door seals, cavities

and adjacent parts.

If there are residue or dirt, there

will have strike fire phenomenon

when the microwave oven

heating, it needs regularly clean.

Warning

Before using the microwave

oven, please read the

instructions carefully, this

product is only applicable to this

specification.

Caution

The microwave oven must be

grounded. In case of leakage,

the ground can provide current

loop in order to avoid the

electric shock. Power plug must

be connected to the ground

socket.

Caution

3. Please pay attention to prevent the following items, otherwise it would cause leakage

of microwave, microwave oven damage ,personal injury or other dangerous situations.

A. Forbid Matters

Do not damage the door lock

which comprises a door hook,

door hinge and other safety

components.

Don’t disassemble, repair or reconstruct

the microwave oven.

It needs the competent person to

repair, or it will be dangerous.

Forbid

disasse mbly

When the microwave oven does

not work, please do not continue

When the microwave oven

cooking, please do not put the

metal objects in, including the

metal container, the metal

ornaments container, knives

and forks.

Forbid Fo rbid

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Microwave Oven Microwave Oven

The microwave oven is intended

to be used in a cabinet only.

Do not use the appliance in a

cabinet with a door.

Warning

Important Safety Notes

B. Dangerous Matters

Socket loose or the power line/

plug is damaged, please do not

use.

Forbid

Do not use wet hand to

touch or pull the plug, it

may cause electric

shock.

Forbid to uch

by wet hands

In order to avoid the breakdown

of microwave oven, don't knock

the panel, shell, cavity, door and

other components.

Forbid

The microwave oven can not be

placed in hot and humid place.

For example, near the gas hob,

current-carrying regions or sink.

Forbid

The microwave oven is only

applicable to family cooking,

cannot be used for laboratory

test or other commercial

purposes.

Forbid

Don't remove the wave-guide

cover which on the cavity wall

side, so as not to cause

microwave oven breakdown.

Forbid

Don't put the combustibles in

or near the microwave oven

cavity avoiding from the fire.

Be carefu l

of fire

Do not use paper container,

because it’s easy to cause

sparks and fire.

Be carefu l

of fire

if smoke is observed, switch

off or unplug the appliance

and keep the door closed in

order to stifle any flames;

Warning

Microwave oven can only be

used in cooking food , it can

not be used for other

purpose, such as drying food,

it may cause fire.

Be carefu l

of fire

Except of competent person,

it’s dangerous for other people

to repair appliances, including

disassembly the energy

leakage protective cover or

any other operations.

Warning

When cooking, please use the appropriate

food containers.

Please confirm whether the

different material containers

can be used in microwave oven.

To avoid the possibility

damage to the power line

and plug. Maybe it will cause

short circuit, fire and other

hazards.

Important Safety Notes

Please don't use

microwave oven to heat

chemical reagents or other

non-food products to avoid

from microwave leakage.

Be carefu l

of microw ave

Be carefu l of

electri c shock

C. Warning Matters

Only allow children to use the

oven without supervision when

adequate instructions have been

given so that the child is able

to use the oven in a safe way

and understands the hazards of

improper use;

Warning

It is hazardous for anyone

other than a competent person

to carry out any service or

repair operation that involves

the removal of a cover which

gives protection against

exposure to microwave energy;

Warning

Don't put the metal grill or

aluminum foil into the

microwave oven cavity when

under the operation, in order to

avoid the fire which will damage

the microwave oven.

Warning

D. Attention Matters

Don’t directly put the food on

the glass turntable, food must

be put into the appropriate

containers when cooking.

Caution

Microwave Oven Microwave Oven

Important Safety Notes

Please use specific clip or

glove against burns when

remove cooked food or mix

food during cooking. Because

heat will transform from high

temperature food to containers

or glass plates.

Caution

Once finished cooking, the

microwave oven is hot. Please

don't clean it directly, please

cool it down firstly avoiding

from scald.

Caution

Switch off or unplug the

appliance before cleaning the

microwave oven. Do not use

corrosive cleaner. The

microwave oven would be

damaged or corroded.

Caution

4.Please pay attention to the following matters when use grill function.

Use microwave function for the

first time, white smoke would

possibly be observed. This is not

a fault because the protecting oil

of components would volatilize

when heated.

Caution

Do not touch the appliances by

hand because it is very hot after

roasting cooking or cooking.

Caution

Use special grills when roasting

cooking is selected. However, do

not use special grills when

microwave cooking is selected in

case of striking fire.

Caution

Use heat-insulation glove to

remove the food and containers

after roasting cooking.

Caution

Important Safety Notes

5.Pay attention to the following matters when cooking.

Liquids and other food must not

be heated in sealed containers

since they are liable to explode,

for example, tin or sealed glass

bottle.

Forbid

Eggs in their shell and whole

hard-boiled eggs should not

be heated in microwave ovens

since they may explode, even

after microwave heating has

ended;

Danger

Do not use the microwave oven

to fry food since oil splashing

would cause damage to people.

Danger

When heating food in plastic or

paper containers, keep an eye

on the oven due to the

possibility of ignition;

Be carefu l

of fire

Any food surrounded by a

membrane such as potatoes,

apple, sausage, chicken wings

should be pierced several times

with a fork.

Note

Use the special popcorn

container when make popcorn.

Some food packaged by paper

can b e heated immediately. Do

not leave off when cooking.

Note

Do not overcook food. Rather

insufficiently cooking than

overcooking.

Note

Shortcut menu provides the

approximate cooking time.

Increase or reduce the time

according to the actual using

situation.

Note

Failure to maintain the oven

in a clean condition could

lead to deterioration of the

surface

Caution

Microwave heating of

beverages can result in

delayed eruptive boiling,

therefore care must be taken

when handling the container;

Warning

Microwave Oven Microwave Oven

The contents of feeding bottles

and baby food jars shall be

stirred or shaken and the

temperature checked before

consumption, in order to avoid

burns.

Warning

Important Safety Notes

The oven should be cleaned

regularly and any food

deposits removed.

Warning

安全注意事项

7. Following actions are normal when use microwave oven.

A. Microwave will disturb TV receiption. When use microwave oven, it may effect

readio or TV. This kind of interference likes small appliances, for example, mixture,

vacuum cleaner, fan, etc. It don’t means microwave oven’s fault.

B. The light of microwave oven is weak. If use light firepower instead of high fire of

microwave oven, the light will become weak and there is small sounds in oven.

C. Steam collects in door and hot air exhausts from upper. During cooking, food will

cause steam, and most of steam will be exhausted from hole, but it will collect in cool

place, for example, door, it’s normal action.

D. When use combination function, microwave oven has sounds. It because that

microwave oven change microwave firepower and light wave firepower automatically in

order to reach combination functions. It’s normal action.

E. When use combination function or light wave function, there is white smoke or

peculiar smell from microwave oven. Microwave oven should be cleaned regularly,

especially after combination function or light wave function. Any oil in the top of the

cavity or furnace wall may cause white smoke.

Cooking Utensils

Different cooking methods, should select different appropriate cooking

container , please refer to the following tables.

Container Type Microwave Function Grill Function Combination Function

Heat resi stance

glass con tainer

Non heat re sistance

glass con tainer

Heat resi stance

glass con tainer

Non heat re sistance

plastic c ontainer

Ceramic

container

Metal con tainer

Grill rac k

Wood, bamboo,

paper con tainer

Food pres ervation

film

Aluminu m foil

avaiabl e avaiable avaiable

unavaia ble unavaiable unavaiable

avaiabl e

Note:

1.Use utensil with "microwave oven avaiable” marks.

2.Don't use sealed cover.

unavaia ble unavaiable

unavaia ble unavaiable unavaiable

avaiabl e avaiable avaiable

Note:Forbid to use metal accessory.

unavaia ble avaiable avaiable

unavaia ble unavaiable unavaiable

unavaia ble avaiable unavaiable

avaiabl e unavaiable unavaiable

Note: Rec ommendations f or using the wide mouth special microwave oven glass or ceramic container. Such as

Prohibi t the use of necking c ontainers. Such as:

1 0

Microwave Oven Microwave Oven

6. This appliance is not intended for use by persons (including children) with

reduced physical,sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning use

of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Function Introduction

Display window

Microwave function, grill function, combination function.

Child lock function

Confirmation function

Defrost function

Time and weight function

Auto menu

Start and cancel function

Note: the buttons on the panel outer ring can emit red light. Each button operation or the function

running, the ring will light. The upper picture shows the aura and display all emitting mode.

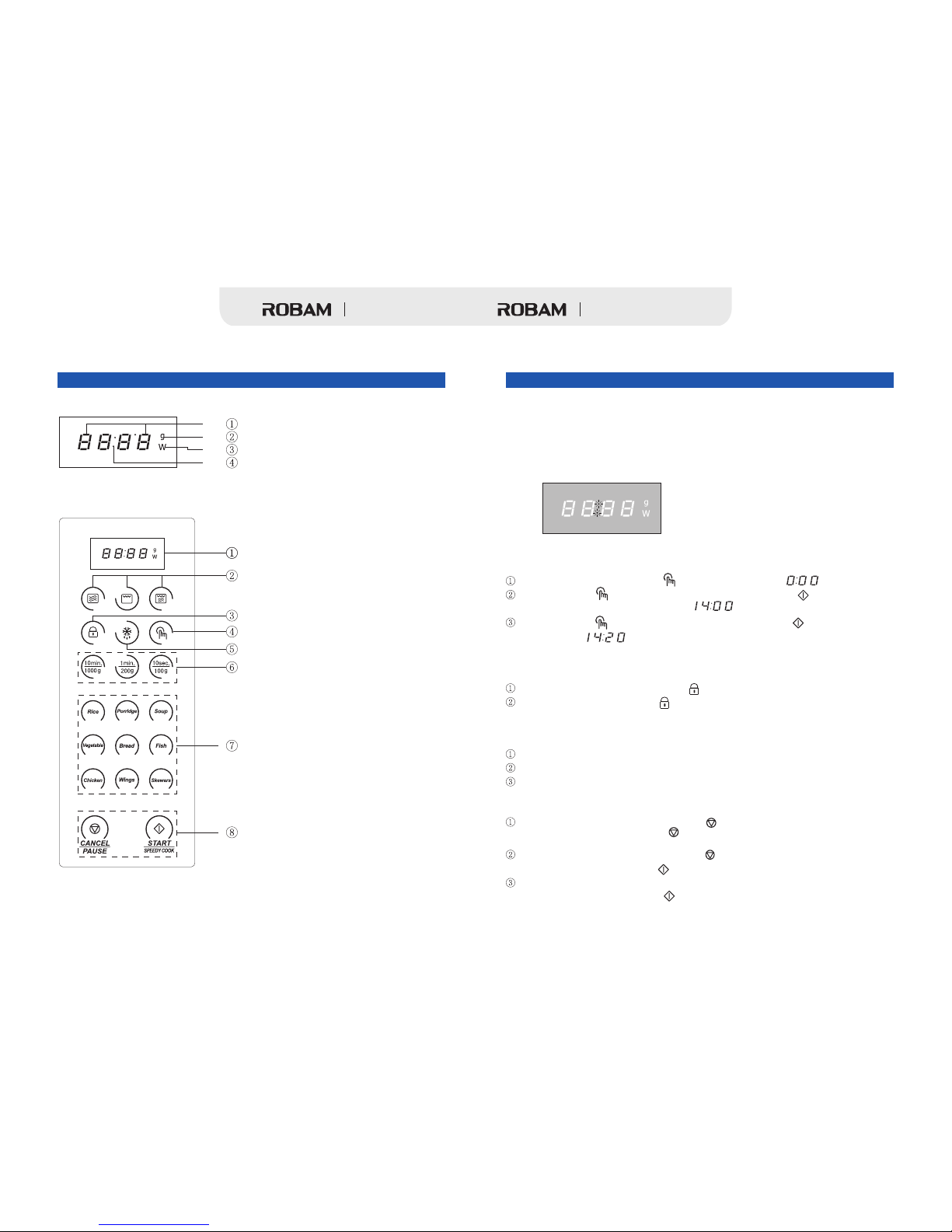

2. The control panel introduction

Note:the color of display screen is always red.

1. Display Screen

D i g i t a l s h o w s t h e t i m e , w e i g h t a n d power

Weight units: g

Microwave power units: w

Time display

1 1

3. Function Setting Introduction

3.1 The energized and standby mode

When the power is switched on, the two points on the center of screen blink, and begin to flash. This mode means

standby , all operations should start in this condition. If the microwave oven without operation in more than five

minutes, the appliance will automatically change to this mode. As shown in the following illustration.

3.2 Clock function

Microwave oven with clock display function, for 24H system. Using the example of 14:20 to illustrate.

In the standby mode, press confirm button " " 3 seconds, the screen display " " hours position flash.

Press confirm button " ", regulate the hours to "14 ", then press the start button " ", it means the hour

position adjustment is completed, the screen shows " " , minute position flash.

Press confirm button " ", regulate the minutes to "20 ", then press start button " " , time setting is finished,

the screen display " ".

3.3 Child lock function

In order to prevent children operation, the oven has child lock function.

Set Child l ock: under the sta ndby state, press the lock button " " once, the buzzer give a sound, the operation button locks;

Unlock: u nder the lock stat e, press the lock bu tton " " for 3 seconds, the buzzer give a sound, leave the lock function;

3.5 Cancel and pause

When the appliance is running, press the cancel button " " once, appliance temporarily stop running, stop

timekeeping . Then press the cancel button " " once, the appliance stops running, the screen shows the

standby state.

When the appliance is running, press the cancel button " " once, the appliance temporarily stop running, stop

timekeeping. Then press the start button " " once,the appliance will continue according to the original time set.

3.4 Buzzer warning

During the operation of microwave oven, the appliance will sound with every operation.

Press any button, the buzzer will sound one time;

After timing, the buzzer will sound five times, it means cooking have completed.

After the end of cooking, if user does not take the food away, the buzzer will sound once in every

five minutes.

If open the door when the appliance is running, the appliance will temporarily stop running, and stop timekeeping.

Then close the door, press the start button " " , the appliance continues to run.

Function Introduction

1 2

Microwave Oven Microwave Oven

3.6 Speed cook function

In order to start the microwave fastly, microwave is provided with fast heating function.

In the standby mode, press " " one time, microwave runs one minute as microwave function.

Press one time more, one minute is added, the maximum time is ten minutes.

In the standby mode, use timing button " " to change time.

Press " " button, microwave run as microwave function as the setting time.

3.7 Microwave cooking

Based on the difference of power, the microwave cooking function is divided into five levels:800W, 600W, 400W,

200W and 100W.

In the standby mode, press button once, the display screen shown users can press

Several times to choose the cooking power.

" " " "

Press" " button to set cooking power, the display screen shows " " .

Press three time buttons " " to preset time.

Press “ " button to start it.

Note: There is " delay " function for microwave cooking. Once finish preset, microwave oven will

start after 3 seconds.

3.8 Grill

Based on the cooking temperature, light wave grill is divided into two level of " G-1 " and " G-2 " .

In the standby mode, press grill button " " one time, display shows " " users can press

more times in order to choose the right grill level;

Press " " button to confirm level, the display screen shows " " .

Press three time button " " to set time.

Press " " button to start microwave oven.

3.9 Microwave grill combination cooking

Based on the microwave and grill cooking time, the microwave oven’s microwave unitized cooking

function is divided into two level of " C-1 " and " C-2 " .

In standby mode, press " " button once, the display screen shows " " .Users can

press unitized function several times to select corresponding level.

Press " " button to confirm level, display screen shows " " .

Press three "time" buttons " " to set time.

Press " " button to start microwave oven.

Function Introduction

3.10 Menu cooking

For the convenience of user for cooking,the microwave has 9 shortcut menus buttons;

1 3

Menus: rice, porridge, soup, vegetable, bread, fish , chicken, wing and skewers.

Take example for fish.

Function Introduction

In the standby mode,press button of " Fish " one time,screen shows " 300 " degree, user can

press more times to choose cooking material weight, with option of 300g,500g,1000g.

Press " " button to start microwave oven.

Porridge

Weight Function

100g

200g

300g

50g

100g

Rice

Soup

Vegetable

Bread

Chicken

Fish

Wing

Skewers

500g

800g

300g

500g

800g

100g

200g

300g

400g

1000g

Microwave

400g

800g

1200g

Microwave 、 Grill

400g

800g

1200g

400g

800g

1200g

Microwave 、 Grill

Note: 1. On menu, soup weigh t means the total we ight of soup, but other weight on menu means food weight;

2. On menu, i f there is grill fun ction,it's bet ter taste to revol ve food during coo king.

3. The cooking will be effected by u tensils, food we ight,or other fa ctors.If food do n't maturing or to o maturing, plea se adjust cooking

time.

1 4

min min sec

Microwave 、 Grill

min min sec

Microwave Oven Microwave Oven

3.11 Defrost function

For the chilled foods, the microwave has fast defrost function.

In the standby mode,press button " " once, " “ shown on the display screen.

To press three times button " " to set weight.

Press " " button to start microwave oven.

In order to defrost uniformly, during defrosting,user needs to turn the foods into the other side, it

will be better taste.

Function Introduction

Defrost Weight Defrost Time Defrost Weight Defrost Time

2 minutes 30 seconds

4 minutes

5 minutes 30 seconds

7 minutes 30 seconds

9 minutes 30 seconds

11 minutes 30 seconds

13 minutes 30 seconds

15 minutes 30 seconds

20 minutes

18 minutes

100g

200g

300g

400g

500g

600g

700g

800g

900g

1000g

1100g

1200g

1300g

1400g

1500g

1600g

1700g

1800g

1900g

2000g

21 minutes 30 seconds

24 minutes

26 minutes

28 minutes

30 minutes

32 minutes

34 minutes

36 minutes 30 seconds

39 minutes 30 seconds

37 minutes 30 seconds

Installa tion Environment

Don’t clo se to television , radio and antenna

etc. (mic rowave will inte rference signal and

emerge no ises)

Don’t put m icrowave oven in to high

tempera ture or moist plac es. like beside the

gas hobs, e lectriferous a rea, sink.

Electricity power source: ROBAM microwave oven should be independent power source. it has the possibility melt ing t he sa fet y

wires or postpone the cooking time, if with non-independent power system. Don’t use high power capacity safety wire.

Ground connection introduction: This product should have ground connection system. Plug must insert into the socket with ground

connection.

Caution: If the temperature is too high in the room, users should not use this appliance. It is only for household.

1 5

安装说明

1 6

Installation methods:

A. Place the install paper at the bottom of the cabinet, align the center line and the cabinet center. One

side of installation paper which have no screw holes’ position aligned with the cabinet outside edge.

Mark on the cabinet in accordance to the location of screws holes’ position on the installation paper.

Place the positioning plate in the right direction to the mark with three screws (4x10) fixed in the

cabinet.

As in Figure 1. (The protruding edge of positioning plate toward the front of the cabinet)

B. Put the machine into the cabinet, make the right and left distances between frame and cabinet are

equal. Positioning board positioned in the product positioning groove. Open the door, before the liner

screw position using screws (4x35) lock will be fixed in the cabinet. And then install the screw cap as

in Figure 2.

C. The socket location should be convenient to plug, and grounding reliable.

Installa tion Methods

Please install the microwave oven correctly refer to the drawing and installation method

below:

1. Positioning plate 2. Install paper 3. Screws 4x10(3pcs) 4. Screw cap 5. Screws 4x35(1pcs)

Ps: The figure dimensions are in mm. Desirability of cabinet timber thickness is 15-20mm.

Screw holes’ position

Inlet port

Figure 1

Exhaust port

Figure 2

The latter half embedded installation hole size (W x H x D). 560x380x550mm.

550

100

380 Inner hole size

560Inner hole size

450

min min sec

Microwave Oven Microwave Oven

Tabla de contenidos

Otros manuales de Microondas de Robam

Robam

Robam CQ935H01 Manual de usuario

Robam

Robam WK25-M612B Manual de usuario

Robam

Robam WK25-M602 Manual de usuario

Robam

Robam WK25-M612S Manual de usuario

Manuales populares de Microondas de otras marcas

Daewoo

Daewoo KOG-574R0S Manual de usuario

LG MH7040SS Manual de usuario

Sharp

Sharp R-895(AL)M Manual de usuario

Dometic

Dometic DOTRM13W Manual de usuario

Sanyo

Sanyo EM-X680 Manual de usuario

Sharp

Sharp R-393M Manual de usuario

KitchenAid

KitchenAid KMCX4510 Instrucciones de instalación

Smeg

Smeg S45MCX1 Manual de usuario

Russell Hobbs

Russell Hobbs RHM2044 Manual de usuario

Sunbeam

Sunbeam SMW759 Manual de usuario

Gallet

Gallet FMOE230S Manual de usuario

Bosch

Bosch CEG732X.1B Manual de usuario

Dometic

Dometic Roadmate 230 Manual de usuario

Samsung

Samsung SJ0396W Manual de usuario

Sanyo

Sanyo EM-P494WS Manual de usuario

Sharp

Sharp R-240 Manual de usuario

Electrolux

Electrolux EMS2840 Manual de usuario

Daewoo

Daewoo KOC-984T2S13 Manual de usuario
