Ind. LuNAR 200DTG3 Installation Guide2

General Description

The Industrial LuNAR DT AM Grade 3 (Ind. LuNAR 200DTG3) is a dual technology ceiling detector with

a mounting height of up to 8.6m (28ft) that incorporates RISCO Group’s Anti-Cloak™ Technology

(ACT™). The detector has an Intelligent Digital Signal Processing method that automatically adjusts the

alarm threshold and pulse count verification according to actual intruder crossing speed and

environmental factors, providing superior detection and false alarm immunity.

The Ind. LuNAR 200DTG3 can operate as a regular relay detector connected to any control panel, or as

an addressable BUS detector when connected to RISCO Group’s ProSYS control panel via the RS485

BUS.

Ind. LuNAR 200DTG3 Features

♦PD6662, EN50131-1, TS50131-2-4 Grade 3

♦Addressable Dual Technology detector with Anti-Cloak™ Technology

♦Up to 8.6 m (28ft) mounting height

♦3600by 18m (60ft) diameter coverage pattern

♦3 independent PIR channels for customized coverage

♦Intelligent Digital Signal Processing – alarm verification and decision thresholds adjusted

according to actual intruder crossing speed

♦Built-in Triple EOL resistors, jumper selectable

♦Active IR for Anti-Masking meeting TS50131 requirements

♦Ceiling and cover tampers

♦"Green Line" setting – for disabling the MW when the premises are occupied

♦Opto–relays for low current consumption and long life

♦Remote and Local Self Test

♦Remote SET input

♦Remote RC control input

♦PIR coverage optimization by sliding the lenses

♦Microwave Range Adjustment manually (analog trimmer) and remotely (digital setting)

♦Trouble Indication (by LEDs or via communication)

♦3 Triple color LEDs for easy walk testing

♦Advanced Remote control and diagnostics

♦Reduced Power Consumption when connected to RISCO Group’s ProSYS

Ind. LuNAR 200DTG3 Installation

Guide 3

Remote Control and Diagnostic Features*

♦Remote microwave adjustment enables one-man walk test.

♦Diagnostic tools include detector input voltage reading and status of each PIR channel and

MW channel (signal voltage and noise levels), AM channel (signal voltage), SW version

verification.

♦Remote display and control of detector settings: MW adjustment, ACT on/off, LEDs on/off.

♦Remote trouble indication (Pass/Fail) for the PIR, MW and power supply input

♦Control of MW bypass (during MW trouble) and MW disable during Disarm ("Green Line")

when connected to ProSYS.

*Via the optional Bi-Directional Infrared Remote Control, or the ProSYS Upload/Download

Software and Keypad.

Detection Method

The Ind. LuNAR 200DTG3 detection is based on:

♦PIR (Passive Infra-Red) - which responds to changes in the IR radiation caused when an

intruder crosses the protected area.

♦MW (Microwave) - which transmits signals and analyzes the frequency changes of the

reflected echo from an intruder using Doppler Effect.

ALARM is initiated only when both technologies trigger simultaneously (except for certain situations in

the ACT mode-see page 4 – “How ACT™ Works”), thus greatly reducing the possibility of false alarms.

English

Ind. LuNAR 200DTG3 Installation Guide

How ACT™ Works

Anti-Cloak™ Technology (ACT™) provides the benefits of DT (Dual Technology) while avoiding its

drawbacks. This patent pending innovation has created a new standard for detectors.

Dual Technology, a combination of PIR +MW, was an important development for the security

industry...but, it has 2 major weaknesses:

IR emission blocking cloaks employed by intruders enable avoidance of detection.

PIR sensitivity is reduced when the protected area’s ambient temperature approaches body

temperature.

Responding to requests from its customer base to solve these pressing problems, RISCO Group

developed ACT™ -a revolutionary anti-cloak solution.

ACT™ prevents the alarm system from being bypassed, by neutralizing attempts to camouflage IR

radiation. Using unique pattern recognition algorithms, ACT™ distinguishes between the weak IR

signal of a moving intruder and the background noise and thermal interferences that may cause

false alarms.

Once the presence of an intruder is recognized, ACT™ switches the system automatically from dual

channel PIR/MW mode to single channel MW mode for a predetermined period of time, in order to

trigger an alarm utilizing the MW channel, and then returns to dual channel mode.

In the second case, when the ambient temperature approaches body temperature, the ACT™

switches to microwave-only detection.

Offering significantly higher detection capabilities as well as immunity from false alarms, ACT™

thwarts even the most sophisticated burglars.

Ind. LuNAR 200DTG3 Installation

Guide 5

Ind. LuNAR 200DTG3 Configuration Options

The Ind. LuNAR 200DTG3 can be configured and/or diagnosed remotely via one of the options:

Manual

configuration

Remote

Control

Device

ProSYS Bus

Control

ACT Mode 999

LEDs 999

MW Sensitivity 9(by trimmer) 99

Diagnostics - 99

Status/Trouble/Info Reports - 99

AM Diagnostics - -

MW Bypass - -

MW Disable on Disarm

("Green Line") - -

LED Display

The three Tri color LEDs in the Ind. LuNAR 200DTG3, operate as herein described:

LED STATE MEANING

Steady Detector alarm (simultaneous PIR and MW

detection)

Flashing with low frequency Indicates malfunctioned communication

with ProSYS

Red

Flashing with high frequency AM detection

Steady Microwave detection

Green Flashing Trouble in the MW channel

Steady PIR detection

Orange Flashing Trouble in the PIR channel

All LEDs Flashing with change of color Upon power up

English

Ind. LuNAR 200DTG3 Installation Guide6

INSTALLATION

Preliminary steps:

♦Before installation, study the space to be protected carefully in order to choose the exact

location of the unit for the best possible coverage.

♦Never install the Ind. LuNAR 200DTG3 in an environment that causes an alarm condition in

one technology.

♦Avoid installations where rotating machines (e.g. fans) are normally in operation within the

coverage pattern. Point the unit away from glass exposed to the outdoors and objects that

may change temperature rapidly.

♦Do not mount the detector in direct sunlight or near any heat sources. Detection sectors

should be pointed either towards a wall, floor but not towards windows or curtains. The

installation surface should be solid, smooth and vibration free

♦Eliminate interference from nearby outside sources.

♦For optimum detection, select a location likely to intercept an intruder moving across the

coverage pattern.

♦Recommended mounting heights that allow 18m (60ft) detection, are from 3.7m to 8.6m.

♦The detector must be mounted on the ceiling, preferably in the center of the room.

Ind. LuNAR 200DTG3 Installation

Guide 7

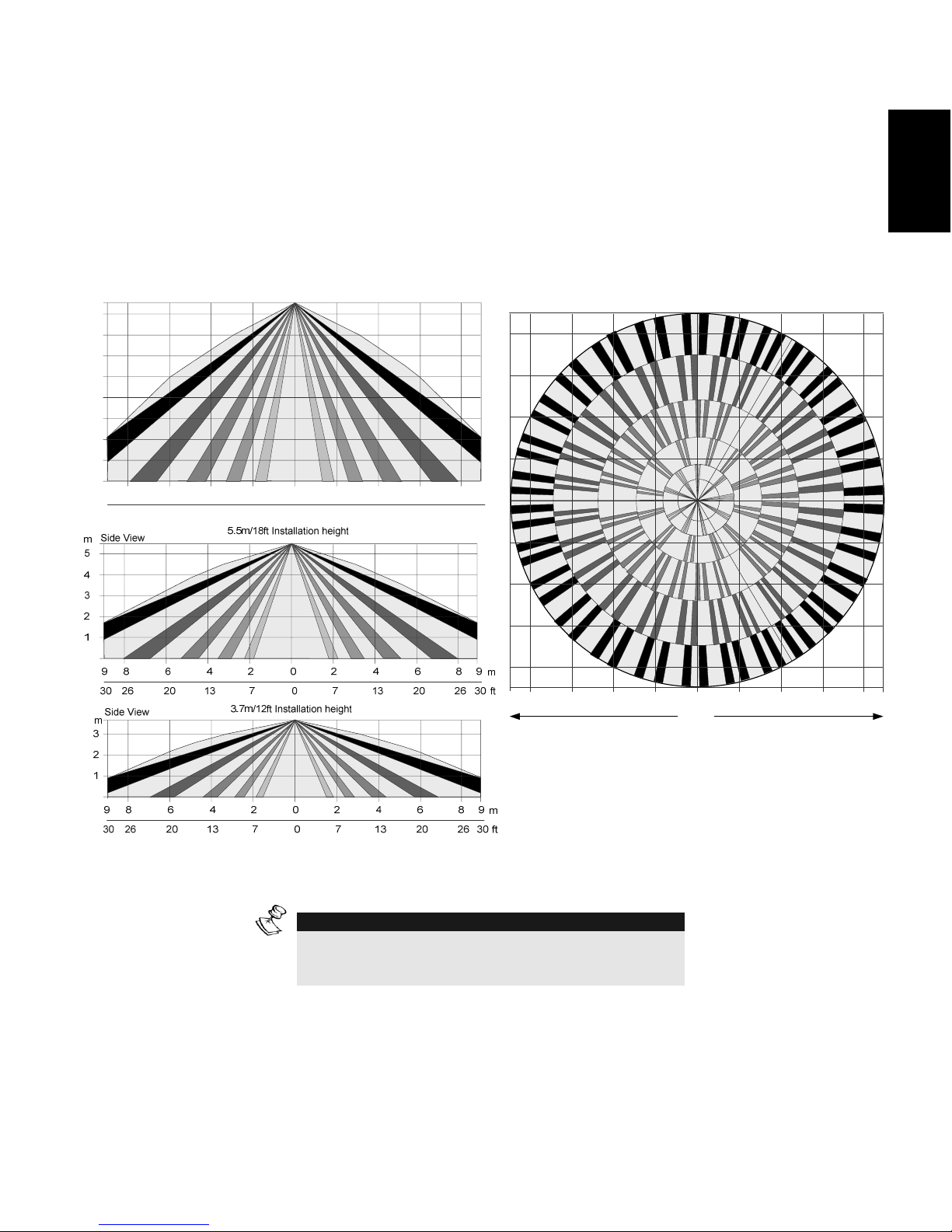

Typical Ind. LuNAR 200DTG3 detection coverage and installation height, are illustrated below:

Side View

02468998 6 4 2

0 7 13 20 26 3030 26 20 13 7

8.6m/28ft Installation height

Top View

02468998642

0 7 13 20 26 3030 26 20 13 7

18m/60"

NOTE:

When installing the Ind. LuNAR 200DTG3 detector in a

room occupied with high volume interfering elements,

MW detection may be affected.

English

Ind. LuNAR 200DTG3 Installation Guide8

Installation Process:

To open the detector (Figure 1), remove the cover by inserting a screwdriver (1) in the recess

between the detector’s protection cap and the cover. The cover will remain attached to the base of

the detector.

Using a Philips screwdriver, release the upper cover screw (2) and gently pull upward the detector’s

upper cover.

FIGURE 1
