RIOTEC LS6300E Manual de usuario

Laser Barcode

Scanner

Model no.

LS6300E/LS6320E

User’s Manual

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user‘s authority to operate the equipment.

Limited Warranty

No warranty of any kind is made in regard to this material, including, but not limited to,

implied warranties of merchantability or fitness for any particular purpose. We are not liable

for any errors contained herein or for incidental or consequential damages in connection with

furnishing, performance or use of this material. We shall be under no liability in respect of

any defect arising from fair wear and tear, willful damage, negligence, abnormal working

conditions, failure to follow the instructions and warnings, or misuse or alteration or repair of

the products without written approval.

Table of Contents

1. INTRODUCTION……………………………………………………………………………… ..…2~3

2. INSTALLATION………………………………………………………………………………..…...4~6

3. SET UP FROM BAR CODE LABEL………………………………………………………….……..7

Multi-interface Functions……….………………………………………………………..8~9

Interface-KBW………………………………………………………………………………….10

Interface-Serial……..……………………………………………………………………11~12

Symbologies On/Off…………………………………………………………………….13~15

Symbologies Set Up…………………………………………………………………….16~21

Edit Setup Bar Codes……………………………………….……………….………..…… 22

Macro/Special Keys Setup Bar Codes………………………………………………….23

Termination String Setup Bar Codes…………………………………………………..24

4. FACTORY DEFAULT SETTING…………..……………………….………………..………25~26

5. APPENDIX A: TROUBLESHOOTING AND ERROR BEEPS……..………………….27~31

Introduction

RIOTEC 1D Laser barcode scanner combines the best scanning performance and value. The

device provides an accurate, easy, and fast method of data entry and data storage for

computerized information systems. It is easy to install and does not require Software or

drivers to operate.

RIOTEC laser barcode scanner can compatible several interfaces (USB, K/B, RS-232,) and

numerous configurations, is a powerful and reliable handheld scanner without compromise.

All the operating parameters are programmed by bar code programming menu and stored in

non-volatile RAM which can retain the settings after power is turned off.

When a barcode is successful decoded, the blue LED light of the scanner will turn on and off.

The scanner will beep once. If the barcode is not successful read, the LED will show red and

the buzzer will not sound.

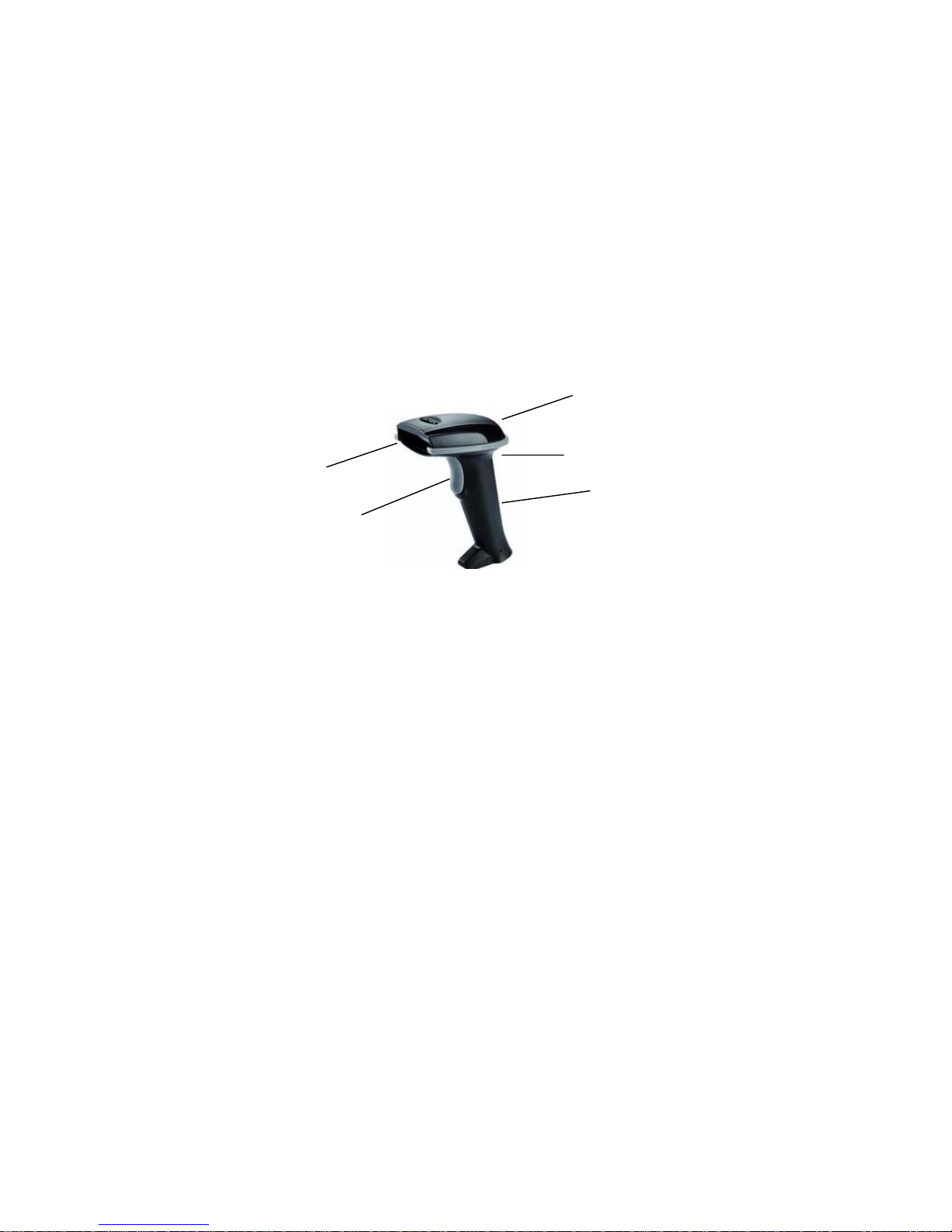

LED

Exit Window

Trigger

Handle

BUZZER

Installation

Insert the plug on the free end of the Communications Cable into the appropriate connector on

the t as below described:

1. USB cable Connection:

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect codes,

please scan the “Reset Configuration to Defaults” barcode. This will reset the scanner

to its factory defaults settings in USB interface.

2. PS2 (K/B) cable Connection:

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect codes,

please scan the “Reset Configuration to Defaults” barcode. This will reset the scanner to

its factory defaults settings in PS/2 interface.

Connect with host

Connect with keyboard’s

connector

3. RS232 cable Connection:

NOTE: for Serial port (RS232 cable), please plug the power connector of 5V power

adapter to RS232 cable.

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect codes,

please scan the “Reset Configuration to Defaults” barcode. This will reset the scanner to

its factory defaults settings. Then “000601” for RS232 serial setting.

4. Auto-sensing setup

For some scanners have auto-sensing function. There is an auto-sensing function button

shown on below photo. Default is ON.

*Auto-sensing normally is ON. Press once is OFF, Press once again is ON.

Connect with host

Require adapter for power supply

Operation

1. Be sure that Host computer is turned OFF.

2. Ensure that all connections are secure.

3. Turn on your host. And please operate the scanner under the right software

application, such as Notepad or Word(RS232 interface should be under

Hyper Terminal” and make the right setting).

4. Aim the scanner at a barcode, ensure that the scanner is in trigger mode (default),

and press the trigger.

5. On successful decode, the blue LED light will turn on and off. The scanner will

beep once.

Tip

Do not hold the scanner directly over a barcode at 90˚. Scanning light bounces directly

back into the scanner from the barcode label is known as specular reflection which will

create a "dead zone" where decoding is difficult. Practice a few times to find what range

of angles works best.

Maintenance

Cleaning the scan window is the only maintenance required. A dirty window may

affect scanning accuracy.

Wipe the scanner window gently with a lens tissue or other material suitable for cleaning

optical material.

Do not spray water or other cleaning liquids directly onto the window.

Setup from Bar Code Label

Multi-Interface Functions – 1

OUTPUT FIRMWARE VERSION

RESET CONFIGURATION TO

DEFAULTS

0A 0B

OUTPUT MODE – KEYBOARD / USB OUTPUT

MODE

OUTPUT MODE - SERIAL

000600 000601

GOOD READ BEEP TONE – NONE BUZZER /

LED

GOOD READ BEEP TONE - RESET

014200 0B142

DECODE OPTIONS REVERSE IMAGE –

ENABLE


DECODE OPTIONS REVERSE IMANGE

- DISABLE

01391 01390

DECODE OPTIONS SEND BAR CODE ID -

DISABLE

CODE ID

DECODE OPTIONS SEND BAR CODE

ID – AS A PREFIX

01400 01401

DECODE OPTIONS SEND BAR CODE ID -

RESET

DECODE OPTIONS SEND BAR CODE

ID – AS A SUFFIX
