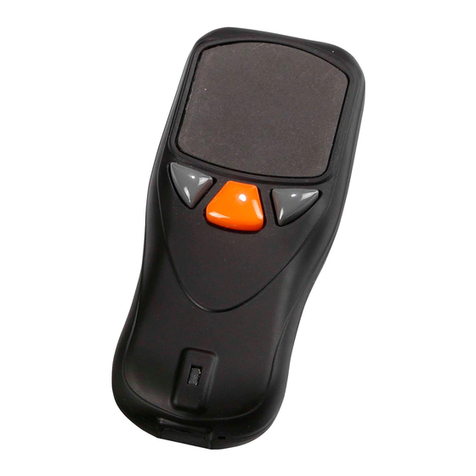

RIOTEC DC9277L Manual de usuario

Quick Guide

-DC9277L

Connect to micro USB port of OTG device

*Before you use scanner, please switch to "C" for battery

charge for 3~4 hours.

*Under “C mode”, you can raise/lower soft-keyboard

easily. (For USB HID only)

DC9277L is with Li-Ion battery inside. When in charging,

please use the original power adaptor of OTG device

(recommend). Through it, it charges both OTG device and

DC9277L internal battery at the same time. When in low

battery (Red LED flashing), please charge it immediately.

LED Indicator Information

Green LED OFF

Full charged (Charge mode)

Green LED ON

Charging (Charge mode)

Red LED Flashing

Low battery (Operation mode)

Attention: Under “Operation mode” please do not charging,

otherwise the OTG device's battery will be charging back to

DC9277L’s battery.

The touch sensor area is around the central area. There are 2

button trigger on the right and left side.

Please check the above drawing for your reference.

Installation

Before using scanner, please make sure that the OTG device is

fully charged.

1.Under USB HID interface

** When plugged into OTG device, it will be recognized and

begin to scan the barcode.

2. Under USB Serial interface

** Please install PL-2303 driver into your OTG device first.

PL-2303 driver can be downloaded from Google Play

** Connect scanner to your OTG device, then, you can

know which serial port scanner connects to.

** The data you scan will be sent to serial port and your

APP can get the data from serial port directly.

Suction Cup

PU Glue

(Can be used

repeatedly)

Micro USB

cable (OTG)

Li- Ion Battery

Button Trigger

O=Operation mode

Exit Window

C=Charge mode

Touch Trigger Area

Button Trigger

Charge port

Indicator

(LED)

Indicator (LED)

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have

scanned the incorrect codes, please scan from A1 to A3 for

USB HID or B1 to B4 for USB Serial. This will reset the scanner

to its factory defaults.

USB HID USB Serial

0006010

0001160

0006000

0310020

0006000

*Note: Please install PL-2303 driver for USB Serial.

Barcode Configuration Method:

Flow chart for setup procedure:

Start

Configuration

End

Configuration

0006010

0006000

Keyboard Language(For USB HID only)

Scan the appropriate country code as below to program the

keyboard layout for your country or language. As a general

rule, the following characters are supported, but need special

care for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

1103001

1103002

USA

Japan

1103003

1103004

Denmark

Finland

1103005

1103227

France

1103007

1103008

Italy

Norway

1103006

1103226

Turkey F

Turkey Q

1103202

1103222

Belgium

Spain

1103209

1103220

Germany,

Austria

Russia

1103223

1103218

Sweden

Portugal

Barcode Configuration Method:

(Flow chart for setup procedure :)

Start

Configuration

End

Configuration

0006010

0006000

1D Symbologies –1

ENABLE

UPC-E

DISABLE

0403020

0403010

ENABLE

UPC-A

DISABLE

0404020

0404010

ENABLE

Code 128

DISABLE

0400020

0400010

ENABLE

GS1-128

UCC/EAN-128

DISABLE

0412020

0412010

Barcode Configuration Method:

(Flow chart for setup procedure :)

Start

Configuration

End

Configuration

0006010

0006000

1D Symbologies –2

ENABLE

Code 39

DISABLE

0408020

0408010

ENABLE

Code 93

DISABLE

0410020

0410010

1D Symbologies –3

ENABLE

EAN-8

DISABLE

0401020

0401010

ENABLE

EAN-13

DISABLE

0402020

0402010

ENABLE

ISSN

DISABLE

0421020

0421010

ENABLE

ISBN

DISABLE

0416020

0416010

ENABLE

Codabar

DISABLE

0409020

0409010

ENABLE

GS1-Databar

(RSS)

DISABLE

0413020

0413010

ENABLE

Interleaved

2 of 5

DISABLE

0405020

0405010

2D Symbologies

ENABLE

Data

Matrix

DISABLE

0504020

0504010

ENABLE

QR Code

DISABLE

0502020

0502010

ENABLE

Micro

QR Code

DISABLE

0502110

0502100

ENABLE

PDF 417

DISABLE

0501020

0501010

Inter-Keystroke Delay(For USB HID only)

This parameter specifies the delay between emulated keystrokes.

No Delay

1103050

Short Delay

(20ms)

Long Delay

(40ms)

1103051

1103052

Information in this document is subject to change without notice.

For more information, please visit:

www.riotec.com.tw

R_180716_01
