Rifton Blue Wave E541 Manual de usuario

Blue Wave

Bathing System

E541, E542, & E543 Product Manual

E541, E542 & E543

Contents

Important information 3

Safety messages 4

Recommended use and item dimensions 5

Check your order 6

Basic components

Legs 6

Seat and back 7

Head blocks 7

Standard fabric cover 8

Soft fabric cover 9

Leg straps 10

Accessories

Tub stand 11

Shower stand 12

Conversion kit 12

Operation and maintenance 13

Cleaning and warranty 14

Materials and user modiﬁcations 15

IMPORTANT

Please save this product manual for future reference. Additional copies are

available at http://www.rifton.com/customer-service/product-manuals.

Key for users

Use this key to determine which sections of this product manual apply to you.

Technical Users For professionals who order and set up Rifton products.

Home Users For care-givers who use Rifton products on a regular basis.

Maintenance Personnel For anyone who is responsible for service or

re-ordering of Rifton products and parts.

• Thoroughly read and understand the information in this product manual before

attempting to use this product. If the procedures and instructions in this product manual

are not followed, serious injury or death could occur.

• A qualiﬁed professional must assess the appropriateness and safety of all equipment for

each user.

• This product is intended for use by clients of unreliable judgment. Adult supervision is

required at all times.

• To prevent falls and injuries:

○Do not use this product on rough and uneven terrain, around swimming pools, or

near stairways.

○Ensure the appropriate use of straps and supports at all times. Straps and supports

are provided for the safety of the user and must be carefully adjusted for comfort and

security.

○Tighten all adjustment knobs before use and immediately after making any

adjustments.

• Do not use this product for clients outside the height and weight limits speciﬁed in this

manual.

• To prevent pinching or crushing, ensure that all hands and feet are clear of moving parts

during adjustment.

• To prevent structural failure, which may result in serious injury or death:

○Inspect this product and accessories regularly for loose or missing screws, metal

fatigue, cracks, broken welds, missing attachments, general instability or other signs

of excessive wear.

○Immediately remove this product from use when any condition develops that might

make operation unsafe.

○Do not use Rifton components or products for any purpose other than their

intended use.

WARNING

Recommended use

The Blue Wave bathing system is a Class 1 medical device. The basic bath chair, with the

optional tub stand or rolling shower stand, provides a stable, quick-drying seat for bathing.

It provides safety and comfort for both bather and caregiver. Two types of fabric, either

standard or soft, are available to meet the needs of different clients.

User dimensions – inches (cm) small medium large

Height up to 36 (91) 32-50 (81-127) 46-68 (117-173)

Key user dimension: height

Select the appropriate bath chair by the user’s overall height. Choose the size that allows for

growth.

Important: Make sure that seat depth, width, and back height are adequate. The user’s weight must

not exceed the maximum working load.

Item dimensions – inches (cm) small medium large

Seat depth 13 (33) 13 (33) 16½ (42)

Seat width 14½ (37) 14½ (37) 14½ (37)

Back height 18 (46) 25 (64) 32 (81)

Seat height 2-7 (5-18) 2-7 (5-18) 2-7 (5-18)

Seat height (incl. tub stand) 11-17 (28-43) 11-17 (28-43) 11-17 (28-43)

Seat height (incl. shower stand) 28 (71) 28 (71) 28 (71)

Length of mesh area when ﬂat 32½ (83) 38½ (98) 49½ (126)

Width of base 17 (43) 17 (43) 17 (43)

Length of base when ﬂat 30 (76) 30 (76) 30 (76)

Tub stand height 10 (25) 10 (25) 10 (25)

Tub stand length 32 (81) 32 (81) 32 (81)

Tub stand width 17 (43) 17 (43) 17 (43)

Shower stand height 21 (53) 21 (53) 21 (53)

Shower stand width 27 (69) 27 (69) 27 (69)

Shower stand length 33 (84) 33 (84) 33 (84)

Max. working load - Lbs. (kg) 60 (27) 120 (54) 160 (73)

Back and seat angle adjustments 0°, 22°, 45°, 67°, and 90°

User and item dimensions

Check your order

Your Blue Wave bath chair, tub stand, or shower stand comes completely assembled.

The chair ships with the legs in the collapsed position and the headblocks attached

underneath. Reposition before use.

If your shipment is incomplete or in any way damaged on arrival, please call

Customer Service, 800.571.8198.

Figure 6a

Figure 6b

The Blue Wave bath chair comes in small,

medium, and large sizes. It can be used

with or without a stand. Standard or soft

fabric is available for all sizes.

Legs

The bath chair legs adjust to raise or lower

the chair by 7" (18 cm).

To raise or lower the chair (see Figure 6a):

1. Pull crossbar outward.

2. Rotate legs up or down.

3. Push crossbar in to engage.

The bath chair folds ﬂat for storage

(see Figure 6b).

Basic components

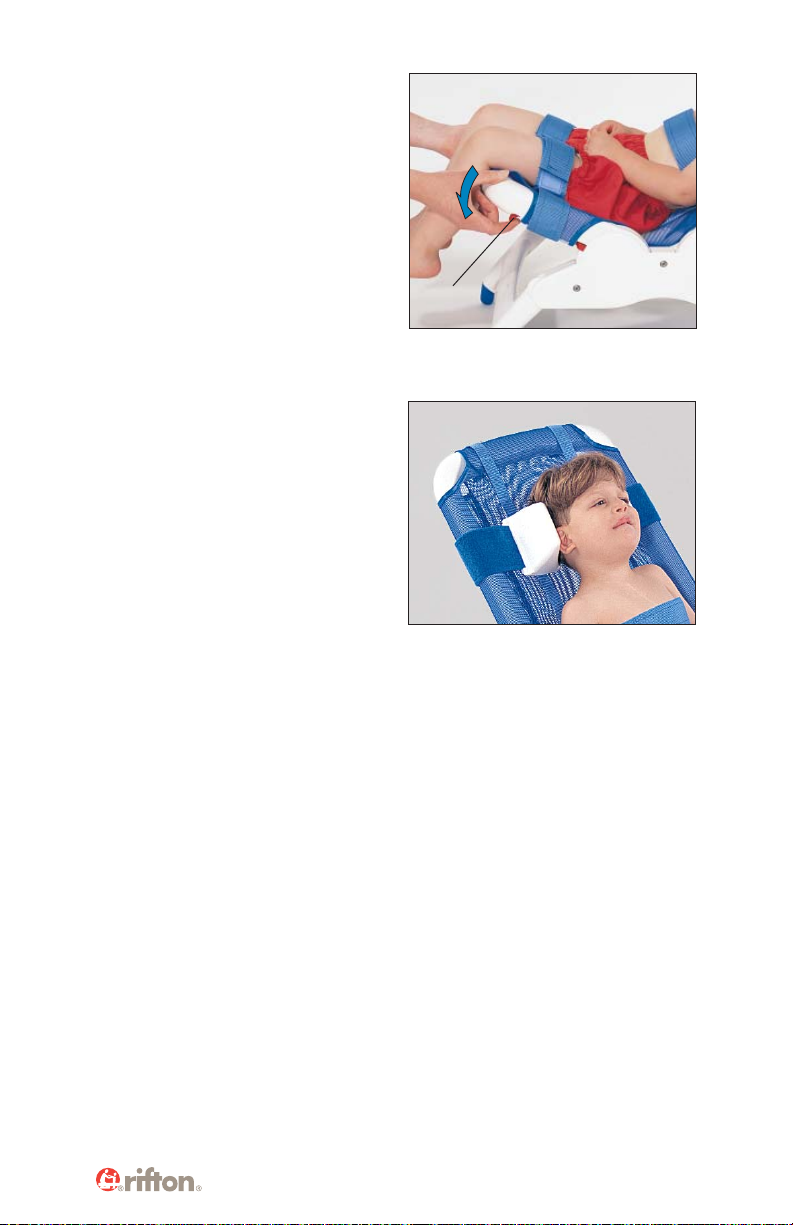

Figure 7a

Trigger

Figure 7b

Seat and back

The seat and back adjust in 22˚ increments

to accommodate a variety of users. To

adjust the seat (see Figure 7a):

1. Pull red triggers on both side

of the frame.

2. Rotate seat and/or back to

appropriate position.

3. Release the triggers.

Head blocks

Slide the head blocks in and out on the

strap to adjust spacing. They can also be

positioned at any height using the hook

and loop fasteners at the back

(see Figure 7b).

Covers

Standard fabric

The vinyl-covered polyester mesh provides

a taut, ﬁrm surface that dries quickly (see

Figure 8a).

Chest straps

The standard fabric cover comes with

one chest strap, which may be used to

position and support the user. Additional

straps may be ordered if needed.

(see Figure 8b).

Leg straps

Fasten the leg straps to support the user’s

legs. Leg straps can be used for abduction

by wrapping ends of straps underneath

seat (see Figure 8c).

Figure 8b

Figure 8c

Figure 8a

Soft fabric

The soft polyester-knit is suitable for

younger clients, or for clients with sensitive

skin (see Figure 9a).

Chest strap

The soft fabric cover has a polyester

knit chest strap providing a comfortable

‘hug’ for secure lateral positioning. Extra

padding between fabric and frame softens

surface contact.

Attach the chest strap (see Figure 9b). The

inside strap goes around the chair and is

attached with hook and loop fasteners. The

outer strap goes around the user’s chest,

and side straps provide additional lateral

support (see Figure 9c).

Figure 9b

Figure 9c

Figure 9a

Figure 10a

Figure 10b

Leg straps

The leg straps thread through loops in

the cover and can be adjusted around the

user’s legs (see Figure 10a and 10b).

All straps can be removed. Adjustments

can be made with user in chair.
