4Control Panel

CIP Training

Pro C5200 series

Information Inquiry.

Counter

The counter displays the total number of pages used

by each of the functions.

You can also print out the counter information.

•Press the [Counter] key.

•To print a counter list, press [Print Counter List],

and then press the [Start] key.

•Press the [Counter] key.

•Press the [Check Status] key.

•Press the [Maintnc./Inquiry/Mach. Info] tab.

•Press [Inquiry].

•After checking the information, press [Exit].

CIP Training Pro C5200 series

Control Panel Information

Checking Inquiry using the [Check Status] key

You can check the following items under [Inquiry]:

[Machine Repairs]

Displays the machine number and contact number

which are required for service.

[Sales Representative]

Displays the sales representative's telephone number.

[Supply Order]

Displays the contact number for placing supply orders.

[Supply Details]

Displays the name of toner, staples, etc., used on the

machine.

Checking Inquiry using the User Tools

Supplies

•Telephone No. to order

•Toner

•Staple

•Staple: Center

•Waste Toner Bottle

Machine Maintenance/Repair

•Telephone No.

•Serial No. of Machine

Sales Representative

•Telephone No. •Press the [User Tools] key.

•Press [Inquiry].

•To print an inquiry list, press [Print Inquiry

List], and then press the [Start] key.

•Press the [User Tools] key.

CIP Training Pro C5200 series

Self Help/Service Call

Our Customer Care Centre is a phone call away on 1300 887 414

Alternatively, head to www.ricoh.com.au/support to place a service call, order consumables or

have further access to “How to” documents and videos.

Web Image Monitor

This describes frequently used Web Image Monitor functions and operations. For information not

included in this chapter, see Connecting the Machine/ System Settings available on our website or Web

Image Monitor Help.

Displaying Top Page

This section explains the Top Page and how to display Web Image Monitor.

When entering an IPv4 address, do not begin segments with zeros. For example: If the address is

"192.168.001.010", you must enter it as "192.168.1.10".

1. Start your web browser.

2. Enter "http://(machine's IP address or host name)/" in your web browser's URL bar.

Top Page of Web Image Monitor appears.

If the machine's host name has been registered on the DNS or WINS server, you can enter it.

When setting SSL, a protocol for encrypted communication, under environment which server

authentication is issued, enter "https://(machine's IP address or host name)/".

Web Image Monitor is divided into the following areas:

CIP Training Pro C5200 series

Self Help/Service Call

1. Menu Area

If you select a menu item, its content will be shown.

2. Header area

Display icons for the links to Help and the keyword search function. This area also displays [Login] and

[Logout], which allows you to switch between the administrator and guest mode.

3. Refresh/Help

(Refresh): Click at the upper right in the work area to update the machine information.

Click the web browser's [Refresh] button to refresh the entire browser screen.

(Help): Use Help to view or download Help file contents.

4. Basic Information area

Display the basic information of the machine.

5. Work area

Display the contents of the item selected in the menu area.

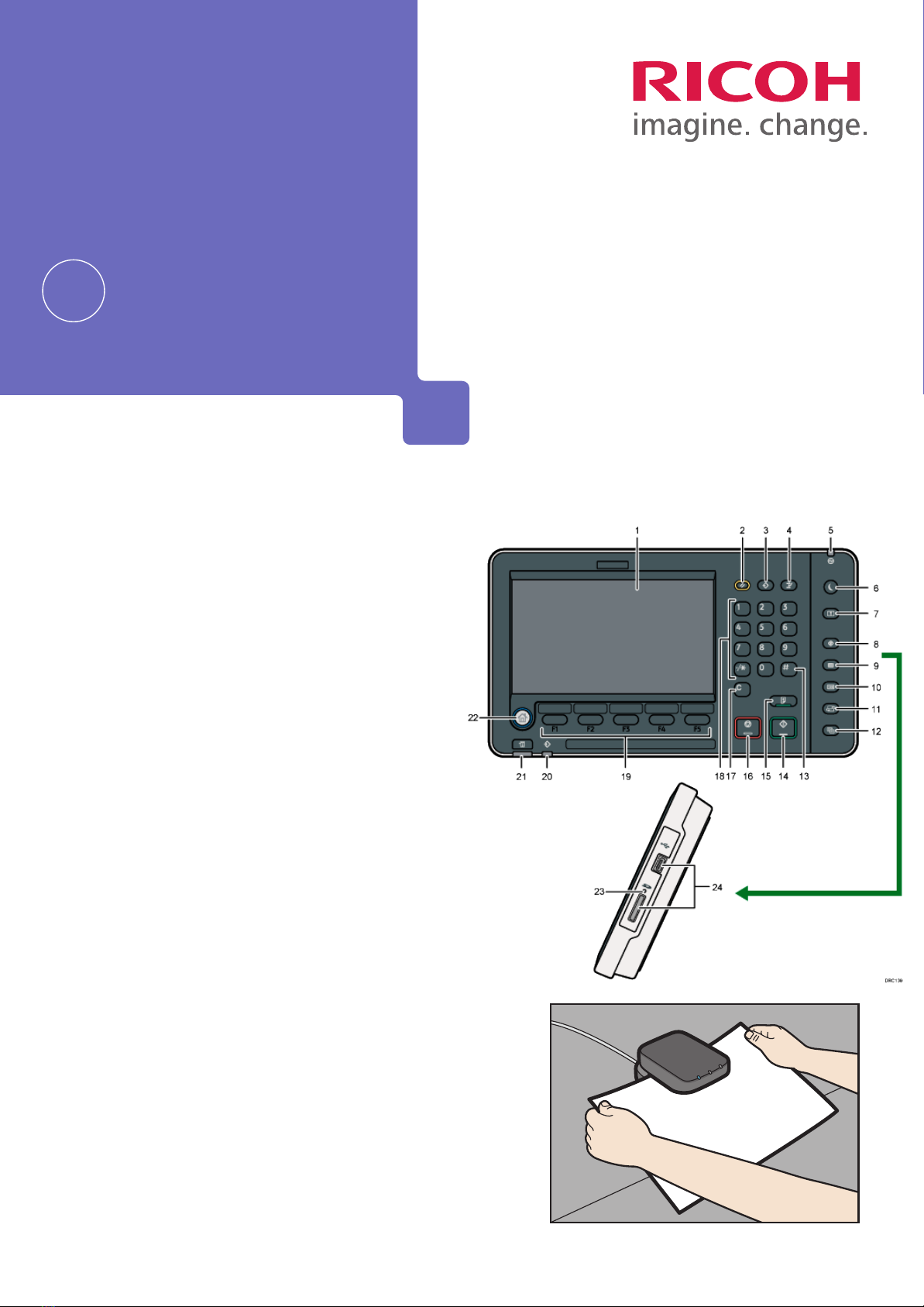

1. Display panel

Displays keys for each function, operation status, or messages. See How to Use the [Home] Screen and

How to Use Each Application.

2. [Reset] key

Press to clear the current settings.

3. [Program] key (copier, Document Server, and scanner mode)

•Press to register frequently used settings, or to recall registered settings.

•Press to program defaults for the initial display when modes are cleared or reset, or immediately after the

main power switch is turned on.

4. [Interrupt] key

Press to make interrupt copies. See "Interrupt Copy", Copy/ Document Server.

5. Main power indicator

The main power indicator goes on when you turn on the main power switch.

CIP Training Pro C5200 series

Control Panel

CIP Training Pro C5200 series

Control Panel

6. [Energy Saver] key

Press to switch to and from Low Power mode or Sleep mode. See Saving Energy.

7. [Login/Logout] key

Press to log in or log out.

8. [User Tools] key

Press to change the default settings to meet your requirements. See "Accessing User Tools",

Connecting the Machine/ System Settings.

9. [Paper Setting] key

Specify settings for the paper tray. See Paper Settings.

10. [Counter] key

Press to check or print the counter value. See Counter.

11. [Language] key

Press to change the language of the display. See Changing the Display Language.

12. [Simple Screen] key

Press to switch to the simple screen. See Switching Screen Patterns.

13. [ ] key (Enter key)

Press to confirm values entered or items specified.

14. [Start] key

Press to start copying, printing, scanning, or sending.

15. [Sample Copy] key

Press to make a single set of copies or prints to check print quality before making multiple sets. See

"Sample Copy", Copy/ Document Server.

16. [Stop] key

Press to stop a job in progress, such as copying, scanning or printing.

17. [Clear] key

Press to delete a number entered.

18. Number keys

Use to enter the numbers for copies and data for the selected function.

19. Function keys

No functions are registered to the function keys as a factory default. You can register often used

functions and programs. For details, see Configuring function keys.

•Select the paper's name from the paper library.

•Modify a custom paper that has already been registered.

•Manually specify the paper's type and weight.

Using the Paper Catalogue. Overview of Paper Settings

Tray Paper Settings

You need to specify paper sizes and types, for paper trays in order to successfully print on the paper loaded in the

paper trays. You can conﬁgure these settings in the “Tray paper settings”.

Master Paper library

The Master Library contains settings such as paper types, paper weights, and machine operating conditions (i.e

paper feed, fusing temperatures, toner transfer etc.) that are customized for each major commercially

available paper product.

Custom paper

You can register new papers you wish to use as a custom paper by specifying name, size, type, weight, and advanced

settings such as paper feed settings, fusing temperatures, registration and many other settings. The custom paper

function enables you to conﬁgure the tray paper settings simply by assigning a custom paper to a paper tray.

Custom papers can be registered in the following ways:

1. You can import paper settings from the Master Library and register it as custom paper.

2. You can save all custom papers to the library archive at one time.

3. You can restore and reuse custom papers in the library archive.

4. You can register custom paper by manually specifying its settings such as the type and weight you want to use.

5. You can conﬁgure the tray paper settings by assigning a custom paper to each paper tray.

6. You can conﬁgure paper settings such as sizes and types manually for each tray.

CIP Training Pro C5200 series

Paper Catalogue

Library archive

Saves registered custom paper settings in the library archive.

Saved custom papers can be restored and used as a custom paper again.

Relationships between functions

How to Use the [Edit Custom Paper] Screen

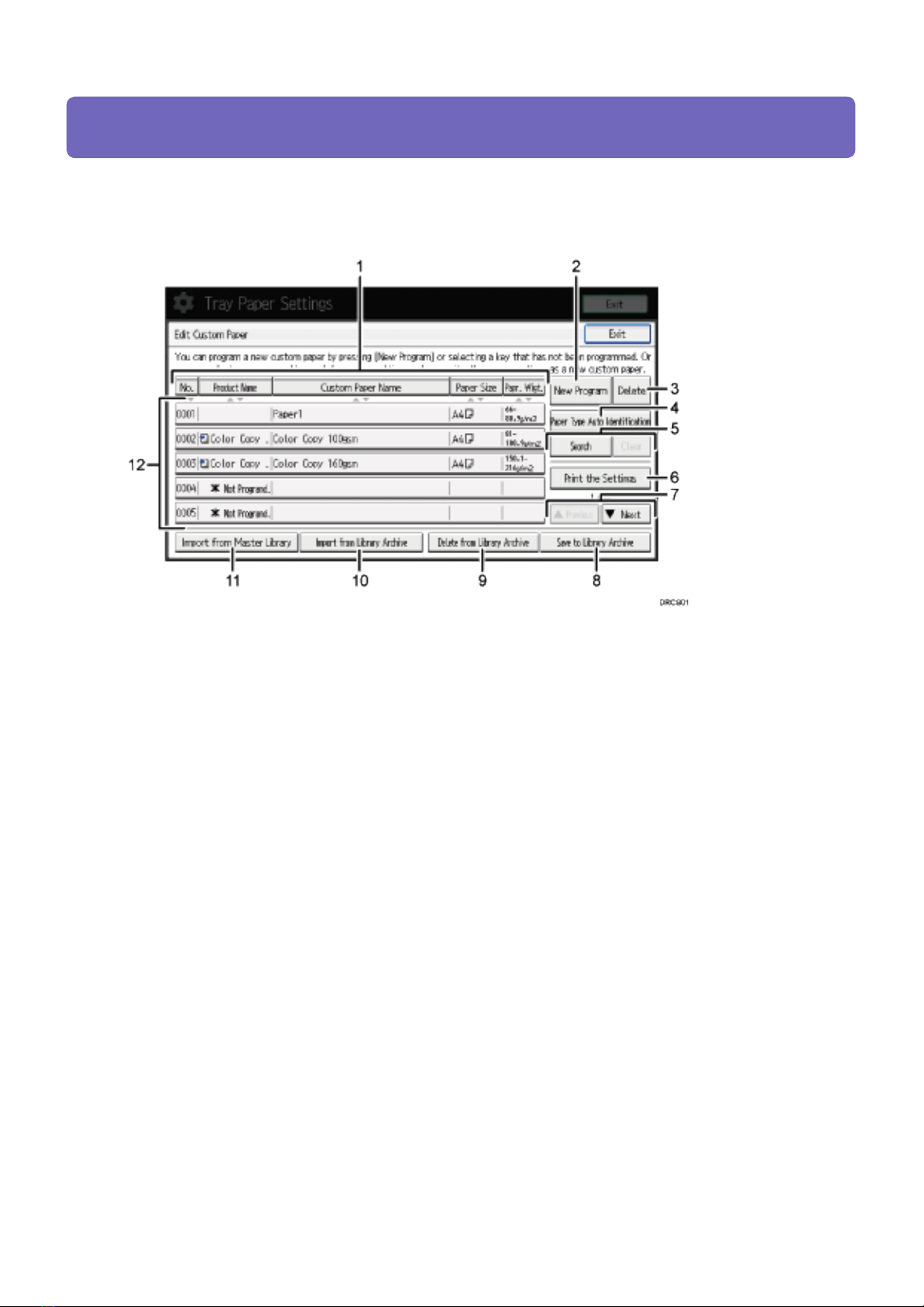

This section explains the items on the [Edit Custom Paper] screen.

This screen appears when you press [Edit Custom Paper] on the [Tray Paper Settings] screen.

1. [No.], [Product Name], [Custom Paper Name], [Paper Size], and [Papr. Wigt.]

Press the item to be used for the sorting.

2. [New Program]

Press this key to register a new custom paper.

3. [Delete]

Press this key to delete the selected custom paper from the list.

4. [Paper Type Auto Identification]

Scans paper with the Media Identification Unit, and then searches the master library for a custom paper with

settings that are similar to those of the scanned paper.

5. [Search], [Clear]

Press [Search] to search for papers in the list of custom papers. Press [Clear] to return to the list of custom

papers from the search results.

6. [Print the Settings]

Press this key to print the parameters of the custom paper settings

7. [Up arrow keyPrevious], [Down arrow keyNext]

Displays the previous or next page of the list.

8. [Save to Library Archive]

Press this key to save all the registered custom papers to the library at once

9. [Delete from Library Archive]

This key can be used only by the machine administrator.

10. [Import from Library Archive]

Press this key to recall the custom paper from the library archive.

11. [Import from Master Library]

Press this key to recall the custom paper from the master library

CIP Training Pro C5200 series

Paper Catalogue

How to Use the [Import From Master Library] Screen

This section explains the items on the [Import from Master Library] screen.

This screen appears when you press [Import from Master Library] on the [Edit Custom Paper] screen.

1. [No.], [Product Name], [Paper Name], and [Papr. Wigt.]

Press the item to be used for the sorting.

2. [Program to Custom Paper]

Press this key to register the selected paper from the list as a custom paper

3. Search], [Clear]

Press [Search] to search the papers in the paper list. Press [Clear] to return to the paper list from the search results.

4. [Paper Type Auto Identification]

Scans paper with the Media Identification Unit, and then searches the master library for a custom paper with

settings that are similar to those of the scanned paper.

5. [Up arrow key First Page], [Up arrow key Previous], [Down arrow key Next], [Down arrow key Last Page]

Displays the first, previous, next, or last page of the list.

6. List of papers in the library

The registration numbers, product names, paper names, and weights of library's papers are displayed in the list.

CIP Training Pro C5200 series

Paper Catalogue

12. List of custom papers

The registration numbers, product names, paper names, sizes, and weights of custom papers are displayed in the list.

Icons to the left of the product names indicate which custom paper is registered from the master library and whether

their settings have been modified.

Indicates a custom paper that is registered from the master library.

Indicates a custom paper that is registered from the master library and that its settings have been modified.

No icons appear for custom papers that were registered manually.
