Ricoh Pro 8300 Series Guía de instalación

CIP Training

Pro 8300 series

Adjustment Settings

for Operators

CIP Training Pro 8300 series

Adjustment Settings for Operators

CIP Training C7200 series

Adjustment Settings for Operators

This section explains Adjustment Settings for Operators and how to specify them.

How to Use the [Adjustment Settings for

Operators] Screen

This section explains how to use the Adjustment Settings for Operators.

Press this key to collapse the hierarchical display of the adjustment items, and display only the group

names of those items.

2. [Reset]

Press this key to reset the settings/modifications being currently configured. The settings/

modifications cannot be reset after you press [Apply].

3. [Apply]

Press this key to apply the settings/modifications.

4. [To Print Screen]

Press this key to display the print screen. You can use this screen to view the changes you have

made.

5. Adjustment items

Adjustment items are displayed in this area. When you select an item, its configuration screen will

then open.

6. Configuration screen

Configure or modify the settings of the adjustment item that you have selected.

209

•All items in Adjustment Settings for Operators appear regardless of which of the machine's

optional components are installed. If you change the settings of options that are not installed, the

changes will have no effect.

41 32

EAR301

CIP Training Pro 8300 series

Adjustment Settings for Operators

CIP Training C7200 series

Adjustment Settings for Operators

6. Adjustment Settings for Operators

Accessing the Adjustment Settings for Operators

Features of the Displayed Items and Setting Operations

The following operations are available for each adjustment item:

•Value setting

•Item setting

•Executing

•Display only

1. Press [Adjustment Settings for Operators] on the Home screen.

2. Select and change adjustment settings.

The method for changing the selected adjustment setting depends on the setting that

you want to change. For details, see "Features of the Displayed Items and Setting

Operations".

3. Press [Apply].

4. Press [Home] ( ) at the bottom of the screen in the center.

Value setting

Press [+] to increase the value, or [-] to decrease or use the numeric keypad to enter the

value.

CIP Training Pro 8300 series

Adjustment Settings for Operators

CIP Training C7200 series

Adjustment Settings for Operators

A numeric keypad appears to the left when you press the input box. Use the

keypad to enter a value.

•[×]: Press to delete the entered value character by character.

•[Clear]: Clear the entered value.

•[+/-]: Change the sign of the entered value from + (positive) to - (negative)

and vice versa.

•[Enter]: Confirm the entered value.

For some items, you can select a value from the pull-down list that appears

when you press the input box. Select a value from the list.

For some settings, move the slider right or left to increase or decrease the setting value.

CIP Training Pro 8300 series

Adjustment Settings for Operators

CIP Training C7200 series

Adjustment Settings for Operators

Executing

Press [Execute] to perform a selected function.

Display Only

You can check the setting of the selected item.

Item setting

Select the item you require.

CIP Training Pro 8300 series

Adjustment Settings for Operators

CIP Training C7200 series

Adjustment Settings for Operators

Printing with Adjusted Settings

To print with the settings you have adjusted, be sure to select the paper tray and paper size to

which the settings apply.

•Settings adjustable for each paper tray

•Settings adjustable for each paper size

Settings adjustable for each paper tray

•These are settings adjustable for each paper tray.

•Print jobs are processed with the adjusted settings when printing from a tray with the

applied settings.

Settings adjustable for each paper size

•These are settings adjustable for each paper size.

•Print jobs are processed with the adjusted settings when printing with a paper size that has

the applied settings.

•For details about selecting the paper tray and paper size for printing, see the manuals

for the related functions.

CIP Training Pro 8300 series

Adjustment Settings for Operators

CIP Training C7200 series

Adjustment Settings for Operators

Menu Items and Function

All items in Adjustment Settings for Operators appear regardless of which of the machine's

optional components are installed. If you change the settings of options that are not installed, the

changes will have no effect.

01: Machine: Image Position

0101 Image Position: With Feed

Adjust the horizontal position of the print image.

You cannot individually adjust the image position on sides 1 and 2.

Side 1

DGH005

Right

(Trailing Edge)

Left

(Leading Edge)

Top

Bottom

Paper feed direction

Press [+] to shift the image to the right (trailing edge).

Press [−] to shift the image the left (leading edge).

Side 2

Paper feed direction

Top

Bottom

Left

(Leading Edge)

Right

(Trailing Edge)

CWY006

Press [+] to shift the image to the left (trailing edge).

Press [−] to shift the image to the right (leading edge).

CIP Training Pro 8300 series

Adjustment Settings for Operators

CIP Training C7200 series

Adjustment Settings for Operators

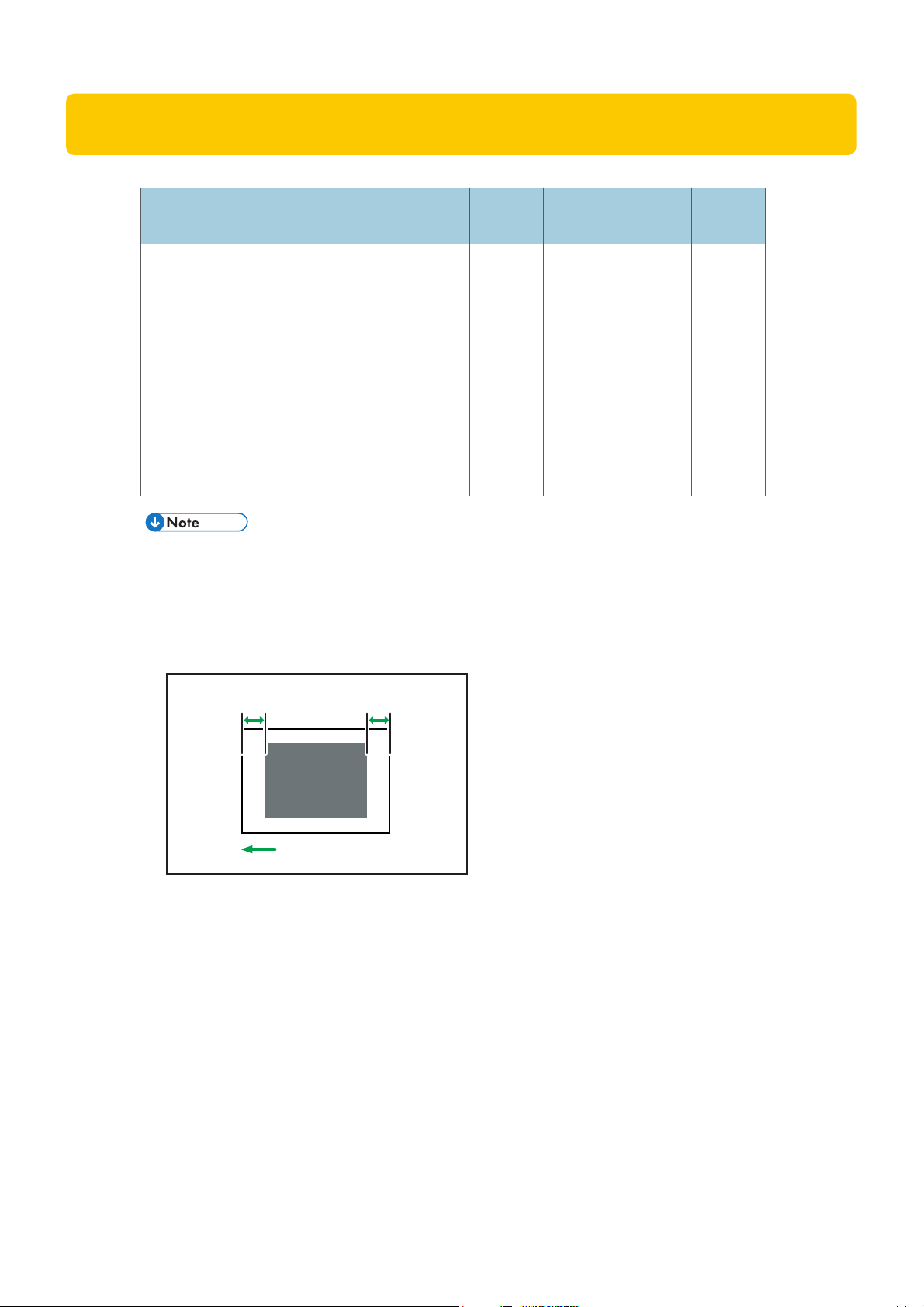

•If sheets are delivered face down, turn them over horizontally and check the image

position.

•If the leading-edge margin on Side 1 of the paper is too narrow, paper jams may occur.

•If the trailing-edge margin on Side 1 of the paper is too narrow, paper jams may occur

when printing on the back side of paper during duplex printing.

Paper feed direction

Leading-edge margin Trailing-edge margin

CWY015

•This setting is not effective for paper fed from paper trays with custom paper

presets. For such paper, the value specified in [Image Position: Side1] in

[Advanced Settings] takes precedence.

Setting Items Default

Value

Max.

Value

Min.

Value Step Unit

Paper Weight 0

Paper Weight 1

Paper Weight 2

Paper Weight 3

Paper Weight 4

Paper Weight 5

Paper Weight 6

Paper Weight 7

Paper Weight 8

0.0 3.0 -3.0 0.1 mm

CIP Training Pro 8300 series

Adjustment Settings for Operators

CIP Training C7200 series

Adjustment Settings for Operators

0106 Select Test Pattern for Image Position Adjustment

Select the test image for adjusting the image position.

If [Copy Image] is selected, the image scanned using the Auto Document Feeder (ADF) or

exposure glass is printed.

If [Frame Image] is selected, stripe test patterns are printed.

Setting Items Values Default Value

Test Pattern Copy Image

Frame Image

Copy Image

0108 ADF Double Feed Detection

Specify whether or not to detect multiple feeding of originals loaded in the Auto Document

Feeder (ADF).

If [On] is selected, the machine stops printing and displays a message reporting a paper jam

when it detects multiple feeding. The machine may erroneously detect double feeding when

you use creased, scratched or torn originals, originals with holes, perforated originals, or

originals with sticky notes or tape affixed. In such a case, select [Off] to prevent erroneous

detection.

Setting Items Values Default Value

Setting [On]

[Off]

[On]
