M080 Training - Sincere-P3

MODEL S-P3 TRAINING

Machine Code: M080

Version 1.0

This course is for the S-P3 printer.

Modifications

Started 28 March, 2011.

First draft 11 April, 2011.

Release version – 10 May, 2011.

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

M080 Series Training

Model S-P3

1) Product Outline

No additional notes.

New model added (S-P1L).

The following slides were changed: Slides 2, 11

The following slides were added: Slides 20 to 27

2.028-2-2008

DescriptionVersion HistoryDate of change

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

Exterior Components 1

1. Standard Paper Feed Tray

2. Paper Size Dial

3. Bypass Tray Extension

4. Bypass Tray

5. Operation Panel

6. Tray Extension

7. Standard Tray

8. Paper Exit Cover

9. Vents

10. Front Cover Release

Button

11. Power Switch

12. Friction Pad

(Descriptions below in the notes

section)

1. Standard Paper Feed Tray

500 sheet capacity

2. Paper Size Dial

Adjust according to the size and feed direction of the paper.

3. Bypass Tray Extension

Pull out when loading paper that is longer than B5 on the bypass tray.

4. Bypass Tray

100 sheet capacity

5. Operation Panel

Has keys for printer control and a display that shows the printer status.

6. Tray Extension

Pull out if loading paper longer than B5.

7. Standard Tray

Prints are delivered here print side down.

8. Paper Exit Cover

Open to remove jammed paper.

9. Vents

Heat is released through these vents.

10.Front Cover Release Button

Press to open the front cover.

11.Power Switch

Turns the power on and off.

12.Friction Pad

Clean it if multi-sheet feeds occur.

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

Exterior Components 2

1. Controller Board

2. Rear Cover

3. Power Connector

4. Paper Tray Cover

5. Intake Vent

6. SD Card Slots

7. Optional Interface

Board Slot

8. Ethernet Port

9. USB Port B

10. USB Port A

(Descriptions below

in the notes section)

1. Controller Board

Install internal options (SDRAM, HDD) directly on the controller board. Plug in cables,

SD cards, and optional interface boards via slots and plugs (see 6 through 10).

2. Rear Cover

Remove to replace the fusing unit.

3. Power Connector

Connect the power cord here.

4. Paper Tray Cover

Keeps paper in the tray free of dust.

5. Intake Vent

Inlets for cool air. Instruct the user not to obstruct the intake vents. (Doing so can

result in malfunctions caused by build up of heat inside the printer.)

6. SD Card Slots

Remove the cover to install SD cards here.

7. Optional Interface Board Slot

Insert an optional Wireless LAN interface unit, Gigabit Ethernet board, or 1284

interface board in this slot.

8. Ethernet Port

Use to connect the printer to a network.

9. USB Port B

Use to connect the printer to a computer.

10.USB Port A

Use to connect optional USB devices such as the authentication card reader.

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

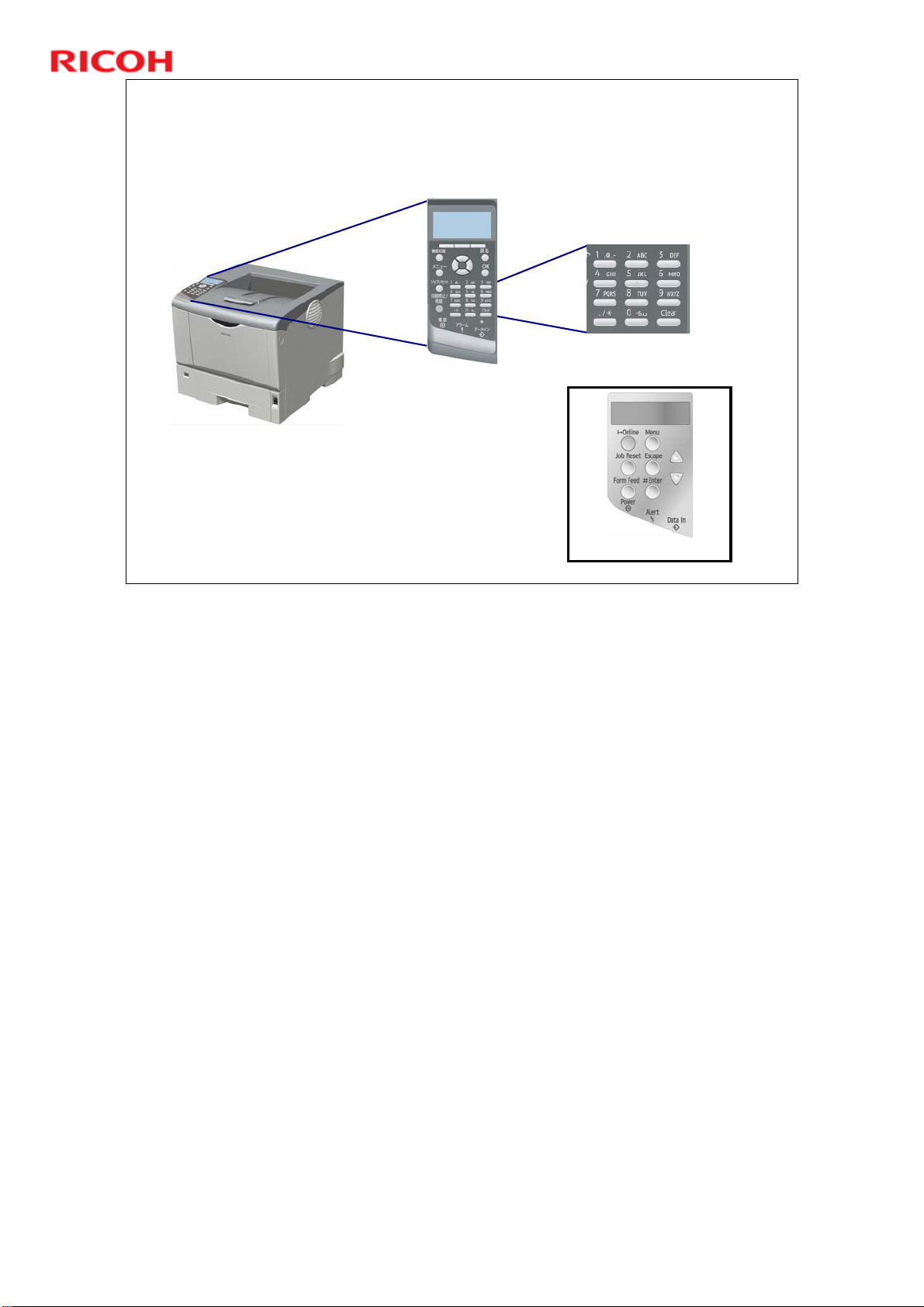

Operation Panel

This is the new operation panel.

Number key pad

Upgraded Panel :

94-Line display

9Number keys

standard

Previous Model (S-P2)

The S-P3 has a number key pad, which enables users to input numbers such as

PIN codes easily.

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

Interior Components

1. Controller case

2. Main motor

3. Engine board

4. Relay clutch

5. By-pass feed

clutch

6. Paper feed

clutch

7. Registration

clutch (behind

harness guide and

main motor board)

123

No additional notes.

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

Product Lineage & Changes

Predecessor Models: Model S-P1c, Model S-P2

Current Model: Model S-P3 (M080)

New to Model S-P3 (relative to Model S-P2)

Operation panel

» 10-Key standard, 4-Line display

Eco sensor

Firmware

HDD (optional)

» comes with data overwrite security and encryption unit

Other service parts, including AIO, are common with S-

P2.

No additional notes.

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

Eco Night Sensor

The printer will

automatically go

into Auto Off mode

if the Eco Night

Sensor detects a

low amount of

light in the room.

By default the Eco

Night Sensor is

inactive. It can be

turned on via the

Menu key.

Sensor

key

No additional notes.

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

Basic Specifications - 1

Warm up time: 19 seconds or less

First print time: 6.9 seconds or less

Optional HDD capacity: 80GB

Built-in Connectivity

USB 2.0

Ethernet

Printing speed

36 ppm (A4-SEF) / 37 ppm (LT-SEF)

Printer memory

Standard: 256 MB

Maximum: 512 MB

No additional notes.

RicohCo.Ltd.http://www.ricoh.com/

M080 Training - Sincere-P3

Basic Specifications - 2

Maximum print width: A4/LT

Paper tray capacity

550 sheets (standard)

100 sheets (bypass tray)

Output tray capacity: 250 sheets

AIO Cartridge:

Average 15K/cartridge (A4/5% coverage)

Weight

17.5 kg / 38.6 lb (with AIO)

15.5 kg / 34.2 lb (without AIO)

Paper tray and output tray capacities assume 75 g/m2(20 lb) paper.
