1

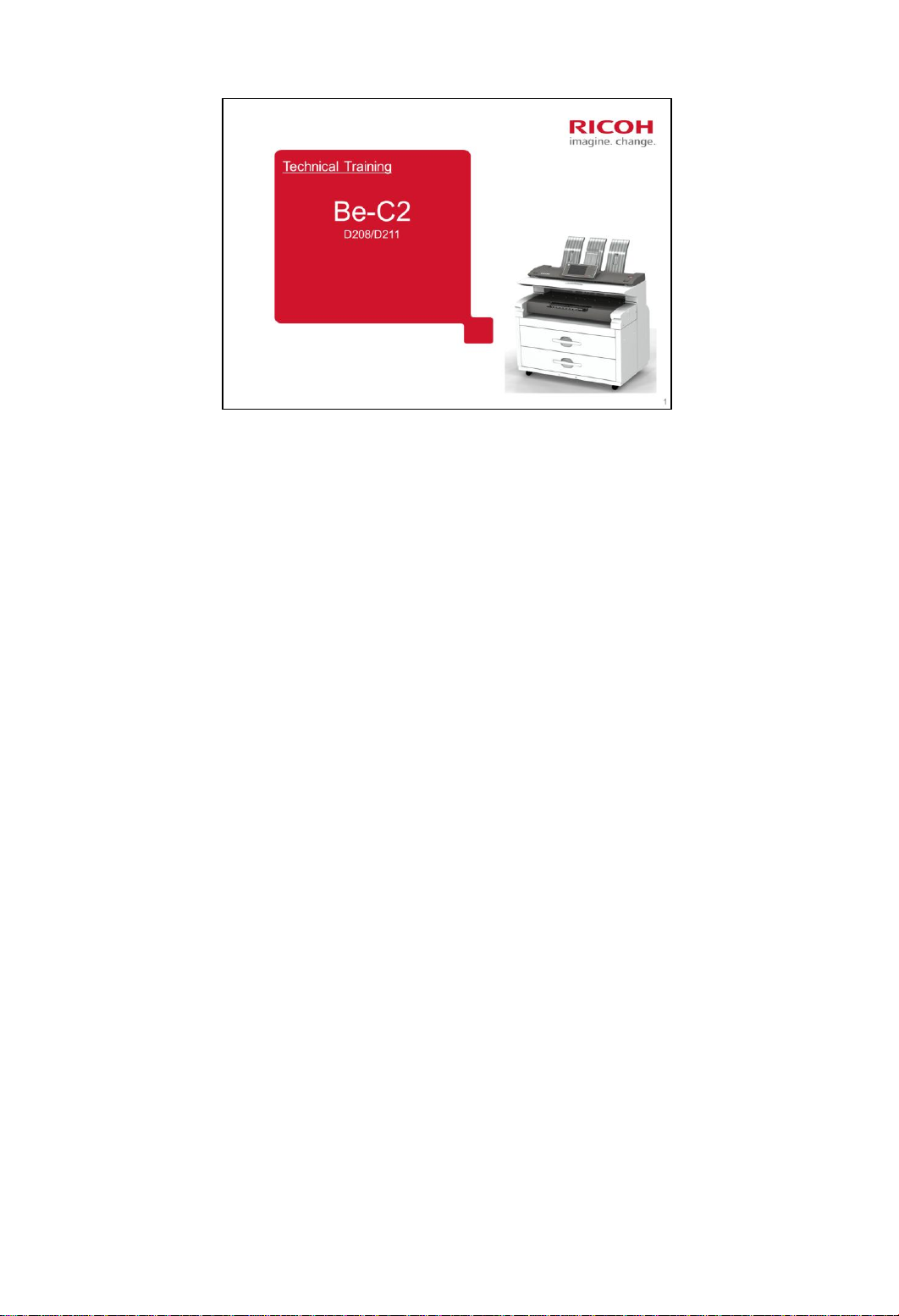

This course explains how to service the Be-C2 series of wide-format black-

and-white copiers.

These machines are successors to the Be-C1 and Be-C1.5 series.

The machine is very similar to the older models. However, there are some

differences. The important ones are mentioned in this course.Also, see

Guidance for Those Familiar with Predecessor Products in the field service

manual, where all the differences are described in one section.

30 January: Slide 37 was corrected, and a new slide was added after this

slide.

No additional notes

2

No additional notes

3

No additional notes

4

No additional notes

5

PRODUCT OUTLINE

The model will be introduced.

The optional peripherals will be introduced.

The product concept, sales points, and targets will be presented.

SPECIFICATIONS

The main specifications will be given. Significant items will be

stressed.

INSTALLATION

Installation of the machine and the peripherals will be covered.

Firmware update will be covered.

MACHINE OVERVIEW

The components will be discussed briefly.

The copy process will be outlined.

The machine’s organization and overall PCB structure will also be

covered.

SCANNING

The scanner mechanism and sensors will be described.

The optional document feeders will be dealt with in a later section.

PROCESSES AROUND THE DRUM

Drum drive, charge, drum cleaning, quenching, and other processes

around the drum will be described

EXPOSURE

The latent image writing mechanism will be described.

This machine uses LED arrays.

6

DEVELOPMENT AND TONER SUPPLY

The development process will be described.

Toner supply mechanisms and toner density control will also be

described.

Toner end detection will also be described.

PAPER FEED AND CUTTING

The paper feed mechanisms for the main body will be described.

The cutter will also be described.

The optional feed unit mechanisms are the same as for the main body,

so do not require a separate section.

IMAGE TRANSFER, PAPER SEPARATION, AND PAPER TRANSPORT

Image transfer and paper separation mechanisms will be described.

Transport from the drum to the fusing unit will be explained.

FUSING

Fusing will be described.

PAPER EXIT

The paper feed out mechanisms will be described.

MAINTENANCE

PM is described briefly.

OPTIONAL PAPER CASSETTE

This describes the optional paper cassette mechanisms.

OPTIONAL FOLDER

This describes the mechanisms in the optional fan folder and cross

folder.

7

PURPOSE OF THIS SECTION

The model will be introduced.

The optional peripherals will be introduced.

The product concept, sales points, and targets will be presented.

8

No additional notes

9

APPEARANCE

This slide shows a front view of the machine.

Document feeder: One sheet at a time.

Document exits at top and rear; the rear exit is not shown here

Copy exits at front and rear (rear one not shown in the diagram).

Bypass Tray: One sheet at a time

Roll Tray 1: Contains two paper rolls (rolls 1 and 2)

Roll Tray 2 (Optional): Contains two paper rolls (rolls 3 and 4).

10
