Rice Lake RL-DBS Manual de usuario

107801 - Rev B

RL-DBS

Digital Baby Scale

Operation Manual

Disponible

en Español

Visite ricelake.com/spanish

para ver todos los materiales

RLWS disponibles en Español

Contents

1.0 Introduction.................................................................................................................................. 1

2.0 Assembly Instructions ................................................................................................................. 2

3.0 Scale Setup.................................................................................................................................. 3

4.0 Scale Operation with Tare ........................................................................................................... 4

5.0 Troubleshooting & Testing........................................................................................................... 5

6.0 Maintenance ................................................................................................................................ 6

6.1 Basic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

7.0 Specifications.............................................................................................................................. 6

RL-DBS Digital Baby Scale Limited Warranty.......................................................................................... 7

Technical training seminars are available through Rice Lake Weighing Systems.

Course descriptions and dates can be viewed at www.ricelake.com or obtained

by calling 715-234-9171 and asking for the training department

Technical training seminars are available through Rice Lake Weighing Systems.

Course descriptions and dates can be viewed at www.ricelake.com or obtained

by calling 715-234-9171 and asking for the training department

March 2015

ii RL-DBS Operation Manual

Rice Lake continually offers web-based video training on a growing selection

of product-related topics at no cost. Visit www.ricelake.com/webinars.

1.0 Introduction

The RL-DBS Digital Baby scale provides precise weighing of babies. Highly sophisticated microprocessor

technology allows accurate, reliable, and repeatable weighments every time. Movement compensation

technology eliminates errors caused by spontaneous movement of the baby and the weight display can be

displayed in pounds/ounces or in kilograms.

This manual can be viewed and downloaded from the Rice Lake Weighing Systems website at

www.ricelake.com/health.

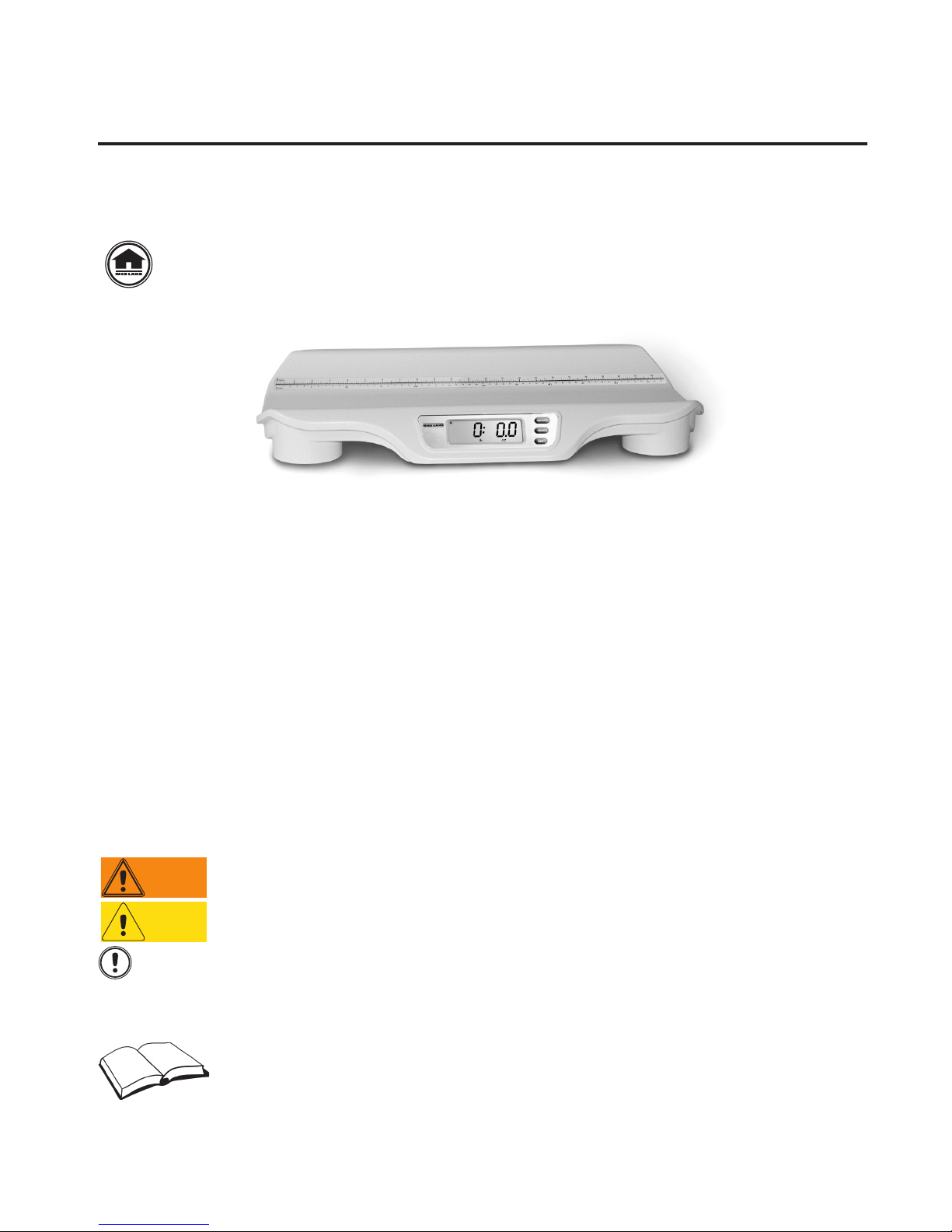

Figure 1-1. RL-DBS Digital Baby Scale

Standard Features

• Convenient Lb/Kg toggle key

• Large, easy-to-read one inch LCD (Liquid Crystal Display)

• Built in measuring tape

• Recall key to view the last weight measurement

• Power: four AA batteries (included), 120V or 230V AC adapter (included)

• Automatic shut off ensures long battery life.

1.1 Safety

With the RL-DBS-2 Digital Baby scale, there are certain precautions that should be taken to prevent injury to the

baby and damage to your scale.

1.1.1 Safety Signals

Safety Signal Definitions:

Indicates a potentially hazardous situation that, if not avoided, could result in death or

serious injury.

Indicates a potentially hazardous situation that, if not avoided, may result in minor or

moderate injury.

Indicates information about procedures that, if not observed, could result in damage to

equipment.

1.1.2 Safety Precautions

Do not operate or work on this equipment unless you have read and understand

instructions in the manual. Failure to follow the instructions or heed the warnings could

resultininjuryordeath.ContactanyRiceLakeWeighingSystemsdealerforreplacement

manuals. Proper care is your responsibility.

Warning

Caution

Important

2RL-DBS Operation Manual

Beforeattemptingtooperatethisunit,makesureeveryindividualwhooperatesorworks

with this unit has read and understands the following safety information. Please follow

these instructions carefully.

• Do not transport the scale while the infant is on the weighing tray.

• Do not drop the scale or subject it to violent shocks.

• For accurate weighing, the scale must be placed on a flat, stable surface.

• For accurate weighing, verify proper operation according to the procedure described in this manual

before each use.

• Operation at other voltages and frequencies than specified could damage your equipment.

• Utilizing adapters not supplied by Rice Lake Weighing Systems voids all warranties.

Warning

RL-DBS Operation Manual - Assembly Instructions 3

2.0 Assembly Instructions

The RL-DBS Digital Baby scale comes fully assembled and includes the scale and a 120V or 230V AC adapter.

To set up the scale:

1. Select a sturdy, flat surface on which to place the scale on.

2. Plug in the 120V or 230V AC adapter. The AC power adapter plugs into the back of the indicator as

shown below in Figure 2-1.

Figure 2-1. AC Power Connection Site

The RL-DBS Digital Baby scale is also capable of running on four (4) AA batteries if no additional power source

is available. If the Lo prompt is showing on the display, replace the battery or connect the scale to an AC power

source as soon as possible for accurate weighing.

Figure 2-2. Low Battery Indicator

AC Power Plug in

Location

120V adapter shown

230V adapter shown

4RL-DBS Operation Manual

3.0 Scale Setup

Figure 3-1. RL-DBS Display

Use the following table to identify what each part of the display does.

Item Description Function

ON/TARE key

On Function:

One short push for On

One push for Off (approx. five seconds)

Tare Function:

One short push to Tare out the scale

This key turns the scale on and off

With weight on the scale, press this key to

tare out the scale and return it to zero.

LB/KG key

One short push

This key selects either pounds/ounces or

kilograms.

RECALL key

When the scale is turned on, use one short

push

This allows the user to recall the last

weighment, ie: you can remove the baby,

press the recall key and see the baby’s

weight again.

Negative or Minus indicator When the scale is on, this display shows a

negative weight reading.

zero ZERO indicator When the scale is on, this display indicates

that the scale is stable and ready for use.

mem Memory indicator

oMotion indicator This is displayed when a weight reading is

complete.

It is not displayed while the weight reading is

being calculated.

6-Digit LCD digital display The LCD displays the infant weight in

pounds/ounces or kilograms and shown by

the LB or KG indicator on the right side of

the display.

LB/OZ indicator When the scale is on, this display indicates

that the scale is weighing in pounds/ounces

KG When the scale is on, this display indicates

that the scale is weighing in kilograms

Table 3-1. Front Panel, Showing Annunciators

ON/TARE

LB/KG

RECALL

zero mem

ON/TARE

LB/KG

RECALL

RL-DBS Operation Manual - Scale Operation with Tare 5

The RL-DBS Digital Baby Scale is pre-calibrated from the factory.

Use the following steps to set up the RL-DBS Digital Baby scale when initially powered it up.

1. To operate the unit using the AC adapter, plug the AC adapter cable into the back of the scale as shown

in Figure 2-1, and the AC adapter plug into a power source.

2. Press the ON/TARE key to turn on the scale.

3. When the self test function is complete, the digital display should read: 0:00.00 if set up in Lb/Oz or 0.00

if set up to read in KG.

4. Place a weight (not exceeding 40 Lb) on the scale. The weight calculation is complete once the motion

indicator turns on.

5. Press the LB/KG key to select the weight mode, either in pounds/ounces or kilograms.

6. Remove the weight from the scale. To view the weight that was just on the scale, press the RECALL key.

If the setup procedure failed, refer to the troubleshooting section of this manual. If the problem is not

resolved, refer to a qualified service provider.

4.0 Scale Operation with Tare

The RL-DBS Digital Baby scale can accurately weigh babies up to 44 Lb (20 Kg). Use the following steps to

weigh a baby.

1. Press the ON/TARE key to turn the scale on.

2. Wait until the 0:0.0 (if set up in Lb/Oz) appears on the digital display or 0.00 if set up in Kg.

3. Place a pad on the weighing tray. Make sure that the edges of the pad are on the tray and are not touching

the surface on which the scale is positioned. The weight calculation is complete once the motion

indicator turns on ( o).

4. Press the ON/TARE key to tare the weight of the pad or other accessory that is on the weighing tray.

5. Place the infant on the scale. The weight calculation is complete once the motion indicator turns on ( o).

If thescaleis beingusedwithbatteriesand isnotused fortwominutes, itswitchesofftosave batterylife

and power. To restart the scale, press the ON/TARE key.

Note

6RL-DBS Operation Manual

5.0 Troubleshooting & Testing

Refer to the following instructions to check and correct any failure before consulting service personnel.

Symptom Possible Cause Corrective Action

Scale does not turn on when using just

batteries

Dead batteries Connect the scale to a power source or

change batteries

Scale does not turn on Dead battery Connect the scale to a power source

Faulty electrical outlet Use a different electrical outlet

Bad power supply Replace adapter

Questionable weight or the scale does

not zero

External object is interfering with the scale Remove the infant/interfering object from

the weighing tray from the scale

Display did not show 0.0 before weighing Remove the baby, zero the scale and

begin the weighing process again

Scale is not placed on a level surface Place the scale on a stable surface and

begin the weighing process again

The weighing tray is not placed properly Place the weighing tray in its proper place

Scale is out of calibration Check the scale with a known weight

value

The display shows o_Ld message The load on the scale exceeds the

capacity

Remove the excess weight and use the

scale according to its stated limit

The display show Err The RECALL key was pressed with

insufficient weight on the scale.

Place more than 2 Lb, 30 Oz on the scale

Table 5-1. Troubleshooting Table
