ReSound ENYA Manual de usuario

BEHIND-THE-EAR HEARING INSTRUMENTS

resound.com

USER GUIDE

2 3

Hearing instrument type designations for models included in this user guide are: BE70, FCC ID: X26BE70,

IC: 6941C-BE70; LO85, FCC ID: X26LO85, IC: 6941C-LO85, LO90, FCC ID: X26LO90, IC: 6941C-LO90.

M70-80e FCC ID: X26M70-80e, IC: 6941C-M7080e, M60 FCC ID X26M60, IC: 6941C-M60. Please see

page 10 for a list of models referring to these types.

Statement

This device complies with part 15 of the FCC rules and ICES-003 of the IC rules.

Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including interference that may cause undesired

operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pur-

suant to part 15 of the FCC rules and ICES-003 of the IC rules. These limits are designed to provide reason-

able protection against harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from the one in which the receiver is con-

nected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modiﬁcations can void the user´s authority to operate the equipment.

Intended use

Generic air-conduction hearing instruments are wearable sound-amplifying devices intended to compen-

sate for impaired hearing. The fundamental operating principle of hearing instruments is to receive, amplify,

and transfer sound to the ear drum of a hearing impaired person.

The products are in compliance with the following regulatory requirements:

• In EU: the device conforms to the Essential Requirements according to Annex I of Council Directive

93/42/EEC for medical devices (MDD) and essential requirements and other relevant provisions of Direc-

tive 1999/5/EC (R&TTE).

• The declaration of conformity may be consulted at www.resound.com

• In US: FCC CFR 47 Part 15, subpart C.

• Other identiﬁed applicable international regulatory requirements in countries outside the EU and US.

Please refer to local country requirements for these areas.

• Canada: these hearing instruments are certiﬁed under the rules of IC.

• Japanese Radio Law and Japanese Telecommunications Business Law Compliance. This device is grant-

ed pursuant to the Japanese Radio Law (電波法) and the Japanese telecommunications Business Law

(電気通信事業法) This device should not be modiﬁed (otherwise the granted designation number will

become invalid)

• Patents

US 7,593,537 US 8,00,849

ReSound is a registred trade mark of GN ReSound A/S

4 5

Prescription use of a Tinnitus Sound Generator (TSG) hearing instru-

ment

The TSG module should be used as prescribed by your doctor, audiologist or hearing healthcare profes-

sional. In order to avoid permanent hearing damages, the maximum daily usage depends on the level of

the generated sound.

Should you develop any side effects from using the sound generator, such as dizziness, nausea, head-

aches, perceived decrease in auditory function or increase in tinnitus perception, you should discontinue

use of the sound generator and seek medical evaluation.

The target population is primarily the adult population over 18 years of age. This product may also be used

with children 5 years of age or older. However, children and physically or mentally challenged users will re-

quire training by a doctor, audiologist, hearing healthcare professional or the guardian for the insertion and

removal of the hearing instrument containing the TSG module.

Important notice for prospective sound generator users

A tinnitus masker is an electronic device intended to generate noise of sufﬁcient intensity and bandwidth to

mask internal noises. It is also used as an aid in hearing external noises and speech.

Good health practice requires that a person with a tinnitus condition have a medical evaluation by a licensed

physician (preferably a physician who specializes in diseases of the ear) before using a sound generator.

Licensed physicians who specialize in diseases of the ear are often referred to as otolaryngologists, otologists

or otorhinolaryngologists.

The purpose of medical evaluation is to assure that all medically treatable conditions that may affect tinnitus

are identiﬁed and treated before the sound generator instrument is used.

The sound generator instrument is a tool to generate sounds to be used with appropriate counselling and/

or in a tinnitus management programme to relieve patients suffering from tinnitus.

6 7

Introduction

Congratulations on the purchase of your new hearing instruments. ReSound’s innovative sound technology

and design, combined with the customized programming selected by your hearing care professional, will

make hearing a more enjoyable experience. Hearing instruments will enable you to hear sounds that you

may not have heard in years because of your hearing loss. Practice and a positive attitude are important

in learning to use hearing instruments. Your ReSound instruments have been adjusted according to your

individual hearing loss and needs. Some people adjust quickly to wearing hearing instruments in their ears

and hearing new sounds; other people may need more time.

Please read this manual carefully in order to wholly beneﬁt from the use of your hearing instruments. With

proper care, maintenance, and usage, your hearing instruments will aid you in better communication for

many years. Ask your hearing care professional if you have any questions.

Hearing instrument model:

Tube type:

Dome size:

Left serial number:

Right serial number:

Model 98: Battery size 675

Model 88: Battery size 13

Model 77: Battery size 13

Model 67: Battery size 312

8 9

Statement .............................2

Intended use ..........................3

Prescription use of a Tinnitus Sound Generator

(TSG) hearing instrument .................4

Important notice for prospective sound

generator users.........................4

Introduction............................6

Getting started ........................14

SmartStart ...........................14

Inserting/Replacing the battery............15

Low battery indicator ...................16

Low battery indicator when paired with

wireless accessories only ................16

Inserting/Removing hearing instruments.....17

Operation of the hearing instrument . . . . . . . . 20

Flight mode...........................23

Listen to radio or TV ....................24

Telephone use.........................24

Using ReSound Hearing Instruments with

iPhone®, iPad®, and iPod touch®

(ReSound LiNX2and ReSound ENZO2)......25

Cellular phones ........................25

PhoneNow ...........................25

Telecoil (optional).......................28

Tele-loop systems ......................28

FM and Direct audio input (optional) ........28

Connecting/Disconnecting direct audio

boot or integrated FM ...................29

Important points for FM .................30

Battery door lock (optional)...............32

Care and maintenance ..................35

Daily maintenance......................36

Cleaning earmoulds ....................36

Cleaning thin tubes and domes ...........36

How to apply domes....................37

Using ReSound hearing instruments with

smart phone apps......................38

General precautions ....................39

General warnings ......................40

Tinnitus Sound Generator (TSG) module ....42

Intended use for the TSG module ..........42

User instructions for the TSG module ......42

Using TSG with smart phone apps .........44

The scientiﬁc concepts that form the basis

for the device .........................44

Technical Speciﬁcations .................45

TSG warnings ........................46

TSG precautions.......................46

TSG warning to hearing healthcare

professionals..........................47

Battery warning information ..............48

Hearing instrument expectations ..........48

Warning to hearing aid dispensers

(US Only) .............................49

Important notice for prospective hearing

aid users (US Only) . . . . . . . . . . . . . . . . . . . . . 50

Children with hearing loss (US Only) ........51

Troubleshooting Guide ..................58

Warranty and repairs ...................62

Temperature test, transport and storage

information ...........................62

Contents

13 12

10 11

Behind-the-ear (BTE) hearing instruments of

type BE70 with FCC ID X26BE70,

IC number 6941C-BE70 and size 13 battery

are available in the following variants:

LS977-DW, LS777-DW, LS577-DW

Behind-the-Ear (BTE) hearing instruments

type LO85 with FCC ID X26LO85, IC number

6941C-LO85 and size 13 battery are available

in following variants:

LS988-DW, LS788-DW, LS588-DW,

EN988-DW, EN788-DW, EN588-DW

Super Power Behind-the-Ear (SP BTE)

hearing instruments type LO90 with FCC ID

X26LO90, IC number 6941C-LO90 and size

675 battery are available in the following

variants:

EN998-DW, EN798-DW, EN598-DW

The identiﬁcation number for the BE70, LO85 and

LO90 device models can be found at location “10”

as indicated in the illustrations on the next two pag-

es.

Behind-the-Ear (BTE) hearing instruments of

type M70-80e with FCC ID X26M70-80e

IC number 6941C-M7080e and size 13 battery

are available in the following variants:

EY477-DW, E Y377-DW, E Y277-DW

EY488-DW, EY388-DW, EY288-DW

Behind-the-Ear (BTE) hearing instruments

type M60 with FCC ID X26M60 IC number

6941C-M60 and size 312 battery are available

in the following variants:

EY467-DW, E Y367- DW

The identiﬁcation number for the M70-80e and M60

device models can be found at location “10” as indi-

cated in the illustrations on page 13.

1. Programme button

2. Battery compartment & On/Off switch

3. Sound outlet

4. Front microphone inlet

5. Back microphone inlet

6. Volume control (optional)

7. Left/Right indicator (Left=Blue/Right=Red)

8. Manufacturer

9. Serial number

10. Model

11. Battery lock

12. Earhook

13. Earmould and tubing

Traditional ﬁtting

(earmould and tube)

ReSound ENZ0298

8/9

10 12

14 13

16.c

16.b

8/9

16.a

12 13

1. Programme button

2. Battery compartment & On/Off switch

3. Sound outlet

4. Front microphone inlet

5. Back microphone inlet

6. Volume control

7. Direct audio input

8. Left/Right indicator (Left=Blue/Right=Red)

9. Battery lock (optional)

10. Model (in battery chamber)

11. Manufacturer

12. Serial number (in battery chamber)

13. Earhook

14. Earmould and tubing

15. Thin Tube

16. Domes/earmould

a. Open dome

b. Tulip-Dome

c. Custom earmould

Traditional ﬁtting

(earmould and tube)

Open ﬁtting

(Thin Tube and dome)

ReSound Enya

Resound ENZO288,

ReSound LiNX288

14 15

Off

Getting started

On/Off function

1. When the battery door is closed, the hearing instrument turns on, and the default programme will be

activated.

2. To turn off the hearing instrument, open the battery door. Many individuals can use their ﬁngernail to

pull it open.

SmartStart

Hearing instruments can be turned on once you have placed them on

your ears. If you prefer to turn them on just prior to placing them on your

ear, your hearing care professional can activate a function called Smart-

Start. This function will delay the time in which the hearing instruments

turn on after the battery compartment is closed. With SmartStart, a beep

will be heard for each second of the delay period.

Inserting/Replacing the battery

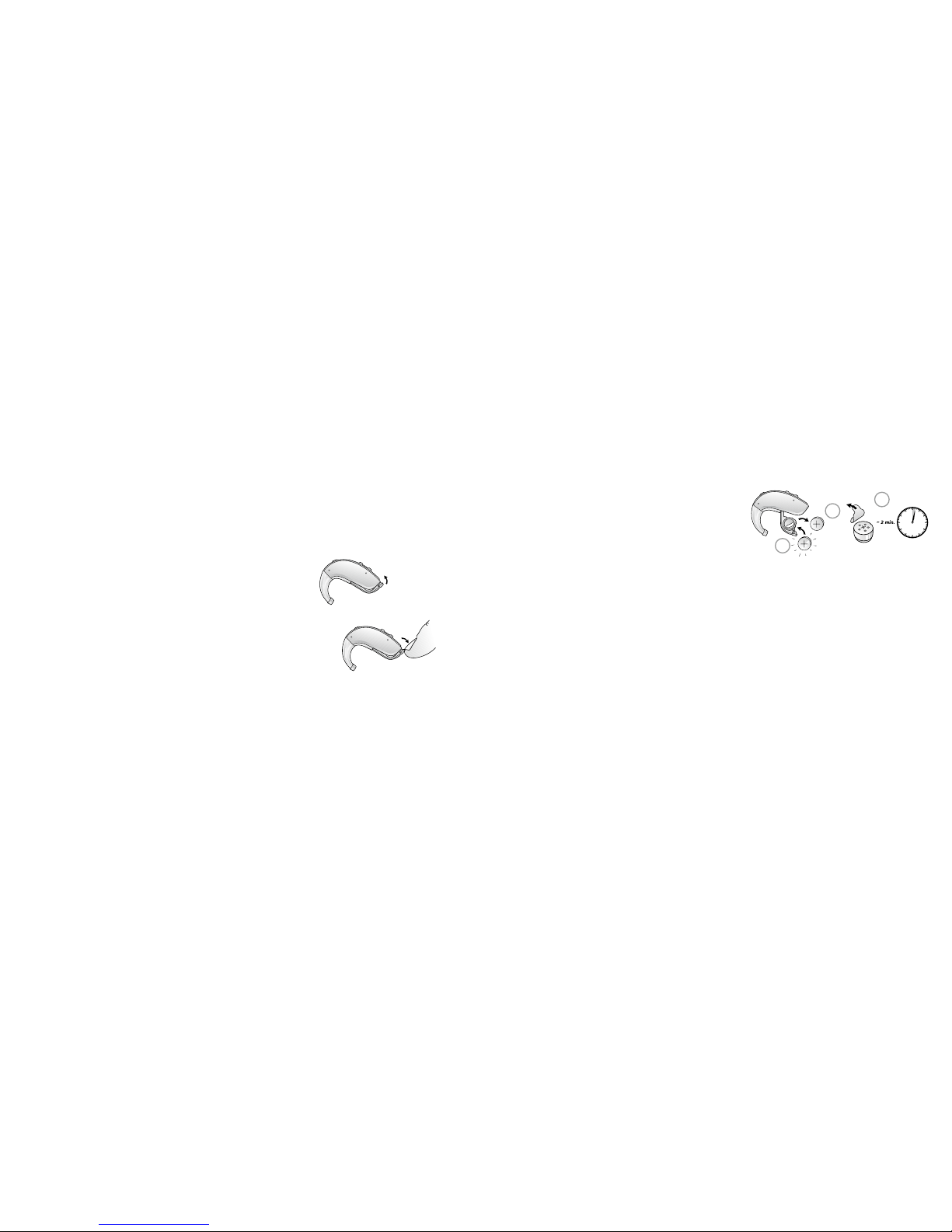

1. Open the battery door completely by using your

ﬁngernail. Remove the used battery if present.

2. Prepare the new battery (please refer to page 6 for

information on appropriate battery type/size for your

hearing instrument). Remove the protective foil and

wait 2 minutes before inserting the battery into the

hearing instrument to allow activation of the battery.

3. Insert the new battery with the positive side in the

correct position.

4. Gently close the battery door.

iTip:

1. Always use new Zinc-Air batteries that have a minimum remaining shelf life of 1 year.

2. Whenever the hearing instruments are not in use, remember to turn them off to avoid unnecessary

battery consumption.

3. Remove the sticker from the battery and let it air for 2 minutes before you insert it.

4. If the hearing instrument is experiencing frequent loss of connection to ReSound Unite accessories,

contact your hearing care professional for a list of low impedance batteries.

16 17

Low battery indicator

Your hearing care professional can activate a low battery indicator in your hearing instruments. The hear-

ing instrument will reduce ampliﬁcation and play a melody if battery power gets too low. This signal will

recur every 15 minutes until the hearing instrument automatically switches off. The timing of the low battery

indicator can vary slightly, depending on the type of battery used. It is recommended that you keep spare

batteries on hand.

Low battery indicator when paired with wireless accessories only

Active usage of the ReSound wireless accessories (Remote Control, Remote Control 2, Phone Clip, Phone

Clip+, TV Streamer, TV Streamer 2, Resound Micro Mic and Resound Multi Mic) or an FM receiver requires

more battery power from the hearing instruments than when they are working without accessories. That

means that battery life is highly dependent on the amount of wireless accessory usage. When the battery in

the hearing instrument has depleted to a level at which use of ReSound wireless TV Streamer, TV Streamer

2, Phone Clip, Phone Clip+, Resound Micro Mic and Resound Multi Mic cannot be supported, the hearing

instrument will play two sets of descending tones.

After this, your hearing instrument and ReSound Remote Control or Remote Control 2 will continue to work

as usual, but you will not be able to use your ReSound TV Streamer, TV Streamer 2, Phone Clip, Phone

Clip+, Resound Micro Mic and Resound Multi Mic. At some point the battery level will also be too low to

support the remote control functionality as well, and you will once again hear the descending tones. The

hearing instruments will continue to work as usual. Once a new battery is inserted, full operation of the ac-

cessories will resume.

Inserting/Removing hearing instruments

Insertion (custom earmoulds)

1. Hold the earmould between your thumb and index ﬁnger and position its

sound outlet in your ear canal.

2. Slide the earmould all the way into your ear with a gentle, twisting

movement.

3. Turn the top part of the earmould gently backwards and forwards so

that it tucks behind the fold of skin above your ear canal.

4. Move the earmould up and down and gently press to ensure it is

positioned correctly in the ear. Opening and closing your mouth can

ease insertion.

5. Make sure the hearing instrument is seated behind the ear.

By experimenting, an easier method may be discovered. With proper inser-

tion, hearing instruments should ﬁt snugly but comfortably. If the hearing

instruments cause irritation of the ears, contact your hearing care profes-

sional.

iNote: Never attempt to modify the shape of the hearing instrument,

earmoulds, or tubing yourself.

iTip: It may be helpful to pull your ear up and outward with your opposite

hand during insertion.

18 19

Removal (domes/custom earmoulds with thin tubes)

1. Hold the thin tube with your thumb and foreﬁnger and remove the tube.

2. For thin tube custom earmoulds, grasp the removal string and pull the earmould

outward.

3. Consult your hearing care professional if you have difﬁculties removing the hearing

instrument.

Removal (custom earmoulds)

1. Hold a portion of your earmould towards the back of the ear.

2. Pull the earmould outward and simultaneously rotate the earmould forward.

3. Consult your hearing care professional if you have difﬁculties removing the hearing instrument.

Insertion (domes/custom earmoulds with thin tubes)

1. Place the hearing instrument on the ear.

2. Hold the thin tube where it bends, and gently

place the dome into the ear canal. Push the

dome far enough into the ear canal so that

the thin tube lies ﬂush with the head.

3. It is important that the tube and the dome ﬁt

correctly into your ear.

4. When the dome is placed correctly, you

should not be able to see the thin tube

sticking out when facing a mirror.

iNote: You should never attempt to bend or modify the shape of the thin tube.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Audífono de ReSound

ReSound

ReSound SO862-DRW Manual de usuario

ReSound

ReSound 10 CIC Manual de usuario

ReSound

ReSound Verso Instrucciones de montaje

ReSound

ReSound sparx Manual de usuario

ReSound

ReSound KE461-DRWC Manual de usuario

ReSound

ReSound ONE Instrucciones de montaje

ReSound

ReSound Alera TS Manual de usuario

ReSound

ReSound BTe ZG71-dVi Manual de usuario

ReSound

ReSound AZURE AZ10 Manual de usuario

ReSound

ReSound Azure BTE AZ70-DVI Manual de usuario

ReSound

ReSound ONE 9 Manual de usuario

ReSound

ReSound Unite Phone Clip+ Manual de instrucciones

ReSound

ReSound Vea VE30 Manual de usuario

ReSound

ReSound MIH-S Manual de usuario

ReSound

ReSound OMNIA Manual de usuario

ReSound

ReSound AVENTA 3.9 Instrucciones de montaje

ReSound

ReSound LiNX 3D 62 Manual de usuario

ReSound

ReSound LINX 3D Instrucciones de montaje

ReSound

ReSound Vea Instrucciones de montaje

ReSound

ReSound RP30 Manual de usuario

ReSound

ReSound Match MA50-P Manual de usuario

ReSound

ReSound Linx Quattro Manual de usuario

ReSound

ReSound LINX 3D Manual de usuario

ReSound

ReSound be 9 Manual de usuario

Manuales populares de Audífono de otras marcas

Sonic

Sonic Bliss miniBTE Manual de usuario

Lexie

Lexie B1 Manual de lista de piezas

Widex

Widex FM+DEX Manual de usuario

Siemens

Siemens Triano Manual de usuario

Camplicomms

Camplicomms HC-200 Manual de usuario

Widex

Widex SUPER 220 S2-VSD Manual de usuario

Phonak

Phonak Q90 Manual de usuario

Williams Sound

Williams Sound SoundPlus WIR 237 Guía

Oticon Medical

Oticon Medical Ponto SoundConnector Manual de usuario

Siemens

Siemens Life micon Manual de usuario

Starkey

Starkey Destiny Manual de usuario

Audicus

Audicus The Icon Manual de usuario

Advanced Bionics

Advanced Bionics Slim HP Standard Manual de usuario

Widex

Widex DREAM440 THE DREAM SERIES Manual de usuario

Phonak

Phonak myPilot Manual de usuario

NIKEN

NIKEN NK-401 Manual de usuario

ON Semiconductor

ON Semiconductor Ezairo 7111 Pre Suite Manual de usuario

Sonetik

Sonetik GOHEAR Manual de usuario
