Resol VA32 Manual de usuario

VA32

RESOL VA32

Mounting

Connection

Manual control

Maintenance

Examples

Thank you for buying this RESOL product.

Please read this manual carefully to get the best performance from this unit.

www.resol.de

| 2

RESOL VA32

Contents

Safety advice ............................................................................................. 2

Technichal data and function survey ......................................................3

1. Installation ...........................................................................................4

1.1 Advice ...........................................................................................................4

1.2 Installation position ...................................................................................4

1.2.1 Change of ﬂow direction .........................................................................4

1.2.2 Dimensions ..................................................................................................4

2. Control

2.1 2 point control ...........................................................................................5

2.2 Examples ......................................................................................................5

Imprint ................................................................................................8

Safety advice

Please pay attention to the following

safety advice in order to avoid danger

and damage to people and property.

Instructions

Attention should be paid to

- the statutory provisions for preven-

tion of industrial accidents,

- the statutory provisions for environ-

mental protection,

- the Health and Safety at Work Act

1974

- Part P of the Building Regulations

2005

- BS7671 Requirements for electrical

installations and relevant safety re-

gulations of DIN, EN, DVGW, TRGI,

TRF and VDE.

These instructions are exclusively

addressed to authorised skilled per-

sonnel.

- Only qualified electricians should

carry out electrical works.

- Initial installation should be effected

by qualiﬁed personnel named by the

manufacturer

Declaration of conformity

We, RESOL Elektronische Regelungen GmbH, D-45527 Hattingen, declare under

our sole responsibility that our product RESOL VA32 complies with the follo-

wing standards:

EN 55 014-1

EN 60 730-1

According to the regulations of the above directives, the product is labelled with

89/336/EWG

73/ 23/EWG

Hattingen, 07.07.2006

RESOL Elektronische Regelungen GmbH,

ppa. Gerald Neuse

RESOL VA32

3 |

Application area:

The 3-port motor-driven valve VA32 is used in solar and

heating systems, in which smaller parts of the systems can

be controlled separately or single equipment can be swit-

ched on or off. The valve is equipped with an emergency

manual control, an integrated relay which can be controlled

via an on-off control signal or directly via a potential-free

changeover contact.

Characteristics:

Compact size and modern design, insulated actuator housing.

Easy manual operation for initial installation or emergency

operation. Universal electrical connection by integrated

relay. The signal output of the limit switch in valve position

can be used for control purposes (max. 1 A). The actuator

can be quickly replaced without having to dismount the

unit. No ﬂow reduction, full passage, corresponding to the

versions DN20-DN32.

Technical data

Actuator:

Operating voltage: 230 V~

Power consumption: standby 3 VA otherwise 7,5 VA

Protection type: II (EN60335-1)

Actuator safety class: IP 44 (IEC529)

Limit switch: 5(1)A, 240 VA

Connecting cable: 4 x 0,5 mm², L = 2.0 m

Regulating angle: 90 °

Actuation time: 18 s / 90 °

Torque: 6 Nm (max. 8 Nm)

Ambient temperature: -10 °C ... 60 °C

Load of the limit switch: 5(1)A, 240 V~

Operating mode open - closed

Valve:

Max. operating temperature: 0 °C ... 110 °C

Max. operating pressure: 6 bar

Housing: forged brass

Rotor with axle: brass

Axle sealing: 4 x O-rings, EPDM

Possibility of motor control: UV-3

For reduction of axle friction:

PA-washer

| 4

RESOL VA32

KVS values for F3L Rotodiv.

1. Installation advice

The installation of the valve must be carried out correspon-

ding to the approved technical regulations. Rests of sealing

material and rests of hemp must not get into the valve body.

In order to avoid blocking of the valve ball, the following

advice has to be considered and all solder, brazing or welding

processes near the valve are to be avoided.

Important advice

In order to attain the maximum operating safety and relia-

bility, it is recommended to ﬂush the system and to insert

an appropriate strainer (0,65 µm) in front of each valve (see

installation scheme).

3. Change of ﬂow direction

Change of ﬂow direction A<>AB to AB<>B when the relay

is in rest position.

• Unscrew green housing cover.

• Unscrew sink screw and remove the actuator. Set the ro-

tary slide to the desired basic position (displace the lens

head screws by 90 °).

• Attach the actuator (until it locks) and tighten screw after

the mounting has been ﬁnished. Fasten the cover with the

screws. Functional control.

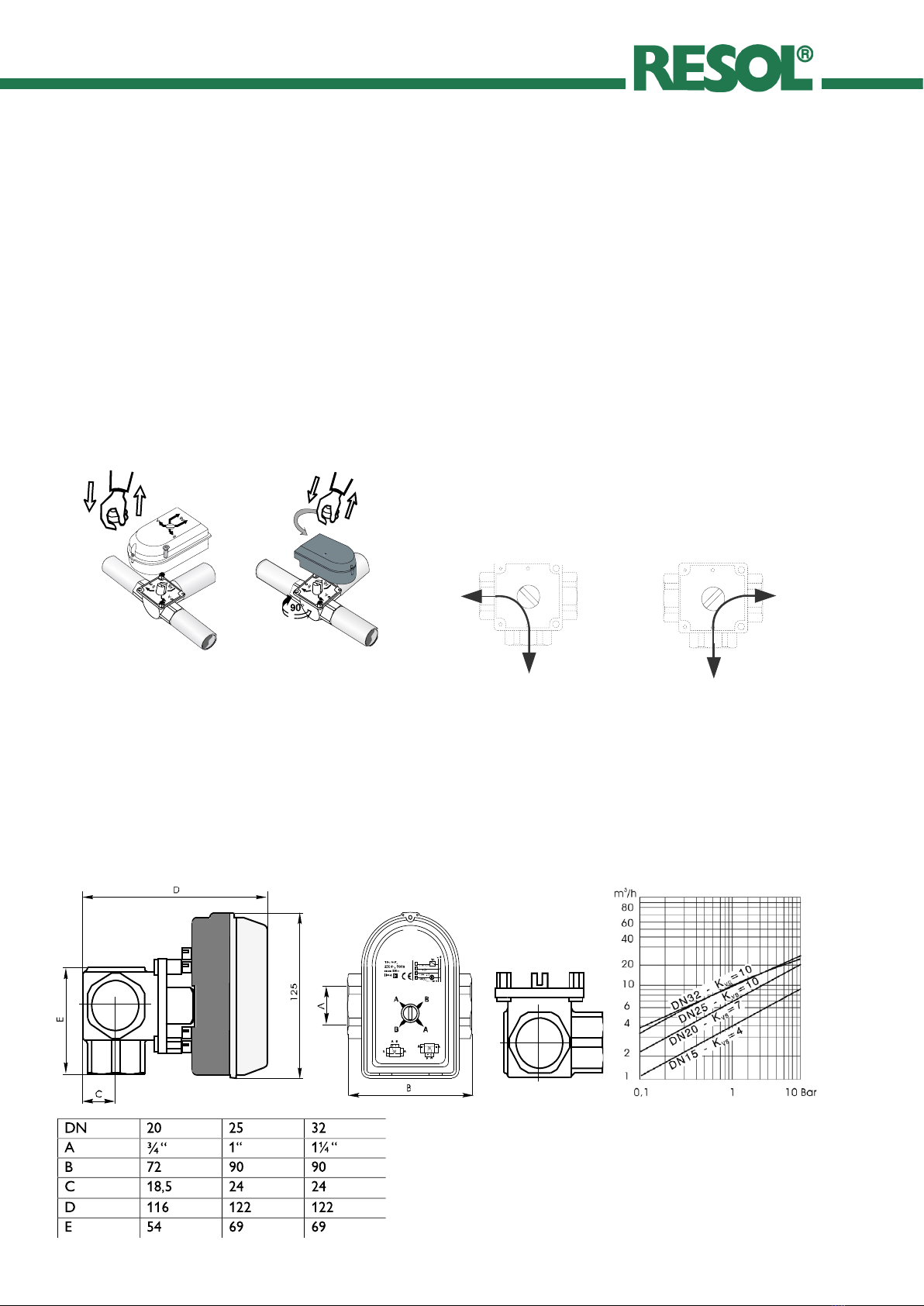

Mounting and demounting

of valve and actuator

Change of ﬂow direction

4. Dimensions

2. Installation position

The valve can be mounted in any position, but not with the

actuator to the bottom. In order to use the hand operation

+/- 90 °, a cable loop of approx. 25 cm has to be arranged

during the electrical connection. In order to have enough

space to carry out maintenance work, a distance of at least

100 mm from the wall or the device respectively has to be

kept.

RESOL VA32

5 |

brown

blue

black

control cont.

red

Black: if the auxiliary phase L (240 V) is energised, the way

AB<>B opens. If there is no control signal, the valve is

brought back to the initial position AB <> A

Brown: permanent phase L (240 V)

Blue: neutral line -N (240V)

Red: limit switch output signal

5. On-off control (with permanent phase L)

Attention!

Fuse the operating voltage with external pre-fuse max. 2 A.

Red limit switch lead is bared and carries voltage when the

valve is in the open position.

7. Examples

Solar system with 2 collectors and two storages

with 3-port valve in order to change storage

loading in layers.

Solar system with 1 collector and 1 storage with

3-port valve in order to change storage loading

in layers.

| 6

RESOL VA32

Notes

RESOL VA32

7 |

Notes

| 8

RESOL VA32

Distributed by:

Please note:

The design and the speciﬁcations are to be changed without notice.

The illustrations may differ from the original product.

RESOL - Elektronische Regelungen GmbH

Heiskampstraße 10

D - 45527 Hattingen

Tel.: +49 (0) 23 24 / 96 48 - 0

Fax: +49 (0) 23 24 / 96 48 - 755

www.resol.de

info@resol.de

Reprinting / copying

This mounting- and operation manual including all parts is

copyrighted. Another use outside the copyright requires

the approval of RESOL - Elektronische Regelungen GmbH.

This especially applies for copies, translations, micro ﬁlms

and the storage into electronic systems. Editor: RESOL -

Elektronische Regelungen GmbH

Important notice:

We took a lot of care with the texts and drawings of this

manual and to the best of our knowledge and consent. As

faults can never be excluded, please note: Your own calcu-

lations and plans, under consideration of the current stan-

dards and DIN-directions should only be basis for your

projects. We don´t offer a guarantee for the completeness

of the drawings and texts of this manual - they only repre-

sent some examples. They can only be used at your own

risk. No liability is assumed for incorrect, incomplete or

false information and the resulting damages.

Errors an technical changes excepted.
