Reolink Argus 2 Guía de inicio rápido

Reolink Argus 2/Argus Pro

Operational Instruction

EN/DE/FR/IT/ES

July, 2019

QSG7_A

Technical Support

If you need help, please contact Reolink before returning your product. Most questions can be

answered through our online support center at https://support.reolink.com.

Technische Unterstützung

Wenn Sie Hilfe brauchen, kontaktieren Sie bitte Reolink Support Team zuerst, bevor Sie Ihre

Bestellung zurücksenden.Meiste Fragen oder Probleme können von unserem Online Support

Center beantwortet und gelöst werden: https://support.reolink.com.

Support technique

Si vous avez besoin d’aide, veuillez contacter Reolink avant de retourner votre produit. La

plupart des questions peuvent être répondues via notre centre de support en ligne à l'adresse

https://support.reolink.com.

Supporto Tecnico

Se avete bisogno di aiuto, le chiediamo gentilmente di contattare Reolink prima di restituire il

prodotto.La maggior parte delle domande può essere risolta tramite il nostro centro di

assistenza online all'indirizzo https://support.reolink.com.

Soporte técnico

Si necesita ayuda, comuníquese con Reolink antes de devolver su producto. La mayoría de las

preguntas se pueden responder a través de nuestro centro de soporte en línea en

https://support.reolink.com.

Shenzhen Reo-link Digital Technology Co, Ltd.

11th ﬂoor, Building C, Unisplendour Information Harbour, North High-Tech Zone, Nanshan

District, Shenzhen, China, 518057

https://reolink.com

https://support.reolink.com

[email protected]

Pettenkoferstraße 18,10247,Berlin,Germany

BellaCocool GmbH

REP

Contents

What’s in the Box

* The camera and the rechargeable battery are packed separately in the same package.

* Please dress the camera with the skin for better weatherproof performance when you install the

camera outdoors.

What’s in the Box

General Introduction

Install the Rechargeable Battery to the Camera

Set up Camera on Reolink App (For Smartphone)

Set up Camera on Reolink Client (For PC)

Attention for Camera Installation

Charge the Battery

Installation Guides

Troubleshooting

Speciﬁcations

Notiﬁcation of Compliance

Argus 2/Argus Pro Camera x1

Wall Mount (Only for Argus 2) x1

Outdoor Security Mount x1

Rechargeable Battery * x1

Quick Start Guide x1

Skin * x1

Power Cable x1

Reset Needle x1

Surveillance Sign x1

Screws (in pack) x1 (x2 for Argus 2)

Mounting Hole Template x1 (x2 for Argus 2)

1English

General Introduction

The LED in Red (WiFi connection failed)

Blinking: Standby status

On: Working status

The LED in Blue (WiFi connection succeeded)

Blinking: Standby status

On: Working status

Micro SD Card Slot

Daylight Sensor

Lens

Status LED

Built-in Mic

Built-in PIR Motion Sensor

Speaker

Wall Mount

Reset Hole

Press the reset button with a

pin to restore factory settings.

Only for Argus 2

Install the Rechargeable Battery to the Camera

!• Pleasepressthebutton(onthetopofthebackcasing),andslide thebackcasing

downwardtocloseit.Thebuttonalsoneeds to be closedﬁrmlyfor goodweatherproof

performance.

• For the weatherproof performance, always cover the USB charging port with the rubber

plug.

3English2 English

1. Please click the “ ” button

in the top right corner to add the

camera.

2. Scan the QR code on the back

of the camera.

3. Click “Connect to Wi-Fi” to

conﬁgure the wiﬁ settings.

NOTICE:

• Reolink Argus 2/Argus Pro

camera only supports 2.4 GHz

Wi-Fi. 5 GHz is not supported.

• Your family can click "Access

Camera" for live view after the

initial setup.

Download and install the Reolink App on App Store (for iOS) and Google Play (for Android).

Available on the Get it on

Set up Camera on Reolink App (For Smartphone)

Please follow the prompt tones to conﬁgure the camera.

4. A QR code will be generated on the phone. Please place the QR code on your phone towards

Reolink Argus 2 or Pro camera’s lens at a distance of about 20cm (8 inches) to let the camera

scan the QR code. Please make sure that you’ve ripped the protection ﬁlm of the camera’s lens.

5. Follow the steps to ﬁnish the WiFi settings.

6. After you created a password for your camera, please follow the steps to sync the time, and

then start live view or go to “Device Settings”

Add New Device

Device Settings

Access the Live View

Battery Status

Enable/Disable PIR

Motion Sensor

(In default, the PIR sensor

is enabled.)

20 cm ( 8 inches )

5English4 English

≈30cm(12 inch)

• In Dierent Network (In WAN)

NOTICE: To save power, the

camera will log out if no

operation is conducted for

about 5 minutes. You need to

clicking the “ ” button.

1. Click “Add Device” on the right-side menu.

2. Choose “UID” as the Register Mode.

3. Type in the UID of your camera.

4. Create a name for the camera displayed on Reolink Client.

5. Input the password created on Reolink App to log in.

6. Click “OK” to log in.

Please download the Reolink Client software from our ocial website:

https://reolink.com/software-and-manual/ and install it.

NOTICE: It’s recommended to set up the camera on Reolink App ﬁrst before adding the

camera to Reolink Client.

Launch the Reolink Client software and manually add the camera to the Client. Please

follow the steps below.

1. Click “Add Device” on the

right-side menu.

2. Click "Scan Device in LAN".

3. Double click on the camera you

want to add. The information will

be ﬁlled in automatically.

4. Input the password created on

Reolink App to log in.

5. Click “OK” to log in.

• In Same Network

(In LAN)

Set up Camera on Reolink Client (For PC)

7English6 English

• PIR Sensor Detecting Distance

NOTICE:

1. Path for adjusting distance in App: Device settings-PIR settings

2. Path for adjusting distance in Client: Device settings-RF Alarm

3. Higher sensitivity oers longer detecting distance, but it would lead to more false alarms. You

are advised to set up the sensitivity level to “Low” or “Mid” when you install the camera outdoors.

Sensitivity Detecting Distance

(For moving and living things)

Detecting Distance

(For moving vehicles)

High

Mid

Low

Up to 9 meters (30ft)

Up to 6 meters (20ft)

Up to 4 meters (13ft) Up to 10 meters (33ft)

Up to 12 meters (40ft)

Up to 15 meters (50ft)

The PIR senor has 3 sensitivity levels for your adjustment: Low/Mid/High.

Higher sensitivity oers longer detecting distance. The default sensitivity of the PIR sensor is at

“Mid”.

To reduce false alarms, please note that:

• Do not install the camera facing any objects with bright lights, including

sunshine, bright lamp lights, etc.

• Do not place the camera too close to a place where there are frequently

moving vehicles. Based on our numerous tests, the recommended distance

between the camera and the vehicle is 15 meters (50ft).

• Stay away from the outlets, including the air conditioner vents, humidiﬁer

outlets, the heat transfer vents of projectors, etc.

• Do not install the camera where there are strong winds.

• Do not install the camera facing the mirror.

• Keep the camera at least 1 meter away from any wireless devices,

including Wi-Fi routers and phones in order to avoid wireless interference.

Important Notes for Reducing

False Alarms

Attention for Camera Installation

9English8 English

When installing the camera, please install the

camera angularly (the angle between the sensor

and the detected object is larger than 10°) for

eective motion detection. If the moving object

approaches the PIR sensor vertically, the sensor

may not detect the motion events.

The ideal viewing distance is 2-10 meters

(7-33ft), which enables you to recognize a

human.

Entrance

θThe path of the

moving object

FYI:

• The PIR sensor’s detecting distance: 20ft (in

default)

• The PIR sensor’s detecting angle: 120° (H)

• Camera Ideal Viewing

Distance

2-3 meters

10°

Ideal Viewing Distance:

2-10 meters (7-33ft)

Charge the Battery

NOTICE: Please note that the solar panel is NOT included in the package. You can buy the solar

panel on Reolink ocial online store.

Reolink Argus 2 or Argus Pro is not designed for 24/7 full capacity running or around-the-clock

live streaming. It’s designed to record motion events and remotely view live streaming only when

you need it.

Please learn some useful ways to maximize the battery life in this post:

https://support.reolink.com/hc/en-us/articles/360006991893

Important Safeguards on Rechargeable Battery Use

2. Charge the battery

separately.

1. Charge the battery when it's

installed to the camera.

3. Charge the battery with the

Reolink Solar Panel.

Charging indicator: Orange LED: Charging Green LED: Fully charged

• PIR Sensor Installation Angle

11English

10 English

1. Please charge the rechargeable battery with a standard and high-quality DC 5V or 9V battery

charger.

2. If you want to power the battery via the solar panel, please note that the battery is ONLY

compatible with Reolink Solar Panel. You cannot charge the battery with other solar panel brands.

3. Please charge the battery in temperatures between 0°C and 45°C.

4. Always use the battery in temperatures between -20°C and 60°C.

5. Please make sure the battery compartment is clean.

6. Please keep the USB charging port dry, clean and free of any debris and make sure the battery

contacts are aligned.

7. Always make sure the USB charging port is clean. Please cover the USB charging port with the

rubber plug after the battery has been fully charged.

8. Never charge, use or store the battery near any ignition sources, such as ﬁre or heaters.

9. Always store the battery in a cool, dry and ventilated environment.

10. Never store the battery with any hazardous or combustible objects.

11. Do keep the battery away from children.

12. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and

negative (-) terminals. Do NOT transport or store the battery with necklaces, hairpins or other metal

objects.

13. Do NOT disassemble, cut, puncture, short-circuit the battery, or make it dispose of in water, ﬁre,

microwave ovens and pressure vessels.

14. Do NOT use the battery if it gives o an odor, generates heat, becomes discolored or deformed,

or appears abnormal in any ways. If the battery is being used or charged, remove the battery from

the device or the charger immediately, and stop using it.

15. Always follow the local waste and recycle laws when throwing the used battery away.

• Skin (for Argus 2)

Installation Guides

Step 1

Please dress the Reolink

Argus 2 camera with the skin

provided in the package.

Step 2

The skin has an anti-falling

safety rope. Please fasten the

other end of the rope to the

wall mount when mounting it

to the wall.

Step 3

Stick the camera on the wall

mount and twist the camera in

any direction.

Please dress the camera with the skin for better weatherproof performance when you install the

camera outdoors.

13English12 English

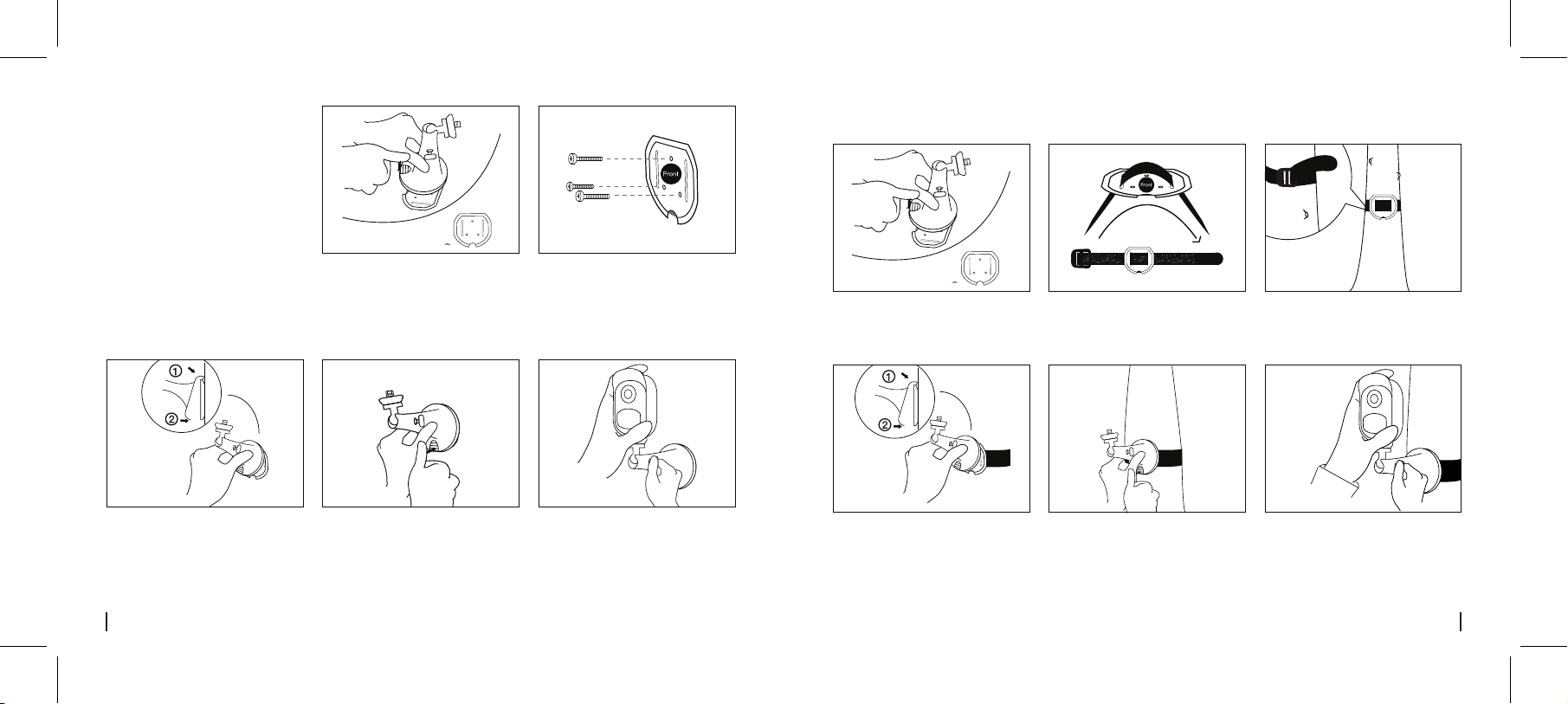

• Wall Mount

Step 1

Press the button to release the

plate from the security mount.

Step 3

Latch the security mount on

its plate. (Make sure the top

edge of the backing plate is

inserted into the mount.)

Step 4

Press the security mount

button until its plate clicks into

the mount.

Step 5

Screw the camera, adjust its

direction and tighten the knob

to ﬁx it.

Step 2

Screw the security mount

plate into the wall.

• Tree Mount

Step 4

Latch the security mount on

its plate (make sure the top

edge of the backing plate is

inserted into the mount.)

Step 1

Press the button to release the

plate from the security mount.

Step 5

Press the security mount

button until its plate clicks into

the mount.

Step 6

Screw the camera, adjust its

direction and tighten the knob

to ﬁx it.

Step 2

Thread the hook & loop strap

through the slots.

Step 3

Fasten the warp strap to the

tree.

15English

14 English

• Camera is not powering on

If you ﬁnd your camera is out of work, please

try the following solutions:

• Make sure the battery is correctly inserted

into the compartment. If not, put the battery in.

• Charge the battery using the power adapter

of DC 5V2A and make sure the battery

indicator LED is on. When the green light is

illuminated, the battery is fully charged.

• If you have another spare battery, please

swap the battery for a double check.

• If the camera still can’t be powered on after

trying the troubleshooting steps above,

contact Reolink support team.

If the PIR sensor fails to trigger any kind of

alarm within the covered area, try the

following solutions:

• Make sure that the PIR sensor or the camera

is installed in the direction crossing the

possible intruder.

• Make sure the PIR sensor is enabled or the

time schedule is on and set properly.

• Please check the sensitivity and make sure

it’s set properly.

• Go to Device Settings -> PIR Settings and

make sure the corresponding action is

checked.

• Make sure the battery is not deployed.

• Please reset the camera and try it again.

If you fail to receive any push notiﬁcation when

motion is detected, try the following solutions:

• Make sure the push notiﬁcation has been

enabled.

• Make sure the PIR schedule is set properly.

• Check the Internet connection of your phone

and try again.

• Make sure the camera is connected to the

Internet. If the LED indicator under the camera

lens is solid red or ﬂickering red, it means that

your device has disconnected from the

Internet.

• Make sure you’ve enabled notiﬁcations on

your phone. Go to the System Settings of your

phone and allow it to push notiﬁcations.

• Unable to receive push

notiﬁcation

• PIR sensor fails to trigger

alarm

Troubleshooting

17English16 English

• Remove the Camera

Step 1

Press the security mount

button to pull the mount out.

Step 2

Unscrew the camera from the

wall mount.

Otros manuales para Argus 2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cámara digital de Reolink

Reolink

Reolink Argus 3 Ultra Guía de inicio rápido

Reolink

Reolink Argus 3 Manual de usuario

Reolink

Reolink Go PT Ultra Manual de usuario

Reolink

Reolink Argus PT Ultra Manual de usuario

Reolink

Reolink Duo 2 LTE Manual de usuario

Reolink

Reolink Reolink Go PT Plus Manual de usuario

Reolink

Reolink Argus 3 Pro Manual de usuario

Reolink

Reolink DUO2-4KWS Guía de inicio rápido

Reolink

Reolink Duo 2 Guía de inicio rápido

Reolink

Reolink Duo PoE Manual de usuario

Reolink

Reolink Duo PoE Guía de inicio rápido

Reolink

Reolink RLC-823A 16X Guía de inicio rápido

Reolink

Reolink RLC-81MA Manual de usuario

Reolink

Reolink Duo 4G Manual de usuario

Reolink

Reolink TrackMix WIRED LTE Guía de inicio rápido

Reolink

Reolink RLC-510A Manual de usuario

Reolink

Reolink rlk16-800d8 Guía de inicio rápido

Reolink

Reolink RLC-842A Manual de usuario

Reolink

Reolink RLC-510WA Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
