APPLICATION NOTE

R01AN4426EJ0100 Rev.1.00 Page 1 of 13

Dec 21, 2018

RAA604S00

Guidelines for two-layer board for RF part

Introduction

This document states guidelines to be observed when designing RF board with two-layer substrate.

Target Device

RAA604S00

Note: The contents of this document are provided as an example for reference and do not guarantee the signal quality in

systems. When implementing this example into an existing system, thoroughly evaluate the product in the overall

system and apply the contents of this document at your own responsibility.

Contents

1. Overview...........................................................................................................................2

2. Oscillator...........................................................................................................................3

3. External Circuit for DC-DC Converter ............................................................................4

4. RF Signal Lines................................................................................................................5

5. Digital Signal Lines..........................................................................................................6

6. Power Supply ...................................................................................................................7

7. Ground Pattern.................................................................................................................8

8. Circuit Diagram for Reference ........................................................................................9

9. List of Parts for Reference............................................................................................10

R01AN4426EJ0100

Rev.1.00

Dec 21, 2018

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 2 of 13

Dec 21, 2018

1. Overview

This document uses the pin names of the RAA604S00. Table 1 briefly describes the pins used in the RAA604S00.

Table 1 Description of the RAA604S00 Pins

1.1 Related Documents

The following document is related to this application note. Also refer to this document when using this application note.

•RAA604S00 User’s Manual: Hardware (R01UH0567EJ)

Number

Pin Name

I/O

Function

1 STANDBY Input Power down control input of the transceiver

2 OSCDRVSEL Input This signal is for switching the driving ability of the buffer for the 48-MHz

crystal oscillator.

3 SIN Input Serial input

4 SOUT Output Serial output

5 SCLK Input Serial input/output clock

6 SEN Input Serial enable

7 GPIO0 Input/output Transceiver I/O port 0 or CLKOUT

8 GPIO1/ANTSELOUT0 Input/output Transceiver I/O port 1 or ANTSELOUT0

9 INTOUT Output Transceiver interrupt output

10 GPIO2/ANTSELOUT1 Input/output Transceiver I/O port 2 or ANTSELOUT1

11 GPIO3 Input/output Transceiver I/O port 3

12 GPIO4/ANTSW Input/output Transceiver I/O port 4 or ANTSW

13 RFRESETB Input Reset

14 DON Input DC-DC converter enable

15 VREGO2 ―Stabilizing capacitor connection for VCO (1.1 V)

16 VREGO3 ―Power supply stabilizing capacitor connection for PLL (1.1 V)

17 MODE2 Input Mode switch 2

18 MODE1 Input Mode switch 1

19 RFIN ―Transceiver ground

20 RFIP Input RF input

21 AGNDRF1 ―Transceiver ground

22 RFOUT Output RF output

23 AGNDRF2 ―Transceiver ground

24 REXT ―External reference resistor connecting pin

25 VREGO1 ―Power supply stabilizing capacitor connection for the RF section (1.1 to

1.25 V)

26 XIN Input 48-MHz crystal resonator input

27 XOUT/REFCLKIN Input/output 48-MHz crystal resonator output or external clock input

28 VCCRF ―3-V power supply input (1.8 to 3.6 V)

29 REGIN ―Power supply input for the analog section (1.4 to 1.6 V), for external

connection with DDCOUT

30 VSSDDC ―DCDC converter ground

31 DDCOUT ―DCDC converter output (1.4 to 1.6 V), for external connection with

REGIN

32 VCCDDC ―DCDC converter power supply (1.8 to 3.6 V)

Reverse

side

DIEGND ―Ground

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 3 of 13

Dec 21, 2018

2. Oscillator

Note the following points for design in relation to the oscillator.

•Place the load capacitor close to the crystal resonator electrode.

•Separate the signal lines for the crystal resonator’s pins 26 (XIN) and 27 (XOUT) from those for pin 22 (RFOUT)

by at least 4.5 mm because a narrower separation may lead to an unacceptable level of intermodulation interference.

•We recommend not placing signal lines other than pin 26 (XIN) and pin 27 (XOUT) in the vicinity of the crystal

resonator.

•Separate the ground area for the crystal resonator and load capacitors C5 and C10 from the other ground areas on the

surface layer of the board.

•Connect the wiring between pins 26 (XIN) and 27 (XOUT) on the back of the board through the via holes.

•Before using a crystal resonator, contact the resonator manufacturer to determine its circuit constants.

•When using a neighboring channel of an integral multiple (864 MHz, 912 MHz) of the crystal frequency of 48 MHz,

or when if the distance between pin46(XIN) and pin 47 (XOUT) to pin 43 (RFOUT) can not be increased, insert

the inductor arbitrarily into R3 and R4 according to the clock spurious condition.

Figure 1 shows an example of how to connect a crystal resonator. Figure 2 shows an example of the layout pattern.

Figure 1 Example of How to Connect a Crystal Resonator

Figure 2 Example of Layout Pattern in the Vicinity of the Crystal Resonator

The constants of the load capacitors (C5 and C10) depend on the characteristics of the crystal resonator in use.

Evaluate the oscillation characteristics of the crystal resonator to determine the constants.

XIN

XOUT

C10

(optional)

XOUT

RFOUT

XIN

XOUT

C10

4.5mm

XIN

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 4 of 13

Dec 21, 2018

3. External Circuit for DC-DC Converter

Note the following points for design in relation to the feedback loop of the DC-DC converter.

•We recommend not placing signal lines in the vicinity of pins 29 (REGIN), 30 (VSSDDC), and 31 (DDCOUT).

•Keep the length of the wiring run between pins 29 (REGIN) and 31 (DDCOUT) as short as possible.

•Place C3 as close to pin 32 (VCCDDC) as is possible.

•C3 and C46 hold the positional relationship of this layout and arrange so that C46 does not get too close to C3.

•Place the board ground from Pin 50 (VSSDDC) in the loop of Pin 49 (REGIN) and Pin 51 (DDCOUT), and place

one or more via.

•Insert the ferrite beads (FB1) arbitrarily according to the noise condition caused by the DC-DC converter.

Figure 3 shows an example of the feedback loop circuit of the DC-DC converter. Figure 4 shows an example of the

layout pattern.

Figure 3 Example of the Feedback Loop Circuit of the DC-DC Converter

Figure 4 Example of the Layout Pattern of the Feedback Loop of the DC-DC Converter

DDCOUT

REGIN

C46

VCCDDC

FB1

(optional)

C14

C46

REGIN

FB1

VCCDDC

VSSDDC

DDCOUT

C56

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 5 of 13

Dec 21, 2018

4. RF Signal Lines

Note the following points for design in relation to the circuit in the vicinity of the RF signal lines.

•Design the RF signal lines as coplanar lines and also as having an impedance of 50 Ω.

•Place as many via holes around the coplanar lines as is possible. The areas around and between the coplanar lines

should be solid stretches of ground with no signal connections.

•The ground for C16, C17, and C18 should be isolated from those for pins 26 (XIN) and 27 (XOUT), so C16, C17

and C18 should be connected to the same stretch of ground as pin 21 (AGNDRF1) or 19 (RFIN). The ground of C15

should be taken from pin 23 (AGNDRF2) side.

•Pin 21 (AGNDRF1) should be connected to the board ground between pins 20 (RFIP) and 22 (RFOUT).

Figure 5 shows an example of the layout pattern in the vicinity of the RF signal lines.

Figure 5 Example of the Layout Pattern in the Vicinity of the RF Signal Lines

C15

C18

C17

AGNDRF1

AGNDRF2

RFIN

C16

with RF switch

Direct Tie

AGNDRF1

AGNDRF2

RFIN

RFOUT

RFIP

RFOUT

RFIP

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 6 of 13

Dec 21, 2018

5. Digital Signal Lines

Note the following points for design in relation to the circuit in the vicinity of the digital signal lines.

•We recommend not placing wiring for pins 3 (SIN), 4 (SOUT), 5 (SCLK), 6 (SEN), and 9 (INTOUT) under the IC,

in the vicinity of the RF signal lines, or in the vicinity of pins 29 (REGIN), 30 (VSSDDC), 31 (DDCOUT), and 32

(VCCDDC).

•Keep the digital signal lines as short as possible to reduce digital noise. We recommend inserting series resistors as

required. In that case must be placed R16, R18, and R19 on the MCU side and R17 and R20 on the RAA604S00

side.

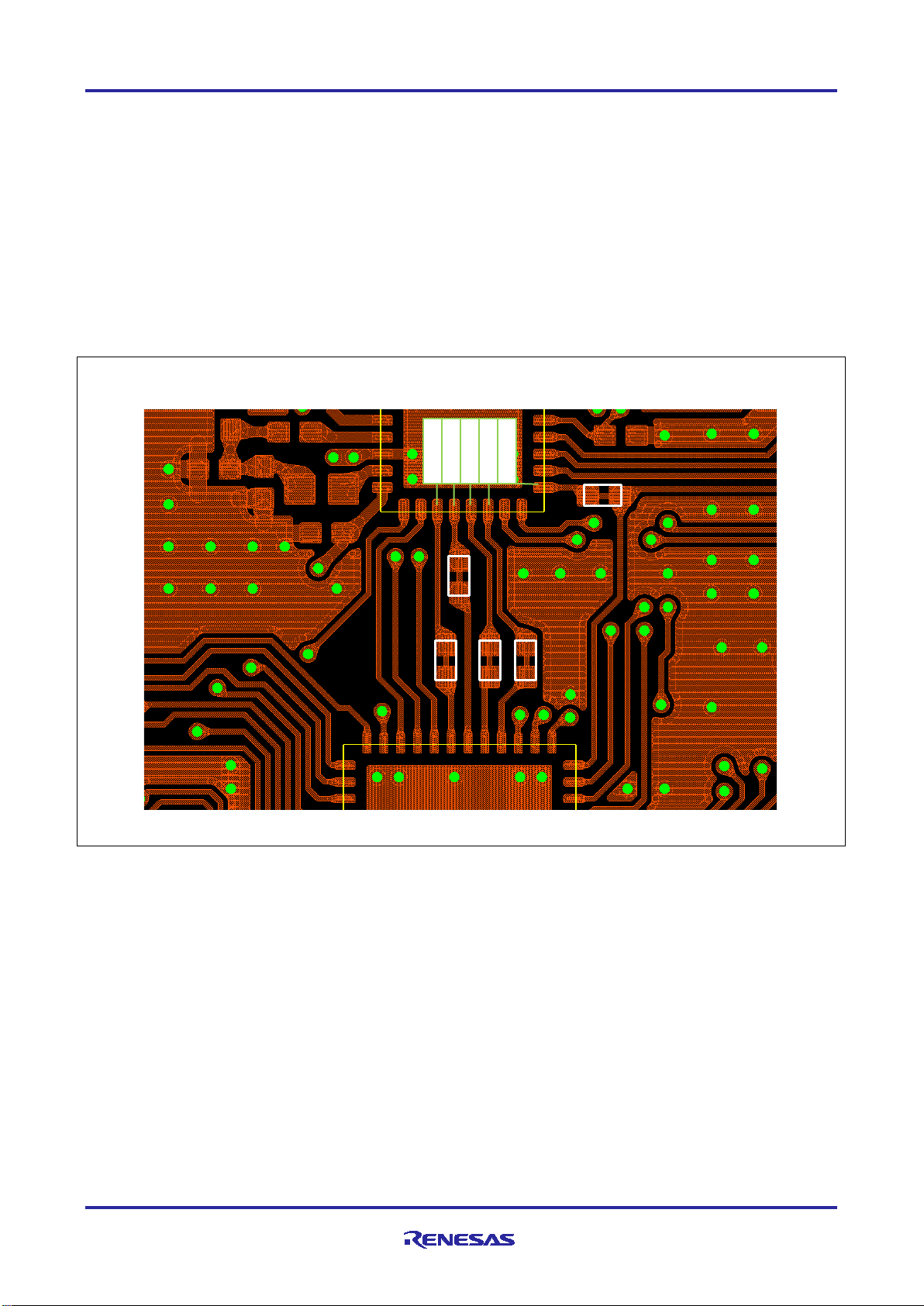

Figure 6 shows an example of the layout pattern in the vicinity of the digital signal lines.

Figure 6 Example of the Layout Pattern in the Vicinity of the Digital Signal Lines

SIN

SOUT

SCLK

SEN

INTOUT

R16

R17

R18

R19

R20

MCU

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 7 of 13

Dec 21, 2018

6. Power Supply

Note the following points for design in relation to the power supply circuit.

•Place the bypass capacitors on the surface layer of the board and as close as possible to the pins.

•Place the ground of C14, C56 as closely as possible to pin 23 (AGNDRF2).

•Separate the grounds for C26, C27, and C55 from the surface layer of the board and insert the slit from base of the

pins on the back layer, to avoid interference from the signal on pin 20 (RFIN). Place them as far as possible from the

RF signal lines.

•We recommend not placing signal lines in the vicinity of pins 28 (VCCRF) and 32 (VCCDDC).

•Make the wiring as thick as possible to keep the impedance low.

•Make sure that the RF GND is not divided by the wiring of the power supply line.

•Place a via hole for each bypass capacitor.

•We recommend not placing via holes between the IC and bypass capacitors.

Figure 7 shows an example of how to place the bypass capacitors.

Note: The level of generated noise depends on the implementation of the board. Add bypass capacitors as

required (this figure is merely an example).

Figure 7 Example of How to Place the Bypass Capacitors

C46

C14

C27

C26

C55

C56

Component surface

VCCRF

VCCDDC

RFIN

Solder surface

AGNDRF2

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 8 of 13

Dec 21, 2018

7. Ground Pattern

Note the following points for design in relation to the ground pattern.

•Place as many via holes as possible to create short circuits with ground patterns in other layers. This helps keep the

impedance low.

•Connect pins 17 (MODE2), 18 (MODE1), 19 (RFIN), 21 (AGNDRF1), 23 (AGNDRF2), and 30 (VSSDDC) to the

die pad. Note that the via holes for the ground pattern should not be placed near pin 30 (VSSDDC).

•We recommend not placing signal lines under the die pad if the signals may be active during transmission and

reception.

Figure 8 shows an example of the layout pattern of the die pad.

Figure 8 Example of Layout Pattern of the Die Pad

VSSDDC

MODE1

MODE2

RFIN

AGNDRF2

AGNDRF1

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 9 of 13

Dec 21, 2018

8. Circuit Diagram for Reference

Figure 9 and Figure 10 are circuit diagram for reference.

Figure 9 Circuit diagram for direct tie

Figure 10 Circuit diagram with RF switch

A B C D E F G H

X'tal

3G4

2X'tal 1

R16

R17

R18

R19

R20

C17

C27

PAD5 PAD4

C3 L2

C26 C55

R10

P60

P61

P62

P63

P31

P74

P73

P72

P71

P70

P50 13

P51 14

P17 15

P16 16

P15 17

P14 18

P13 19

P12 20

P11 21

P10 22

P146 23

P147 24

P27 25

P26 26

P25 27

P24 28

P23 29

P22 30

P130 33

P01/RxD1 34

P00/TxD1 35

P140 36

P120

P41

P40/TOOL0

RESETB

P137

P122/X2

P121/X1

REGC

VSS

VDD

DieGND

P124/XT2

P123/XT1

P75

6P20/AVREFP 32

P21/AVREFM 31

P30/INTP3

R5F104GLANA

IC2

PAD6

3 4

43 44

45 46

47 48

49 50

51 52

53 54

55 56

57 58

59 60

10 TXD

12 P72

14 P70

16 P60

20 P21

22 P62

24 P63

38 P120

40 P122

RESETB

RXD 13

P71

P20 19

P61 21

P75

P31 27

P140 23

P22

P121

28 P137

TOOL0

P23 18 P24

P147 31

P73 33

P74 35

P25 37

P27 39

P41

26 P26

30 P146

32 P50

34 P51

36 P17

CN1

R5 R6

C28

C29

FB2

VDD

PAD12

GND

PAD11

PAD7 PAD8

R11

C18

6SAW1

C15

PAD3

PAD2 PAD1

C10

1.STANDBY

2.OSCDRVSEL

3.SIN

4.SOUT

5.SCLK

6.SEN

7.GPIO0

8.GPIO1

9.INTOUT

10.GPIO2

11.GPIO3

12.GPIO4

13.RFRESETB

14.DON

15.VREGO2

16.VREGO3

17.MODE2 17

18.MODE1 18

19.RFIN 19

20.RFIP 20

21.AGNDRF1 21

22.RFOUT 22

23.AGNDRF2 23

24.REXT 24

25VREGO1 25

26.XIN 26

27.XOUT 27

28.VCCRF 28

29.REGIN 29

30.VSSDDC 30

31.DDCOUT 31

32.VCCDDC 32

DieGND

(RF)

(VCO)

(PLL)

RAA604S00

IC1

R9 C23

C14 C56

PAD9 PAD10

C45C46

FB1

A B C D E F G H

R16

R18

R19

C27

PAD5 PAD4

C3 L2 FB1

C26 C55

R10

P60

P61

P62

P63

P31

P74

P73

P72

P71

P70

P50 13

P51 14

P17 15

P16 16

P15 17

P14 18

P13 19

P12 20

P11 21

P10 22

P146 23

P147 24

P27 25

P26 26

P25 27

P24 28

P23 29

P22 30

P130 33

P01/RxD1 34

P00/TxD1 35

P140 36

P120

P41

P40/TOOL0

RESETB

P137

P122/X2

P121/X1

REGC

VSS

VDD

DieGND

P124/XT2

P123/XT1

P75

6P20/AVREFP 32

P21/AVREFM 31

P30/INTP3

R5F104GLANA

IC2

PAD6

3 4

43 44

45 46

47 48

49 50

51 52

53 54

55 56

57 58

59 60

10 TXD

12 P72

14 P70

16 P60

20 P21

22 P62

24 P63

38 P120

40 P122

RESETB

RXD 13

P71

P20 19

P61 21

P75

P31 27

P140 23

P22

P121

28 P137

TOOL0

P23 18 P24

P147 31

P73 33

P74 35

P25 37

P27 39

P41

26 P26

30 P146

32 P50

34 P51

36 P17

CN1

R5 R6

C28

C29

FB2

VDD

PAD12

PAD7 PAD8

R11

R9 C23

C22 1

3 4

Vdd

CTL

SW1

6SAW1

GND

PAD11

X'tal

3G4

2X'tal 1

R20

R17

C21

C31

C16

R15

PAD3

PAD2 PAD1

C32

C24

R2R1

C10

1.STANDBY

2.OSCDRVSEL

3.SIN

4.SOUT

5.SCLK

6.SEN

7.GPIO0

8.GPIO1

9.INTOUT

10.GPIO2

11.GPIO3

12.GPIO4

13.RFRESETB

14.DON

15.VREGO2

16.VREGO3

17.MODE2 17

18.MODE1 18

19.RFIN 19

20.RFIP 20

21.AGNDRF1 21

22.RFOUT 22

23.AGNDRF2 23

24.REXT 24

25VREGO1 25

26.XIN 26

27.XOUT 27

28.VCCRF 28

29.REGIN 29

30.VSSDDC 30

31.DDCOUT 31

32.VCCDDC 32

DieGND

(RF)

(PLL)

(VCO)

RAA604S00

IC1

C14 C56

PAD9 PAD10

C46 C45

RAA604S00 Guidelines for two-layer board for RF part

R01AN4426EJ0100 Rev.1.00 Page 10 of 13

Dec 21, 2018

9. List of Parts for Reference

Table 2 lists parts for reference.

Table 2 List of Parts for Reference (1/2)

*1 with RF switch, *2 for ARIB, *3 for ETSI, *4 for FCC

Parts ID Description Parts number Remarks

C1 1uF GRM155B31C105KA12D We recommend a tolerance of ± 10%.

C3 1uF GRM155B31C105KA12D We recommend a tolerance of ± 10%.

C4 Not mounted Mounting a capacitor here is a way of reducing spurious emissions during

signal transmission.

Example value: 1 uF (self-resonance frequency of about 10 MHz)

C5,

C10 9pF →This provides a load capacitance for the crystal resonator and its value

depends on the parasitic capacitance of the combination of the crystal

resonator and the board on which it is mounted.

C6 4.7nF GRM155R71E472KA01D We recommend a tolerance of ± 10%.

C7,

C8 Not mounted →This provides a load capacitance for the crystal resonator and its value

depends on the parasitic capacitance of the combination of the crystal

resonator and the board on which it is mounted.

C9 10uF GRM188D71A106MA73 We recommend a tolerance of ± 10%.

C14 1uF GRM155B31C105KA12D We recommend a tolerance of ± 10%.

C15 3.3pF*2

6.8pF*

GRM1553C1H3R3CZ01D

GRM1553C1H6R8CZ01D

We recommend a tolerance equivalent to ± 0.25 pF.

C16*16pF

4.7pF*

GRM1552C1H6R0CA01D

GRM1552C1H4R7CZ01D

We recommend a tolerance equivalent to ± 0.25 pF.

C17 4.7pF*2

5.6pF*

GRM1552C1H4R7CZ01D

GRM1552C1H5R6CZ01D

We recommend a tolerance equivalent to ± 0.25 pF.

C18 5.6pF*2

6.8pF*

GRM1552C1H5R6CA01D

GRM1552C1H6R8CA01D

We recommend a tolerance equivalent to ± 0.25 pF.

C21*147pF GRM1552C1H470JA01D DC blocking capacitor

C22*147pF

8.2nH*4GRM1552C1H470JA01D

LQW15AN8N2C10

DC blocking capacitor

Mounting an inductor here is a way of reducing harmonics during signal

transmission.

C23*147pF GRM1552C1H470JA01D DC blocking capacitor

C24 Not mounted

C26 1uF GRM155B31C105KA12D We recommend a tolerance of ± 10%.

C27 Not mounted Mounting a capacitor here is a way of reducing noise in received signals.

Example value: 12 pF (self-resonance frequency of about 2.5 GHz)

C28 1uF GRM155B31C105KA12D We recommend a tolerance of ± 10%.

C29 1uF GRM155B31C105KA12D We recommend a tolerance of ± 10%.

C31*41000pF GRM1552C1H102JA01D Decoupling capacitor

C32*41000pF GRM1552C1H102JA01D Decoupling capacitor

C45 Not mounted Mounting a capacitor here is a way of reducing noise in received signals.

Example value: 47 pF (self-resonance frequency of about 1 GHz)

C46 1uF GRM155B31C105KA12D We recommend a tolerance of ± 10%.

C55 1uF GRM155B31C105KA12D We recommend a tolerance of ± 10%.

C56 Not mounted Mounting a capacitor here is a way of reducing spurious emissions during

signal transmission.

Example value: 2.2 nF (self-resonance frequency of about 200 MHz)

CN1 Connector DF17(2.0)-60DP-0.5V(57)

PAD Test-pin 9-146278-0

Tabla de contenidos

Otros manuales de Microcontrolador de Renesas

Renesas

Renesas CK-RX65N Manual de usuario

Renesas

Renesas RX220 Series Manual de usuario

Renesas

Renesas RA Series Guía

Renesas

Renesas V850ES/JE3-E Manual de usuario

Renesas

Renesas RL78/G23 Manual de usuario

Renesas

Renesas RL78G14 Instrucciones de instalación y funcionamiento

Renesas

Renesas R-IN32M3-EC Manual de instalación y operación

Renesas

Renesas RX Series Manual de usuario

Renesas

Renesas M306H5T3-RPD-E Manual de usuario

Renesas

Renesas Synergy SK-S7G2 Manual de usuario

Renesas

Renesas H8S/2329 Manual de usuario

Renesas

Renesas R5F56307CDFN Manual de usuario

Renesas

Renesas RH850 Series Manual de usuario

Renesas

Renesas V850ES/Fx3 Series Manual de usuario

Renesas

Renesas RH850/E1L Instrucciones de instalación y funcionamiento

Renesas

Renesas RA2E2 Group Manual de usuario

Renesas

Renesas RL78/I1C Manual de usuario

Renesas

Renesas HD6473937RXV Manual de usuario

Renesas

Renesas EK-RA2E2 Manual de usuario

Renesas

Renesas RL78/G15 Manual de usuario

Renesas

Renesas V853 Manual de usuario

Renesas

Renesas RA Series Manual de usuario

Renesas

Renesas RX65N Series Manual de usuario

Renesas

Renesas RX111 Manual de usuario

Manuales populares de Microcontrolador de otras marcas

AMS

AMS AS7261 Demo Kit Manual de usuario

Novatek

Novatek NT6861 Manual de usuario

Espressif Systems

Espressif Systems ESP8266 SDK Guía de configuración

Nuvoton

Nuvoton ISD61S00 ChipCorder Guía

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manual de usuario

Texas Instruments

Texas Instruments Chipcon CC2420DK Manual de usuario

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manual de usuario

NEC

NEC 78GK0S/K 1+ Series Instrucciones de instalación y funcionamiento

Mikroe

Mikroe SEMITECH N-PLC Click Instrucciones de instalación y funcionamiento

Intel

Intel Agilex Manual de usuario

Cypress

Cypress CY4607 HX2VL Manual de usuario

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manual de usuario

Texas Instruments

Texas Instruments TMS320F2837 D Series Manual de usuario

CYPRES

CYPRES CY14NVSRAMKIT-001 Manual de usuario

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manual de usuario

Espressif Systems

Espressif Systems ESP8266EX Instrucciones de funcionamiento

Abov

Abov AC33M8128L Manual de usuario

Laird

Laird BL654PA Manual de usuario
