HSG2005

SiGe HBT

High Frequency Medium Power Amplifier REJ03G0485-0400

Rev.4.00

Jun 21, 2006

Features

• High Transition Frequency

fT= 28.5 GHz typ.

• Low Distortion and Excellent Linearity

P1dB at output = +21 dBm typ. f = 5.8 GHz

• High Collector to Emitter Voltage

VCEO = 5 V

• Ideal for 2 GHz, 5 GHz Band applications. e.g. WLAN, Digital cordless phone.

Outline

Renesas Package code: PWQN0008ZA-A

(Package name: HWQFN-8 <TNP-8TV>)

1. Collecto

2. Collecto

3. Collecto

4. Emitter

5. Emitter

6. Base

7. Emitter

8. Emitter

9. Emitter

765

2005

Note: Marking is “2005”.

Absolute Maximum Ratings

(Ta = 25°C)

Item Symbol Ratings Unit

Collector to base voltage VCBO 12 V

Collector to emitter voltage VCEO 5 V

Emitter to base voltage VEBO 1.2 V

Collector current IC400 mA

Collector power dissipation Pc 1.2Note W

Junction temperature Tj 150 °C

Storage temperature Tstg –55 to +150 °C

Note: Value on PCB (40 x 40 x 1.0 mm)

HSG2005

Rev.4.00 Jun 21, 2006 page 2 of 12

Electrical Characteristics

(Ta = 25°C)

Item Symbol Min Typ Max Unit Test Conditions

DC current transfer ratio hFE 150 220 300 V

CE = 3 V, IC= 100 mA

Reverse Transfer Capacitance Cre 0.4 pF

VCB = 3 V, IE= 0, f = 1 MHz,

emitter grounded

Transition Frequency fT28.5 GHz

VCE = 3 V, IC= 100 mA,

f = 1 GHz

Maximum Stable Gain MSG 10.5 12.5 dB

VCE = 3 V, IC= 100 mA,

f = 5.8 GHz

Maximum Available Gain MAG 17.0 dB

VCE = 3 V, IC= 100 mA,

f = 2.4 GHz

Maximum Available Gain MAG 9.0 dB

VCE = 3 V, IC= 100 mA,

f = 5.8 GHz

Power Gain PG 8.0 dB

VCE = 3.6 V, Iidle = 100 mA,

f = 5.8 GHz, Pin = +13 dBm

1dB Compression Point at output P1dB +21 dBm

VCE = 3.6 V, Iidle = 100 mA,

f = 5.8 GHz

Saturation Output Power Po(sat) +23 dBm

VCE = 3.6 V, Iidle = 100 mA,

f = 5.8 GHz, Pin = +13 dBm

Main Characteristics

0 50 100 150 20

Collector Power Dissipation Pc*(mW)

Collector Power Dissipation Curve

Ambient Temperature Ta (°C)

1800

1200

600

*(4 x 4 x 1mm) on PCB

HSG2005

Rev.4.00 Jun 21, 2006 page 3 of 12

= 3 V

MAG

MSG

Collector Current IC(mA)

Maximum Stable Gain MSG (dB)

Maximum Available Gain MAG (dB)

Maximum Stable Gain, Maximum Available Gain

vs. Collector Current

1 10 100 1000

0.1 1 10

Frequency f (GHz)

S21 Parameter, Maximum Stable Gain,

Maximum Available Gain vs. Frequency

100

0 0.2 0.4 0.6 0.8 1.0

Base to Emitter Voltage VBE (V)

Collector Current IC(mA)

Typical Transfer Characteristics

200

1 10 1000

Collector Current IC(mA)

DC Current Transfer Ratio hFE (-)

DC Current Transfer Ratio vs.

Collector Current

300

100

Reverse Transfer Capacitanse Cre (pF)

Reverse Transfer Capacitanse vs.

Collector to Base Voltage

0.8

0.6

0123

1.0

Collector to Base Voltage VCB (V)

0.4

0.2

01 10 100 1000

Collector Current IC(mA)

Transition Frequency fT(GHz)

Transition Frequency vs.

Collector Current

f = 1 GHz

5.8 GHz

5.2 GHz

1.8 GHz

2.4 GHz

0.0

= 0

f = 1 MHz

100

VCE = 3 V

IC= 100 mA

MSG

|S21|2

MAG

= 3 V

f = 1 GHz

S21 Parameter

2(dB)

Maximum Stable Gain MSG (dB)

Maximum Available Gain MAG (dB)

HSG2005

Rev.4.00 Jun 21, 2006 page 4 of 12

2.4 GHz Characteristics

Input Power Pin (dBm)

-10

10 200

- P

out

Characteristics

(mA)

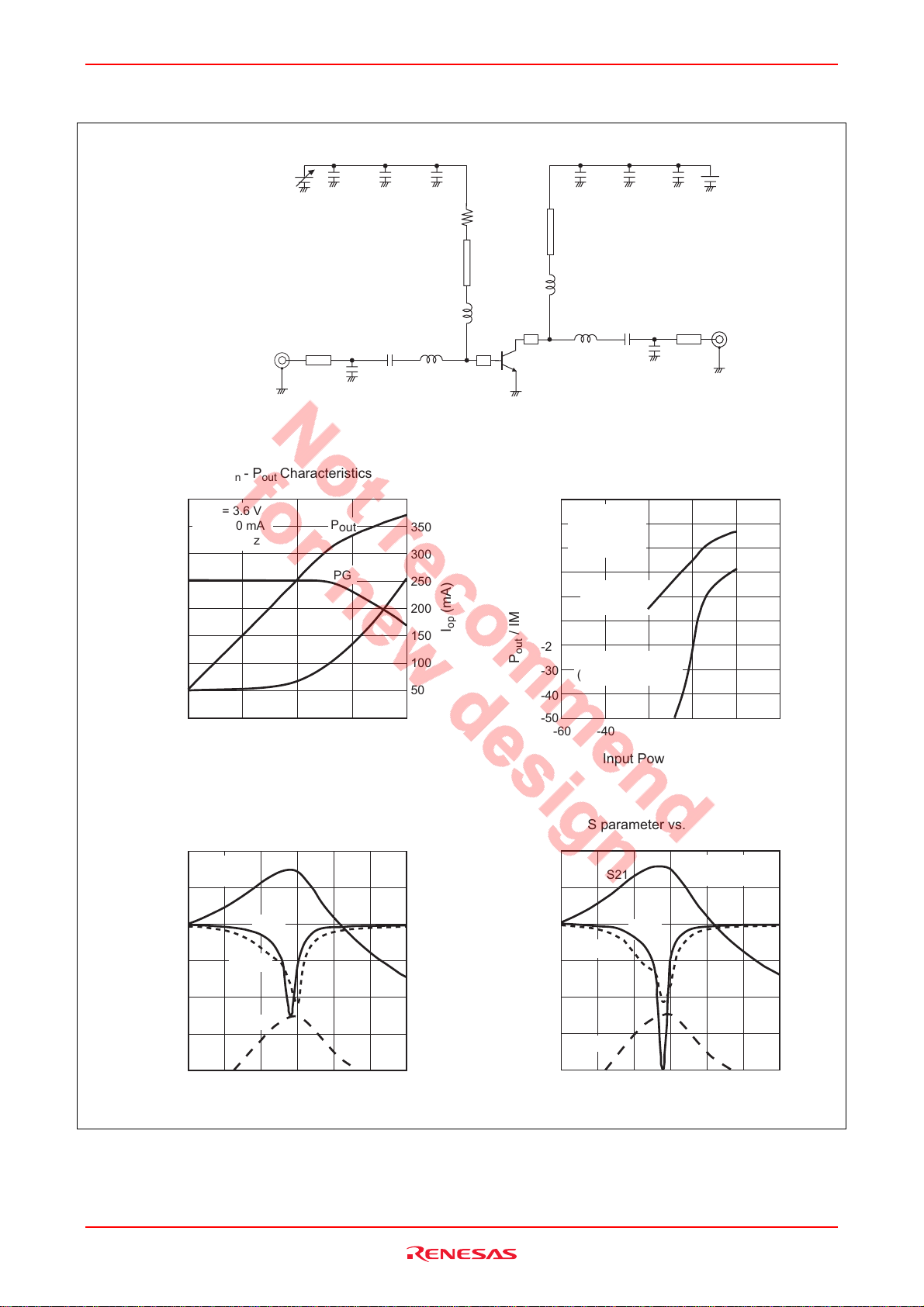

Evaluation Board Circuit

Pin - Pout Characteristics

-20

-40

-40 0 40-20-60

Input Power P

(dBm)

3rd. Order Intermodulation Distortion (IMD3)

-50

-30

-10

-40

-20

1.5 3.0 4.02.51.0

Frequency f (GHz)

S parameter (dB)

S parameter vs. Frequency

2.0 3.5

-30

-10

-40

-20

1.5 3.0 4.02.5

1.0

Frequency f (GHz)

S parameter (dB)

S parameter vs. Frequency

2.0 3.5

-30

S21

S22

S12

S11

= 3.6 V

= 50 mA

S21

S22

S12

S11

= 3.6 V

= 150 mA

200

300

350

100

400

-5

= 3.6 V

idle

= 50 mA

f = 2.4 GHz

Fundamental

(1tone)

IMD3

(2tone: ∆f = 1MHz)

Output Power P

out

(dBm)

Power Gain PG (dB)

Pout

Iop

= 3.6 V

idle

= 50 mA

f = 2.4 GHz

250

150

out

/ IMD3 (dBm)

OUT

C : 1 pF

*1 µF

*1 µF 1000 pF

27 Ω

1000 pF

C : 0.9 pF

C : 1 to 2 pF

10 pF 10 pF

L : 5.6 nH

L : 1.5 nH

L : 1.8 nH

L : 10 nH

C : 1 pF

VCC

VBB : Bias Control

HSG2005

Rev.4.00 Jun 21, 2006 page 5 of 12

5.8 GHz Characteristics

Input Power Pin (dBm)

15 2010

- P

out

Characteristics

(mA)

OUT

0.5 pF

*1 µF

0.2 pF

1000 pF

27 Ω

2 pF

VCC

VBB : Bias Control

1000 pF

0.4 pF

0.5 pF

10 pF 10 pF

Evaluation Board Circuit

Pin - Pout Characteristics

-10

-30

-20

57864

Frequency f (GHz)

S parameter (dB)

S parameter vs. Frequency

-20

-40

-40 0 40-20-60

Input Power P

(dBm)

3rd. Order Intermodulation Distortion (IMD3)

-50 20

-30

-10

= 3.6 V

idle

= 100 mA

f = 5.8 GHz

Fundamental

(1tone)

IMD3

(2tone: ∆f = 1MHz)

100

150

200

250

out

= 3.6 V

idle

= 100 mA

f = 5.8 GHz

Output Power P

out

(dBm)

Power Gain PG (dB)

-10

-30

-20

57864

Frequency f (GHz)

S parameter (dB)

S parameter vs. Frequency

out

/ IMD3 (dBm)

VCE = 3.6 V

IC= 100 mA

S21

S11

S22

S12

S21

S22

S12

S11

= 3.6 V

= 150 mA

HSG2005

Rev.4.00 Jun 21, 2006 page 6 of 12

Condition: V

= 3 V, I

= 100 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3 V, I

= 100 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10 0°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10

Scale: 20 / div.

Scale: 0.04 / div.

Condition: V

= 3 V, I

= 100 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3 V, I

= 100 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Parameter vs. Frequency S

Parameter vs. Frequency

Parameter vs. Frequency S

Parameter vs. Frequency

0°

HSG2005

Rev.4.00 Jun 21, 2006 page 7 of 12

Condition: V

= 3.3 V, I

= 100 mA, Zo = 50

Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3.3 V, I

= 100 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10 0°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10

Scale: 20 / div.

Scale: 0.04 / div.

Condition: V

= 3.3 V, I

= 100 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3.3 V, I

= 100 mA, Zo = 50

Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Parameter vs. Frequency S

Parameter vs. Frequency

Parameter vs. Frequency S

Parameter vs. Frequency

0°

HSG2005

Rev.4.00 Jun 21, 2006 page 8 of 12

Condition: V

= 3.6 V, I

= 100 mA, Zo = 50

Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3.6 V, I

= 100 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10 0°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10

Scale: 20 / div.

Scale: 0.04 / div.

Condition: V

= 3.6 V, I

= 100 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3.6 V, I

= 100 mA, Zo = 50

Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Parameter vs. Frequency S

Parameter vs. Frequency

Parameter vs. Frequency S

Parameter vs. Frequency

0°

HSG2005

Rev.4.00 Jun 21, 2006 page 9 of 12

S parameter

(VCE = 3 V, IC= 100 mA, Zo = 50 Ω)

S11 S21 S12 S22

f (MHz) MAG ANG (deg.) MAG ANG (deg.) MAG ANG (deg.) MAG ANG (deg.)

100 0.687 -139.8 77.53 120.52 0.0084 45.8 0.682 -105.5

200 0.775 -160.8 47.14 104.05 0.0106 28.1 0.598 -134.6

300 0.786 -169.2 32.99 96.02 0.0107 33.1 0.566 -148.2

400 0.792 -174.5 24.95 91.32 0.0127 39.8 0.559 -155.7

500 0.797 -178.1 19.96 87.93 0.0129 39.0 0.559 -160.4

600 0.802 179.0 16.62 85.12 0.0139 41.5 0.560 -163.5

700 0.803 176.6 14.22 82.63 0.0155 42.8 0.560 -165.9

800 0.804 174.2 12.41 80.38 0.0163 48.0 0.561 -167.7

900 0.802 171.9 10.98 78.31 0.0176 49.1 0.563 -169.1

1000 0.804 169.8 9.81 76.55 0.0191 50.1 0.565 -170.4

1100 0.807 168.1 8.89 74.86 0.0201 51.0 0.567 -171.4

1200 0.809 166.5 8.11 73.18 0.0214 51.7 0.568 -172.3

1300 0.809 164.8 7.47 71.47 0.0230 52.7 0.570 -173.0

1400 0.809 163.1 6.91 69.76 0.0244 53.8 0.572 -173.8

1500 0.809 161.2 6.43 68.18 0.0257 53.0 0.573 -174.5

1600 0.811 159.5 6.00 66.70 0.0275 54.4 0.576 -175.1

1700 0.814 158.1 5.62 65.37 0.0280 54.6 0.578 -175.6

1800 0.817 156.9 5.29 63.93 0.0295 54.2 0.579 -176.0

1900 0.817 155.6 5.00 62.42 0.0314 54.2 0.581 -176.4

2000 0.816 154.0 4.74 60.74 0.0324 54.5 0.583 -176.9

2100 0.814 152.3 4.49 59.29 0.0335 54.4 0.584 -177.3

2200 0.817 150.8 4.28 57.89 0.0350 53.9 0.586 -177.7

2300 0.820 149.5 4.08 56.76 0.0364 53.1 0.587 -178.0

2400 0.824 148.4 3.90 55.44 0.0381 53.8 0.590 -178.4

2500 0.825 147.3 3.73 54.01 0.0389 53.4 0.591 -178.7

2600 0.823 145.8 3.58 52.41 0.0405 52.5 0.591 -179.0

2700 0.822 144.3 3.44 50.91 0.0416 52.6 0.593 -179.4

2800 0.822 142.8 3.30 49.54 0.0432 52.5 0.594 -179.8

2900 0.824 141.5 3.18 48.34 0.0440 51.5 0.595 179.9

3000 0.827 140.4 3.07 47.15 0.0458 51.0 0.596 179.5

3200 0.828 137.9 2.87 44.27 0.0481 50.3 0.596 178.8

3400 0.824 134.8 2.68 41.22 0.0509 49.1 0.596 178.0

3600 0.826 132.4 2.53 38.75 0.0539 48.0 0.597 177.0

3800 0.827 129.6 2.39 35.90 0.0562 46.1 0.597 175.8

4000 0.826 126.2 2.25 32.65 0.0587 44.6 0.597 174.5

4200 0.830 123.6 2.13 29.93 0.0608 43.6 0.596 173.0

4400 0.830 120.8 2.03 27.16 0.0632 41.6 0.596 171.3

4600 0.832 117.3 1.92 23.82 0.0656 40.2 0.597 169.4

4800 0.839 114.6 1.82 20.87 0.0675 38.3 0.599 167.4

5000 0.841 111.9 1.74 18.04 0.0699 36.1 0.601 165.3

5200 0.843 108.6 1.65 14.81 0.0719 34.1 0.606 163.1

5400 0.851 106.1 1.56 11.85 0.0734 32.2 0.612 160.9

5600 0.854 103.6 1.49 8.83 0.0750 29.8 0.618 158.5

5800 0.856 100.5 1.41 5.79 0.0763 27.5 0.624 156.3

6000 0.862 98.4 1.34 2.79 0.0776 25.4 0.631 153.9

HSG2005

Rev.4.00 Jun 21, 2006 page 10 of 12

S parameter

(VCE = 3.3 V, IC= 100 mA, Zo = 50 Ω)

S11 S21 S12 S22

f (MHz) MAG ANG (deg.) MAG ANG (deg.) MAG ANG (deg.) MAG ANG (deg.)

100 0.675 -140.9 80.79 120.97 0.0127 40.9 0.626 -109.1

200 0.771 -160.6 48.16 104.58 0.0091 37.0 0.594 -134.0

300 0.785 -168.9 33.50 96.32 0.0110 34.4 0.561 -147.6

400 0.790 -174.3 25.29 91.50 0.0128 37.4 0.554 -155.1

500 0.794 -178.0 20.21 88.06 0.0135 41.0 0.553 -159.7

600 0.800 179.2 16.83 85.22 0.0140 42.0 0.553 -163.0

700 0.802 176.7 14.40 82.70 0.0157 44.5 0.554 -165.4

800 0.802 174.3 12.56 80.43 0.0169 47.1 0.555 -167.2

900 0.801 172.0 11.11 78.33 0.0177 49.5 0.557 -168.8

1000 0.802 170.0 9.93 76.55 0.0191 52.1 0.559 -170.0

1100 0.805 168.2 8.99 74.86 0.0204 50.3 0.561 -171.0

1200 0.808 166.6 8.20 73.16 0.0211 51.6 0.563 -171.9

1300 0.808 164.9 7.56 71.44 0.0228 52.5 0.564 -172.7

1400 0.808 163.1 6.99 69.73 0.0247 53.4 0.566 -173.4

1500 0.807 161.3 6.51 68.13 0.0252 53.4 0.567 -174.0

1600 0.809 159.6 6.07 66.63 0.0268 53.9 0.570 -174.7

1700 0.813 158.3 5.68 65.30 0.0281 53.8 0.572 -175.2

1800 0.816 157.0 5.35 63.86 0.0294 54.0 0.574 -175.7

1900 0.816 155.7 5.05 62.34 0.0309 53.8 0.575 -176.1

2000 0.814 154.1 4.79 60.66 0.0323 54.4 0.578 -176.5

2100 0.813 152.4 4.55 59.20 0.0335 54.6 0.579 -176.9

2200 0.816 150.9 4.33 57.79 0.0348 54.0 0.581 -177.3

2300 0.819 149.6 4.12 56.67 0.0362 53.4 0.582 -177.7

2400 0.823 148.5 3.94 55.32 0.0378 53.2 0.584 -178.0

2500 0.824 147.3 3.77 53.88 0.0391 52.9 0.586 -178.3

2600 0.822 145.9 3.62 52.28 0.0409 53.1 0.586 -178.6

2700 0.820 144.3 3.47 50.76 0.0422 52.6 0.588 -179.0

2800 0.821 142.9 3.34 49.39 0.0423 52.1 0.589 -179.4

2900 0.823 141.6 3.22 48.20 0.0444 51.8 0.590 -179.7

3000 0.826 140.5 3.11 47.01 0.0457 51.4 0.591 180.0

3200 0.827 137.9 2.90 44.10 0.0480 50.6 0.592 179.3

3400 0.823 134.9 2.71 41.04 0.0512 49.0 0.592 178.4

3600 0.826 132.4 2.55 38.57 0.0533 47.8 0.593 177.4

3800 0.826 129.6 2.41 35.71 0.0558 46.9 0.592 176.3

4000 0.826 126.3 2.28 32.44 0.0588 45.3 0.593 175.0

4200 0.830 123.7 2.16 29.71 0.0609 43.6 0.592 173.4

4400 0.829 120.8 2.05 26.93 0.0629 41.7 0.592 171.8

4600 0.831 117.3 1.94 23.60 0.0648 40.0 0.593 169.8

4800 0.838 114.7 1.84 20.64 0.0674 38.3 0.595 167.8

5000 0.841 112.0 1.76 17.79 0.0696 36.7 0.598 165.8

5200 0.842 108.7 1.66 14.56 0.0719 34.5 0.603 163.5

5400 0.850 106.1 1.58 11.59 0.0731 32.2 0.608 161.3

5600 0.855 103.6 1.51 8.56 0.0746 29.9 0.615 159.0

5800 0.856 100.5 1.43 5.51 0.0762 27.7 0.621 156.7

6000 0.862 98.4 1.35 2.51 0.0770 25.6 0.629 154.3

Tabla de contenidos

Otros manuales de Hardware de computadora de Renesas

Renesas

Renesas HS7125EDB01H Manual de usuario

Renesas

Renesas PC7501 Manual de usuario

Renesas

Renesas H8S/2368 Series Manual de usuario

Renesas

Renesas R0E001000FLX00 Manual de usuario

Renesas

Renesas DA16200 PMOD Manual de usuario

Renesas

Renesas RH850/F1KM-S4 233pin Manual de usuario

Renesas

Renesas R0E424270CFKE0 Manual de usuario

Renesas

Renesas RL78/I1D Instrucciones de instalación y funcionamiento

Renesas

Renesas M3T-F160-100NSD Manual de usuario

Renesas

Renesas R0E436640CFK20 Manual de usuario

Renesas

Renesas M3T-DUMMY64 Manual de usuario

Renesas

Renesas M16C/50 Series Manual de usuario

Renesas

Renesas RH850 Series Manual de usuario

Renesas

Renesas Converter Board R0E521237CFK00 Manual de usuario

Renesas

Renesas H8/38024 Series Manual de usuario

Renesas

Renesas F-ZTAT Series Manual de usuario

Renesas

Renesas RL78G14 Instrucciones de instalación y funcionamiento

Renesas

Renesas M34553T-PTCB Manual de usuario

Renesas

Renesas Emulation Memory Board R0E330850MSRC0 Manual de usuario

Renesas

Renesas H8S/2158 Manual de usuario

Renesas

Renesas RZ/A1H Series Manual de usuario

Renesas

Renesas FP-80A Manual de usuario

Renesas

Renesas MCU Board M30850T-EPBM Manual de usuario

Renesas

Renesas FP-100B Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
