Rev.3.00 Jul. 01, 2004 page 1 of 10

HD74LVC1G66

Single Analog Switch

REJ03D0026–0300Z

Rev.3.00

Jul. 01, 2004

Description

The HD74LVC1G66 has an analog switch in a 5-pin package. Switch section has its enable input control (CONT).

High-level voltage applied to CONT turns on the switch section. Applications include signal gating chopping,

modulation or demodulation (modem), and signal multiplexing for analog to digital to analog conversion systems. Low

voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low

power consumption extends the battery life.

Features

•The basic gate function is lined up as renesas uni logic series.

•Supply voltage range: 1.65 to 5.5 V

Operating temperature range: –40 to +85°C

•Control input: VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)

•Ordering Information

Part Name Package Type Package Code Package

Abbreviation Taping Abbreviation

(Quantity)

HD74LVC1G66CPE TBS-5V CP

HD74LVC1G66CLE WCSP-5 pin TBS-5AV CL E (3,000 pcs/reel)

Article Indication

E 9 Y M

Marking

Year code

Month code

Function Table

Control Switch

LOFF

HON

H: High level

L: Low level

= 0 V to 5.5 V)

Package Type Package Code Package

Abbreviation

TBS-5V

TBS-5AV CL

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 2 of 10

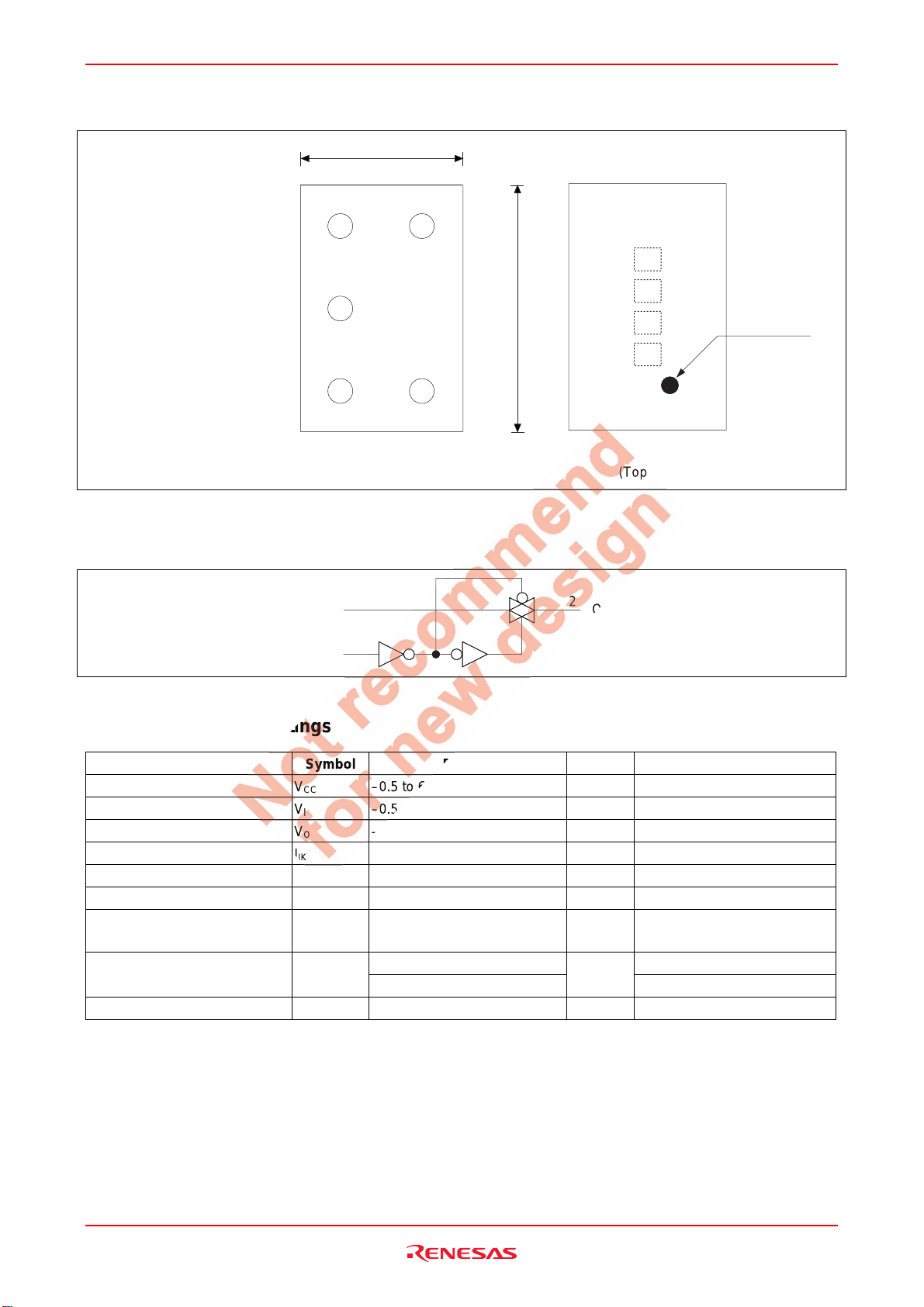

Pin Arrangement

(Bottom view) (Top view)

CONT

34GND

Height 0.5 mm

0.5 mm pitch

0.17 mm 5–Ball (CP)

0.23 mm 5–Ball (CL)

0.9 mm

1.4 mm

OUT/IN

IN/OUT V

Pin#1 INDEX

Logic Diagram

IN/OUT OUT/IN

CONT

Absolute Maximum Ratings

Item Symbol Ratings Unit Test Conditions

Supply voltage range VCC –0.5 to 6.5 V

Input voltage range *1 VI–0.5 to 6.5 V

Output voltage range *1, 2 VO–0.5 to VCC +0.5 V Output : H or L

Control Input clamp current IIK –50 mA VI< 0

Output clamp current IOK ±50 mA VO< 0 or VO> VCC

Continuous output current IO±50 mA VO= 0 to VCC

Continuous current through

VCC or GND ICC or IGND ±100 mA

154 CPPackage Thermal impedance θja 132 °C/W CL

Storage temperature Tstg –65 to 150 °C

Notes: The absolute maximum ratings are values, which must not individually be exceeded, and furthermore no two

of which may be realized at the same time.

1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are

observed.

2. This value is limited to 5.5 V maximum.

(Top view)

OUT/IN

Absolute Maximum Ratings

Symbol

Ratings

–0.5 to 6.5

–0.5 to V

Control Input clamp current I

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 3 of 10

Recommended Operating Conditions

Item Symbol Min Max Unit Conditions

Supply voltage range VCC 1.65 5.5 V

Control Input voltage range VI05.5V

Input/Output voltage range VI/O 0V

CC V

020VCC = 1.65 to 1.95 V,

2.3 to 2.7 V

010 VCC = 3.0 to 3.6 V

Input transition rise or fall rate ∆t / ∆v

010

ns / V

VCC = 4.5 to 5.5 V

Operating free-air temperature Ta–40 85 °C

Note: Unused or floating inputs must be held high or low.

Electrical Characteristics

Ta = –40 to 85°C

Item Symbol VCC (V) Min Typ Max Unit Test condition

1.65 to 1.95 VCC×0.65 — —

2.3 to 2.7 VCC×0.7 — —

3.0 to 3.6 VCC×0.7 — —

VIH

4.5 to 5.5 VCC×0.7 — —

1.65 to 1.95 — — VCC×0.35

2.3 to 2.7 — — VCC×0.3

3.0 to 3.6 — — VCC×0.3

Input voltage

VIL

4.5 to 5.5 — — VCC×0.3

1.65 — 13 30 IS= 4 mA

2.3 — 9 20 IS= 8 mA

3.0 — 7.5 15 IS= 24 mA

On–state switch

resistance RON

4.5 — 5.5 10 IS= 32 mA

VI=VCC or GND

1.65 — 74.5 120 IS= 4 mA

2.3 — 20 30 IS= 8 mA

3.0 — 11.5 20 IS= 24 mA

Peak on resistance RON(P)

4.5 — 7.5 15

Ω

IS= 32 mA

VI=VCC to GND

— — ±1.0Off-state switch

leakage current IS (OFF) 5.5 — — ±0.1*1

µAV

I= VCC and VO= GND or

VI= GND and VO= VCC,

VC= VIL

— — ±1.0On-state switch

leakage current IS (ON) 5.5 — — ±0.1*1

µAV

I= VCC or GND, VC= VIH

VO= Open

— — ±1.0

Control input

current IIN 5.5 — — ±0.1*1

µAV

IN = VCC or GND

— — 10ICC 5.5 — — 1.0*1

µAV

IN = VCC or GNDQuiescent

supply current

∆ICC 5.5 — — 500 µAV

C= VCC–0.6 V

Control input

capacitance CIC 5.0 — 3.0 — pF

CI/O(OFF) 5.0 — 6.0 —Switch terminal

capacitance CI/O(ON) 5.0 — 13 — pF

Note: 1. Ta = 25°C

(V) Min Typ Max Unit Test condition

0.7 — —

1.65 to 1.95 — — V

0.35

2.3 to 2.7 — — V

0.3

3.0 to 3.6 — — V

0.3

4.5 to 5.5 — — V

0.3

1.65 — 13 30

— 9 20

— 7.5 15

4.5

— 5.5 10

1.65 — 74.5 120

2.3

— 20 30

3.0

— 11.5 20

4.5 — 7.5 15

— — ±1.0

5.5

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 4 of 10

Switching Characteristics

VCC = 1.8 ± 0.15 V

Ta = –40 to 85°C

Item Symbol Min Max Unit Test Conditions FROM

(Input) TO

(Output)

Propagation delay time*1tPLH

tPHL

2.0 CL= 30 pF, RL= 1.0 kΩINOUT or

OUTIN OUTIN or

INOUT

Enable time tZH

tZL

2.5 12.0 CL= 30 pF, RL= 1.0 kΩCONT INOUT or

OUTIN

Disable time tHZ

tLZ

2.2 10.0

CL= 30 pF, RL= 1.0 kΩCONT INOUT or

OUTIN

VCC = 2.5 ± 0.2 V

Ta = –40 to 85°C

Item Symbol Min Max Unit Test Conditions FROM

(Input) TO

(Output)

Propagation delay time*1tPLH

tPHL

1.2 CL= 30 pF, RL= 500 ΩINOUT or

OUTIN OUTIN or

INOUT

Enable time tZH

tZL

1.9 6.5 CL= 30 pF, RL= 500 ΩCONT INOUT or

OUTIN

Disable time tHZ

tLZ

1.4 6.9

CL= 30 pF, RL= 500 ΩCONT INOUT or

OUTIN

VCC = 3.3 ± 0.3 V

Ta = –40 to 85°C

Item Symbol Min Max Unit Test Conditions FROM

(Input) TO

(Output)

Propagation delay time*1tPLH

tPHL

0.8 CL= 50 pF, RL= 500 ΩINOUT or

OUTIN OUTIN or

INOUT

Enable time tZH

tZL

1.8 5.0 CL= 50 pF, RL= 500 ΩCONT INOUT or

OUTIN

Disable time tHZ

tLZ

2.0 6.5

CL= 50 pF, RL= 500 ΩCONT INOUT or

OUTIN

VCC = 5.0 ± 0.5 V

Ta = –40 to 85°C

Item Symbol Min Max Unit Test Conditions FROM

(Input) TO

(Output)

Propagation delay time*1tPLH

tPHL

0.6 CL= 50 pF, RL= 500 ΩINOUT or

OUTIN OUTIN or

INOUT

Enable time tZH

tZL

1.5 4.2 CL= 50 pF, RL= 500 ΩCONT INOUT or

OUTIN

Disable time tHZ

tLZ

1.4 5.0

CL= 50 pF, RL= 500 ΩCONT INOUT or

OUTIN

Note: 1. The propagation delay is calculated RC time constant of typical on-state resistance of the switch and the

specified load capacitance, when driven by an ideal voltage source (zero output impedance).

= 30 pF, R

= 500

Unit Test Conditions

0.8 C

= 50 pF, R

= 500

= 50 pF, R

= 500

2.0 6.5

0.8 Cns0.8 C

= 50 pF, R

Ta = –40 to 85°C

Symbol

Min Max

Unit Test Conditions

PLH

PHL



0.6 C

1.5 4.2

1.4 5.0

Note: 1. The propagation delay is calculated RC time constant

specified load capacitance, when driven by an i

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 5 of 10

Analog Switch Characteristics

Ta = 25°C

Item VCC (V) Min Typ Max Unit Test conditions FROM

(Input) TO

(Output)

1.65 — 35 —

2.3 — 120 —

3.0 — 175 —

4.5 — 195 —

CL= 50 pF,

RL= 600 Ω

1.65 — >300 —

2.3 — >300 —

3.0 — >300 —

Frequency response

(Switch ON)

4.5 — >300 —

MHz

CL= 5 pF,

RL= 50 Ω

Adjust fin voltage to obtain

0dBm at output when fin is

1MHz (sine wave).

Increase fin frequency until

the dB–meter reads –3 dBm.

20 log(VO/VI) = –3 dBm

INOUT or

OUTIN OUTIN or

INOUT

1.65 — 35 —

2.3 — 50 —

3.0 — 70 —

Crosstalk

(Control input to signal

output) 4.5 — 100 —

mV CL= 50 pF,

RL= 600 Ω

Adjust RL value to obtain 0A

at IIN/OUT when fin is 1MHz

(square wave)

CONT OUTIN or

INOUT

1.65 — –58 —

2.3 — –58 —

3.0 — –58 —

4.5 — –58 —

CL= 50 pF,

RL= 600 Ω

1.65 — –42 —

2.3 — –42 —

3.0 — –42 —

Feed through

attenuation

(Switch OFF)

4.5 — –42 —

CL= 5 pF,

RL= 50 Ω

Adjust fin voltage to obtain

0dBm at input when fin is

1MHz (sine–wave)

INOUT or

OUTIN OUTIN or

INOUT

1.65 — 0.1 —

2.3 — 0.025 —

3.0 — 0.015 —

4.5 — 0.01 —

CL= 50 pF,

RL= 10 kΩ

fin = 1 kHz

(sine–wave)

1.65 — 0.15 —

2.3 — 0.025 —

3.0 — 0.015 —

Sine–wave distortion

4.5 — 0.01 —

CL= 50 pF,

RL= 10 kΩ

fin = 10 kHz

(sine–wave)

VI=1.4VP–P, VCC=1.65V

VI=2.0VP–P, VCC=2.3V

VI=2.5VP–P, VCC=3.0V

VI=4.0VP–P, VCC=4.5V

INOUT or

OUTIN OUTIN or

INOUT

Operating Characteristics

Ta = 25°C

Item Symbol VCC (V) Min Typ Max Unit Test Conditions

1.8 — 8 —

2.5 — 9 —

3.3 — 9 —

Power dissipation capacitance CPD

5.0 — 11 —

pF f = 10 MHz

Adjust fin voltage to obtain

0dBm at input when fin is

1MHz (sine–wave)

= 50 pF,

= 10 k

Ω

fin = 1 kHz

(sine–wave)

1.65 — 0.15 —

2.3 — 0.025 —

3.0 — 0.015 —

4.5 — 0.01 —

= 50 pF,

= 10 k

Ω

fin = 10 kHz

(sine–wave)

=1.4V

P–P

, V

=1.65V

=2.0V

P–P

, V

=2.3V

=2.5V

P–P

, V

=4.0V

P–P

Operating Characteristics

Symbol V

Power dissipation capacitance C

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 6 of 10

Test Circuit

OUT

+ –

GND

(ON)

V =V

C IH

V =V

• R

IN CC

IN–OUT

R =

(Ω)

IN–OUT

GND

(OFF)A

V =V

C IL

V =V

or GND

IN CC

V =GND

or V

OUT

GND

(ON)A

V =V

C IH

V =V

or GND

IN CC

OPEN

OUT

• I (off), I (on)

V =GND

or V

OUT

V =GND

OUT

V =GND

or V

V =V

C IH

V =V

C IH

V =V

or GND

V =V

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 7 of 10

Test Circuit (cont.)

OPEN OPEN

TEST S1

VTT

GND GND

t / t

PLH PHL

t / t

ZH HZ

t / t

ZL LZ

1.8±0.15

2.5±0.2

3.3±0.3

5.0±0.5

INPUTS

(V)

2× V

/ 2

ref

∆VVTT

/ t

500 Ω

0.15 V

0.3 V

500 Ω

1.0 kΩ

Load circuit

From Output

≤ 2 ns

≤ 2.5 ns

30 pF

50 pF

ref

0 V

PLH

PHL

Input

Output

Control

Input V

ref

– ∆V

+ ∆V

ref

0 V

Output

(Waveform – A)

Output

(Waveform – B)

Notes: 1. C

includes probe and jig capacitance.

2. Waveform–A is for an output with internal conditions such that the output is low except

when disabled by the output control.

3. Waveform–B is for an output with internal conditions such that the output is high except

when disabled by the output control.

4. All input pulses are supplied by generators having the following characteristics:

PRR ≤ 10MHz, Zo = 50 Ω.

5. The output are measured one at a time with one transition per measurement.

ref

PHL

ref

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 8 of 10

Frequency response (Switch ON)

V = V

0.1 µF

OUT

f = sine wave

GND

(ON)

C = 50 pF

R =600

Ω

R = 50

Ω

V /2

or 50 Ωor 5 pF

Feedthrough attenuation (Switch OFF)

V = V

0.1 µF

OUT

V /2

GND

(OFF)

C = 50 pF or 5 pF

R =

600

Ω

V /2

R =

600

Ω

R =

Ω

600 Ω

Crosstalk (Control input to signal output)

OUT

V /2

C = 50 pF

R =

600

Ω

V /2

R =

600

Ω

GND

R =

Ω

Sine-wave distortion

V = V

10 µF

OUT

V /2

GND

10 µF

(ON)

C = 50 pF

R =

10 k

Ω

or 50 Ωor 50

Feedthrough attenuation (Switch OFF)

V = V

0.1

V = V

(OFF)

V /2

R =

600

R =

Ω

R =

Ω

V /2

C = 50 pF

R =

600

R =

Ω

GND

Sine-wave distortion

or 50

Ω

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 9 of 10

Package Dimensions

TBS-5V

EIAJ Package Code JEDEC Code Mass(g) Lead Material

0.001



Symbol Dimension in Millimeters

Min Typ Max

A 0.50

0.15

0.35

0.05

0.20

0.19

0.90

1.40

0.50

0.20

0.15 0.17

0.10

Pin #1 index area A

Seating plane

5× φ b

Cφ xMA B

y C

Cφ xM

C/ /

Symbol

HD74LVC1G66

Rev.3.00 Jul. 01, 2004 page 10 of 10

TBS-5AV

EIAJ Package Code JEDEC Code Mass(g) Lead Material

0.001



Symbol Dimension in Millimeters

Min Nom Max

A 0.50

0.185

(0.315)*

0.05

0.20

0.25

0.90

1.40

0.50

0.20

0.155

Pin #1 index area A

Seating plane

*Reference value.

5 ×φ b

Cφ x

A B

y C

Cφ x

y1C/ /

Tabla de contenidos

Otros manuales de Hardware de computadora de Renesas

Renesas

Renesas M3028BT-EPB Manual de usuario

Renesas

Renesas X 600 Series Manual de usuario

Renesas

Renesas MCU Board for 4513/4514 Group MCUs... Manual de usuario

Renesas

Renesas R0E001000ACB00 Manual de usuario

Renesas

Renesas SuperH SH-4A Manual de usuario

Renesas

Renesas Converter Board R0E521174CSJ00 Manual de usuario

Renesas

Renesas F-ZTAT H8 Series Manual de usuario

Renesas

Renesas HSG2004 Manual de usuario

Renesas

Renesas RL78 Series Instrucciones de instalación y funcionamiento

Renesas

Renesas RX13T Manual de usuario

Renesas

Renesas SuperH HS7339KCU01HE Instrucciones de instalación y funcionamiento

Renesas

Renesas RL78/I1D Instrucciones de instalación y funcionamiento

Renesas

Renesas R0E510Y47LVB00 Manual de usuario

Renesas

Renesas RH850/D1x Manual de usuario

Renesas

Renesas RA4 Series Manual de usuario

Renesas

Renesas YROTATE-IT-RX62T Manual de usuario

Renesas

Renesas 7700 FAMILY Manual de usuario

Renesas

Renesas User System Interface Board HS7047ECH61H Manual de usuario

Renesas

Renesas mPD720231 Manual de usuario

Renesas

Renesas TQFP-100G Manual de usuario

Renesas

Renesas SDI Emulator System M32100T-EZ-E Manual de usuario

Renesas

Renesas SuperH HS0720KCU01HE Instrucciones de instalación y funcionamiento

Renesas

Renesas SuperHTM Family SH7080 Series Manual de usuario

Renesas

Renesas H8/3854 Series Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
