The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

Bulletin 132 June 2019

Model GL112

Quick Response

Upright and Pendent Storage

& Non-Storage Sprinklers

K-factor: 11.2 (160 metric)

(SIN R3226)Upright

(SIN R3216) Pendent

Product Description

The Reliable Model GL112 is a standard coverage, Quick

Response sprinkler utilizing a levered fusible alloy solder

link in 165°F (74°C) or 212°F (100°C). The sprinkler has

been designed to control high challenge fires in both pallet-

ized and rack storage occupancies, utilizing relatively low

water pressures. This sprinkler is available with ¾” NPT or

ISO7-1R3/4 threads.

Listings & Approvals

Approved by Factory Mutual (FM) as a storage and non-

storage sprinkler.

Optional Guards and Water Shields

GL112 Upright Water Shield (factory installed)

D-7 Guard & Water Shield

GL112 Pendent

D-8 Guard

D-9 Guard & Water Shield

S-2 Water Shield

Temperature Ratings

Classification

Sprinkler

Rating

Maximum Ceiling

Temperature Frame

Color

°F °C °F °C

Ordinary 165 74 100 38 Uncolored

Intermediate 212 100 150 66 White

Maintenance

Model GL112 QR Sprinklers should be inspected and

the sprinkler system maintained in accordance with NFPA

25. Do not clean sprinklers with soap and water, ammo-

nia or any other cleaning fluids. Remove dust by using

a soft brush or gentle vacuuming. Remove any sprinkler

which has been painted (other than factory applied) or

damaged in any way. A stock of spare sprinklers should

be maintained to allow quick replacement of damaged or

operated sprinklers. Prior to installation, sprinklers should

be maintained in the original cartons and packaging until

used to minimize the potential for damage to sprinklers

that would cause improper operation or non-operation.

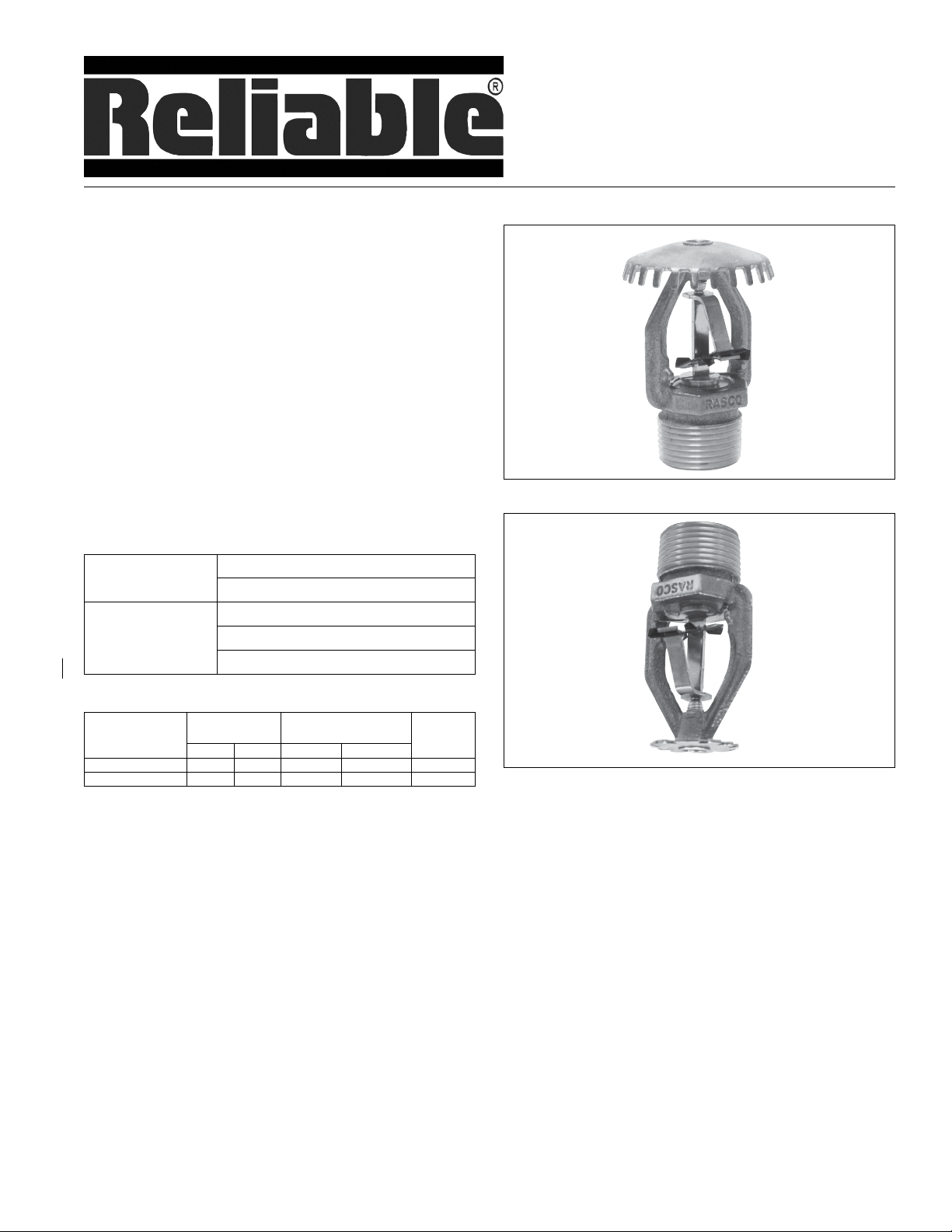

Model GL112 QR Upright

Model GL112 QR Pendent

Installation

Reliable’s Model GL112 QR sprinkler must be installed

according to NFPA Standards or the appropriate FM

Global Data Sheets for all area/density methods of design

as well as the Authority Having Jurisdiction. Use only

the Model H sprinkler wrench for sprinkler removal and

installation. Any other type of wrench may damage the

sprinkler.

Note: Sprinklers should be tightened between 14-20 ft/

lbs (19-27,1 N-m) torque. Sprinklers not tightened to

recommended torque may cause leakage or impairment

of the sprinklers. Damage sprinklers must be replaced

immediately.

Model H Wrench

Ordering Information

Specify:

1. Sprinkler Model [GL112 Upright] [GL112 Pendent]

2. Temperature Rating[165 F (74C)], [212 °F (100 °C)]

3. Optional Guard or Water Shield

Fig. 1

The Reliable Automatic Sprinkler Co., Inc.

(800) 431-1588 Sales Offices

(800) 848-6051 Sales Fax

(914) 829-2042 Corporate Offices

www.reliablesprinkler.com Internet Address

Manufactured by

Recycled

Paper

Revision lines indicate updated or new data.

EG. Printed in U.S.A. 06/19 P/N 9999970422

The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory

Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable.

Products manufactured and distributed by Reliable have been protecting life and property for over 90 years.

ITEM DESCRIPTION

Sprinkler Identification Number (SIN) Upright R3226

Pendent R3216

K Factor US (Metric) 11.2 (160)

Thread Size 3/4" (ISO 7-IR3/4)

Sprinkler Orientation Upright or Pendent

Maximum Working Pressure, PSI (bar) 175 PSI (12 bar)

Model GL112 Technical Data Table A

Storage Type NFPA FM GLOBAL

Sprinkler Type CMDA Storage

Response Type QR QR

System Type Pendent - Wet

Upright - Wet, Dry, Preaction

Pendent- Wet

Upright- Wet, Dry, Preaction

Temperature Rating F (C) 165,212 (74,100) 165,212 (74, 100)

Roof Construction See NFPA 13 See FM Global 2-0

Ceiling Slope See NFPA 13 See FM Global 2-0

Maximum Coverage Area See NFPA 13 See FM Global 2-0

Minimum Coverage Area See NFPA 13 See FM Global 2-0

Maximum Spacing See NFPA 13 See FM Global 2-0

Minimum Spacing See NFPA 13 See FM Global 2-0

Minimum Clearance to Commodity See NFPA 13 See FM Global 2-0

Sprinkler Distance to Ceiling See NFPA 13 See FM Global 2-0

Open Frame, Single, Double, Multi-

ple Row, or Portable Rack Storage of

Class I - IV, Cartoned Unexp Plastics

See NFPA 13 See FM 2-0 & 8-9

Solid Pile or Palletized Stor-

age of Class I - IV and Car-

toned Unexp Plastics

See NFPA 13 See FM 2-0 & 8-9

Idle Pallet Storage See NFPA 13 See FM 2-0, 8-9 & 8-24

Rubber Tire Storage See NFPA 13 "Upright N/A

Pendent-See FM 8-3"

Rolled Paper Storage See NFPA 13 See FM 8-21

Flammable Liquid Storage See NFPA 13 See FM 7-29 & 8-9

Aerosol Storage See NFPA 13 See FM 7-31

Auto Components in Portable Racks See NFPA 13 N/A

Model GL112 Commodity Selection and Design Criteria Overview Table B
