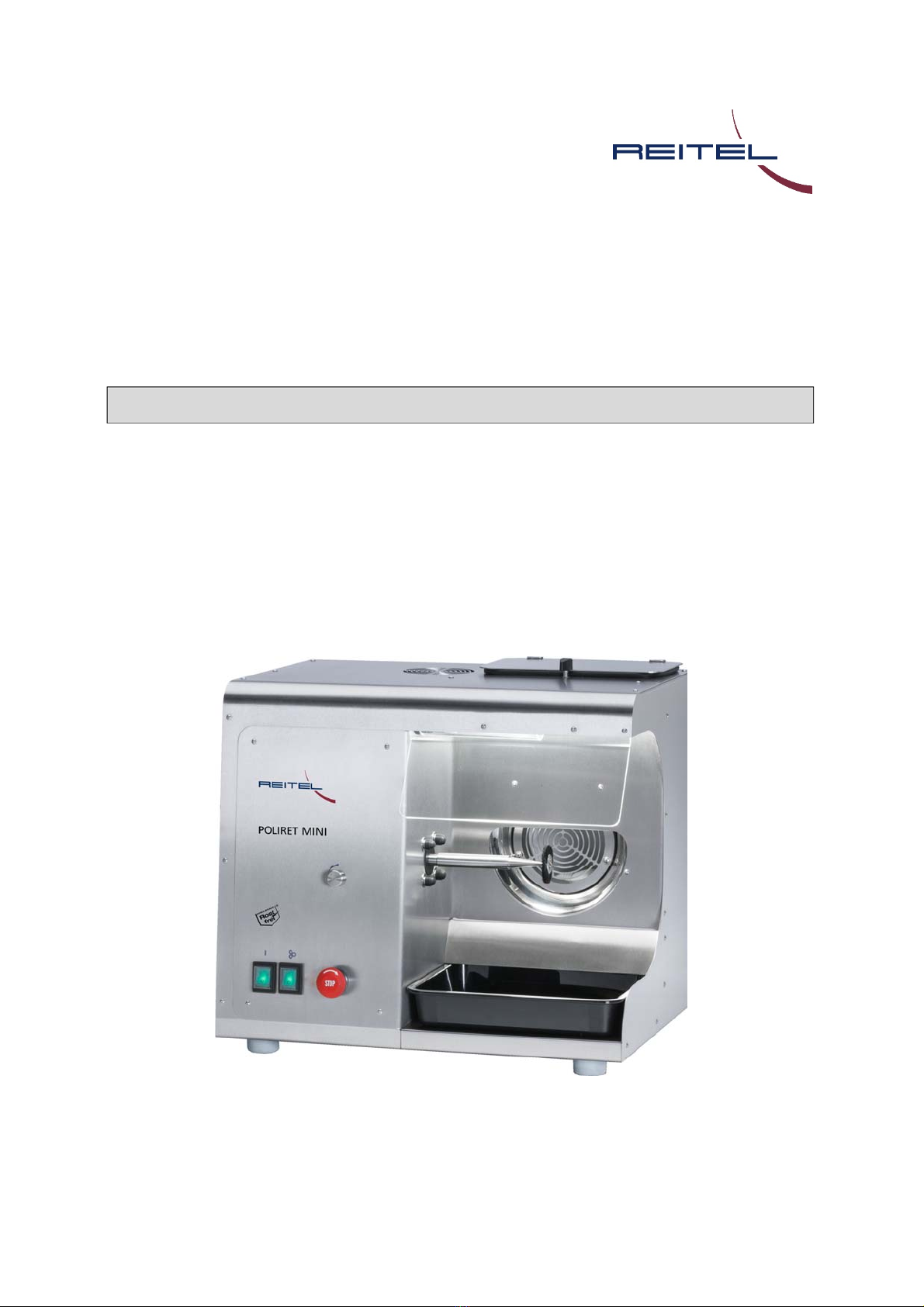

REITEL POLIRET MINI Manual de usuario
Operating Instructions
LABORATORY EQUIPMENT IN
STAINLESS STEEL
POLIRET MINI
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen
Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40
www.reitel.com | [email protected]
II
Dear Customer!
The POLIRET MINI is a compact polishing unit with a powerful motor. It is equipped with a
right side mounted spindle. The polishing unit is perfectly suitable for grinding, polishing,
cleaning and brushing metal and plastic materials. Excellent results and high efficiency are
achieved by the infinitely variable speed from 1.000 - 4.500 rpm. An integrated extraction
provides for dust extraction directly behind the polishing brush with an easy change fleece
filter, machine wash. A safety glass offers high operational safety.
Any other use or usage beyond this scope is considered unintended use. The manufacturer
shall not be responsible for any damages that may result thereby.
Prior to installation of the device operating instructions and especially the safety instructions
must be read and followed by all personnel who use this device.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
Store it at a safe place near the device. This documentation is protected by copyright.
Transmittal or reproduction of this document in whole or in part and disclosure of its contents
is not permitted. If the operation manual gets lost an extra copy can be ordered from the
manufacturer.
III
INDEX
TECHNICAL DESCRIPTION ........................................................................................... 4
B
ASIC
E
QUIPMENT
.......................................................................................................... 4
S
PECIAL
A
CCESSORIES
.................................................................................................. 4
D
EVICE
C
OMPONENTS
.................................................................................................... 4
T
ECHNICAL
D
ATA
........................................................................................................... 5
SAFETY NOTES .............................................................................................................. 6
G
ENERAL
S
AFETY
N
OTES
............................................................................................... 6
S
PECIFIC
S
AFETY
N
OTES
............................................................................................... 7
INSTALLATION ............................................................................................................... 8
I
NSTALLATION
................................................................................................................ 8
T
OOL
A
SSEMBLY
............................................................................................................ 8
OPERATION .................................................................................................................... 8
C
HRONOLOGICAL RUN OF OPERATION
............................................................................. 8
F
ILTER
R
EPLACEMENT AND
C
LEANING
............................................................................ 9
TROUBLESHOOTING ..................................................................................................... 9
MAINTENANCE ............................................................................................................. 10
WARRANTY ................................................................................................................... 11
DISPOSAL REGULATIONS .......................................................................................... 14
SPARE PARTS LIST ..................................................................................................... 15
EU DIRECTIVE .............................................................................................................. 16
4
Technical Description
Basic Equipment
Polishing unit POLIRET MINI with polishing spindle, working lamp and filter bag
Special Accessories
Order-No.: 24800000 Vario Lifting table
Order-No.: 22603000 Workholding fixture incl. drill chuck
Order-No.: 22702100 Filter bag with zipper
Device Components
1 Safety glass
2 Polishing spindle (use an Allen key to remove spindle)
3 Speed controller
4 Power switch
5 Extractor switch
6 Motor stop button
7 Exhaust air opening (topside)
8 Fixing screw
9 Tray
10 Filter bag with zipper (inside the machine)
11 Clamp ring for filter (inside the machine)
1
2
3
4 6
7
9
5
8
Device view
5
Interior view
Technical Data
Line voltage 230 V/50–60 Hz
Motor power 600 W
Extraction 115 W
Height/width/depth 430/530/400 mm
Weight 24 kg
Infinitely variable speed 1.000 – 4.500 rpm
Extraction 500 m³/h
Sound level ≤ 70 dB(A)
Housing Stainless steel
Made in Germany (Subject to modifications)
10
11
7 8
6
Safety Notes
General Safety Notes
All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.
All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.
Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.
This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.
The device should be set-up in a clean, well-ventilated room, if necessary under a hood.
Supporting surfaces should be straight, flat and adequately stable.
Don’t place anything on top of the machine.
To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety
shoes, hearing protection etc.)
If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.
To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.
When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.
Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 – warranty.
In case of leaking water out of housing or tank shut down device and call service.
Check all hose connections for leak tightness, if necessary tighten hose clamps again.
7
Specific Safety Notes
Note:
The tool must be securely fixed to the spindle, otherwise there is a risk of injury!
If motor speed is too high there is danger of burning!
Keep the housing dry and clean.
Tools may only be changed when the spindle stands still and the mains plug is
disconnected.
Use only appropriate tools and no unbalanced tools. Make sure that the tools are
securely fixed.
Switch on the extraction.
Never reach into moving machinery.
Always adhere to the regulations stipulated by the tool’s manufacturer (e.g. max. speed,
recommended material).
Make sure to use only appropriate material for polishing. Adhere to the manufacturer’s
regulations, especially for health protection.
Take care that the clothing at wrist and forearm is tight. Avoid loose hair and jewellery
which could get into the working spindle or the tools.
Make sure to use only cleaned or disinfected material with this machine.
In case of emergency press the motor stop button (6). To unlock the motor stop button
turn it to the right.
Hold the workpiece firmly in place otherwise there is the danger of flying particles that
might damage the workpiece.
8
Installation
The electrical equipment is delivered fully installed. The sealed plug can be connected
directly to the mains supply 230 V/16 A. For installation please refer to Safety Notes in
chapter 2.
Installation
Leave enough space (at least 20 cm) to accommodate exhaust. Establish the power supply.
Tool Assembly
1. Push the polishing spindle tightly onto the axle and secure it with a hexagon socket head
screw. Check for proper fit.
2. Attach the required tool to the polishing spindle and check for proper fit: right-hand
thread.
3. The polishing spindle can be removed from the axle by releasing the hexagon socket
head screw; if necessary use a pressure tool.
Operation
Chronological run of operation
1. Fix the polishing tool to the spindle and fill the tray (9) with polishing paste and/or pumice
or apply it to the polishing tool.
2. Use the speed controller (3) to regulate motor speed. Before starting the appliance, set
speed controller to 0. Switch on power (4). Wait approx. 2 seconds to regulate speed with
the speed controller.
3. Use the extractor switch (5) to activate the extraction.
4. Pressing the emergency stop button (6) stops the running motor immediately in case of
danger. The emergency stop button is unlocked by turning it to the right. Afterwards set
speed controller (3) and power switch (4) to 0. Wait approx. 10 seconds to start the motor
as described under point 2.
5. After having finished work turn power switch off (4).
9
Filter Replacement and Cleaning
1. Remove fixing screw (8) on top of the device to remove the cover.
2. Release clamping ring (11) to remove the old filter bag (10).
3. Empty the filter bags, if necessary, wash them:
a. a. Water-soluble contaminants can be washed with cold or 40-50°C warm water in
a trough or washing machine. The addition of 1-3 g/L of non-ionic surfactant is
helpful.
b. For acidic contaminants, wash at a maximum of 50°C with the addition of 1-2 ml/L
of ammonia. Alkaline contaminants can be dissolved by soaking in water at a
maximum of 50°C with 1-2 ml/L of vinegar for one to two hours.
c. Resin-based impurities require soaking for several hours in cold water with
1-10 g/L of solvent.
d. The filters can be dried in a machine dryer at a maximum of 60°C or air-dried.
e. No obligations can be derived from the above recommendations.After the new
filter bag has been positioned on the adapter, fasten the clamp ring and reinstall
the cover, closing it.
4. Slide the new or cleaned filter bag together with the clamping ring onto the inlet fitting.
Close the clamping ring and attach the cover.
5. Fasten with fixing screw. (8).
Troubleshooting
Device won’t start. a. The MOTOR STOP button is pressed.
The MOTOR STOP button is unlocked
by turning to the right. Turn the main
power switch off and wait approx. 6
seconds before turning it on again. The
motor starts running after approx. 6
seconds.
b. Check the main fuse of the building.
c. Check the appliance fuse. (The fuse
holder is located inside the power
socket of the device.)
Overload protector has tripped.
Overloaded motor due to steady use and/or
excessive contact pressure
Turn off power, check for free spindle run
and switch on power after a cooling-off
period.
Insufficient suction power.
Clean filter or change it if necessary
(machine wash at 40°C). Follow the
manufacturer’s instructions of the polishing
material.
Insufficient motor power Polishing brush is too big or max. diameter
approx.150 mm/contact pressure is too
high.
10
Machine runs unevenly. Check for unbalanced polishing disc or
spindle
Maintenance
Regularly check the device for visible damage to the housing or power cord.
Clean regularly dirty tools as well as the tray (9).
Replace worn or defective tools reguarly.
Change or wash the filter bag (10) regularly (refer to chapter 4.2 Filter change).
Otros manuales para POLIRET MINI
1
Tabla de contenidos
Otros manuales de Equipo de laboratorio de REITEL
REITEL
REITEL STAR Manual de usuario
REITEL
REITEL STEAMY MINI Manual de usuario
REITEL
REITEL RETOMIX COMFORT Manual de usuario
REITEL
REITEL ERGORET CC Manual de usuario
REITEL
REITEL RETOCAST T Manual de usuario
REITEL
REITEL ROTOGRIND MINI Manual de usuario
REITEL
REITEL SUPERSTEAM Manual de usuario
REITEL
REITEL ROTOGRIND NT Manual de usuario
REITEL
REITEL SANDURET 2 Manual de usuario
REITEL
REITEL POLIRET Manual de usuario
REITEL
REITEL RETOCAST T Manual de usuario
REITEL
REITEL ERGORET CLASSIC Manual de usuario
REITEL
REITEL ERGORET CC KFO Manual de usuario
REITEL
REITEL RETOCAST I Manual de usuario
REITEL
REITEL RETOMIX EASY Manual de usuario
REITEL
REITEL POLIRET TWIN Manual de usuario
REITEL
REITEL RETOMIX MINI Manual de usuario
REITEL
REITEL BIOSTEAM CENTER Manual de usuario
REITEL
REITEL ROTOGRIND NT Manual de usuario
REITEL
REITEL RETOMAT Series Manual de usuario
Manuales populares de Equipo de laboratorio de otras marcas
Agilent Technologies
Agilent Technologies 5800 ICP-OES Manual de usuario
Endress+Hauser
Endress+Hauser Cleanfit CPA875 Manual de usuario
NI
NI PXI-5422 Manual
Collomix
Collomix Aqix Manual de usuario
SPEX SamplePrep
SPEX SamplePrep 6875 Freezer/Mill Series Manual de usuario
Ocean Insight
Ocean Insight FLAME-NIR+ Manual de usuario
