Mid-segment Aluminum Rollator

User’s manual (EN)

Mittelsegment-Aluminiumrollator

Bedienungsanleitung (DE)

more than mobility

Mehr als Mobilität

03/2020 2/ 22 STYLUS

ENGLISH

1. General Information

Dear Customer,

This user manual contains a description of the medical device and important guidelines to ensure correct and safe

use of the product. It is important to read this manual carefully prior to use. It is especially important to read the

safety requirements and follow these.

REHASENSE continuously develops its products and reserves the right to change the specifications and functions

of products without notice.

If you have any queries please contact your dealer or Rehasense directly. Contact information is located on the

last page of this manual.

2. Intended usage, Indications & Contra indications

Intended usage: The rollator has been designed as an assistance walking tool for people who have mobility

problems with standing, walking or seating. Thanks to the rollator those persons can stand, walk and rest easily and

they can fulfil without others assistance most of their daily tasks and routines. Any other usage is prohibited.

Indications: The device is specifically indicated for individuals who, (because of a wide variety of possible health

problems) require additional stable support during walking.

Contraindications: The device must not be used by persons who have serious problems with body balance or who’s

muscle strength is too low to be able to stand and walk, even with extra support of a rollator. The need and possibility

of usage of a rollator by user should be always estimated an indicated by a physician or physical therapist.

3. Delivery & general product description

The rollators are supplied in boxes and come folded, for easier transportation.

The contents are:

✓

1 complete, folded rollator included backrest and shopping bag and crutch holder

✓

1 user‘s manual

The STYLUS is a four wheel, light weight rollator with a cross foldable frame. The product is made of aluminum, so

it is light and easy to store or transport. The rollator offers great maneuverability, stability and its push handles are

height adjustable for a good user fit. The product consists of a powder coated foldable structure frame made of

aluminum extruded tubing and a foldable cross. It is also equipped with a fabric seat and a shopping bag which

allows the user to rest and to carry small items.

4. Security requirements

Make sure that this user’s manual is read by all people who use the device. The manufacturer does not take any

responsibilityfor damages and/or injuries caused by the fact that the user’s manual has not been followed.

Limitations for usage

•The device must not be loaded with more than 150 kg.

•The device’s bag has a load limitation of 5 kg.

•The device is devised to be used indoor and/or outdoor on flat

surfaces. The device is not intended to be self-propelled while seated

•The brakes MUST be in the locked position BEFORE using the seat.

03/2020 3/ 22 STYLUS

Avoiding accidents

•Use the device only for the purpose it is intended for.

•Use the device only in good technical condition.

•Avoid making constructive changes to the device, unless you have the manufacturer’s written acceptance for

such modifications.

•During different adjustments which are possible on the device, the user must take care not to trap their fingers

or other body parts between two moving elements of the device

•The device must only be used on a stable surface.

•All wheels MUST be in contact with the floor at ALL TIMES during use. This will ensure the rollator is properly

balanced and should avoid accidents.

•When using the rollator in a stationary position the hand brakes MUST be locked.

IF ANY SERIOUS INCIDENT OCCURES IN RELATION TO THE DEVICE PLEASE CONTACT YOUR DEALER OR

REHASENSE DIRECTLY (contact details at the end of the user manual). The immediate actions should be taken

according to the requirements of Regulation of the European Parliament and of the EU Council 2017/745 on medical

devices of April 5, 2017.

Mind your fingers

Warning: Fingers or other body parts of a user and/or assistant can be trapped between the

device’s parts during folding, unfolding or adjusting of the device.

Be extremely careful when adjusting the device. Observe the dimensions of gaps between the

device’s elements to avoid trapping your fingers or other body parts.

03/2020 4/ 22 STYLUS

5. Product details

Push handle

Backrest

Seat

Seat tube (

here to open

rollator and lock)

)

Shopping bag

Turning wheel

Foldable crossbar

Brake

Hook of locking in

folded position

Locking knob for

height adjust ent

push handle

Handle profile for

height adjust ent

push handle

Brake handle

Release pulling strip

(pull here to fold)

Crutch holder

03/2020 5/ 22 STYLUS

6. Usage

Looking at the picture above the device should be prepared for use in an instinctive way. However we

recommend you follow the steps below:

Initial Check

•In the first instance take the device out of the box and check (using the picture above) that nothing is

missing. If you discover at this stage that some part is missing or damaged do not continue to assemble

the product. Contact your supplier of the product right away.

Opening of the rollator

•Open the red hook which is locking the seating tubes

•Hold both seat tubes simultaneously push them down until you hear a “click” sound of the locking

mechanism of the frame.

•Try to pull the seat tubes back up to fold the frame. If this is impossible to do the frame is opened and

secured correctly. See the OPEN position in the picture above

•

After unfolding or assembling the rollator always ensure that the seat support is securely locked by the

pulling strip mechanism for securing the lock and that the frame does not move anymore.

•

Always ensure that both push handle tubes are securely locked in the main support tube with the two wing

knobs to prevent the accidental sliding in of the push handle tubes when forced.

•

Always test to see that accessories are properly and safely locked in place BEFORE using.

•

Failure to follow these warnings can result in personal injury.

Folding

- Pull the handle on the seat upwards so that the rollator starts to fold.

- Fold the rollator further with the tubes of the seat coming up until they touch.

- Then secure them with the red hook

03/2020 6/ 22 STYLUS

Adjusting the height of the push handles

- Release the handle locking knob,

- Make adjustments to your desired height.

- Tighten the knob.

•

Both push handles should be adjusted to the same height.

•

The correctly adjusted handles should be to the height of the user’s hips.

•

Never leave the device without the breaks on.

Using the hand brakes

- TO STOP THE ROLLATOR simply pull the brake handles up towards the

hand grips.

- TO REMAIN STATIONARY hold the brake handles in the ”UP” position.

- TO START MOVING release the brake handles. They will drop down

automaticallyand the brakes will be released.

•

You should always engage the breaks when you don’t plan to move the device.

•

Never leave the device without the breaks engaged when there is someone sitting in it!

•

Never leave the device on slopes without the breaks engaged!

•

Never sit too much to the rear. Do not to sit (partly) above the shopping bag.

•

Always sit straight up when seated on the rollator with your forearms or hands lightly resting on the push

handles.

•

Never lean backwards when seated on the rollator

Locking/Unlocking the hand brakes

- To lock the brakes push the brake handles down until you can hear the

”click” sound.

- To unlock the brakes pull the brake handles up until you feel them

loosen.

•

When using the rollator in a stationary position, the hand brakes MUST

always be locked.

03/2020 7/ 22 STYLUS

Tilt aid

Your walker is equipped with a tilt aid on both sides for obstacles such as door treads, curbs, etc.

- Pull the brakes, put your toes on the step, push it down and pull the handles towards you so that the front

wheels come off the ground.

- Keep your heel on the floor to keep your balance.

To sit on the rollator

To rest a while you can sit on the seat of the rollator.

- First put both the parking brakes on.

- Then you can turn around to take a seat.

- Sit between both handles in active seat (upright).

- You can lean on the handles with the forearms.

- Do not sit too far back.

•Never sit too far back, not (partially) above the shopping bag.

•Never lean back.

•Never sit on the walker without the parking brake on.

03/2020 8/ 22 STYLUS

Steering and turning of the rollator

•Due to the low weight and easy swivelling front wheels, the walker is very easy to manoeuvre forwards,

sideways or backwards and can be turned on the spot.

•

Simply place your hand on the handles, hold the push handles and push the rollator in the desired direction

Reflectors

For safety reasons, the rollator is provided with a total of 6 reflectors to be better seen in the dark: 2 are located

on the side, 2 on the back of the handles and 2 reflective seams on the shopping bag.

7. Cleaning & Disinfection

General:

•Clean the device regularly and keep it clean.

•Lighter dirt and dust can be removed with a wet cloth.

•Larger parts of dirt can be removed with a non-corroding,mild household detergent (available in most

stores) and warm water.

•Do not use harsh abrasives or bleach based cleaners, as this may cause damage or

discolouration. Dry parts with a soft cloth.

Wheels:

•Clean wheels with warm water and a mild cleanser mild

household detergent (available in most stores). Dry with a clean

rag.

•Lubricate with multi-purpose oil periodically or if wheels begin to

squeak.

03/2020 9/ 22 STYLUS

Disinfection:

For disinfection please contact your dealer to be sure is made by professional personnel.

However for individual use we recommend to use the generally available disinfectants without chlorine and

phenol. The manufacturer is not responsible for the damage caused by wrong usage of disinfectants.

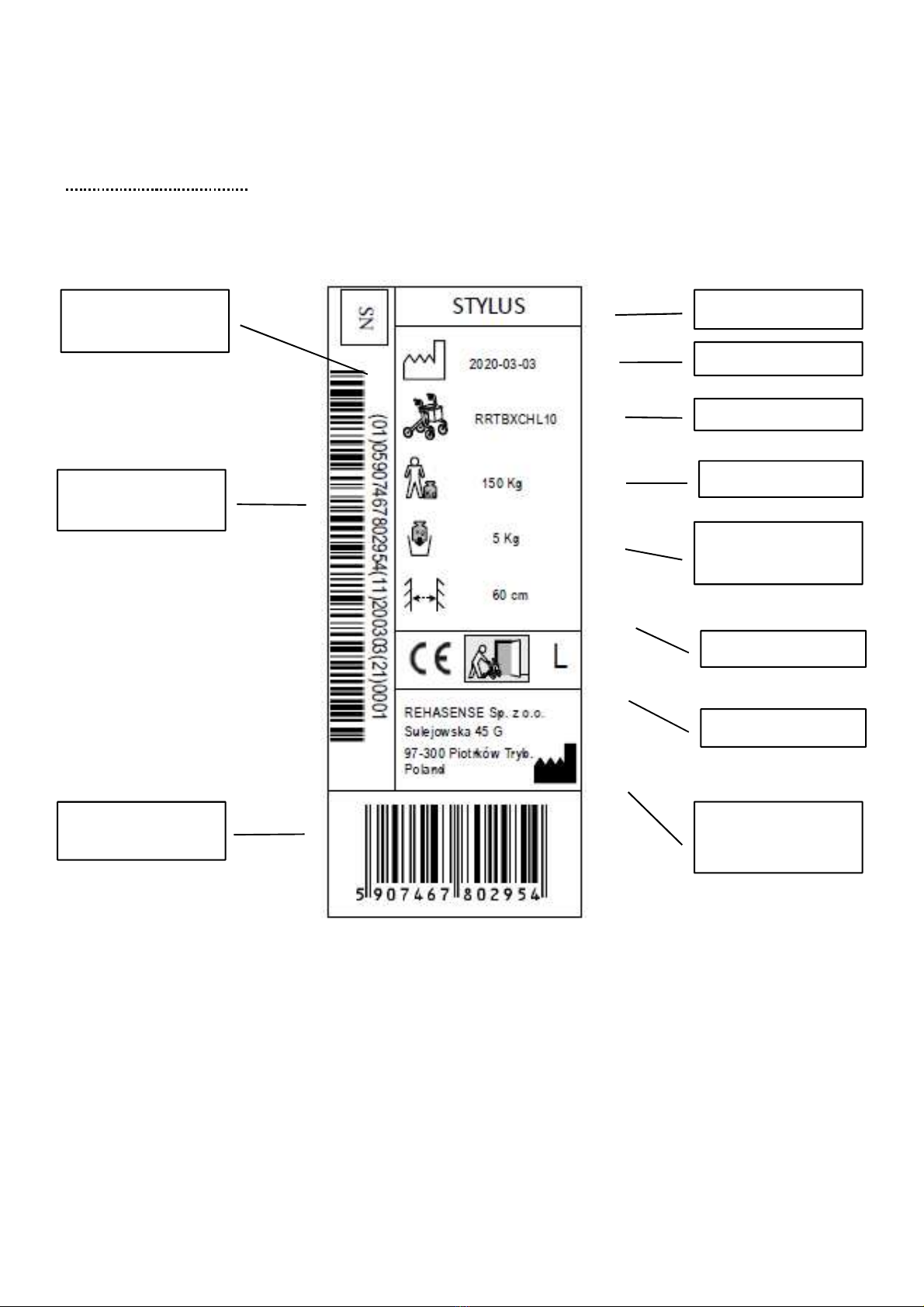

8. Label Example

The product label is placed on one of the bottom tubes of the main frame:

Serial number in

standard GS1 128

Barcode EAN –

GS1 128

Product name

Production date

Item number

Max user weight

Shopping bag

max. load

Product width

Product size

Can be used

outdoor

Barcode EAN 13

in standard GS1

03/2020 10/ 22 STYLUS

9. Technical data

STYLUS – Mid-segment Aluminum Rollator

Frame size Large

Recommended user height 150-200 cm

Max users weight 150 kg

Weight (without accessories) 5,95 kg

Weight incl. accessories

(bag, backrest and crutch holder) 6,5 kg

Height adjustable push handles 75,2/77,8 – 101,8 cm; 8 steps

The handles Ergonomic

Distance between handles 45 cm

Length 68,2 cm

Width opened 61,1 cm

Width folded 19 cm

Height folded 81,5 cm

Seat width 44 cm

Seat height 60 cm

Seat depth 18,5 cm

Max. load of the bag 5 kg

Distance between handgrip and brake handle

(for brake activation)

64 mm

Brakes 2 x maneuver hand brakes with parking function

Wheels (diameter x width) 200 x 35 mm

Turning radius 85 cm

Side frame tube diameter 32x25 mm/ 61x24 mm (oval)

Inner tube diameter of the handle 28x21 mm (oval)

Used materials and surface treatment:

- Side frame

- Inner tube

- Cross

- Wheels

- Hand grips

- Brake handles

- Seat

- Bag

Aluminium (powder coated)

Aluminium (anodized)

Aluminium (powder coated)

PA + 15% GF and PU tire

Soft TPE

PA + 30% GF

PVC coated/ Polyester

Polyester

10 Transport description

The rollator is an easily foldable product convenient for transportation. If it is necessary to transport it, we recommend

to fold it as stated in the description above. The rollator should be transported in a way that it is stable and there is no

risk of sudden and dangerous movements of the transported device.

11 Maintenance

The rollator should be inspected.

•Ensure that every part and accessory of the rollator is secure at ALL times.

•Check all screws for tightness. If not, tighten if necessary.

•Replace any broken, damaged or worn items immediately.

•Check the braking function of both brakes and that the handbrakes perform well.

In case of any visible damages ask your local dealer for diagnostics and maintenance.

We recommend to ask your dealer to carry out inspection minimum once per 12 months.

Tabla de contenidos

Idiomas:

Otros manuales de Ayuda a la movilidad de Rehasense

Rehasense

Rehasense ROUTER Manual de usuario

Rehasense

Rehasense Space LX Manual de usuario

Rehasense

Rehasense NAVIGON Manual de usuario

Rehasense

Rehasense Platform Manual de usuario

Rehasense

Rehasense PFD04076 Manual de usuario

Rehasense

Rehasense Laser Manual de usuario

Rehasense

Rehasense Platform 1000G Manual de usuario

Rehasense

Rehasense Platform 1000M Manual de usuario

Rehasense

Rehasense Server W Manual de usuario

Rehasense

Rehasense SERVER Manual de usuario

Rehasense

Rehasense ATHLON SL Manual de usuario

Rehasense

Rehasense SPACE I Manual de usuario

Rehasense

Rehasense ATHLON SL Manual de usuario

Rehasense

Rehasense MONITOR Manual de usuario

Rehasense

Rehasense 740005 Manual de usuario

Rehasense

Rehasense NAVIGATOR Manual de usuario

Rehasense

Rehasense Platform 1000MB Manual de usuario

Rehasense

Rehasense City Series Manual de usuario

Rehasense

Rehasense NAVIGATOR Manual de usuario

Rehasense

Rehasense NAVIGATOR Manual de usuario

Manuales populares de Ayuda a la movilidad de otras marcas

Alber

Alber Scalamobil iQ Manual de usuario

Ferno

Ferno CCT-PX Manual de usuario

HEPRO

HEPRO Gripo Manual de usuario

Otto Bock

Otto Bock Pheon 3R62 Manual de usuario

NRS Healthcare

NRS Healthcare M11090 Manual de usuario

Medline

Medline MDS86835DSHEC Guía de instalación

Guldmann

Guldmann Twin Turner II Manual de usuario

Drive

Drive ROOMBA Manual de usuario

Gate

Gate Balder Manual de usuario

Decon wheel

Decon wheel TNS Notos Manual de usuario

ExoAtlet

ExoAtlet ExoAtlet-II Manual de usuario

Invacare

Invacare Storm Series Manual de instrucciones

Rhythm Healthcare

Rhythm Healthcare B3800F Manual de usuario

AMF-BRUNS

AMF-BRUNS PROTEKTOR Manual de usuario

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Manual de usuario

Rhythm Healthcare

Rhythm Healthcare C500U Manual de usuario

Lumex

Lumex RJ4200A Manual de usuario

Rebotec

Rebotec Jumbo Manual de usuario
