GCI60 Hampton Cast Iron Pellet Insert
33 ⁄
43 ⁄
41 ⁄
16 ⁄
24 ¾
26 ⁄
22 ⁄
11 ¾
12 ¾
A Sidewall to center of unit (
De la paroi au centre de l'unité)
24” (610 mm)
B Sidewall to surround panel (De la paroi à l'entoure le panneau) 2” (51 mm)
C Bottom of unit to an unshielded 12” (305 mm) mantle
(Le fond de l'unité à un manteau de cheminée non blindé) 33“ (838 mm)
D Unit to top facing (protruding ¾” [19 mm])
(
De l'unité au sommet du parement)
0” (0 mm)
E Unit to side facing (protruding ¾” [19 mm]) (
De l'unité au côté du parement)
0” (0 mm)
F From door opening of unit to edge of floor protection
(De la porte ouvrant au devant de protection de plancher) 6” (152 mm)
G From side of unit to edge of floor protection
(De l'ouverture de porte pour prendre parti de protection de plancher) 6” (152 mm)
C
A
E
B
D
Adjacent wall
G
F
Combustible floors must be protected
by a non-combustible material.
- See Owners Manual.
Le plancher combustible doit être
protégé par un matériel incombustible.
- Consultez le manual.
INSTALLED AS A FIREPLACE INSERT STOVE MODEL (FPI) / A INSTALLE
COMME UN MODELE SUR PIED DE POELE.

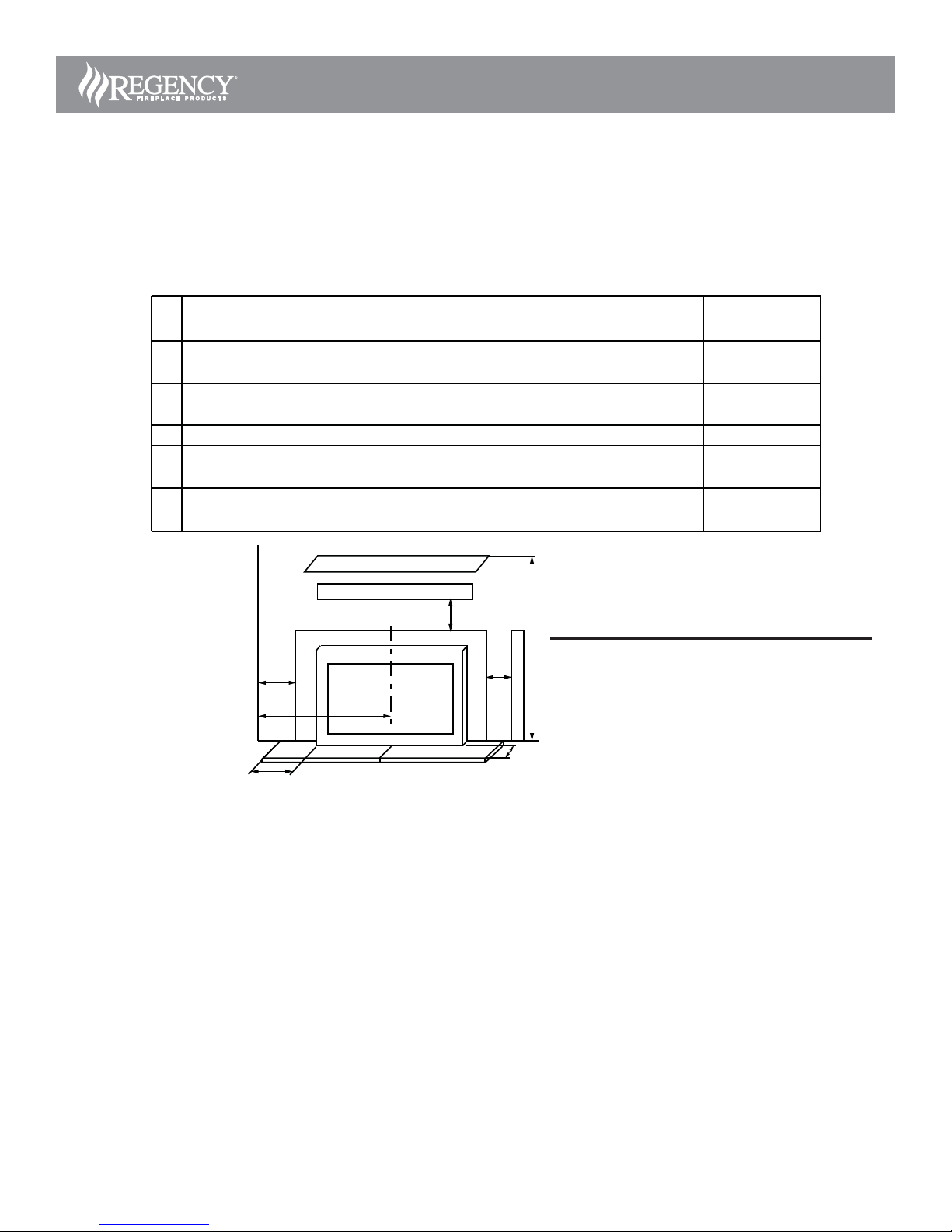

Minimum clearances to combustible materials./ Les dégagements minimums aux
matériels combustibles:
These dimensions are minimum
clearances. It is recommended that you
ensure sufficient room for servicing,
routine cleaning and maintenance.
The unit must be installed with a minimum
of 6” (152 mm) of floor protection in front
of and to the sides of the door opening.
GFI60 Wood Pellet Insert
VENT TERMINATION REQUIREMENTS:
IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER.
Letter Minimum Clearance Description
A 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials.
B 48 in (122 cm) Beside/below any door or window that may be opened. (18” (46 cm) if outside
fresh air installed.)
C 12 in (30 cm) Above any door or window that may be opened. (9” (23 cm) if outside fresh air
installed.)
D 24 in (61 cm) To any adjacent building, fences and protruding parts of the structure.
E 24 in (61 cm) Below any eave or roof overhang
F 12 in (30 cm) To outside corner.
G 12 in (30 cm) To inside corner, combustible wall (vertical and horizontal terminations).
H 3 ft (91 cm) within a height
of 15 ft (4.5 m) above the
meter/regulator assembly
To each side of center line extended above natural gas or propane meter/
regulator assembly or mechanical vent.
I 3 ft (91 cm) From any forced air intake of other appliance
J 12 in (30 cm) Clearance to non-mechanical air supply inlet to building, or the combustion air
inlet to any appliance.
K 24 in (61 cm) Clearance above roof line for vertical terminations.
L 7 ft (2.13 m) Clearance above paved sidewalk or paved driveway located on public property.
Air Supply Inlet Gas Meter Restriction Zone
(Termination not allowed)
Termination Cap
G
G
Opens
Opens
Opens
DF
B
B
AI
H
KG
G
L
C
E
GFI60 Wood Pellet Insert
MASONRY FIREPLACE
INSERT INSTALLATION
Floor
Protection
Combustible Floor
Masonry Fireplace
Min. 6"
Rain Cap
Steel Plate or Flashing
Mantel (8" deep)
Fresh-air intake
Clean-out tee
If holes already exist
fresh-air intake can
be taken through the
back of the fireplace
or through the ash
dump.
Damper Removed
or Fastened Open
Min. 8" from
top of stove
OUTSIDE FRESH AIR CONNECTION
Outside fresh air is mandatory when installing this unit in airtight
homes and mobile homes.
A Fresh-air intake is strongly recommended for all installations.
Failure to install intake air may result in improper combustion as well
as the unit smoking during power failures.
When connecting to an outside fresh air source, do not use plastic or
combustible pipe. A 2” minimum (51 mm) ID (inside diameter) steel,
aluminum or copper pipe should be used. It is recommended, when
you are installing a fresh air system, to keep the number of bends in
the pipe to a minimum.
2" ID
(51 mm)
Optional
Elbow
Outside
Wall
GFI60 Wood Pellet Insert
Wall framing
Wall thimble
Termination cap
Vertical section
of vent pipe
Clean
out tee
Wall strap
90°elbow
Horizontal
frame for
thimble
RECOMMENDED - THROUGH WALL WITH
VERTICAL RISE AND HORIZONTAL TERMINATION
INSTALLATION
NOTE - This venting configuration is only for use with the
Built-In installation.
OUTSIDE VERTICAL INSTALLATIONS INSIDE VERTICAL INSTALLATIONS
Rain cap
Flashing
24"
(61 cm)
Tee with
cleanout
3" (7.5 cm)
Clearance
Support
bracket
Type "L"
vent
Rain cap
Flashing
24"
(61 cm)
Tee or 90°
elbow
3" (7.5 cm)
Clearance
Support
bracket
Type "L"
vent
GFI60 Wood Pellet Insert
