Regency E18-NG Manual de usuario

* Only available in British Columbia to accredited dealers.

E18* Gas Insert

Model E18-NG E18-LP

Fuel Type Natural Gas Propane Gas

Minimum Supply Pressure 5” W.C.

(1.25 kPa)

12” W.C.

(2.99 kPa)

Manifold Pressure - High 3.5” W.C.

(0.87 kPa)

10” W.C.

(2.49 kPa)

Manifold Pressure - Low 1.6” W.C.

(0.40 kPa)

6.4” W.C.

(1.60 kPa)

Orice Size #44 DMS #55 DMS

Minimum Input

Altitude 0-4500 ft.

(0-1372m)

15,000 BTU/h (4.40 kW) 17,000 BTU/h (4.98kW)

Maximum Input

Altitude 0-4500 ft.

(0-1372m)

21,600 BTU/h (6.33kW) 20,500 BTU/h (6.01 kW)

13 3/4"

349mm

23 15/16"

608mm

14 9/16"

370mm

34 7/16"

875mm

3 15/16"

100mm

11"

280mm

16 5/8"

423mm

23 9/16"

598mm

29 7/16"

747mm

7 1/4"

184mm

1 15/16"

50mm

Verify the model of the E18 will replace

is one of the following approved units:

Montigo EP28-2

Montigo EP28-4

Montigo EP28-5

Montigo Econo Plus 28C

Montigo EP28-S2

Montigo 36SR (Non powervent unit)

Montigo 28F-2

Montigo 28-F

Firesong 220N

Firesong 120N

E18 Gas Insert

MINIMUM FIREPLACE CLEARANCES TO COMBUSTIBLES

Diagram shows the minimum clearances to any combustible material. Installer must check that all installs maintain at least these clearances..

32"

813mm

36"

914mm

37 1/2"

953mm

21"

533mm

18 5/16"

465mm

11 1/4"

286mm

6 1/4"

159mm

3 3/4"

95mm

7 1/16"

180mm

42 3/4"

1086mm

3 9/16"

91mm

3 1/2"

89mm

The minimum clearance from the side of the appliance to a combustible

side wall is 6" (229mm). The minimum clearance from the bottom edge

of the front trim above the window to a combustible mantel is 17- 7/8 "

(454 mm). The minimum height from bottom edge of the front trim above

the window to the ceiling is 37-7/8"(962 mm).

Note: A non-combustible mantel and framing may be installed

at a closer tolerance if the framing is made of metal studs

covered with a non-combustible board.

153mm

Min

37 1/2"

952mm

min

17 7/8"

453mm

Min

37 7/8"

961mm

Min

Sidewall

Mantel

Ceiling

Floor

45deg

229mm

Max

29"

737mm

Allowable

Mantle

area

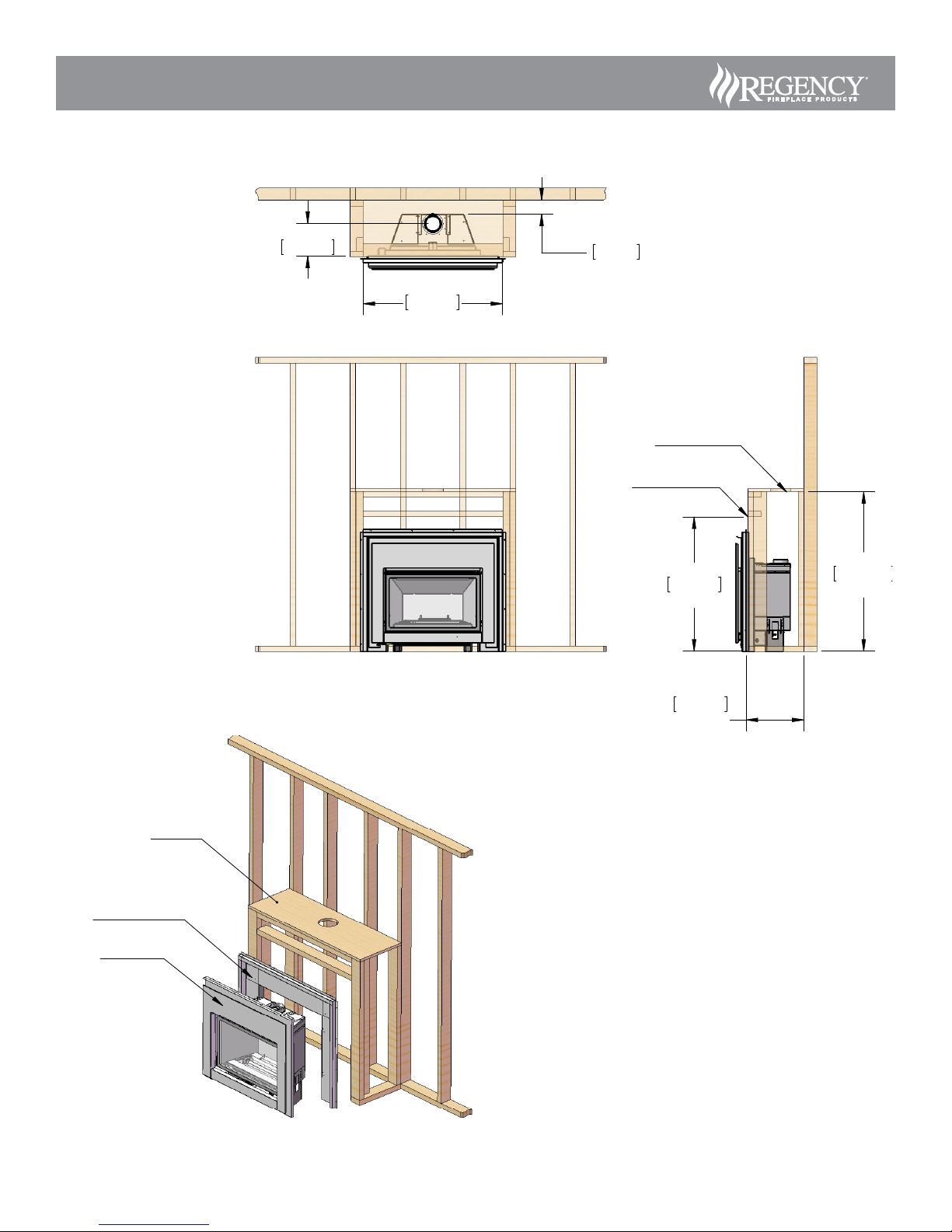

ZERO CLEARANCE FRAMING

VENTING CONFIGURATIONS

The E18 is approved to be attached to any of the approved appliances

listed in the Installation Checklist. The existing unit must be connect to

B-Vent Pipe having at least 8 feet of vertical venting and can having a

maximum of 6 feet horizontal venting with two 90 degree elbows. The

venting must terminate vertically with an approved B-Vent Cap.

When Installing the E18 as a Zero Clearance Unit, the E18 will connect to

4" B-Vent only. You must use a minimum of 8 feet of vertical pipe and you

may use up to a maximum of 6 feet of horizontal pipe with two 9 degree

elbows. The venting must terminate vertically with an approved B-Vent Cap.

All horizontal runs must maintain a 1/4" of rise for every foot of horizontal run.

37 7/16"

951mm

Min

3 3/4"

95mm

Min

8 3/4"

222mm

36"

914mm

Min

42 3/4"

1086mm

Min

15 1/2"

394mm

Min.

Chase

Depth

Header Height

Ceiling Height

E18 Insert

Zero Clearance

Kit - Surround

Framing

Typical

Framing

1. When installing the E18 as a

Zero clearance, you will use

the framing clearances in the

following diagrams. Mantel

and inside corner clearances

can be found in Minimum

Clearances to Combustibles.

2. Attach the E18 to the Zero

Clearance Kit.

3. Attach the Zero Clearance Kit

to the Framing.

4. Install the Surround as per

manual.

E18 Gas Insert
