RCA - 21T68 Manual de usuario

XXXXX

XXXX

Instruction Manual

Model XXXXXX

Place photo here

TEMPLATE

Note Red items, delete or alter as required throughout.

Please read these instructions carefully and retain for future reference.

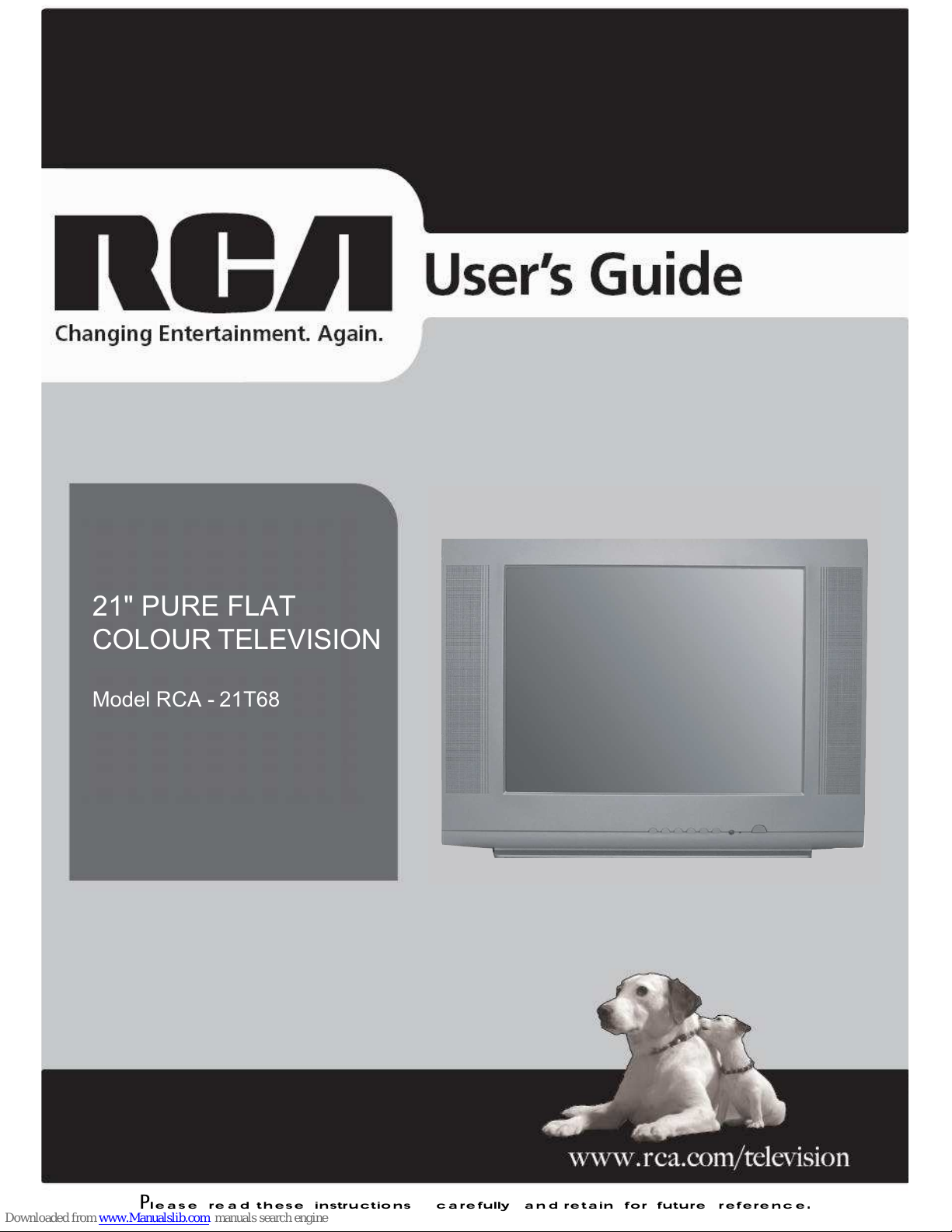

21" PURE FLAT

COLOUR TELEVISION

Model RCA - 21T68

Help line

For assistance during normal working hours (9am-5pm, Mon-Fri, New Zealand local time) call

Oriental Pacific International Ltd.

NZ call: 0800 89 85 80

Email: service@orientalpacific.com

SYMBOLS

The graphic symbols used in this manual or on the back cover of the set mean the

following:

Read this manual in full before use.

Class II Double insulated Appliance

The lightning flash symbol is intended to alert the user to the enclosures that

contain hazardous voltages.

The exclamation symbol is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

IMPORTANT SAFEGUARDS

When using any electrical apparatus always observe safety regulations and use

basic safety precautions to reduce the risk of fire, electric shock and personal

injury, including the following

Read, Keep and Follow these instructions, heeding all Warnings.

WARNING! No objects filled with liquid, such as vases, shall be placed on this equipment or in any

position where liquid may fall into this equipment or any other electrical apparatus.

WARNING! Do not insert any objects into any openings of this equipment or any other electrical

apparatus.

WARNING! Do not use this apparatus near water. To avoid the risk of fire or electric shock, do not

expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or

splashes and is strictly for indoor use only. WARNING! Not for use in Tropical humid climates.

WARNING! Do not immerse in any liquid whilst in use or cleaning. Clean only with a damp cloth,

dry with a dry towel. Do not use harsh abrasives as these may damage the plastic parts.

WARNING! DO NOT block any ventilation openings. Keep away from curtains, newspapers and

restricted areas. Install in accordance with any specific manufacturer’s instructions. Always allow a

sufficient gap around the apparatus to avoid overheating.

WARNING! Do not install near any heat sources such as radiators, gas heaters, stoves or other

apparatus (including amplifiers) that produce heat. Do not leave in direct sunlight.

WARNING! Do not place any naked flame source, such as lighted candles on any electrical

apparatus.

WARNING! Connect to a suitable 230-240V ~ 50 Hz power supply only.

WARNING! Keep out of reach of young children. This apparatus is not suitable for use by young

children or infirm persons without supervision. Young children must be supervised to ensure that

they do not play with the apparatus. Ensure young children have enough knowledge to operate the

equipment safely if they do have access to this equipment.

WARNING! Do not abuse or damage a power cord. If any power cord is damaged, it must be

replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a

hazard. A replaceable cord must be replaced with an authorised replacement from an authorised

service agent only.

WARNING! Only use attachments/accessories specified by the manufacturer.

WARNING! Unplug completely from the power source this apparatus during lightening storms or

when unused for long periods of time.

WARNING! Attention is drawn to the environmental aspects of disposing of any battery.

WARNING! Refer all servicing to qualified personnel. Servicing is required when the apparatus

has been damaged in any way, such as when the power supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain

or moisture, does not operate normally, or has been dropped.

WARNING! For household use only, this apparatus is not intended for commercial use.

WARNING! If this apparatus is to be used by a third party, please supply these instructions with it.

WARNING! No liability will be accepted for any personal injury or damage caused by failure

to follow these instructions.

CLEANING

WARNING! Before you attempt to clean the television screen or cabinet, always disconnect the

appliance from the mains power and remove the plug from the main power outlet.

Clean the television with a soft dry cloth only. Never use any harsh chemical cleaning

agent or water as this may damage the television.

WARNING! Never allow water splashes to enter the appliance. Do not immerse in water.

WARNING! Never remove the rear cover. Do not attempt to service this equipment.

TABLE OF CONTENTS

1. INTRODUCTION

1.1FEATURES

1.2 PRECAUTIONS

1.3 DESCRIPTION OF CONTROL

KEYS & CONNECTORS

1.3.1 FRONT PANEL

1.3.2 REAR TERMINAL & SIDE AV

1.4 OPERATION OF REMOTE CONTROL

1.4.1 DESCRIPTION OF

REMOTE CONTROL KEYS

1.4.2 BATTERY INSTALLATION

1.4.3 EFFECTIVELY USING THE

REMOTE CONTROL

2. CONNECTIONS

2.1 INSTALLATION OF ANTENNA

2.2 POWER CONNECTION

4. TV OPERATIONS

4.1 BASIC OPERATIONS

4.1.1 SWITCH ON

4.1.2 SWITCH OFF

4.1.3 MAIN MENU SELECTION

4.1.4 MENU ENTRIES

4.1.5 MENU CONTROLS

4.2 CHANNEL PRESET

4.2.1 AUTO SEARCH

4.2.2 MANUAL SEARCH

4.2.3 FINE TUNE

4.2.4 PROGRAM SWAP

4.2.6 FAVORITE CHANNEL SETTING

4.3 ON-SCREEN MENU SETTINGS

4.3.1 SYSTEM SETTING

4.3.2

1. INTRODUCTION

1.1 FEATURES

Color Systems -

Sound Systems -BG

Preset Programs -100(0-99)

Preset Method -Auto Search,Manual Store,

Fine Tune

Tuning Method -Frequency Synthesized

Frequency Range - Hyper Band Tuner

Voltage Range -

Display -On Screen Display (OSD)

Remote Control -Full Function Infra-red Remote

Controller

AV I/O -2 RCA-type AV Input

4.2.5 CHANNEL SKIP

PICTURE ADJUSTMENTS

4.3.3 CLOCK

4.3.4 ON TIMER

4.3.5 OFF TIMER

TROUBLESHOOTING

6.1 PROBLEMS OF PICTURE

6.2 PROBLEMS IN OPERATION

SPECIFICATIONS

Useful Functions -Sleep Timer (10-120min.)

-Auto Off (after 15 min with

no signal)

-Program Swap

-Blue Background

Selection (while no signal)

-3 Default ,1 User Picture

Settings

-Channel Skip

-AV Stereo

-Game

-Notebook

3. MENU OVERVIEW

-RCA-type AV Output

230-240V~,50Hz

443PAL, 443NTSC, 358NTSC

-Favorite Channel Setting

5. SUPER FUNCTIONS

5.2

GAME

5.3

CALENDAR

5.4

NOTEBOOK

5.5

BIOLOGICAL CLOCK

5.1 CHILD LOCK

- 1 DVD Input

- S-VIDEO INPUT

CLEANING THE UNIT

•When the cabinet has become dirty or stained,

dip a piece of gauze or soft cloth into a dilute

solution of neutral cleanser and wipe clean.

Never use thinner or benzene since they will

damage the surface of the cabinet.

•

When the television screen becomes dirty, wipe

it gently with a piece of soft, lint-free cloth. Do

not scratch the surface of the screen.

NOTE ON CONDENSATION

Moisture condensation may occur inside the

unit when it is moved from a cold place to a

warm place or under high humidity.

Be sure any condensation has evaporated

completely before powering on the unit.

1.2 PRECAUTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

CAUTION

•Do not attempt to open the cabinet. There are

no parts inside you can service yourself. Refer

all servicing to qualified person.

•To ensure reliable operation and to protect the

unit from overheating, the ventilation slots and

openings must not be blocked or covered.

Avoid placingthe unit in enclosed spaces such

as a bookcase, unless there is adequate

ventilation.

•Keep this unit away from radiators and other

heat sources.

•Avoid usingthe unit near strongmagnetic fields.

•Do not push objects of any kind into this unit

through the cabinet slots as they could touch

current carrying parts or short-circuit parts,

resulting in fire, electric shock, or damage to

the unit.

•Apparatus shall not be exposed to dipping or

splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.

•Use this unit in the horizontal(flat) positiononly.

•Avoid subjecting unit to strong vibration.

•Do not place heavy objects on the unit. This

may damage the cabinet or cause trouble within

the unit.

•Unplug the unit from the AC outlet when it is

not to be used for a long period of time.

•When there is lightning, unplug the unit from

the AC outlet immediately. Never touch the

antenna during a lightning storm.

•You may experience static discharge when

touching the unit. If this happens, and the unit

fails to operate , tur n off the power and

disconnect the plug from the wall outlet.

•When installing the TV receiver, please make

sure that a clearance of minimum10 cm is kept

between the top, side, back of the TV and the

nearest wall or furniture enclosure in order to

allow proper ventilation for the TV set.

•

1.3.1 FRONT PANEL

1.3 DESCRIPTION OF CONTROL KEYS & CONNECTOR

V I DE OA U D IO

S -V I D E O

75 OH M

A NT E NN A

INP U T

IN 1

OU T

Cr Y

INPUT

1.3.2 REAR TERMINAL & SIDE AV

1. 75OHM ANTENNA INPUT

2. 5. YUV(DVD JACK) INPUT

AUDIO/VIDEO IN 1(AV INPUT)

AUDIO/VIDEO OUT(AV OUTPUT)

3. S-VIDEO INPUT 6. AUDIO/VIDEO IN 2(SIDE AV INPUT)

YUV( DVD JACK)

1. POWER BUTTON

To turn ON/OFF the TV set.

4. PROGRAM ( / ) BUTTONS

Select program number cyclically.

To turn on the TV when it is in standby mode.

To select item in sub-menu.

5. VOLUME/PICTURE CONTROL ( / )

BUTTONS

To decrease/increase the sound volume and

picture settings level.

MANUAL and FINE menu.

6. MENU BUTTON

7. TV/AV BUTTON

To switch between TV program and AV input.

To turn on the TV when it is in standby mode.

Channel searching upward/downward in

To display the main menu.

STANDBY INDICATOR

Lights when the TV is in the standby mode.

REMOTE SENSOR

To receive the infra-red signals from remote

Press and hold the MENU button for over 3

seconds, it will perform AUTO SEARCH function.

1234567

handset.

1.4 OPERATION OF REMOTE CONTROL

1.4.1 DESCRIPTION OF REMOTE CONTROL KEYS

1.4.2 BATTERY INSTALLATION

Remove the battery compartment lid from the back of the remote, insert the 2 x 1.5V AA batteries,

paying attention to the polarity, and then replace the cover.

1.4.3 EFFECTIVELY USING THE REMOTE CONTROL

Point the remote control toward the infra-red remote sensor on the main unit. If there is an obstacle

between the main unit and remote control, the remote control may not operate properly.

NOTES:

1 Do not mix old and new batteries or different types.

2. When the batteries are to be exhausted, the leakage may occur and cause the damage to the remote.

3. If the device is not to be used for a long period of time, remove the batteries to battery leakage.

1. STANDBY button

2. MUTE button

Press to mute or restore the TV sound.

3. SLEEP button

Repeatedly press to set the sleep timer

from 120 to 10 minutes. To cancel the

sleep timer, press SLEEP until "OFF"

appears.

To display the remaining time, press

SLEEP once.

4. NUMBER/LETTER buttons

Press to select channel number

directly.

Press to enter a letter, a digit or a

symbol in some functions.

5. DISPLAY/DELETE button

Press to display the current channel

number, color & sound system.

Press again to display the current

time on the screen.

In notebook mode, press to delete

the unwanted text.

6 ECALL button

Press to go back to the previous viewed

channel.

7. PICUTRE button

. NOTEBOOK button

. R

(PERSONAL, MILD, STANDARD

and DYNAMIC)

Press to browse the channels in

your Favorite list.

10 TV/AV button

11. CAPS button

Press to toggle the entry

GAME button

13.COLOR/INSERT BUTTON

Press to select color system: AUTO,

In the notebook window, press to

select

14. SCAN button

Press to start the program scanning

in the upward direction. Press again

to stop the action.

15. CALENDAR button

16. MENU button

17. OK button

18. PROGRAM UP/DOWN buttons

19. VOLUME UP/DOWN buttons

(TV channel,VIDEO1,VIDEO2,DVD)

mode

between uppercase and lowercase

letters.

12.

443PAL, 443NTSC, 358NTSC

INS(insert) or OVR (overwrite)

mode.

Within the on-screen menu, press

to select some special function,

such as Favorite list, etc.

9. FAVORITE button

2. CONNECTIONS

2.1 INSTALLATION OF ANTENNA

Connect the 75 OHM coaxial cable from the antenna to the antenna jack on the rear panel, as shown

above.

NOTES:

• For better reception, especially in outlying area or where ghost or interference happens, an

external roof-mounted antenna is recommended.

• For UHF TV reception, use the specified UHF antenna. Consult the local sale dealer.

• When using 300 OHM flat cable, a 300 OHM - 75 OHM adapter should be adopted for a proper

connection to the antenna jack.

2.2 POWER CONNECTION

Plug the AC cord into an AC outlet.

NOTE:

When you disconnect the power supply cord, pull it out by the plug. Never pull the cord itself.

VHF TV ANTENNA

UHF TV ANTENNA

75 OHM COAXIAL CABLE

300 OHM FLAT CABLE

300 OHM

75 OHM ADAPT OR

TO TV ANTENNA JACK

75 OHM DIN.

3. MENU OVERVIEW

MAIN MENU SUB-MENU SUB-MENU ENTRY


FEATURE

TIMER

PRESET

CONT 50

BRIGHT 50

COLOR 50

COL. TON NORMAL/WARM/COOL

SETTING

CH ADJUST

FAV. CH

CALENDAR

GAME

CLOCK 0:13

OFF TIMER OFF/ONCE/DAILY

0:00

ON TIMER OFF/ONCE/DAILY

0:00

POSITION 0

POSITION 30

BAND VHFL/VHFH/UHF

MANUAL UP/DOWN

SKIP ON/OFF

FINE UP/DOWN

AUTO MEMORY

B.B ON/OFF

COLOR

PRESENT 30

SWAP TO 34

SURE ?/OK

FAV. CH1 01

FAV. CH2 02

FAV. CH3 03

FAV. CH4 - -

FAV. CH5 - -

FAV. CH6 - -

BIOLOGICAL CLOCK

SHARP 50

TINT 00

AUTO/443PAL/443NTSC/358NTSC

CHILD LOCK ON/OFF

AVC ON/OFF

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

RCA

RCA F38310 - 38" 16:9 HDTV Manual de usuario

RCA

RCA F32649YX71 Manual de usuario

RCA

RCA Scenium Manual de usuario

RCA

RCA G32665 Manual de usuario

RCA

RCA G27648YX1 Manual de usuario

RCA

RCA 24F650T Manual de usuario

RCA

RCA 20F511T Manual de usuario

RCA

RCA F27718, F32718, F36718, MR68R7 Manual de usuario

RCA

RCA RTU7877-B Manual de usuario

RCA

RCA F27630 Manual de usuario

RCA

RCA G27646 Manual de usuario

RCA

RCA F19221 Manual de usuario

RCA

RCA F27675 Manual de usuario

RCA

RCA LED24G45RQD Manual de usuario

RCA

RCA F25423TX41AC4 Manual de usuario

RCA

RCA F27731 Manual de usuario

RCA

RCA MR32575YX0CY1 Manual de usuario

RCA

RCA 32V550T Manual de usuario

RCA

RCA F25674 Manual de usuario

RCA

RCA DRD222RD Manual de usuario

RCA

RCA Roku TV RTR4060-U-US Manual de usuario

RCA

RCA 9V345T Manual de usuario

RCA

RCA RTRU5028-D-CA Manual de usuario

RCA

RCA F19253BCFJ1 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
