[WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture. 1To reduce, the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside.

Refer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instruc-tions

accompanying the product.

Refer to the identification/rating label located on the back: panel of your

product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long periods, they

may be permanently imprinted on the screen. Such images include

network Iogos, phone number:s, and video games. This damage is not

covered by your warranty. Extended viewing of channels displaying these

images should be avoided.

Cable TM Installer" This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code which provides guidelines for

proper grounding and, in particular, specifies that the cable clround shall

be connected to the grounding system of the building as close to the point

of cable entry as practical.

FIRSTTHINGS FIRST ....................................... 3

Connecting your TV .................... :.................................. 4

TV Only ..................................................................... 4

TV with other Components ..................................... 5

USING THE MENU SYSTEM ........................... 7

lhe Menu Rule: Point and Select .................................. 8

What is Point and Select? ........................................ 8

Menus and Control Panels .......................................... I0

Menus ..................................................................... 10

Control Panels ........................................................ 11

Choice Lists ............................................................. 12

Numeric Entry ......................................................... 13

INTERACTIVE SETUP ..................................... 15

Entering Setup ............................................................. 16

Select a Language ........................................................ 16

Auto Channel Search ................................................... 17

Set the Time ................................................................. 18

Set the VCRI Channel ................................................. 19

Set the DVDoVCR2 Channel ........................................ 20

Set the SAT,CABLE Channel ........... ............................ 21

Label the Channels ...................................................... 22

PROGRAMMING THE REMOTE .................. 25

Programming the Remote ......................................... 26 ....

To Control a VCR ......................................... 26

To Control a DVD Player Or Laserdisc Player ........ 28

To Control an RCA Audio Device .......................... 28

To Control a Satellite Receiver or Cable Box ........ 29

Using the Remote to Control a Device ....................... 29

TOUR OF THE "rv ............................................ 31

Remote Buttons ........................................................... 32

Back Panel ..................................................... :.............. 34

Front Panel .................................................................... 36

Channel Marker ........................................................... 37

QUICK REFERENCE ........ ................................ 39

Audio Menu ................................................................. 40

Picture Quality Menu ................................................... 41

Screen Menu ................................................................ 42

Channel Menu .............................................................. 43

Time Menu ................................................................... 45

Parental Controls Menu .............................................. ,46

Setup Menu ................................................................. 47

ADVANC ED FEATU RES ................................. 49

PIP (Picture-in-Picture) Operation .............................. 50

Fetch Menu ........................................ .......................... 52

Choosing an Audio Processor ................................... .. 53

Closed Captioning ....................................................... 54

To display Closed Captioning ................................ 54

Closed Captioning Modes ...................................... 55

On-screen Program Details ................... ...................... 56

APPENDIX A: USING THE

TV CONNECTIONS ........................................ 57

APPENDIX B: CONNECTING

OTH ER COMPONENTS .................................. 68

APPENDIX C: TROUBLESHOOTING ............ 70

APPENDIX D: CARE AND CLEANING ......... 72

INDEX .............................................................. 73

Hi; I'm Mark.

I wrote this manual to help you get the most from

your TV. I know you expect a lot from your TV, so I

clesigned this user manual to give you the

information you need.., when you need it.

Flead the first four chapters

l-he manual is designed to get you started quickly...

and let you catch up on the details when you get a

chance. The first four sections of the manual will get

your TV up and running. You'll learn how to use the

menu system, run the interactive setup routine and

program the remote.

The rest of the manual gives you the specifics: a tour

of the TV, a quick reference guide, the advanced

•features and appendices.

'Well... if your TV's out of the box, let's get started.

First things first.

1FIRSTTHINGS FIRST

ICheck out the notes i've added 1

throughout the manual. I've got some

great tips that will help you [let the most

from your TV.

STEP 1

Unpack the TV. Make sure to locate the remote control and

Connections Foldout.

Important Information

CAUTION: Choose the location for your TV carefully. Take

precautions that the stand or other furniture on which the TV is

placed is properly located (see Important Safeguards sheet)

and of adequate size and strength to prevent the TV from

accidentally being tipped over, pushed off, or pulled off. This

could cause damage to the TV and/or personal injury.

STEP 2" CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or

cable system, use the "TV Only" connection shown below. If

you're going to connect the TV to a VCR, satellite receiver, DVD

player or other component, look at the Connections Foldout. The

Connections Foldout details ten diagrams that are recommended

for hooking up the TV to a cable box or antenna, one or two

VCRs, a DVD player, and a satellite receiver_ "

TV ONLY

This is a basic connection from an antenna or cable system to

your TV. Connect the cable as shown. If you have a VCR or other

components to connect to the .TV,skip to the top of the next

page.

CABLE, CABLE BOX, OR ANTENNA

TV WITH OTHER COMPONENTS

Use the Connections Foldout to connect your TV to aVCR, DVD

player, and/or satellite receiver. After connecting your TV and

other components, proceed to the next step. See Appendix A for

detailed information about using each of these connections.

If your components don't match those shown on the foldout, or

if you prefer a different connection, see your dealer or specific

component user manuals.

STEP 3

Plug in the TV. Plug into the wall making sure to insert the

plug completely.

STEP 4

Put batteries in the remote.

QSlide the battery compartment cover off back of the remote.

Insert the batteries matching the + and - ends of each

battery in the compartment.

Replace the cover.

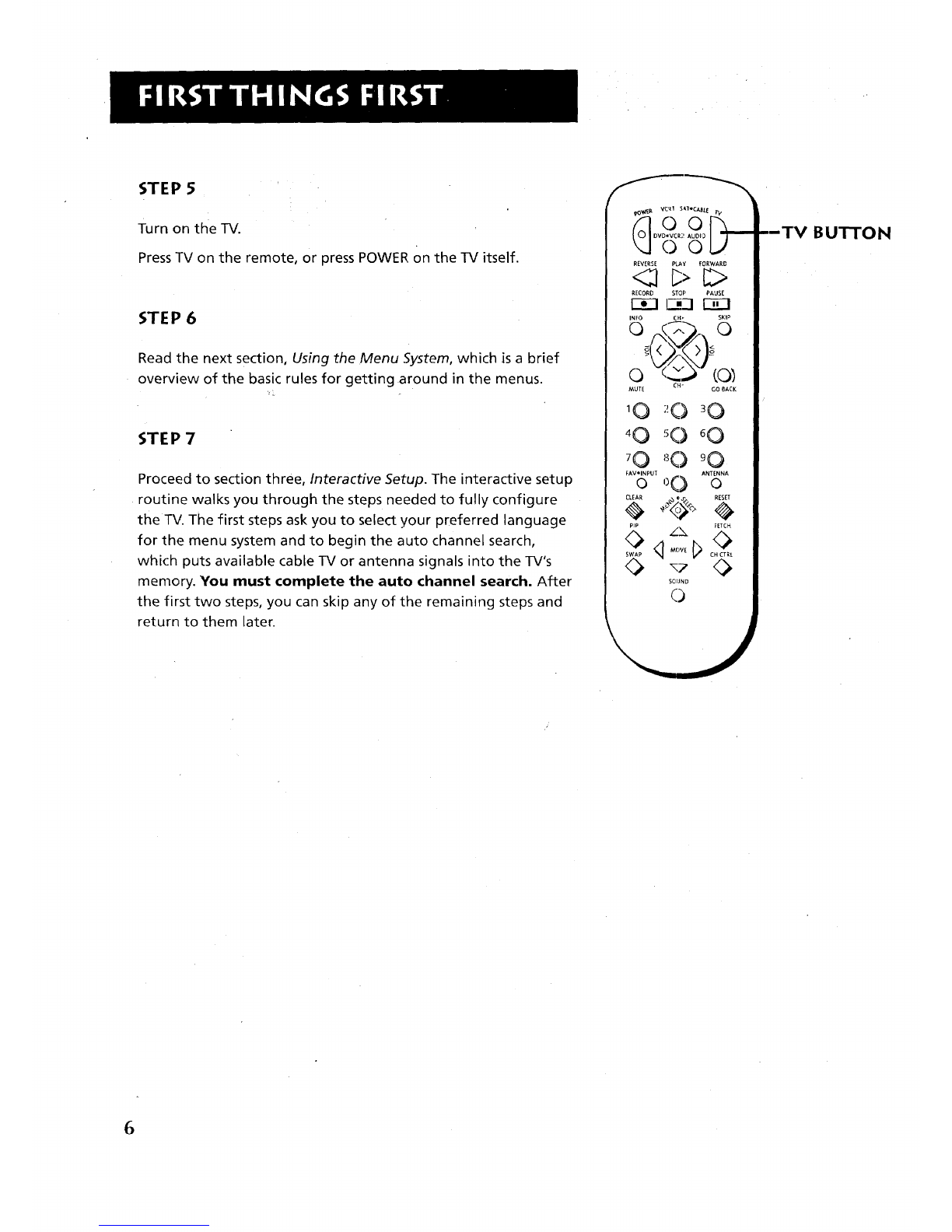

STEP 5

Turn on the TV.

Press TV on the remote, or press POWER on the TV itself.

STEP 6

Read the next section, Using the Menu System, which is a brief

overview of the basic rules for getting around in the menus.

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure

the TV. The first steps ask you to select your preferred language

for the menu system and to begin the auto channel search,

which puts available cable TV or antenna signals into the TV's

memory. You must complete the auto channel search. After

the first two steps, you can skip any of the remaining steps and

return to them later.

©O

REVERSE PLAY FORWARD

<2 C>_

RECORD STOP PAUSE

13E3_=1 r-a--1

INFO CH, SKIP

'0 ;'O 30

40 5O 60

70 '_O 90

E.......O T00 A.T,..Ao

CLEAR IRESET

ZX EETCH

SOUND

--TV BU'I7"ON

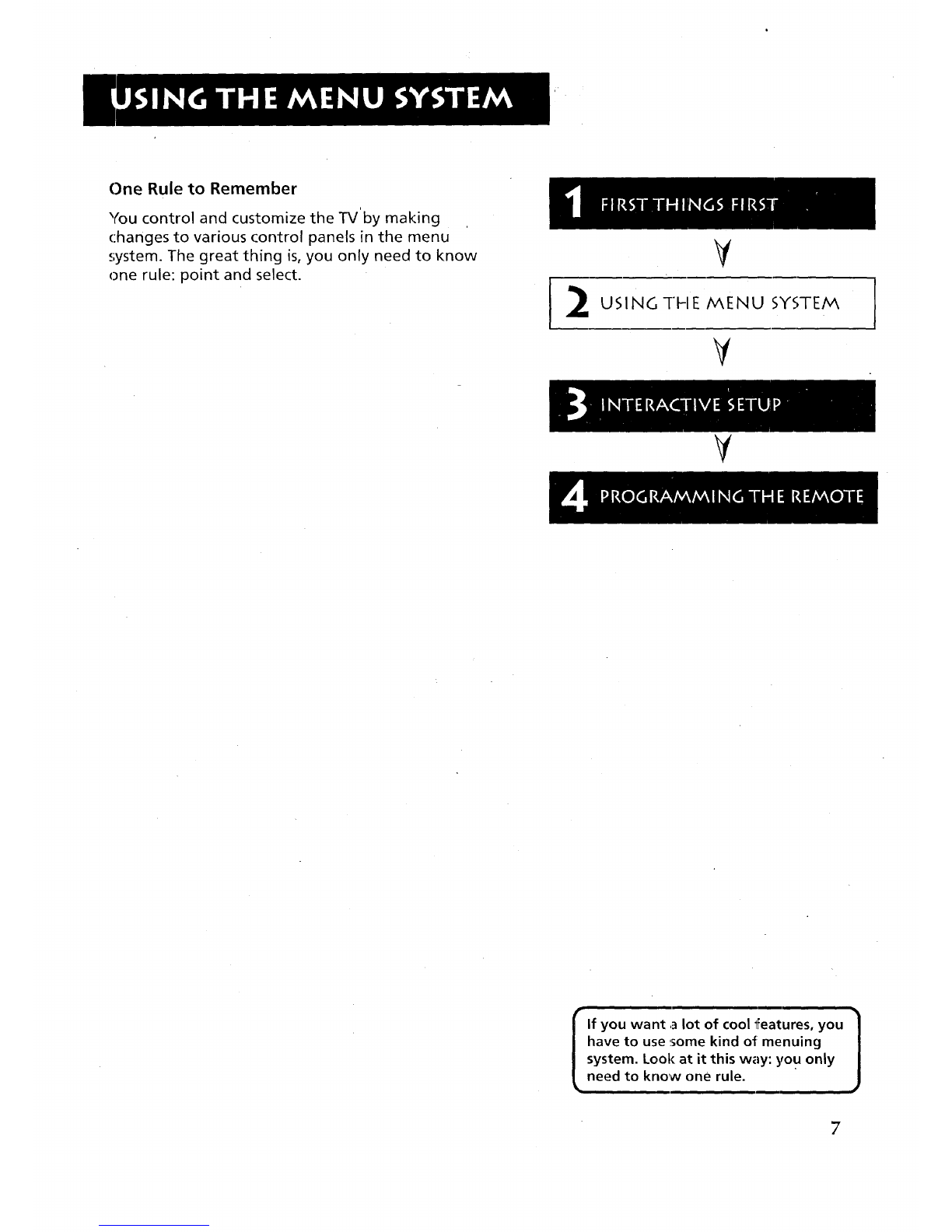

One Rule to Remember

You control and customize the TV by making

changes to various control panels in the menu

system. The great thing is, you only need to know

one rule: point and select. Y

USING -]FIE MENU SYSTEM

n i

have to use 'some kind of: menuing

system. Look at it this way: you only

need to know one rule.

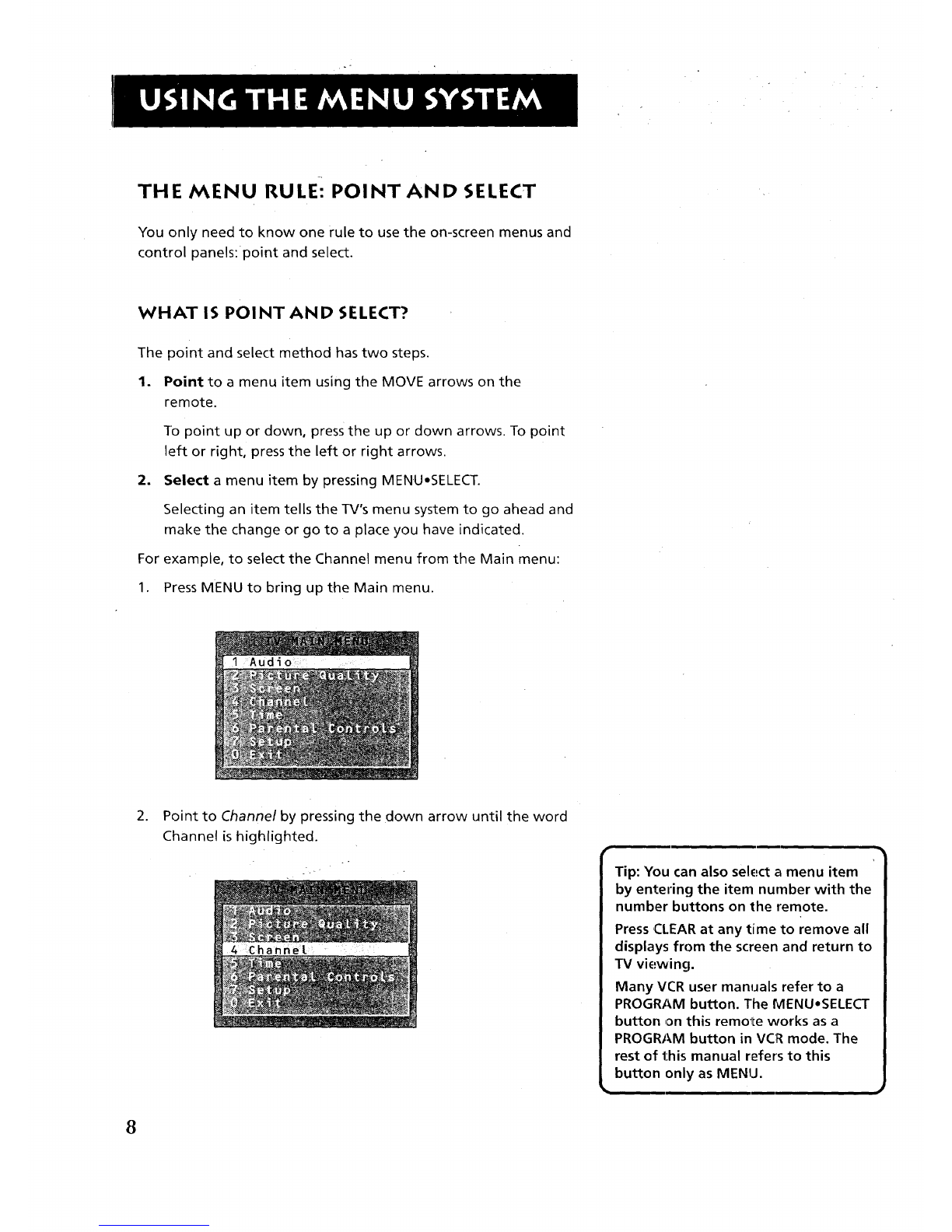

THE MENU RULE: POINTAND SELECT

You only need to know one rule to use the on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the

remote.

To point up or down, press the up or down arrows. To point

left or right, press the left or right arrows.

2. Select a menu item by pressing MENU.SELECT.

Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. Press MENU to bring up the Main menu.

.Point to Channel by pressing the down arrow until the word

Channel is highlighted.

Tip: You can also select a menu item

by entering the item number with the

number buttons on the remote.

Press ,CLEAR at any time to remove all

displays from the screen and return to

TV viewing.

Many VCR user manuals refer to a

PROGRAM button. The MENU°SELECT

button on this remo_te works as a

PROGRAM button in VCR mode. The

rest of this manual refers to this

button only as MENU.
