FIRST THINGS FIRST .......................................3

Connecting your TV ....................................................... 4

TV Only ..................................................................... 4

TV with other Components ..................................... 4

TV Guide Plus+ Controller ....................................... 5

USING THE MENU SYSTEM ........................... 7

The Menu Rule: Point and Select ................................. 8

What is Point and Select? ........................................ 8

Menus and Control Panels .......................................... 10

Menus ..................................................................... 10

Control Panels ........................................................ 11

Choice Lists ............................................................. 12

Numeric Entry ......................................................... 13

TV Guide Plus+ Menus ........................................... 14

INTERACTIVE SETUP ..................................... 15

Entering Setup ............................................................. 16

Select a Language ....................................................... 16

Auto Channel Search ................................................... 16

TV GUIDE Plus+System ................................................ 17

Set the Time ................................................................. 23

Set the VCR1 Channel ................................................. 24

Set the DVD/VCR2 Channel ......................................... 25

Set the SAT/CABLE Channel ........................................ 26

Label the Channels ...................................................... 27

PROGRAMMING THE REMOTE .................. 29

Programming the Remote .......................................... 30

To Control a VCR .................................................... 30

To Control a DVD Player or Laserdisc Player ........ 32

To Control an RCA Audio Device: ......................... 32

To Control a Satellite Receiver or Cable Box ........ 33

Using the Remote to Control a Device ....................... 33

TOUR OF THE TV ........................................... 35

Remote Buttons ........................................................... 36

Back Panel .................................................................... 38

Front Panel ................................................................... 40

Channel Marker ........................................................... 41

QUICK REFERENCE ........................................43

Audio Menu ................................................................. 44

Picture Quality Menu .................................................. 45

Screen Menu ................................................................ 46

Channel Menu ............................................................. 47

Time Menu ................................................................... 49

Parental Controls Menu .............................................. 50

TV GUIDE Plus+ Menu ................................................. 51

Setup Menu ................................................................. 52

ADVANCED FEATURES ................................. 53

TV GUIDE Plus+ Operation .......................................... 54

Surf Menu ............................................................... 54

Next Menu .............................................................. 55

Scan Menu .............................................................. 55

Sort Menu ............................................................... 56

One-Button Recording ........................................... 57

PIP (Picture-in-Picture) Operation .............................. 58

A Brief Explanation ................................................ 58

Choosing an Audio Processor ..................................... 60

Closed Captioning ....................................................... 61

To Display Closed Captioning ................................ 61

Closed Captioning Modes ...................................... 62

On-screen Program Details ......................................... 63

APPENDIX A: TV CONNECTIONS ............... 65

APPENDIX B: OTHER COMPONENTS ........ 76

APPENDIX C: TROUBLESHOOTING ............ 78

APPENDIX D: LIMITED WARRANTY ........ 80

APPENDIX E: CARE AND CLEANING .......... 81

ACCESSORIES ................................................. 82

INDEX ............................................................. 85

HI, IM ROGER.

I wrote this manual to help you get the most

from your TV. 1know you expect a lot from your

TV, so I designed this user manual to give you

the information you need.., when you need it.

FIRST THINGS FIRST

READ THE FIRST FOUR CHAPTERS

The manual is designed to get you started

quickly.., and let you catch up on the details

when you get a chance. The first four sections of

the manual will get your TV up and running.

You'll learn how to use the menu system, run the

interactive setup routine and program the

remote.

The rest of the manual gives you the specifics: a

tour of the TV, a quick reference guide, details

on the TV GUIDE Plus+ system, advanced

features, and appendices.

Well... if your TV's out of the box, let's get

started, First things first,

I Check out the notes I've added 1

throughout the manual. I've got some

great tips that will help you get the most

from your TV.

STEP 1

Unpack the TV. Make sure to locate the remote control and

Connections Foldout.

Important Stand Information

CAUTION: Choose the location for your TV carefully. Take

precautions that the stand or other furniture the TV is placed on

is properly located (see Important Safeguards sheet) and of

adequate size and strength to prevent the TV from accidentally

being tipped over, pushed off, or pulled off. This could cause

damage to the TV and/or personal injury.

STEP 2: CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or

cable system, use the "TV Only" connection shown below. If

you're going to connect the TV to a VCR, satellite receiver, DVD

player or other component, look at the Connections Foldout. The

Connections Foldout details recommended connection schemes

for hooking up the TV to a cable box or antenna, one or two

VCRs, a laserdisc player, and a satellite receiven

TV ON LY

This is a basic connection from an antenna or cable system to

your TV. Connect the cable as shown. If you have a VCR or other

components to connect to the TV, skip to the top of the next

page.

TV WITH OTH ER COMPON ENTS

Use the Connections Foldout to connect your TV to a VCR, DVD

player, and/or satellite receiver. After connecting your TV and

other components, proceed to the next step. See Appendix A for

detailed information about using each of these connections.

If your components don't match those shown on the foldout, or if

you prefer a different connection, see your dealer or specific

component user manuals.

CABLE, CABLE BOX, OR ANTENNA

ANTENNA

TVOnly Connection

TV GUIDE PLUS+ CONTROLLER

The TV GUIDE Plus+* controller allows direct control of a cable

box and VCR using a pair of IR (infrared) controllers.

Plug the TV GUIDE Plus+ controller into the VCR CONTROL

.jack on the back of the TV.

Affix the IR controllers directly over the IR remote sensors on

your cable box and VCR.

Back of TV

Cable Box

VCR

Connect IR controllers to the infrared remote

sensors on your cable box and VCR

STEP 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of

the plug with the wide slot in the outlet. Be sure to insert the

plug completely.

* GUIDE Plus+ is a trademark of Gemstar Development Corporation.

TV GUIDE is atrademark of TV Guide Financial, Inc.

Locating the IR (infrared)

Remote Control Sensor on

Your Cable Box or VCR

The IR controllers must be affixed

directly over the IR remote sensors on

your cable box or VCR.

Some cable boxes and VCRs label the

IR sensors; others do not. If the

sensors are labeled, affix the IR

controllers directly over them.

IR Remote Sensor

For those that do not label the IR

sensor, you need to use the cable box

or VCR's remote to locate the sensor

before affixing the IR controllers.

1. Hold the remote control so that it

is touching the front of the cable

box or VCR.

2. Slowly move the remote over the

front of the cable box or VCR

while pressing the remote's

POWER button on and off

3. When the cable box or VCR turns

off or on, you've located the

sensor.

You should test the IR controllers

after setting up the TV GUIDE Plus+

system. Temporarily attach the IR

controllers with clear tape to the

spots where you think the sensors

are located. After determining that

the controllers are working correctly,

affix them permanently.

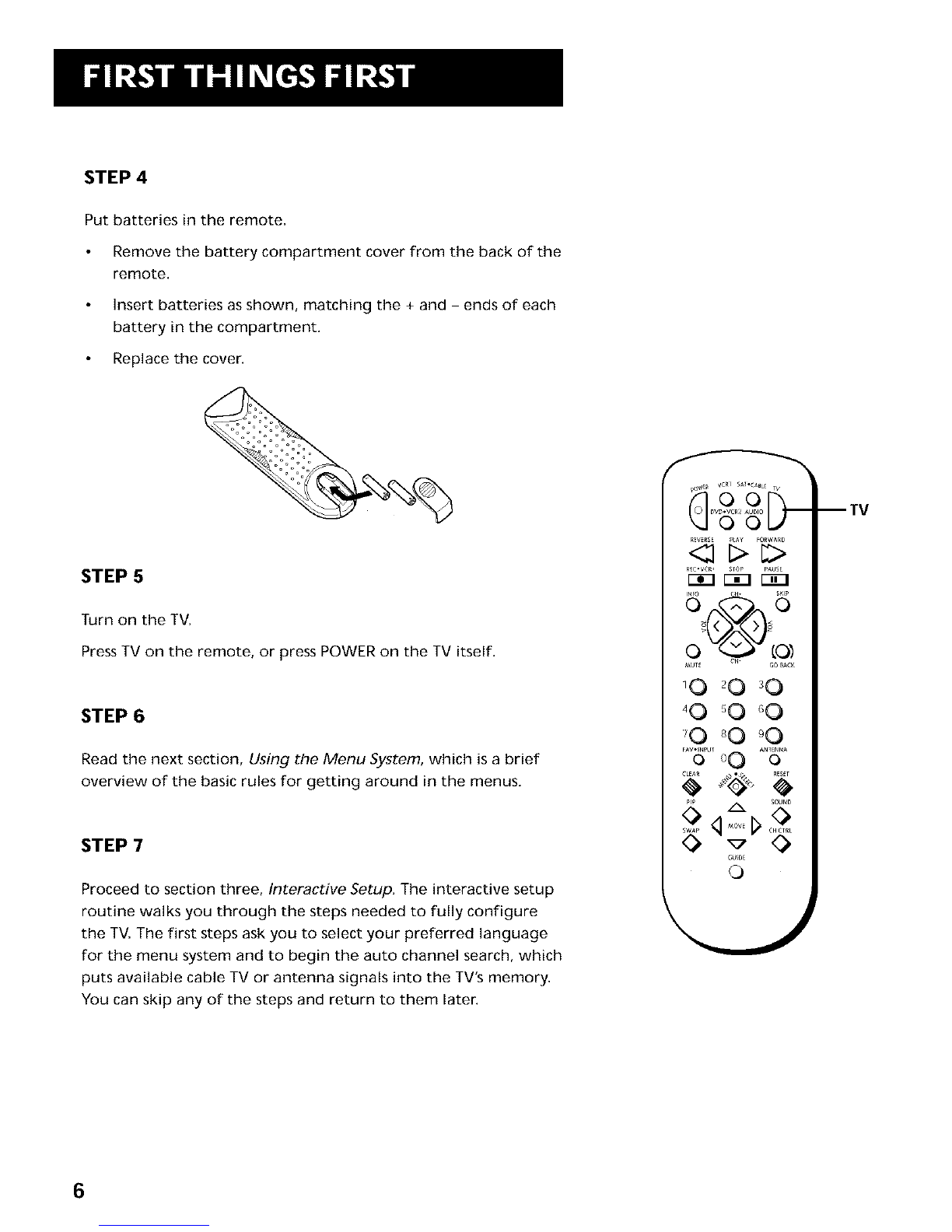

STEP 4

Put batteries in the remote.

Remove the battery compartment cover from the back of the

remote.

Insert batteries as shown, matching the + and - ends of each

battery in the compartment.

Replace the cover.

STEP 5

Turn on the TV.

Press TV on the remote, or press POWER on the TV itself.

STEP 6

Read the next section, Using the Menu System, which is a brief

overview of the basic rules for getting around in the menus,

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure

the TV. The first steps ask you to select your preferred language

for the menu system and to begin the auto channel search, which

puts available cable TV or antenna signals into the TV's memory.

You can skip any of the steps and return to them later.

R_WRSE FORWARD

R_C'VCR+ _ PAUSE

Fiq r_q

MUT_ _H - GOBACK

FAMI NpUT ANTENNA

0 00 0

_. SOUND

GU_OE

mTV

ONE RULE TO REMEMBER

You control and customize the TV by making

changes to various control panels in the menu

system. The great thing is, you only need to know

one rule: point and select. Y

USING THE MENU SYSTEM

THE MENU RULE: POINT AND SELECT

You only need to know one rule to use the on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the

remote.

To point up or down, press the up or down arrows. To point

left or right, press the left or right arrows.

2. Select a menu item by pressing MENU-SELECT.

Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. Press MENU to bring up the Main menu.

2. Point to Channelby pressing the down arrow until the word

Channel is highlighted. Tip: You can also select a menu item

by entering the item number with the

number buttons on the remote,

Press CLEAR at any time to remove all

displays from the screen and return to

TV viewing,

Many VCR user manuals refer to a

PROGRAM button, The MENU*SELECT

button on this remote works as a

PROGRAM button in VCR mode. The

rest of this manual refers to this

button only as MENU.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

RCA

RCA RTU7575 Manual de usuario

RCA

RCA F19421 Manual de usuario

RCA

RCA F25216 Manual de usuario

RCA

RCA 27F650TYX3KCY Manual de usuario

RCA

RCA F27550 Manual de usuario

RCA

RCA RTU5015 Manual de usuario

RCA

RCA HDTV Television Manual de usuario

RCA

RCA guide plus Manual de usuario

RCA

RCA ColorView E13700 Manual de usuario

RCA

RCA F36TF720 Manual de usuario

RCA

RCA 31GT750YX3CA2 Manual de usuario

RCA

RCA G27669YX2AX1 Manual de usuario

RCA

RCA 24F512T Manual de usuario

RCA

RCA F32676SB Manual de usuario

RCA

RCA 27GT716YX1AY1 Manual de usuario

RCA

RCA P52820BLLG2 Manual de usuario

RCA

RCA E13327 Manual de usuario

RCA

RCA 20F410T - 20" TruFlat TV Manual de usuario

RCA

RCA 5inch BLACK & WHITE TVwith CD Player and AM/FM... Manual de usuario

RCA

RCA 27F524T Manual de usuario

RCA

RCA - 21T68 Manual de usuario

RCA

RCA 20F512T Manual de usuario

RCA

RCA M50WH92S Manual de usuario

RCA

RCA E13321 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
