Important Information

I I II I •

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

I II II I I

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

person_l injury.

This symbol indicates

important instructions

accompanying the

product.

• ii i i I i mI

To prevent electric shock, match wide blade of plug to wide

slot, fully insert.

Pour _viter les chocs dlectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

pousser jusq(, au fond.

Cautions Do not defeat the safety feature of the plug. The wide blade fits into the

wall socket only one way. If you need an extension cord, make sure it

matches the plug of the TV.

Operate TV only on 120 volts, 60 Hz AC power (normal house power).

For safety reasons, make sure any equipment or accessories connected to

this product bears the UL listing mark or CSA certification mark. If in

doubt, contact qualified service personnel.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

Note To Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of the Canadian Electrical Code,

Part 1) which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system

of the building as close to the point of cable entry as practical.

Product

Registration

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof

of purchase. Attach it here and record the serial and model numbers in

case you ever need them. The numbers are located on the back of the TV.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

Table of Contents

Important Information Warning, Product Registration

Quick Guide to Your TV Startup 2-3

Hook up your TV, Plug in the TV, Put Batteries in the Remote,

Turn on the TV, Place Channels in Memory, Set the Time

Basic Tour of the Remote 4

Power, Volume, Channel, Special, and Menu Buttons

Menu Basics 5

Colors, Menu Buttons, Moving through the Menus

Using Your TV and Remote Remote Buttons

Front Panel Buttons 6

Adjusting Your TV Overall Picture 8

Picture Settings 9

Color, Tint, Brightness, Sharpness, Autc_olor, Picture Reset

Sound Settings (Not on all models) 10

Stereo, Tone

Using Advanced Features Placing Channels in Memory/Autoprogram

Setting the Sleep Timer

Setting the Alarm Clock

Watching Closed Captioning

Setting Your TV for Antenna or Cable

References Displays on the Screen

Glossary

Trouble Checks

Order Form for Parts

Limited Warranty

Index

18-19

20-22

Quick Guide to Your TV

Startup

The steps below will get your TV connected and ready for watching.

For more details, see the page numbers listed.

1. Hook up your TV

Parts can be ordered on

page 21.

Match Your Type of Antenna or Cable

VHF&UHF VHF&UHF VHF UHF VHF UHF

!o.

Adapte

•,,.o

BackofTV "@_

Hook up your antenna or cable to

the TV before you follow the steps

below.

2. Plug in the TV Plug the cord into the outlet,

matching the wide and the small

end of the plug with the outlet.

3. Put Batteries in the Remote A. Pull off the cover of the battery

compartment.

B. Place the two AAA batteries as

shown, matching the + and --

end of each battery in the

compartment.

C. Replace the cover.

Quick Guide to Your TV

Startup

4. Turn on the TV Press POWER on the remote.

• : .!:

Press POWER on the TV.

5. Place all available

channels in memory

(AutoProgram)

Details for adding and deleting

channels are on page 11.

Controls Alarm Ad

13 A. Press MENU on the TV front

panel until the Setup menu is

selected. This menu is white.

B°

C°

Press + to place channels in the

TV's memory (Autoprogram).

Wait until TV has cyded

through all the channels and

returns to the original channel.

6. Set the Time 12:21 AM 13

iust Setu

A. Press MENU until the Alarm

menu is selected. This menu is

B°

given.

The Cl(_=kis automatically

highlighted the first I_ne you

set it. If it is not, press

CHANNEL down to highlight it.

Press -- to set the hour.

Press 4- to set the minutes.

Press DISPLAY to remove the

menu from the screen.

Quick Guide to Your TV

Basic Tour of the Remote

Basic information about your remote is shown below. This will give you a

general idea of how your remote works. For more details, see page 6.

Power Button

Volume, Channel, and Special

Buttons

Details areon page 6.

Turns the TV on and off.

Operates the TV.

Operates special features of the TV.

Quick Guide to Your TV

Menu Basics

General information about using the on-screen menu system is shown

below. Details on using the remote buttons are on page 6. Marly menu items

are explained in detail in Adjusting Your TV on page 8 and Using the Advanced

Features starting on page 11.

Colors

Yellow Green Light White

Blue

Press MENU on the TV front panel

repeatedly to see each of the four

menu colors.

Each menu has a different color

background as shown at the left.

Menu Buttons

These buttons are used with the

TV's menus to adjust the features.

Moving through the Menus

Controls Alarm

1. Press MENU to move from

menu to menu.

2. Press CHANNEL up and down

to move up and down through

the features in the menu.

3. Press VOLUME +and-- to

move left and right on the

menu lines.

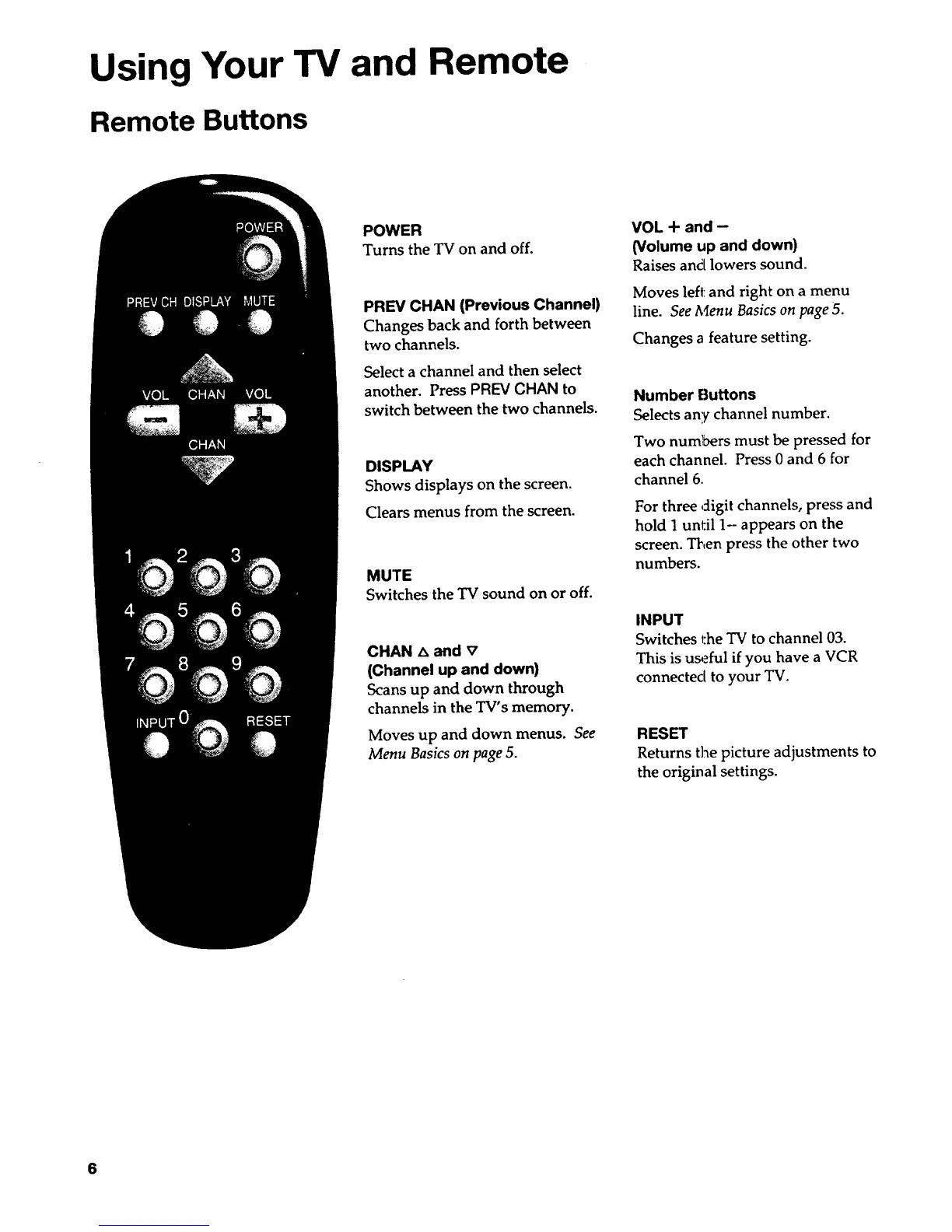

Using Your TV and Remote

Remote Buttons

POWER

Turns the TV on and off.

PREV CHAN (Previous Channel)

Changes back and forth between

two channels.

Select a channel and then select

another. Press PREV CHAN to

switch between the two channels.

DISPLAY

Shows displays on the screen.

Clears menus from the screen.

MUTE

Switches the TV sound on or off.

CHAN z_and v

(Channel up and down)

Scans up and down through

channels in the TV's memory.

Moves up and down menus. See

Menu Basics on page 5.

VOL +and-

(Volume up and down)

Raises and lowers sound.

Moves left and right on a menu

line. See Menu Basics on page 5.

Changes a feature setting.

Number Buttons

Selects any channel number.

Two num!_rs must be pressed for

each channel. Press 0 and 6 for

channel 6.

For three digit channels, press and

hold 1 until 1-- appears on the

screen. Then press the other two

numbers.

INPUT

Switches the TV to channel 03.

This is u_eful if you have a VCR

connected to your TV.

RESET

Returns the picture adjustments to

the original settings.

Using Your TV and Remote

Front Panel Buttons

For details on using buttons with menus, see Menu Basics on page 5.

MENU Shows menus on screen.

Moves from menu to menu.

CH Aand VChannel up and down.

Scans up and down through channels in the TV's memory.

Moves up and down menus.

VOL + and- Volume up and down

Raises and lowers sound.

Moves left and right on amenu line.

Changes a feature setting.

POWER Turns the TV on or off.

Adjusting Your TV

Overall Picture

Follow the steps below to lighten or darken the overall picture without

changing the color levels.

1. Select the Controls Menu

Alarm Ad

Press MENU on the TV front panel

to select the Controls menu. This

menu is yellow.

2. Highlight Picture

Alarm Ad

Press CHANNEL down to

highlight Picture.

3. Use VOLUME + and - to

adjust the Picture Press + to lighten the picture.

Press -- Godarken the picture.

Press DISPLAY to remove the

menu from the screen when you

are finished.
