USER'S

GUIDE

C 0

Important Information

WARNING

To reduce the risk of fire or shock

hazard, do not expose this TV to rain

ormoisture.

I I

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates

"dangerous voltage" inside

theproduct thatpresents a

risk of electricshock or

personal injury.

Ahis symbolindicates

importantinstructions

accompanyingthe

product,

Cautions CAUTION:

Toreduce the risk of electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION:

Poure'viter les checs _lectriques, inlroduire la lame la plus large

de la fiche dans la borne correspondante de la prise et pousser

jusqfi au fond.

OperateTV only on 120 volts, 60 HzAC power (normal house power).

F.CCRegulations state that unauthorized changes or modifications to this equipment

may void the user's authority to operate it.

Note To Cable TV Installer This ren_nder is provided to call your attention toArticle 820-40 of the National

Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides

guidelines for propergrounding and, in particular,specifies thatthe cable ground shall

be connected to the grounding system of the building as close to the point of cable entry

as practical.

Product

Registration

Please fill outthe product registration cardandreturn it immediately. Returning this

cardallows usto contact you if needed. ..

Keep your sales receipt to obtain warranty partsand service and for proof of

purchase. Attach it here and record the serial andmodel numbers in case you ever

need them. The numbers are located on the back of the TV.

Model No

Serial No

Purchase Date:

Dealer/Address/Phone

Introduction

Thank you for choosing RCA

Your television is designed for long

life and superior operation. Despite its

sophistication, your new TV is

amazingly simple to operate because it

has so many automatic features.

Table of Contents

Getting Started

First-Trine Operation .................................................................. 2-3

Controlling Your TV

Front Panel and Headphone Jack ................................................... 4

On-Screen Displays ...................................... ................................. 5

Remote Operation .......................................................................... 6

Operating Features

VIDEO Menu .................................. "............................................... 7

Closed Captioning ......................................................................... 8

Languages (English, French, Spanish) .......................................... 8

SETUP Menu ................................................................................. 9

Sleep Timer Operation ................................................................. 10

Alarm Tuner Operation ............................................................... 11

Autoprogramming Channel Memory .......................................... 12

Editing Channel Memory ............................................................. 12

Connecting Your TV

Antenna/Cable Information ......................................................... 13

Dipole Antenna Connection ......................................................... 13

Home Antenna Connections ........................................................ 14

Cable-TV Connections ................................................................ 15

Cable-TV Operation .................................................................... 16

Accessories

Accessories .................................................................................. 17

Order Form ............................................................................. 17-18

Caring for Your TV

Cleaning & Care .......................................................................... 19

Trouble Checks ......................................................................... 20

Limited Warranty .................................................................... 21

Getting Started

First-Time Operation

The steps below will help you get your TV connected and working quickly.

Page numbers are also listed for more details.

1. Unpack TV and accessories.

Shown below are the accessories that

came packed with your TV.

_k /_enna Adapter

_^_ ')

_(( "X )ll

®®®

RemoteControland

Two Batteries

DipoleAntenna

2. Place batteries in remote.

1. Turn the remote control face down.

2. Press down on the ridged area of the

batterycover and slide itoff.

3. Place two "'AAA'"batteries as shown

matching the + and - end of each

battery in the compartment.

4. Replace the cover.

3. Connect antenna or cable.TV

system.

Most antenna or cable-TV systems can

be connected as shown here.

Incoming Cable from Antemm or

Cabk_-TVSystm

Backol

Details for connecting a home antenna

to your "IVare onpage 14.

Details for connecting a cable-TV

system to your TV are on pages 15-16.

4. Plug in the TV.

Plug in the TV, matching the wide and

small blade of the plug with the outlet.

2 '

Getting Started

First-Time Operation

5. Turn on TV and place channels

in memory.

YourTV is designed to place active

channels into your TV's memory the first

time you turn it on.

II®®®

I1®®®

• Press POWER on the TV or remote to

turn on the TV.

•The TV automatically cycles through all

channel numbers andplaces active

channels into the channel memory.

When your TV is finished, it tunes to

the lowest channel number in its

channel memory.

6. Edit the channel memory.

You can addand erase channels from

memory as desired.

•Press MFJ¢Urepeatedly to ldghfight

SETUP. Then press + to select the

SETUP menu.

7. Set the dock.

•Press MENU repeatedly until SETUP is

highlighted. Then press + to select the

SETUP menu.

•Press MENU repeatedly to highlight

EDIT CHANNELS.

•Repeatedly press MENU to select

CLOCK.

Press MENU

repeate_yto

see 2nd setup

n'_nu.

• Press and hold- to set the correct hour.

Then press and hold + to set the correct

minutes.

•Press+ toselect EDIT CHANNELS.

• Select the desired channel number by

pressing the CHANNEL up ordown

buttonor by pressing two number

buttons.

•Press CLEAR to remove the menu from

the screen.

•Then press + to add a channel, or

press- to erase a channel. Details

are on page 12.

•Press CLEAR to remove the menu from

the screen.

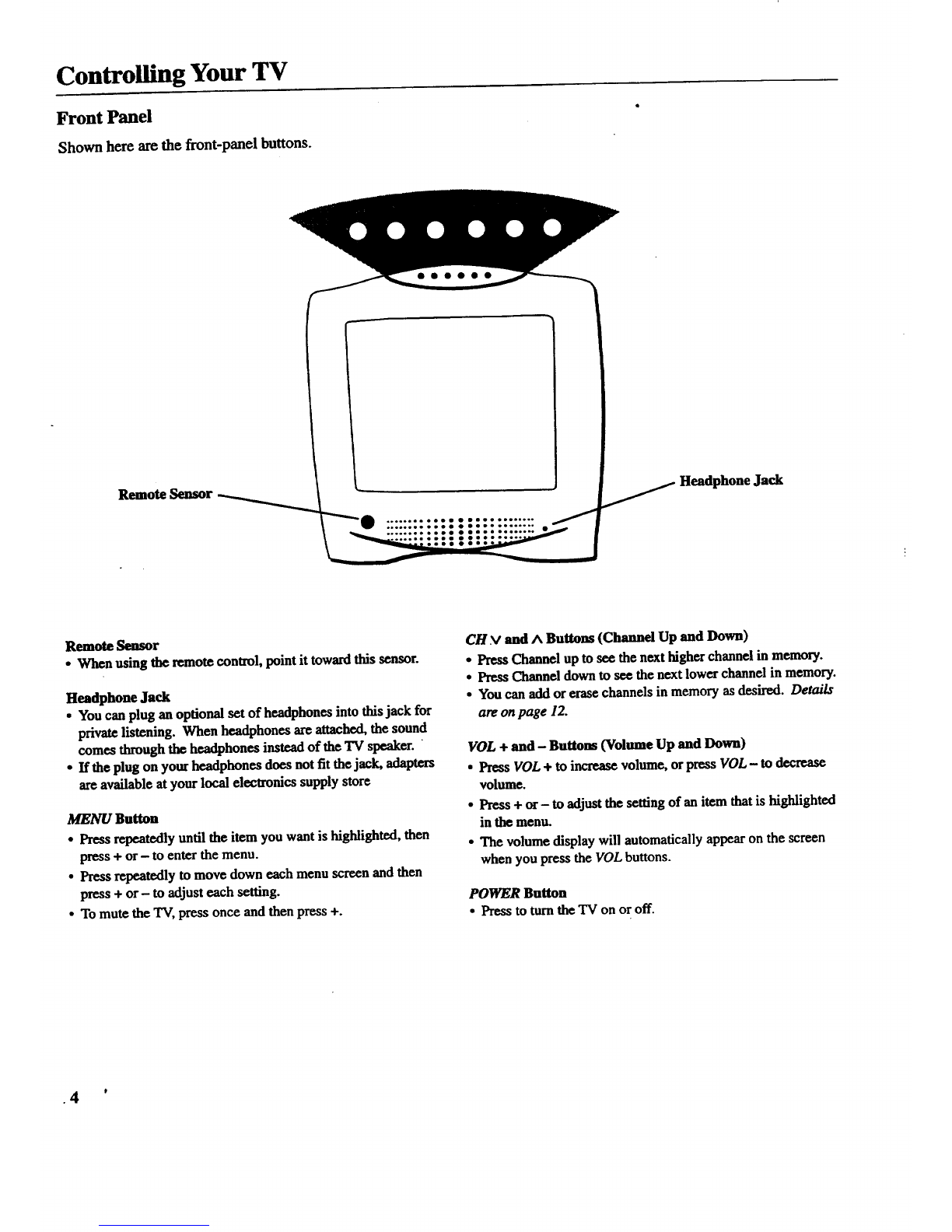

Controlling Your TV

Front Panel

Shown here are the front-panel buttons.

Remote Sensor _Headphone Jack

Remote Sensor

• When using the remote control, point it towardthis sensor.

Headphone Jack

• You can plug an optional set of headphones into this jack for

private listening. When headphones are attached, the sound

comes through the headphones instead of the TV speaker

•If the plug on your headphones does not fit the jack, adapters

areavailable at your local electronics supply store

MENU Button

•Press repeatedly until the item you want is highlighted, then

press + or- to enter the menu.

• Press repeatedly to move down each menu screen and then

press + or- to adjust each setting.

•Tomute the TV, press once and then press +.

CH v and A Buttons (Channel Up and Down)

•Press Channel up to see the next higher channel in memory.

•Press Channel down to see the next lower channel in memory.

• You can add or erase channels in memory as desired. Details

are onpage 12.

VOL + and - Buttons (Volume Up and Down)

•Press VOL + to increase volume, or press VOL- to decrease

volume.

•Press + or- to adjust the setting of an item that is highlighted

in the menu.

• The volume display will automatically appear on the screen

when you press the VOL buttons.

POWER Button

• Press to turn the TV on oroff.

Controlling Your TV

On-Screen Displays

Q Sleet

QAlarm Timer

QChannel Number

Q me

(_) MUTE

OSleep'Inner

This display appears when the sleep timer has been set.

Details are on page 10.

Qhne

This display appears afterthe clock is set whenever you

change channels or press DISPLAY.

Qlarm Timer

This display appears when the alarm timer has been set.

Details are on page 11.

(_ Channd Number

This display appears whenever you change channels or press

DISPLAY.

(_ MIH'E

This display appears when the TV's sound is muted. Press

MUTE on the remote. Details are onpage 6.

Controlling Your TV

Remote Operation

When operating the remote, point it

directly at the front of the "IV.

Objects between the remote and the

remote sensor can block the signal to

the TV.

POWER Button

• Press to turnthe TV on or off.

PREV CH Button (Previous Channel)

• Pressing this buttonswitches the'IV

back to the last tuned channel. This is

useful if you want to watch two

channels.

•Select the first channel you wish to

watch. Then select the other channel by

pressing two number buttons.

•The TV changes backand forth be-

tween the two channels each time you

press this button.

DISPLAY Button

• Press to display the time andchannel

number on the screen.

• Press to see if the Sleep Timer and/or

Alarm Thner is set.

•Press to quickly remove menus from the

MUTE Button

•Press to quickly reduce sound to

minimum level. Closed captioning (C 1)

automatically appearson the screen

when you press MUTE.

•To restore sound andnormal picture,

press MUTE again or press VOL up.

CHAN V and ^Buttons

(Channel Up and Down)

•Press to select the next higher or lower

channel in memory.

• You can addor erase channels in

memory as desired.

Details are onpage 12.

VOL < and > Buttons

(Volume Down and Up)

•Press VOL > to increase volume, or

press VOL < to decrease volume.

•Press > or < to adjust the setting of an

item that is highlighted in a menu.

• The volume display appears on the

screen when you press the VOL buttons.

MENU Button

•Press repeatedly until the item you want

is highlighted, then press + or - to enter

the menu.

•Press repeatedly to move down each

menu screen and then press + or- to

adjust each setting.

RESET Button

•Press to return all video settings (color,

tint, contrast, brightness, and sharpness)

back to the original settings.

CLEAR Button

•Press to clear the screen of all on-soreen

displays except MUTE.

Number Buttons (0-9)

•Press to access any channel number.

•To select a channel, press two number

buttons. For example, press 0 then 6 for

channel 6.

•To select a 3-digit number, press and

hold number button 1 until lm app_a_s

on the screen. Then press the other two

numbers.

Operating Features

VIDEO Menu

Press MENU until VIDEO is highlighted. Then press + to select the

VIDEO menu. Press MENU to move down the menu and + and - to

adjust each function.

Press

MENU to

select

VIDEO

"Press+

for 1st

VIDEO

Screen

VIDEO RESET

The VIDEO RESET function changes all the video functions (color, tint,

contrast, brightness, sharpness) back to the factory settings. Press + or- to

reset the video functions. RESET appears on the TV screen momentarily

while the functions arebeing adjusted.

iTbe COLOR function adjusts the amount of color in the picture. Press + or-

!to select COLOR, then press + to increase or press - to decrease color.

Press

unto the

second

VIDEO

appears

The T/NT function adjusts the color of flesh tones. Press + or- to select

Press + to add more green tint or press - to add more red tint.

[The CONTRAST function adjusts the overall brightness and contrast of

the picture. Press + or- to select CONTRASZ Press + to increase or

press- todecrease conWasL

The BRIGHINESS function adjusts the brightness of the darkportions

of the picture. Press + or- to select BRIGHTNESS. Press + to increase

orpress - to decrease brightness.

The SHARPNESS function adjusts picture sharpness. Press + or- to

select SHARPNESS. Press + to increase or press - to decrease.

These functions are displayed individually atthe bottom of the screen

once they have been selected. The setting can be adjusted atthat time by

pressing either the + or- button.

Operating Features

Languages

The on-screen displays in this TV can

be displayed in three languages:

English, French, and Spanish. When

you select a language, most of the

displays will be shown on the screen

in your preferred language.

Selecting a Language

1. Press MENU once to bring up the

main menu and highlight ENGLISH.

.Press + or- to select FRANCAIS

(French), ESPANOL (Spanish),

or ENGLISH.

Closed Captioning

Closed captioning lets you display the

audio portion of a program as text on

the"IV s_'e.en. This is useful to the

hearing impaired or anyone who wants

to watch a program without the sound.

There are two types of closed

captioning available: Cl (Caption 1)

and C2 (Caption 2). C1 displays the

full translation of the primary lan-

guage in your area. C2 may be used

as a source for secondary languages,

simplified English, or other transla-

tions transmitted in your area.

The closed captioning feature in this

"IV does not support a Text Mode.

Typically, the Text Mode consists of

program information, weather

bulletins, local activities, etc.

Closed captioning is not available on

all channels or at all times. Only

specific programs are encoded with

closed captioning information (CC).

Setting Closed Captioning

1. Press MENU until CAPTION

OFF is highlighted.

2. Press + or- to select OFF, CI, or C2.

3. The screen displays the TV program's

audio portion as text if the program

has closed captioning.

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
