RCA F19221 Manual de usuario

USER'S

GUID

'Information ....

Important " ,, ..

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

RI_K OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the

product.

Cautions CAUTION:

To prevent electric shock, match wide blade of plug to wide

slot, fully insert.

ATTENTION:

Pour 4viter les chocs _lectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

q',,_::_.,._r,Z_,_.v_. _-_,,__,o,_.. ; . .... " "_"pousserjusqt_au fond.

,_..._,*_." .... _.._,. .... _;:',-__:_.:44_'t"_'_ only0n 120 Volts, 60 HzAC power (normal house power).

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

c-;._'_'_i_";_NdteToCable TVInstaller"' This reminder is provided to call your attention to Article 820-40'of the

National Electrical Code (Section 54 of the Canadian Electrical Code,

__4_._:. _Part 1)4vhich provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system

of the building as close to the point of cable entry as practical.

•,.. .

Product

Registration

Please fill out the product registration card and return it immediately.

Returning thiscard allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof

of purchase. Attach it here and record the serial and model numbers in

case you ever need them. The numbers are located on the back of the TV.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

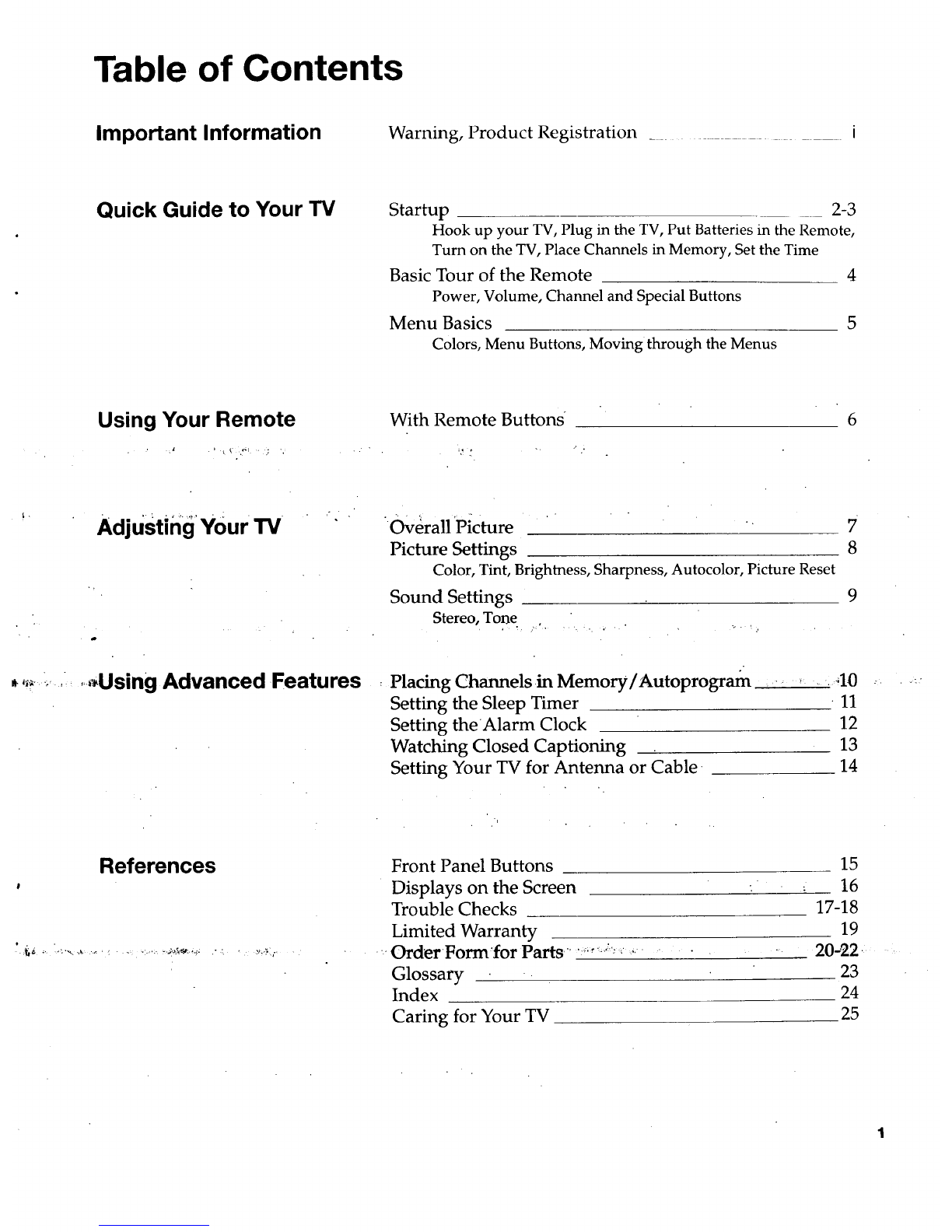

Table of Contents

Important Information Warning, Product Registration _ i

Quick Guide to Your TV Startup 2-3

Hook up your TV, Plug in the TV, Put Batteries in the Remote,

Turn on the TV, Place Channels in Memory, Set the Time

Basic Tour of the Remote 4

Power, Volume, Channel and Special Buttons

Menu Basics 5

Colors, Menu Buttons, Moving through the Menus

Using Your Remote With Remote Buttons 6

Adjusti6gYour TV .o

,,_-.._. ,,Using Advanced Features

Overall Picture " 7

Picture Settings 8

Color, Tint, Brightness, Sharpness, Autocolor, Picture Reset

Sound Settings

Stereo, Tone

Placing Channels in Memory/Autoprograrn .... , :40

Setting the Sleep Timer • 11

Setting theAlarm Clock 12

Watching Closed Captioning 13

Setting Your TV for Antenna or Cable. 14

References Front Panel Buttons

Displays on the Screen

Trouble Checks

Limited Warranty

OrderFormfor Parts ......._:;"__ _,, -

Glossary

Index

Caring for Your TV

: 16

17-18

20-22 ....

Quick Guide to Your TV

Startup

The steps below will get your TV connected and ready for watching. For

more details, see the page numbers listed.

1. Hook up your TV

It is important to use only

the adapters specified as

they incorporate special

isolation circuitry to meet

safety regulations. Parts

can be ordered on page 20.

Match your type of antenna or cable

UHF & VHF UHF & VHF VHF UHF VHF UHF

! i , //zs

CABLEI

Back of"IV ANTENNA

Hook up your antenna or

cable to the TV before you

follow the steps below.

2. Plug in the TV Plug the cord into the outlet,

matching the wide and the small

end of the plug with the outlet.

"_•' .... '_"_3.LPut Batteries in the Remote

• - ..

•"....... _:' _-' _f:h

A Pull off the cover o t e l_attery

compartment.

B. Place two AAA batteries as

end of each battery in the

compartment.

C. Replace the cover.

Quick Guide to Your TV

Startup

4. Turn on the TV _/n PK,v c.

.=_!.._L.__.J

Vre_= HL)Wt-H on the Jcmote.

Press POWER on the TV.

5. Place all available

:L' _+:: channels in memory

'.... '_ ()_utopr0gram) ."

"_s- "_, ,D_tai_for addin_

"channels are on page 10.

13 A. Press MENU until the Setup menu

selected. This menu is white.

13.'Press vOLOME + toplace

.; channelsii_ the TV's memory

C. Wait until TV has cycled through

all the channels and returns to

original channel.

6. Set the Time 12:21 AM 13 A, Press MENU until the Alarm

menu is selected. This menu

is green.

B. The Clock is automatically

highlighted the first time you

set it. If it is not, press

CHANNEL down to .highlight it.

""*'" C:"Pr_3 VOLUME _'to'set the" _:_.........•.....

•hour.

D. Press VOLUME + to set the

minutes.

F. The menus will automatically

disappear from the screen, after

a brief period of time.

Quick Guide to Your TV

Basic Tour of the Remote

Basic information about your remote is shown below, This wil! give you a

general idea of how your remote works. For more details, see page 6.

Power Button

Volume, Channel and

Special Buttons

Detailsareon page6.

POWER

MUTE PREV CH

CHAN

CLEAR MENU RESET

Turns the TV on and off.

Operates the TV.

Scans up and down through

•channels in theVC_s memory.

Raises and lowers the sound.

Menu Buttons

Details are on page 6.

..*,t.... ' - '..",,_'-:;,,*:_'e_dl_ir,._',_;_,_,_'_:,-_.: •':_._._!

POWER

MUTE PRP_CH

CHAN

CLEAR MENU RESET

Operate special features

of the TV.

Quick Guide to Your TV

Menu Basics

General information about using the on-screen menu system is shown

below. Details on using the remote buttons are on page 6. Many menu items

are explained in detail in Adjusting Your TV starting on page 7 and Using the

Advanced Features Starting on page 10.

Colors Yellow Green Light White

1 IBiel

Controls Alarm Ad

Press MENU repeatedly to see

each of the four menu colors.

Each menu has a different color

background as shown at the left.

Menu Buttons

The buttons shown on the front

TV panel and the remote are

used with the TV's menus to •

,... adjust the features. ........,,_,.,,,....

Controls Alarm Ad

': !3;

•L, , :, ,,,, ,, 1. Press MENU to move from

menu to menu.

2. Press CHANNEL up and down

;to move through the features in

the menu.

3. Press VOLUME +and-- to

move left and right on the

menu lines.

Using Your TV and Remote

Remote Buttons

DISPLAY

MUTE PREVCH

VOL CHAN VOL

CHAN

CLEAR MENU RESET

gO5

DISPLAY

Shows displays on the screen.

Clears menus from the screen.

Shows menus on the screen and

moves from menu to menu.

POWER

Turns the TV on and off.

RESET

Returns the picture adjustments to

the original settings.

MUTE

Switches the TV sound on or off.

PREV CH (Previous Channel)

Changes back and forth between

two channels.

_Selecta cha_ei and _then select

another. Press PREV CH to switch

between the two channels.

Number Buttons

Selects any channel number.

Two numbers must be pressed for

each channel. Press 0 and 6 for

channel 6.

For three digit channels, press and

'hold Iuntil 1-- appears on the

screen. Then pressthe other two

numbers.

CHAN zxand vINPUT

_._,_(Channelup and down) "-',_-_'; ,_.:Switchesthe:TV to channel 03...

Scans up and down through This is useful if you have aVCR

_,_d_am_els in the TV's memory:_ ',._, connected to yo .ur.-TV.

Moves up and down menus. See

Menu Basics on page 4.

VOL +and --

(Volume up and down)

Raises and lowers sound.

Moves left and right on a menu

line. See Menu Basics on page 4.

Changes a feature setting_ "

SKIP (Commercial Skip)

Allows you to look at other

channels during commercials.

Each press adds 30 seconds. Use

the CHAN NE1 or number buttons

to scan the other channels. TV

switches back to original channel

when time runs out. Press CLEAR

•to cancel SKIP.

Clears menus and displays fro m

the screen.

Adjusting Your TV

Overall Picture

Follow the steps below to lighten or darken the overall picture without

changing the color levels.

1. Select the Controls Menu

Alarm Ad

Press MENU to select the Controls

menu. This menu is yellow.

2. Highlight Picture

Alarm Ad

Press CHANNEL down to

highlight Picture.

3. Use VOLUME + and - to

adjust the Picture

•__lt, I_'-=- ....... ___

Press VOLUME +to lighten the

picture.

Pzess VOLUME -- to darken the

pictuJ:e.

Adjusting Your TV

Picture Settings

Follow the steps below to change the picture on the screen to your

personal setting. The chart below explains your options.

1. Select the Adjust Menu

2. Highlight item to change

Controls Alarm

Press MENU repeatedly to select the

Adjust menu. This menu is light

blue.

Press CHANNEL down to

highlight the picture item you

want to adjust.

3. Use VOLUME + or - to

adjust each item

Controls Alarm

Press VOLUME +or -to adjust

each item.

Color

Tint

Bright. (BrightneSs)

,,,:_,_arp,_$harpness)._:

Autocolor

Picture Reset

Press VOLUME + to:

Increase color richness

Give red tint to skin color

Add more light to dark parts of

the picture

,_,_Showcleaner, dearer, images-_.;_,,:.

Turn on to keep Color and Tint in

proper balance each time you

change channels

Reset the picture back to the

original settings

Press VOLUME - to:

Lower color to black-and white

Give green tint to skin color

iAdd.more dark to light parts of

the picture

,:,_::Makepicture more smooth,-._t_,,_,_,_

Turn off for manual adjustment

of Color and Tint

Reset the picture back to the

original settings
