HI, I'M ROGER.

I wrote this manual to help you get the most

from your TV. I know you expect a lot from your

TV, so I designed this user manual to give you

the information you need.., when you need it.

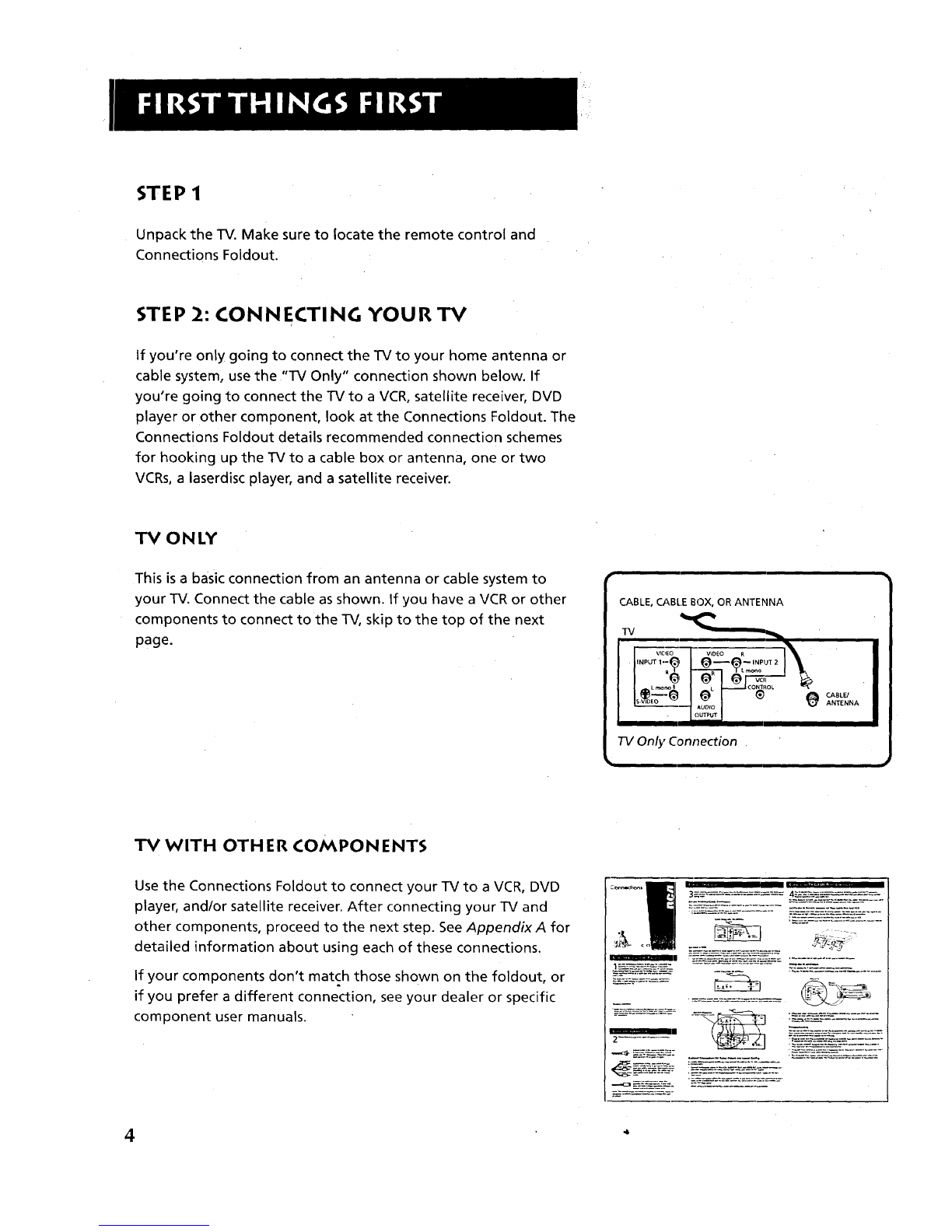

FIRSTTHINGS FIRST

READ THE FIRST FOUR CHAPTERS

The manual is designed to get you started

quickly.., and let you catch up on the details

when you get a chance. The first four sections of

the manual will get your TV up and running.

You'll learn how to use the menu system, run the

interactive setup routine and program the

remote.

The rest of the manual gives you the specifics: a

tour of the TV, a quick reference guide, details

on the TV GUIDE Plus+ system, advanced

features, and appendices.

Well... if your TV's out of the box, let's get

started. First things first.

ICheck out the notes I've addled 1

throughout the manual. I've got some

great tips that will help you get the most

from your TY.

STEP 1

Unpack the TV. Make sure to locate the remote control and

Connections Foldout.

STEP 2: CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or

cable system, use the "TV Only" connection shown below. If

you're going to connect the TV to a VCR, satellite receiver, DVD

player or other component, look at the Connections Foldout. The

Connections Foldout details recommended connection schemes

for hooking up the TV to a cable box or antenna, one or two

VCRs, a laserdisc player, and a satellite receiver.

TV ONLY

This is a basic connection from an antenna or cable system to

your TV, Connect the cable as shown. If you have a VCR or other

components to connect to the TV, skip to the top of the next

page.

CABLE, CABLE BOX, OR ANTENNA

_, I _l@F-_a_ _

ANTENNA

(

I / III I

TVOnly Connection •

TV WITH OTHER COMPONENTS

Use the Connections Foldout to connect your TV to a VCR, DVD

player; and/or satellite receiver. After connecting your TV and

other components, proceed to the next step. See Appendix A for

detailed information about using each of these connections.

If your components don't match those shown on the foldout, or

if you prefer a different connection, see your dealer or specific

component user manuals.

| ...........

•-_.-.- ............

2..........

.._ -._=_._._--.--_-_:

TV GUI DE PLUS+ CONTROLLER

The TV GUIDE Plus+* controller allows direct control of a cable

box and VCR using a pair of IR (infrared) controllers.

• Plug the TV GUIDE Plus+ controller into the VCR CONTROL

jack on the back of the TV.

• Affix the IR controllers directly over the IR remote sensors on

your cable box and VCR.

Back of TV

Conne_ IR Controllers to the infrared remote

sensors on your cable box and VCR

STEP 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of

the plug with the wide slot in the outlet. Be sure to insert the

plug completely.

r ii _\

tII h\

* GUIDE Plus+ is a trademark of Gemstar Development Corporation.

TV GUIDE is a trademark of TV Guide Financial, Inc.

Locating the IR (infrared)

Remote Control Sensor on

Your Cable Box or VCR

The IR controlllers must be affixed

directly over _theIR remote sensors on

your cable box or VCR.

Some cable boxes and VCRs label the

IR sensors; others do not. If the

sensors are labeled, affix the IR

controllers directly over them.

IR Remote 5en:;or

For those that do not label the IR_

sensor, you need to use the cable box

or VCR's remote to locate the sensor

before affixing the IR controllers.

1. Hold the remote control so that it

is touching the front of the cable

box or V('R.

.Slowly move the remote over the

front of the cable box or VCR

while pressing the remote's

POWER button on and off

3. When the cable box o,r VCR turns

off or on,, you've located the

sensor.

You should test the IR controllers

after setting up the TV GUIDE Plus+

system. Temporarily attach the IR

controllers with clear tape to the

spots where you think the sensors

are located. After determining that

the controllers are working correctly,

affix them permanently.

STEP 4

Put batteries in the remote.

Remove the battery compartment cover from the back of the

remote.

• Insert batteries as shown, matching the +and - ends of each

battery in the compartment.

• Replace the cover.

STE P 5

Turn on the TV.

Press TV on the remote, or press POWER on the TV itself.

STEP 6

Read the next section, Using the Menu System, which is a brief

overview of the basic rules for getting around in the menus.

STE P 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure

the TV. The first steps ask you to select your preferred language

for the menu system and to begi n the auto channel search, which

puts available cable TV or antenna signals into the TV's memory.

You can skip any of the steps and return to them later.

•R_¢ERSE _LAY fORW_

REC*VCR. STOP P/,_

•Ce__1_3 C,,-q

INF{] GH. SKIP

MU_ ct{- Go _ACK

'O 20 30

GUIDE

"IV

If the picture appear.,; to have a

double or triple image, you may have

to adjust the color convergence.

Details (:an be found under the

Screen menu heading in the Quick

Reference section.

ONE RULE TO REMEMBER

You control and customize the TV by making

changes to various control panels in the menu

system. The great thing is, you only need to know

one rule: point and select. V

USING THE MENU SYSTEM

¥I

THE MENU RULE: POINT AND SELECT

You only need to know one rule to use the onIscreen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the

remote.

To point up or down, press the up or down arrows. To point

left or right, press the left or right arrows.

2. Select a menu item by pressing MENUoSELECT.

Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. Press MENU to bring up the Main menu.

.Point to Channel by pressing the down arrow until the word

Channel is highlighted.

Tip: You can also select a menu item

by enteriing the item number with the

number buttons on the remote.

Press CLI-AR at any time to remove all

displays from the screen and return to

TV viewing.

Many VCR user manuals refer to a

PROGRAM button. The MENU*SELECT

button on this remote works as a

PROGRAM button in VCR mode. The

rest of this manual refers to this

button only as MENU.

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
