quick connect guide

RT2500/RT2500R

Audio/Video Receiver

TUNING

HOME THEATER AUDIO VIDEO RECEIVER

FM/ AM TV TAPE

S-VIDEO VIDEO AUDIOLR

MULTI JOG

SET

DEMO

DVD

VOLUME

VCR-1 VCR-2SAT

P.SCAN BYPASSPRESET EQ

TEST/SETUP

SURR. MODE

6 CH

igital

ound

rocessor

VCR 2

RT2500-quickstart 5/26/00 2:54 PM Page 3

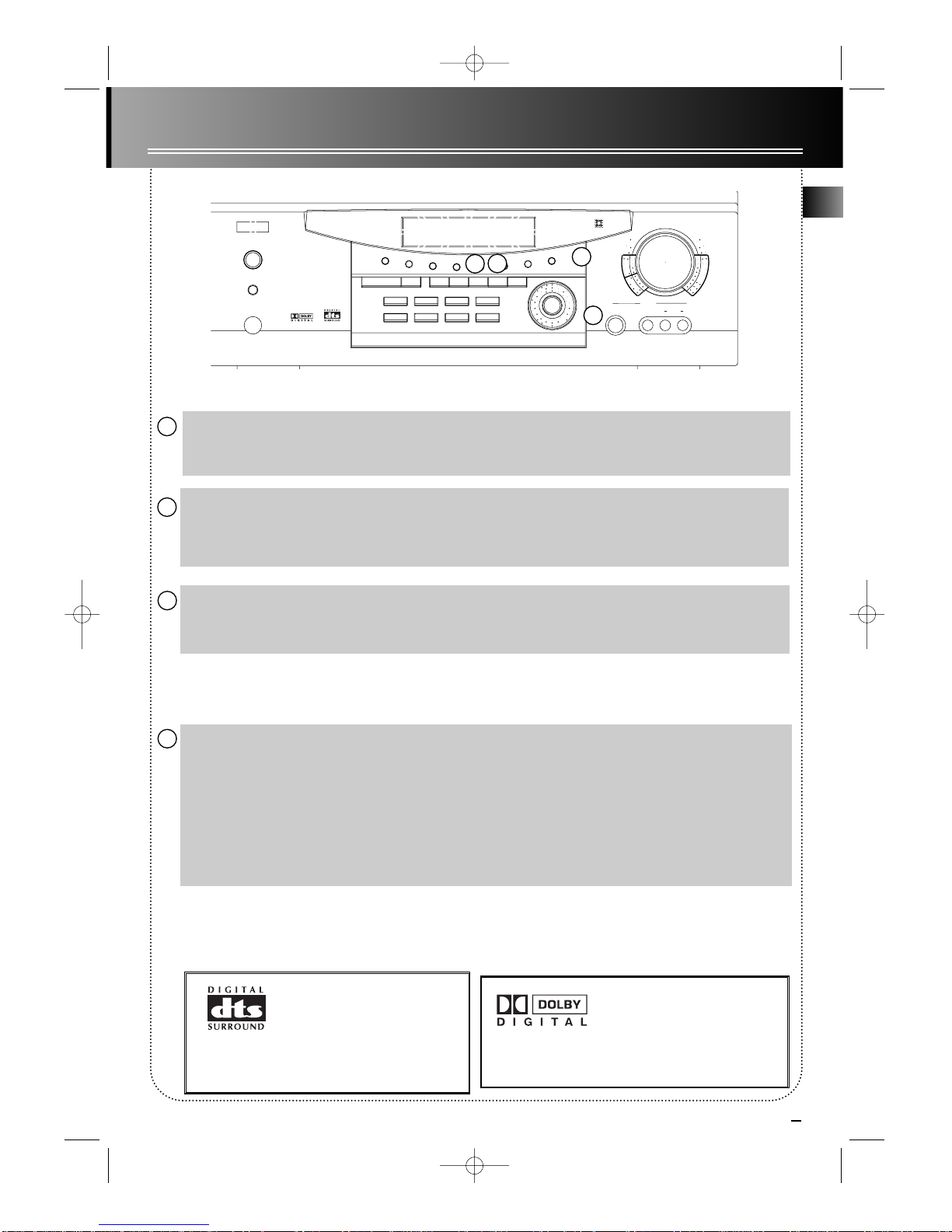

Quick Connect Guide

Your DTS/ Dolby Digital equipped RT-2500/ RT-2500R can reproduce realistic theater-like

sound in your listening room. For fast results, follow the quickstart procedures below:

Connect the components

Connect the speakers, TV and video component equipped with DTS/ Dolby Digital system, for example, DVD

player with DTS/ Dolby Digital. (For connections of other audio/video components, refer to user manual.)

- You can connect the DVD player to the receiver via coaxial, optical or analog cables, but to enjoy DTS/

Dolby Digital sound, coaxial or optical cable connection is necessary. We recommend the following con-

nections when SDET is ON - CD to Coaxial, SAT to Optical 1 and DVD to Optical 2. Otherwise, turn SDET to

OFF to match with your own favourable connections (see p.3).

- Tip: For RT2500 that comes with speakers, make sure the colors of suppied speaker wires and terminals

are matched.

S VIDEOVIDEO

e.g.: DVD PLAYER

PCM/DOLBY

VIDEO OUT DIGITAL

COAXIALDIGITAL

TEST/SET

P.SCA

TUNIN

TREBL

EBASS

VIDE

S-

VIDEO

PRESETEQ

SURR.MOD

AUDIO

POWER/STANDB

SDV

AudioVideo

Integrated

Receiver

PHONE

VCR2

TAPE

LEVE

VCR1 AM/F

VCR2

DIGITAL

Digital

Sound

Processo

To video input

To S-video input

Centre Speaker

Front Speaker

Rear Speaker

Rear

Speaker

To video output

To S-video output

Digital coaxial cable (not supplied)

between digital coaxial terminals

Digital Optical cable (not supplied)

between digital optical terminals

Subwoofer

Optional

powered

subwoofer

RT2500-quickstart 5/26/00 2:54 PM Page 4

Quick Connect Guide

STANDBY

MUTE

PHONES

TUNING

HOME THEATER AUDIO VIDEO RECEIVER

FM/ AM TV TAPE

S-VIDEO VIDEO AUDIOLR

MULTI JOG

SET

DEMO

DVD

VOLUME

VCR-1 VCR-2SAT

P.SCAN BYPASS

PRESET EQ

TEST/SETUP

SURR. MODE

6 CH

Digital

Sound

Processor

VCR 2

STOP PAUSE

ON OFF

VCR1

VCR2

DVD•6 CH

LEVELAUDIO

RECORD

SURRDIGITAL

PLAY FORWARDREVERSE

MUTE

TAPECD

MENU CLEAR

123

456

789

SAT•CABLE

universal

AM•FM

INFO•RDS

INPUT•SEEK ANT•FMS

•

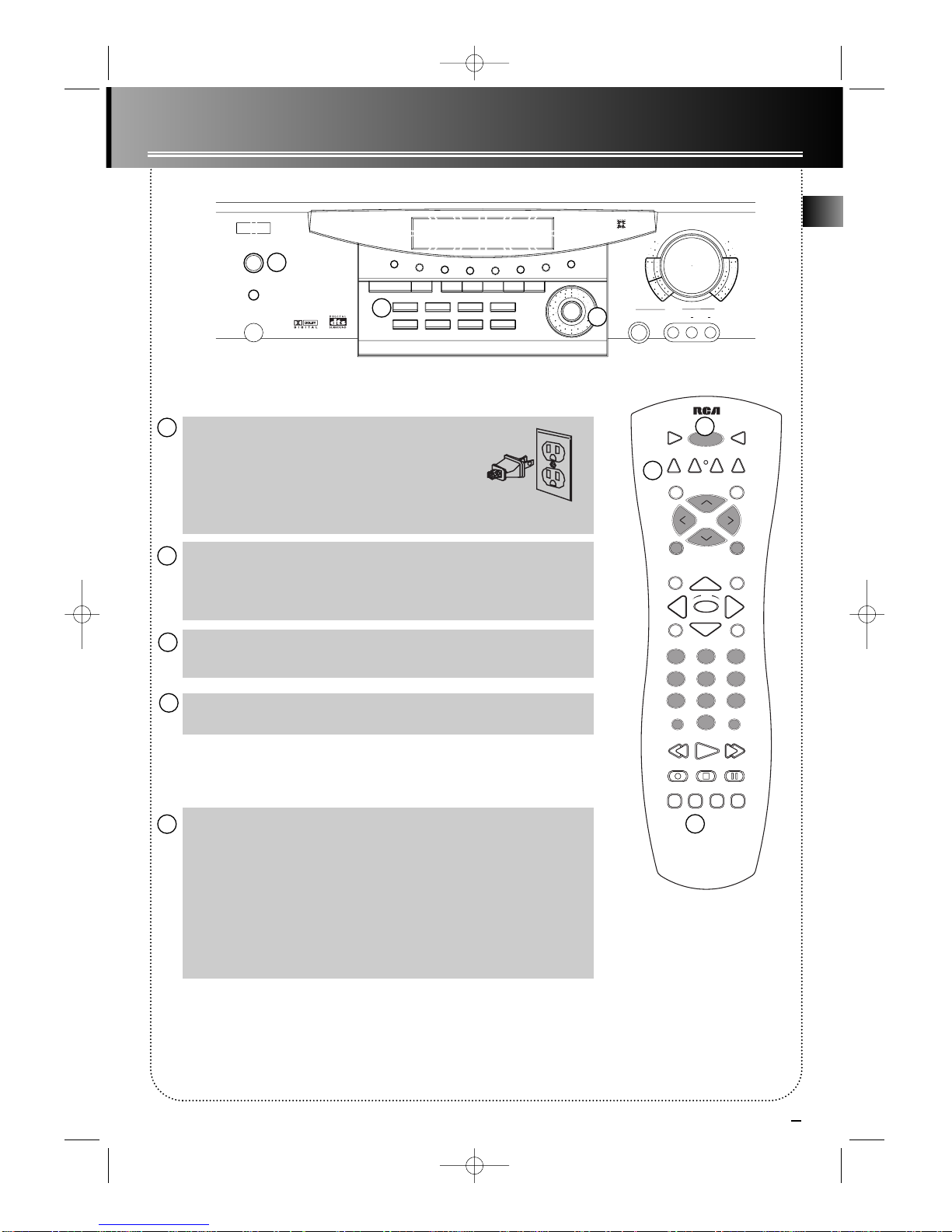

Plug the AC power cord into a standard

household 120V AC outlet. Right after you

plugged in the power, a demo message

will appear on the display.

Turning on the Power

Press the POWER/ STANDBY Button on the receiver or the

ON/ OFF button on the remote to turn on the receiver.

Turn on your DVD player to play a Dolby Digital DVD.

Press DVD button.

The receiver has defaulted the digital input to Optical. If you

are not using optical input, press SET/DEMO and rotate the

MULTI JOG to change to Coaxial or Analog to match your con-

nection.

Note: to check the connected digital input, press the appropri-

ate source button (e.g. DVD) on the receiver.

Digital Input Setting

5 5

The receiver will now automatically shift to Dolby Digital surround mode.

RT2500-quickstart 5/26/00 2:54 PM Page 5

Quick Connect Guide

STANDBY

POWER

PHONES

TUNING

DSS

HOME THEATRE AUDIO VIDEO RECEIVER

AM/FM AM/FM TV

S-VIDEO VIDEO AUDIOLR

MULTI JOG

SET

DEMO

DVD

VOLUME

VCR-1 VCR-2CD

P.SCAN SPKR IQP.EQ

TEST TONE

SURR. MODE

6 CH

Digital

Sound

Processor

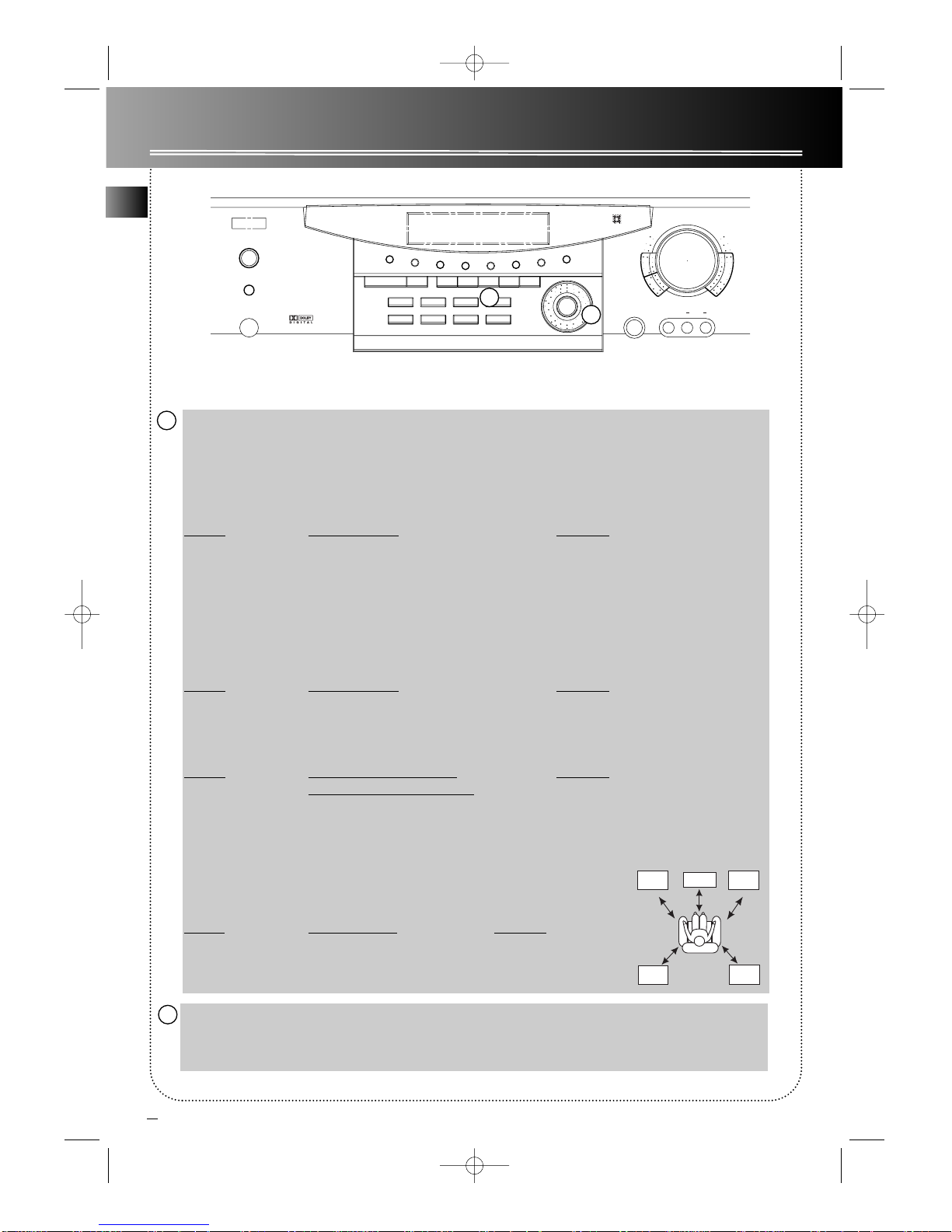

Press TEST/ SET UP button for about two seconds. LL//RRSSMMLLwill be shown on

display. Press TEST/ SET UP repeatedly until one of the followings shows on the display:

Speaker Arrangement Control and Speaker Distance

Display What to choose Selection

L/R Choose front speaker size Large/Small*

C ch Choose center speaker size Large/Small*/None

SURR Choose surround speaker size Large/Small*/None

SUBW Register subwoofer connection Yes*/No

Note: You can skip the above part if you purchase RT2500 that supplied with speakers and sub-

woofer as the receiver has already been calibrated. ( * - default values )

Display What to choose Selection

PHASE Subwoofer phase + / -**

Note: ** Try both + and - settings and select the one that has better bass effect.

Display What to choose (distance Selection

between listener & speakers)

L/R 15ft Front speakers distance 0-40ft***

Cch 15ft Center speaker distance 0-40ft***

SUR 15ft Surround speaker distance 0-40ft***

Note: *** input the distances (in feet) of the speakers measured from your

favourite listening position.

Display What to choose Selection

SDET Smart detect On/off

Setting Speaker Arrangement and Speaker Delay Time

Rotate MULTI JOG to select speaker settings.

Main

Left Main

Right

Rear

Left Rear

Right

SUR

Center

SUR

L/R

C ch

L/R

RT2500-quickstart 5/26/00 2:54 PM Page 6

STANDBY

MUTE

PHONES

TUNING

HOME THEATER AUDIO VIDEO RECEIVER

FM/ AM TV TAPE

S-VIDEO VIDEO AUDIOLR

MULTI JOG

SET

DEMO

DVD

VOLUME

VCR-1 VCR-2SAT

P.SCAN BYPASS

PRESET EQ

TEST/SET UP

SURR. MODE

6 CH

Digital

Sound

Processor

VCR 2

Quick Connect Guide

Setting Night Mode (optional)

Press NIGHT button to set the Dynamic Range of different sound (like the difference in vol-

ume between normal voices and sounds like explosion) if you are watching a DVD at night.

There are two modes (SOFT, SOFTER) for you to choose in terms of the extend of compres-

sion.

Note: Night mode functions only when Dolby Digital enabled components are playing (e.g.

DVD, SAT).

Setting Speaker Output Levels

Press TEST/ SET UP on receiver briefly. A test tone will be generated in each speaker.

Rotate the MULTI JOG on the unit or press LEVEL and then left and rigth arrow buttons

beside OK button on the remote to adjust the level of individual speaker.

Press TEST/ SET UP again to confirm your choice.

Setup is now complete. Enjoy the DTS/ Dolby Digital entertainment brought to you by your

RCA home theater.

Dolby Digital Manufactured under license

from Dolby Laboratories. “Dolby”, “Pro

Logic” and the double-D symbol are trade-

Manufactured under License from Digital

Theater Systems, Inc. US Pat. No. 5,451,942

and other world-wide patents issued and

pending. “DTS Digital Surround”, are trademarks of Digital

RT2500-quickstart 5/26/00 2:54 PM Page 7
