RCA RTDVD2005 Manual de usuario

INSTRUCTION MANUAL

LED TV

RTDVD2005

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device might not cause harmful interference, and

(2) this device must accept any interference received,

including interference that might cause undesired operation

Caution

Important Safety Precautions

Top/Side panel diagram

Remote Controller

Battery Installation

Using the Remote Control

Install TV

Set your TV

Connect Antenna and power

Turn On TV

Help

6-7

12-13

15-18

TV Bracket assembly 5

Specifications

Setup Wizard

Wall Mount Installation

Main Menu Operation

Sound Menu

Time Menu

Setup Menu

Lock Menu

Channel Menu

15-16

16-17

Systems Connection 10

Select Input Source

PC 20

PC Menu

DVD Setup 21-22

Table of Contents

The lightening flash with arrowhead symbol, within an equilateral triangle is

intended to alert the user to the presence of un-insulated "dangerous voltage"

within the products enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to

the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

Correct disposal of this Product

W aste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life,

should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste

collection/recycling centre.

In the European Union there are separate collection systems for used electrical

and electronic products. Please help us to conserve the environment we live in!

Caution

3.95”

3.95” x 3.95”

100 100

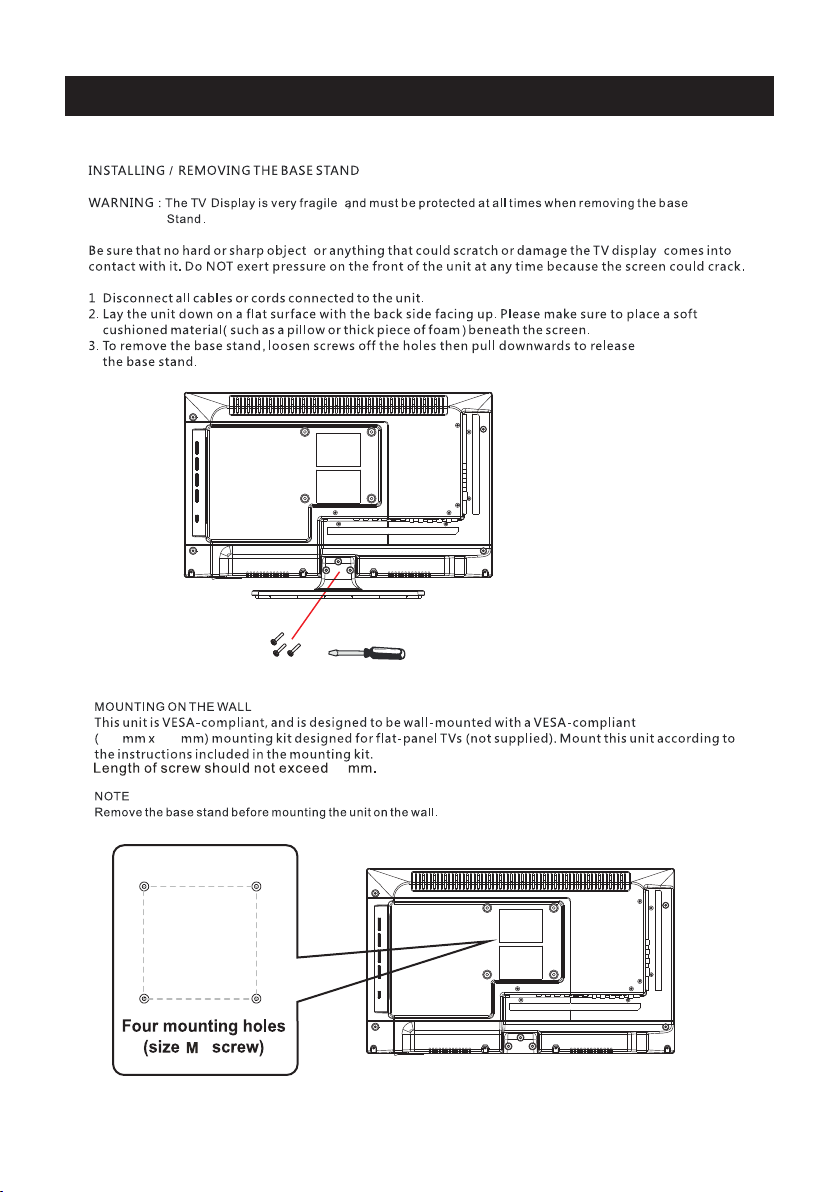

Wall Mount Installation

1.Match the TV unit into the stand, then hold the TV stand,

revolve and lock the tv unit tightly as the arrowhead point.

2.Fix the screws into the TV stand after installing the tv

unit and tv stand.

TV Bracket assembly

3screws

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

(IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby) LED Indicator: Press to turn on and off

VOL

The functions of the buttons on the are as follows:TV

CH+/-:When watching TV: select channels.

:DVD Eject.

:Play/Pause DVD Program

Top panel diagram

MENU:

1.Press Menu.

2.Use CH+/- to shift UP/DOWN.

3.Press VOL+/-to adjust.

SOURCE External signal input selection

1.Use CH+/- to shift UP/DOWN.

2.Press VOL+ to enter.

SOURCE

COAXIAL

INPUT

VIDEO R

Side Panel Diagram

(Left Side)

(Back Side)

Connect to ANT or cable source

PC AUDIO IN PC audio input

VGA IN VGA signal from computer output

YPbPr Connect to the composite terminal of your DVD/VCR

ANT 75 Ω

EARPHONE

For Upgrade Use

AV INPUT

Earphone output

COAXIAL Digital Audio Output

Service Port

HDMI IN Connect to HDMI of DVD or other equipment

Name Function Description

AC 12 0V~

60Hz

HDMI1 H DMI2 HDMI3

COA XIAL

ser vice port

DC 12V DC input

HDMI

INPUT

Y Pb Pr

service port

DC 12V

Remote Controller

Univer sal rem ote cod e

This is the code for remote cont rol of

RTD VD2005 ,if you want to change to a

uni vers al remote cont rol,you can edi t

this code into your uni vers al remote cont rol.

(1)Open the battery compartment cover

on the back side

(2)Insert two 1.5V batteries of AAA type

with correct polarity

(3)Close the battery compartment cover

on the back side

Universal Remote Control code:007F

(Universal Remote control is not included)

MEN U SOURC E

ENT ER

EXI T

SLE EP

P.MOD E S.M ODE

DISPLAY

MTS / MP3PROG

ZOOM

D.MENU D.TITLE

ANGLE

EPG

D.DISP

REV FWD PREV

FAV-

GOTO

AUDIO SUBTITLE

FAV FAV+

PROG STEP REPEAT A-B

D.setup

D.Menu D.Title Goto D.Disp

PROG STEP REPEAT A-B

Zoom Angle Subtitle

Audio

D.TITLE:

A-B During th e playback,press this b utton to repeat

playbac k of a specific section on a di sc.

SLEEP: Select amount of time before TV turn

off

automatically.

S.MODE: Press to cycle through the different sound settings

P.MODE: Press to cycle through the different picture settings

D.DISP:

D.MENU:

Press "-" to enter a p rogram number for multiple pro gram

channel, such as 2 -1 etc.

GOTO:

STEP：Play for single frame image

ZOOM In DVD source adjust DVD picture size

MTS / MP3PROG:

Press to se lect the audio mode,you c an select stereo,Mono ,

or SAP(se cond audio program)./ When playing mp3 disc,

press MP3 P ROG and add the favorite mu sic to playlist,

press PRO G two times to see the progra mmed playlist.

CH +/- : Press to scan through or to select a channel.

V +/-: Press to increase / decrease the sound le vel.

EPG:

D.Setup:

AVTV HDMI PC

YPbPr DVD

side

indicator

10cm

10cm 10cm

LED TV
