RCA RLED4664A Manual de usuario

46" 1080p LED Television

RLED4664A

Contents

Caution

Safety Information

Unit and Accessories

Product Feature

Introduction

1. Front View

2. Rear View

4. Remote Control

Basic Operation

OSD Menu

1. Picture menu

2. Sound menu

3. Channel menu

4. Parental Control menu

5. Setup menu

6. Others menu

Simple Troubleshooting

5-9

8-9

11-18

11-12

15-16

3. Instruction for Wall Mount 7

Caution

is intended to alert the user to the presence of un-insulated "dangerous

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-

of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/

recycling centre.

In the USA there are separate collection systems for used electrical and

electronic products. Please help us to conserve the environment we live

in!

This unit complies with America Safety directives.

This unit complies with FCC directives.

Safety Information

Electrical safety

Physical safety

the power cable

Unit and Accessories and Product Feature

Unit and Accessories

TV set

User's Manual Remote Control and

Batteries (AAA x2)

Product Feature

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

0 -/--

FAV

CC EPG

MTS

Three HDMI inputs for true digital connections

HDMI is a trademark of HDMI Licensing LLC in the United States and other countries.

Stand Installation Guide

1920 x 1080 native resolution for Full-HD(1080p) performance

Instructions for fixing TV stand

The parts Installation

Screws

˄three specifications˅

(There are four parts for installing stand) 1. Put the stand neck on the stand rear

board, fix the stand neck with 4 pieces of

3. Put stand on the stand rear cabinet, fix the

stand with four pieces of screws(B4*24)

Note: the pictures below are only for reference

1.TV

2.stand rear board

3.stand neck

4.stand base

2.screws with mat pieces (M4*12),pictures2

1.screws (B4*16),picture1

3.the longest screws (B4*24).pictures3

1. The panel is facing

downwards

2. The two longer stand

legs are downwards,

3. Fix with 4 pieces of screws,




screws (B4*16).

And fix the inner of stand neck

with 4 pieces of screws.

2. Put the stand rear board on the rear

cabinet of TV. fix the rear board with

4 pieces of screws(M4*12).

MENU CH+ CH- VOL+ VOL- POWER

INPUT

Introduction

1. Front View

1). (IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

2). The functions of the buttons:

INPUT: Press to display the input source menu.

MENU: Press to display the OSD menu,

press again to exit the menu.

CH+/-: Press to scan through channels.

VOL+/-: Press to adjust the volume.

POWER: Turn on/standby the TV set.

The effective receiving range for the signal is 5-8 metres from the front of the remote

control window, and 300to the left or right side and 200above or below the remote control

window.

Press INPUT button on the TV set or remote control to

display the input source menu, and use CH+/- button on

the TV set or / button on remote control to select the

input source, press OK button on the remote control to

enter.

Note: Before you select the input source, make sure the

connections are prepared.

Power Indicator

Remote Control window (Keep clear)

Introduction

2. Rear View

2). Headphone out : Connect it to your headphone or audio equipments.

5).

4). RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

7). COAX : Digital audio output.

10). YPbPr : Connect them to the component video output of video device.

: Connect it to the HDMI output of video device.

6). HDMI1/2/3

L/R in : Connect them to audio output of video device (shared with YPbPr).

11). L/R out : Connect them to audio equipments.

VIDEO : Connect it to video output of video device.

9).

8). Service : For service use only.

AC POWER IN: Connect to an earth 100-240V~ 50/60Hz outlet with the power cable.

1).

3).

RF VGA HDMI1

HDMI2 HDMI3 SERVICE VIDEO YPbPr

HEADPHONE OUT PC IN

COAX

RF VGA HDMI1

HEADPHONE OUT PC IN

Audio out

Audio in

Introduction

3. Instruction for Wall Mount

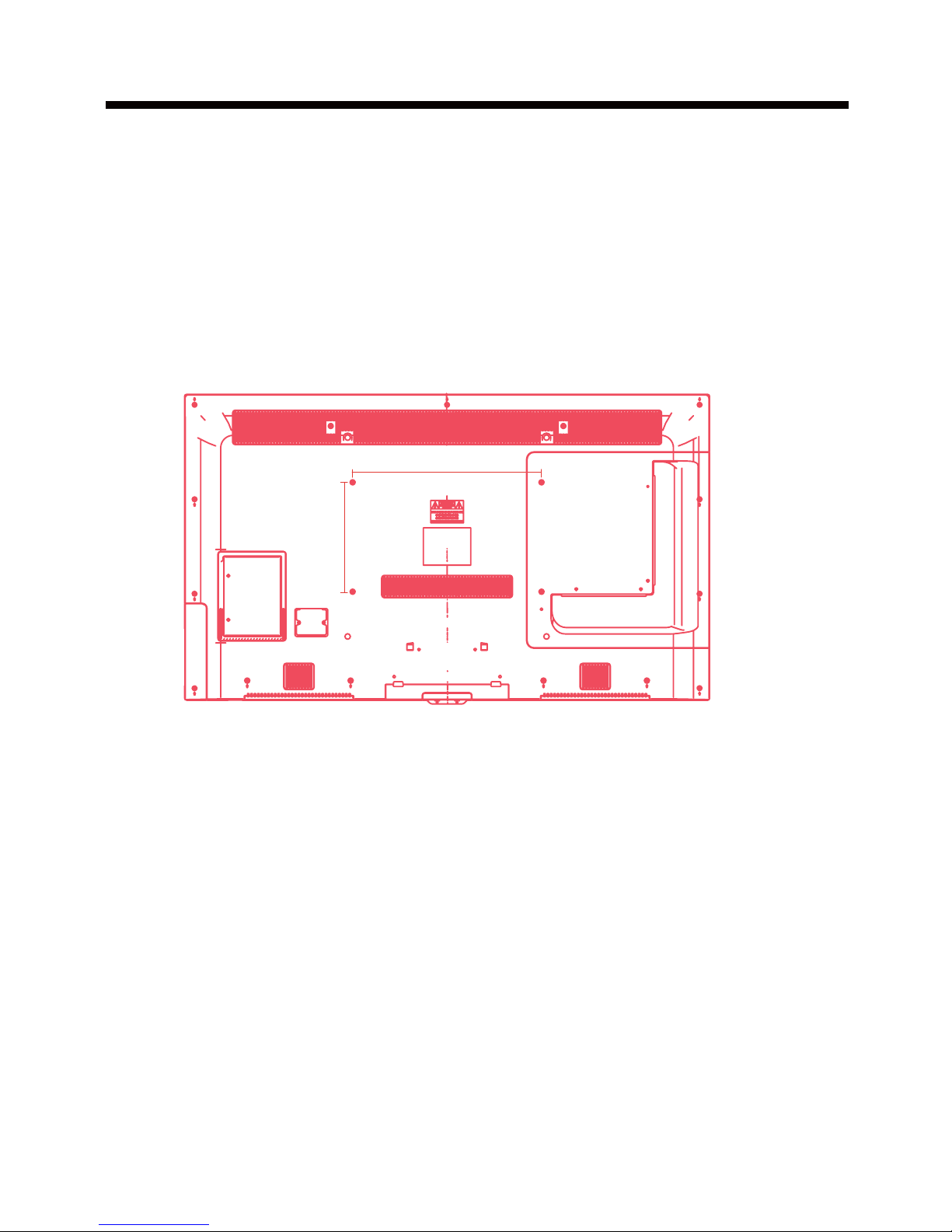

Dimensions for Mounting Hole Pattern

A wall mount kit (purchased separately) would allow you to mount your RCA

TV on the wall. For detailed information on installing the wall mount, refer

to the instructions provided by the wall mount manufacturer. It is strongly

recommended to contact a technician for professional assistance for wall mount

installation.

RCA

is not responsible for any damage

to the product or injury to

yourself or others resulting from the wall-mounting.

-This RCA TV is compatible with a 400mm x 400mm mounting hole pattern.

- Do not mount your RCA TV at more than a 15 degree tilt.

- Always use two people to mount the TV to a wall.

- Do not install your Wall Mount Kit while your TV is turned on. It may result in

personal injury due to electric shock.

- 4 pcs of type MB6 screws are required for installing the wall mount bracket to

your RCA TV. Do not use screws that are longer than 12 mm. Screws that

are too long may cause damage to the inside of the TV set.

- Do not fasten the screws too tight for this may damage the TV or cause the

TV to fall, resulting in personal injury. RCA is not liable for these kinds of

incidents

400mm

Introduction

4. Remote Control

The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote

control may not work correctly if it is operated out of range or out of angle.

CC: Press to display the closed caption.

MTS: Press to select the audio channels.

FAV: Press to add or remove favorite channel.

EPG: Press to enter the EPG menu directly.

DISPLAY: Display the information of current mode.

Thumbstick( ): Allows you to navigate the on-screen

menus and adjust the system settings to your preference.

OK: CONFIRM button.

MENU: Press to display the OSD menu.

EXIT: Press to exit the OSD menu.

MUTE: Press to mute the sound, press again or press VOL+ to

unmute.

VOL+/-: Press to adjust the volume.

CH+/-: Press to scan through channels.

SLEEP : Shutdown timer.

Number Buttons: Choose channel directly.

Select channel 5, Press button "5";

Select channel 62, Press button "6", then press button "2" in 2

seconds;

Select channel 151, Press button "1", and press button "5" in 2

seconds, and press button "1" in 2 seconds;

Select channel 5-1, Press button "5", and press button "- / - -"

in 2 seconds, and press button "1" in 2 seconds;

PICTURE: Press repeatedly to cycle through the available

video picture modes.

SOUND: Press to cycle through the different sound settings.

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

0 -/--

FAV

CC EPGMTS

(RETURN): Return to the previous channel viewed.

POWER(red button): Turn the TV on/standby.

INPUT: Press to display the input source menu.

Universal Remote Code:11359

Universal Remote Control not included.
