RCA RP-1820 Manual de usuario

AUDIO

MODEL RP-1820

USE AND CARE GUIDE

PERSONAL

AM/FM STEREO RADIO/

CASSETTE PLAYER

~.^_F_^__^___-^_-_

Push on Battery Door in the direction of the arrow, slide door down and

pivot upward.

2. Insert 2 “AA” size alkaline batteries (not Included). Be sure the “+“, or

cap end, of each battery IS mstalled as shown on the battery diagram.

3. Close the Battery Door.

IMPORTANT SAFETY INFORMATION: Always remove

batteries if the unit is

not going to be used for a month or more. Batteries left in the unit may leak

and cause damage. Always adhere to the following precautions:

A. Any battery may leak if mixed with a different battery type, inserted

incorrectly, or if all batteries are not replaced at the aame time.

B. Any banery may leak or explode if disposed of in fire or if an attempt

is made to charge a battery not intended to be recharged.

C. Discard leaky batteries immediately. Leaking batteries can cause skin

burns or other personal injury.

When discarding batteries, be sure to dispose of them in the proper manner,

according to your state and local regulations.

Alwaysreturntape operation buttonslo their off positionbefore storing.This will

relieve pressure on certain parts in the tape player that mightdeform after long

periods of time.

--_ ._._.__...___. -

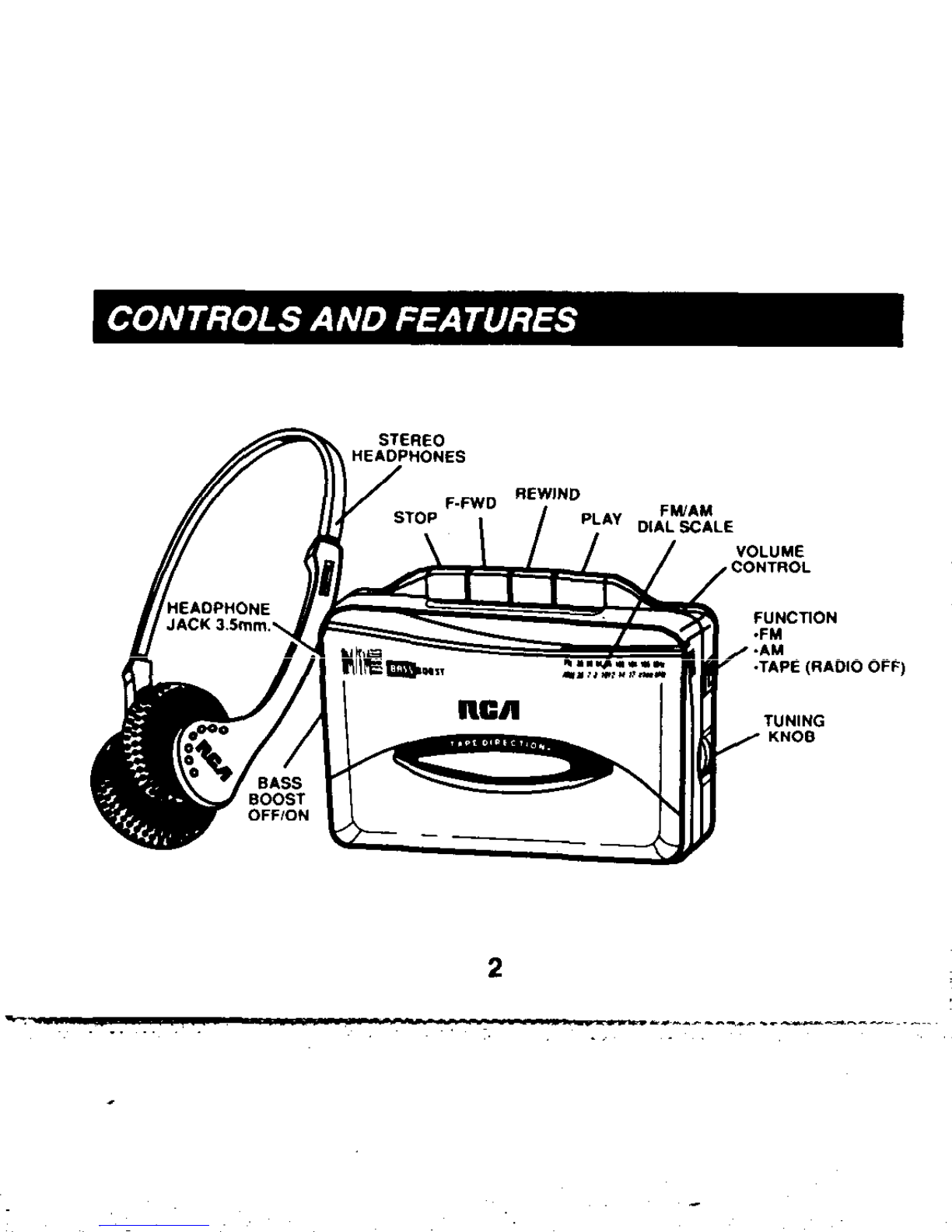

1 Set VOLUME to a minimum level.

Increase VOLUME only after headphone ISin place for listening.

2. Plug HEADPHONE (included) into stereo headphone jack.

3. Slide FUNCTION switch to FM or AM Sand.

4. Use the TUNING knob to select your desired station. When FM is selected,

stereo broadcasts will be received in stereo. All other FM broadcasts will be

received in balanced mono.

5. Adjust VOLUME to the loudness you prefer.

6. Toturn the radio off, slide FUNCTION switch to TAPE (RADIO OFF)

position.

SASS BOOST SWITCH

When operating your unit at a low-volume level, switch the BASS BOOST control

to ON to bring out the bass frequencies and enhance your low-volume listening en-

joyment.

ANTENNAS

AM Antenna-The

built-in antenna is somewhat dlrectional. For best AM recep-

tion, the unit should be horizontal (buttons up) and It may be necessary to rotate

the unit slightly for best reception on weak stations.

FM Antenna-The

headphone cord is also used as your FM antenna. The anten-

na is directional and, therefore, some repositioning of the headphone cord may be

required to improve reception.

TO INSERT OR REMOVE CASSETTE

PWSS

STOP button to ensure tape mechamsm IS not engaged

2. Lift open Cassette Carry Door.

3. Insert cassette gently, slidmg it into the Cassette Carry Door with expos-

ed tape upward. and the full reel of tape to the right (toward the tunmg

knob).

4. Close the door.

TAPE PLAY

1. Set VOLUME to minimum.

2. Plug headphone into jack on cabinet side, Insert cassette, and then

press PLAY.

3. Adjust VOLUME. Increase only after headphone iS in place for listening.

4. To turn unit off, press STOP

5. To skip over a portion of the tape, press F-FWD. Use STOP after you

have advanced to the desired point on the tape.

6. To run the tape backwards, press REWIND. Press STOP after you have

rewound to the desired point.

AUTOMATIC STOP

When the end of the tape is reached in PLAY mode, the unit will automatically

shut itself off and return the button to the “off” position.

A detachable Belt Clip is prowded as a convenient means for transporting the

radio/tape player.

To attach the Belt Clip, slide it up into the mounting rails on the cabinet back.

When a definite “click” is heard, the Clip IS secure.

Todetach, gently lift up on the center tab section of the Clip to clear the cabinet

catch and slide the Clip down and off the mounting rails.

Do not expose your cassettes to direct sunlight or store them in hot places. High

temperatures may warp the cassette shell or damage the tape itself. Keep your

cassettes in their boxes when they are not in the cassette player. This keeps dust

from entering the cassette shells.

If a tape is accidentally pulled from a cassette, insert the tapered end of a large

pencil or similar object into the center of the tape hub and gently wind the tape

back into the cassette. Be careful not to twist or wrinkle the tape. Care should

be taken that all exce?s tape is wound into the cassette and is taut. If slack IS

allowed to exist, it can cause the tape to become twisted around the pinch roller

and capstan which could result in a damaged cassette.

*on oxide particles horn the magnetic tape will, in time, build up on the parts

hat come into direct contact with the

tape.

These deposits will reduce the playback

svels resulting in a muffled sound. They may also prevent automatic stop.

Vith the cassette door open, the parts indicated can be cleaned (gently) with a

squid head cleaner.

.‘.

Another convenient method is to use a cassette head cleaning tape. Follow the

manufacturer’s directions regarding its use.

This product should be serviced only by those specially trained in appropriate

servicing techniques. For instructions on how to obtain service, refer to the war-

ranty included in this Guide.

Attach your sales receipt to the booklet for future reference or jot down the date

this product was purchased or received as a gift. This information will be valuable

if service should be required during the warranty period.

Purchase date Name of store

This device complies with Part 15of the FCC Rules. Operation is subject to the

following two conditions: (1)This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that

may cause undesired operation.

In accordance with FCC requirements, changes or modifications not expressly

approved by Thomson Consumer Electronics could void the user’s authority to

operate this product.

- .......---_-_-. .....t-~-. ._ . _~~._._~-*^~~.*..

ONE-YEAR LIMITED WARRANTY

What does your warranty cover?

Any defect in material or workmanship

For how long after the original purchase?

one year.

The warranty lor rental ““Its begins with the ftrst rental

What will we do?

Provide you wtth a new, or at our optmn. a refurbIshed untt

The exchange unit is warranted lor the remamder of your product’s orlgmal one-

year warranty period.

How do you make a warranty claim?

Properly

pack your umt. Include any cables, etc., which were orlgmally prowded

with the product. We recommend using the origmal carton and packing

materials..

Include in the package a copy of the sales recenpt or other ewdence of date of

orlginal purchase. If the umt was a gdt. prowde a statement specdylng the date

received. Also print your name and address and a descrlptlon 01 the delect

Ship the umt standard UPS or equwalent to’

Thomson Consumer Electronics, Inc

Product Exchange Center

32 Spur owe

El Paso, Texas 79906

Pay any charges bllled to you by the Exchange Center for sewce not covered by

the warranty.

A new or refurblshed unit wll be shipped to you prepaid freight

..,,~. -- __._..._._,____=__^___^^_- _.-.._.

What does your warranty not cover?

* Customer mslwct~on Your Owner’s Manual prowdes mformatlon regardmg

operating ms1rucl1ons and user controls For addrtoanal mlormatlon. ask your

dealer

* Damage from mrsuse or neglect

* Products which have been modrfred or mcorpora@d mto other products

* Product purchased or serwced outsrde the USA

How does state law relate to this warranty?

* This warranty grves you specdic legal rrghts. and you may also have other rrghls

which vary horn state lo slate

What if you purchased your product outside the United States?

. See your dealer for detarls.

Thomson Consumer Electromcs. Inc

ncn

Model RP- 182oA

347A7732-A001 (Rev. 0)

94- 19

@Thomson Consumer Electronics Inc.

Printed in Hong Kong
