Raymarine A Series A50 Manual de usuario

About this document

This Quick Reference Guide summarizes the operation of your

A-series display. This guide assumes that the display has been

installed and set up in accordance with the procedures in the installa-

tion guide and that you have read the User reference manual on the

accompanying CD-ROM.

Safety

Powering the display ON/OFF

To Power ON:

Press and hold the POWER key until the screen shows

the Raymarine logo. The unit starts up in the last used dis-

play configuration.

To Power OFF:

Press and hold the POWER key until the power down

countdown reaches zero. The unit is powered OFF.

Releasing the POWER key before the countdown is com-

plete cancels the power off sequence.

Simulator

Your A-Series display includes a simulator mode that enables you to

practice operating the unit without data from a GPS antenna or trans-

ducer unit.

Note: The simulator will NOT display any real-data, including any

safety messages (e.g. those received from AIS).

To turn the simulator ON or OFF:

1. Press and hold the PAGE/MENU key to display the setup menu.

2. Use the trackpad up / down keys to select System Setup.

3. Press trackpad right to select the System Setup options.

4. Select the Simulator option

5. Select ON or OFF as required.

6. Press the OK key to return back through the menus.

A-Series Displays

Quick Reference guide

WARNING: Read the user manual

Before using the software read the safety information

contained within the user reference manual on the

accompanying CD-ROM.

WARNING: Navigation aid

This product is intended to serve only as an aid to

navigation. Use of specific features such as AIS

overlay, and various cartographic aids are meant

only to aid safety and decision-making. These

features cannot be relied upon as complete or

accurate as their use and availability may vary

locally. It is your responsibility to use caution,

sound judgement, official government charts,

notices to mariners and proper navigational skill

when using this or any other electronic device.

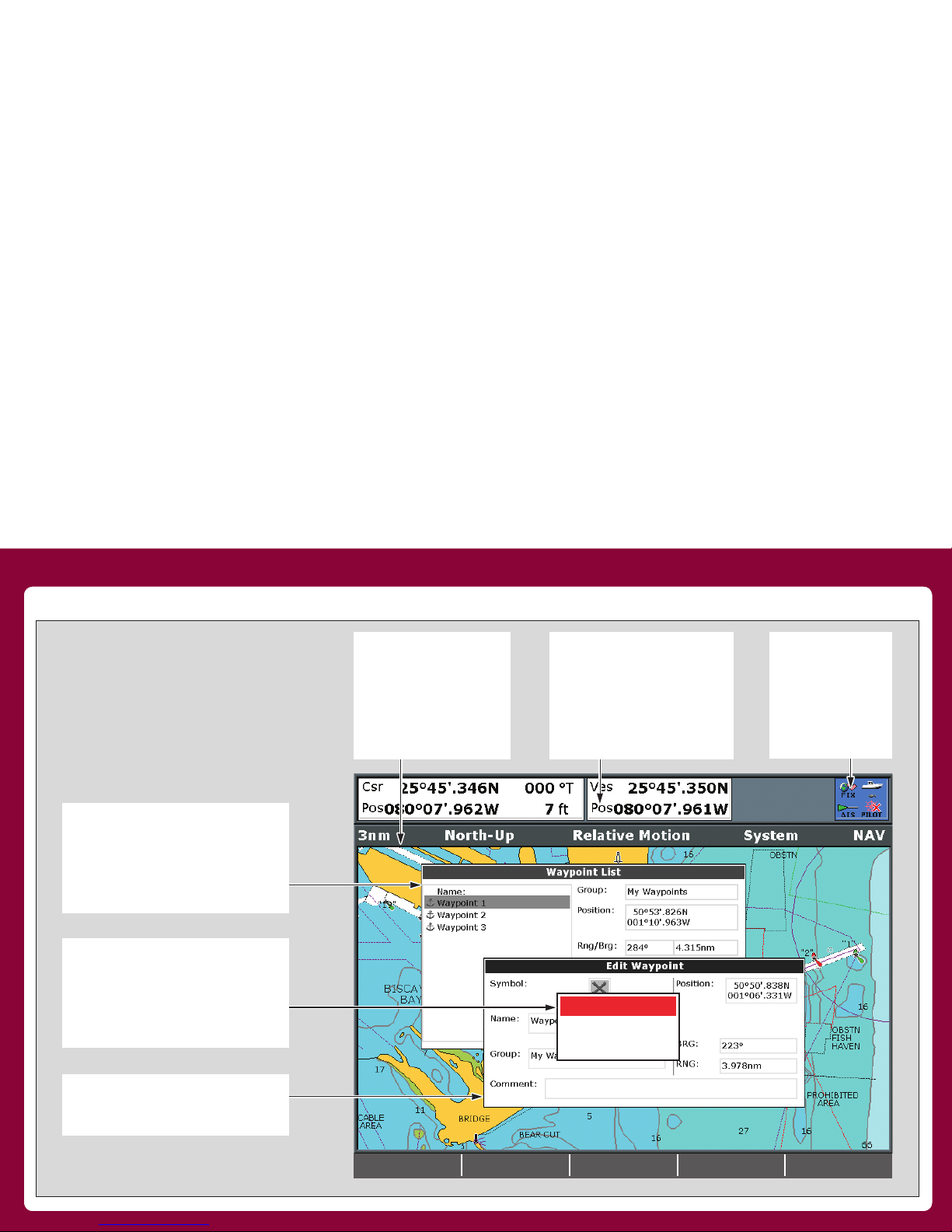

Screen information

ACKNOWLEDGE

AIS ALARM

Dangerous Target

Status bar

• Gives information specific to

each application.

• Cannot be edited or moved.

Data bar

• Gives information associated with

your boat or the environment.

• Customisable content.

• Vertical or horizontal format.

• Display or hide.

• Normal or large size.

Data base lists

• Contain information you have added to the

display's memory e.g. waypoints.

• Highlight an entry using trackpad or rotary

control to display related information.

• Editable using soft keys.

Pop-up messages

• Alert you to a situation e.g. alarm, function

not available.

• Not editable.

• May require a response e.g. press

ACKNOWLEDGE to silence alarms.

Dialog boxes

Enable data to be edited or entered into a

store/list e.g. editing a waypoint.

Status icons

Confirm status of

Sounder, GPS, AIS and

Autopilot

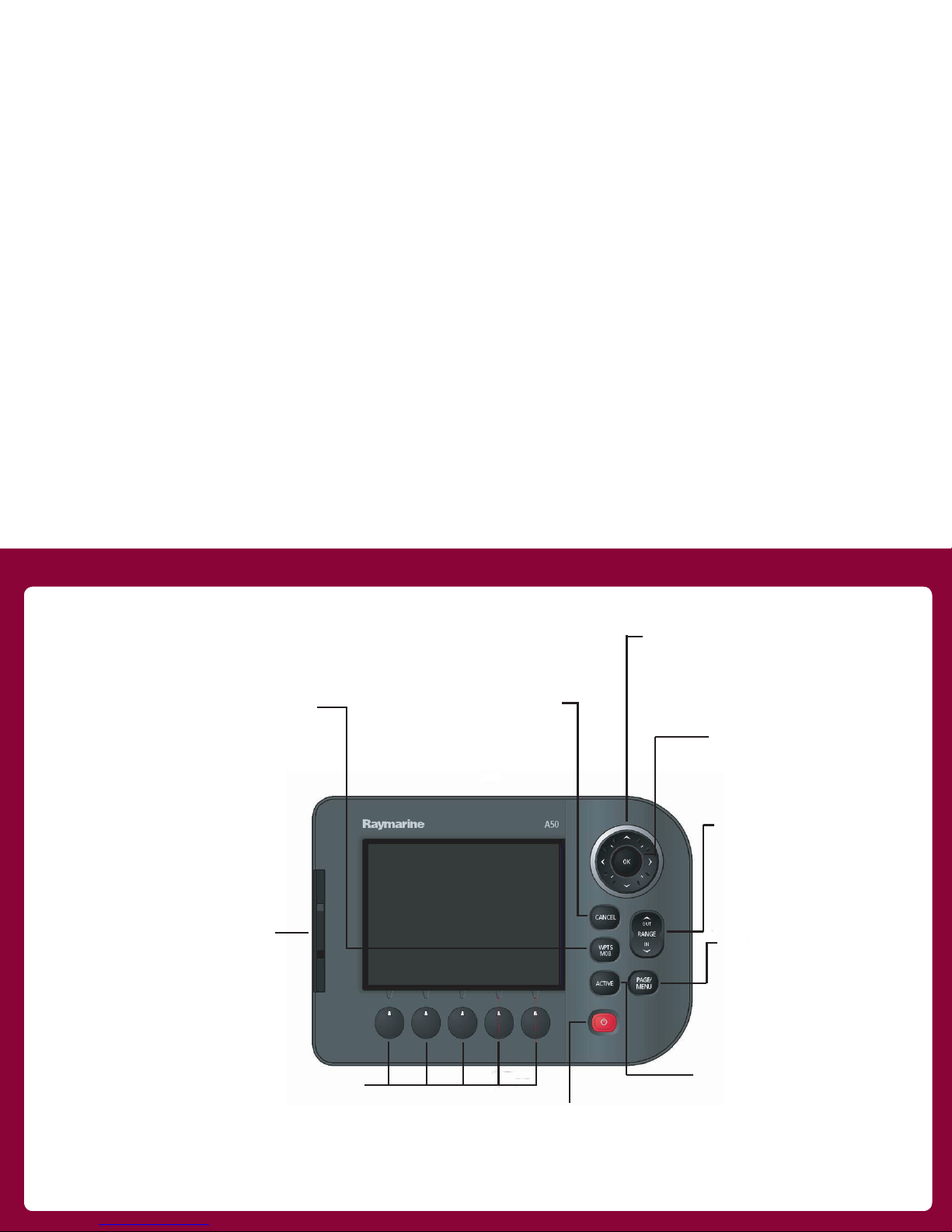

Controls

Chart card slot

Open the cover to install

CompactFlash cards

Softkeys

Press to select the corresponding

function identified by the on-screen

label

POWER

Press and release to turn ON.

Press and hold to turn OFF.

Trackpad

Controls the on-screen cursor.

Also used to scroll through menus.

Press the correspnding edge of the trackpad

to move the cursor horizontally, vertically or

diagonally.

CANCEL

Press to quit the selected

on-screen option when editing data.

Also used to return to the previous

softkey or menu level.

WPTS/MOB

Press and release to display the

waypoints softkeys.

Press again to place a waypoint

at your boat's position.

Press and hold to place a Man Overboard (MOB)

marker at your current position

RANGE

Changes the display scale.

Press to display a smaller area

on the screen.

Press to display a larger area

PAGE/MENU

Press to display softkeys for

active page.

Press and hold to access the

Setup menu.

ACTIVE

Selects which of the split

windows is active. The

selected screen is outlined

in red and the associated

softkey labels are displayed.

Press to select an on-screen

option or return to the previous

softkey or menu level.

Toolbars and softkeys

A toolbar is a set of softkeys and labels which appear along the bot-

tom of an application page or window. The label indicates the

function of the button below it. These labels and vary depending

upon how you are using the display.

Cursor

When you are using chart and fishfinder applications, the cursor is

used to move around the screen.

To move the cursor:

Press the trackpad in the direction you want the

cursor to move.

Panning and zooming

In the appropriate chart or fishfinder application windows, you can

pan and zoom the view to show a different geographic are (pan) or

change the scale at which an area is displayed (zoom).

To Pan the view

Use the trackpad to move the cursor to the edge of

the screen, The view automatically moves in the

selected direction to bring a different area into view.

To Zoom in or out

Use the RANGE button to change the scale of the

viewable area. Press ‘IN’ to see a smaller area of

the screen in more detail (large scale). Press ’OUT’

to see a greater area of the chart (small scale).

Display lighting and color

Your display unit has two distinct color palettes, for day or night oper-

ation. You can also manually adjust the backlight level.

Day/Night operation

To select the day/night mode of operation:

1. Press the Power key to display the palette select softkey and

brightness level.

2. Press the appropriate softkey to select between Day and Night

palettes.

Note: The display saves the current palette when the unit is

powered off. A display set to NIGHT may be difficult to see in

bright sunlight.

Backlight level

To adjust the backlight level:

1. Press the Power key to display the backlight level bar.

2. Use the left / right trackpad keys to adjust the backlight level.

3. Press OK to accept the setting and exit the backlight adjustment.

WAYPOINT AT

CURSOR

WAYPOINT AT

VESSEL

WAYPOINT AT

LAT/LONG...

GO TO WAYPOINT

OPTIONS…

REVIEW AND EDIT

WAYPOINTS

Applications

The A-Series features are provided within a number of applications.

Some applications are limited to certain models.

Chartplotter

Fishfinder

D Models only.

Course Deviation Indicator (CDI)

•Locate where you are

•Interpret your surroundings.

•Monitor where you are going.

•Record where you have been.

•Navigate to a specified position (waypoint).

•Build and navigate routes.

•View details of nearby features & services.

•View details of boats equipped with AIS.

•Measure distances and bearing

• See where the fish are.

• Identify underwater objects.

• View seabed structure.

• View sea depth and temperature data.

• Mark points of interest, like fishing spots

or wrecks

•View real-time display of your vessel on a

'rolling road' in 3D perspective.

•Give details of any correction required to

steer your vessel along a given course.

•View data about the distance and time to

go until you reach a specified point.

Data

3d chart

Requires upgraded cartography (chart card).

Displaying applications

The various applications that make up your A-Series system are

arranged in groups called page sets.

Selecting a page set

To select a page set:

1. Press and hold the PAGE/MENU key to display the setup menu

2. Choose the Select Page Set option.

Selecting an application page

Once you have selected the appropriate page set, as detailed above,

choose the application page that you want to use.

To view an application page:

1. Press PAGE/MENU to show the available pages in the toolbar.

2. Either select the application page you want from the toolbar or

toggle between the applications configured in the page set by

pressing PAGE/MENU.

3. Press OK or CANCEL.

• View data generated by the system or by

instruments available on NMEA 0183,

NMEA 2000 or SeaTalkng.

D9520-1

• Display a 3D view of land, sea & features.

• Locate where you are.

• Interpret your surroundings.

• Monitor where you are going.

• Go to an existing waypoint.

• Navigate a route.

• Synchronize with the 2D chart.

• Identify fishing spots.

Highlight appropriate

pre-configured page set

Split screen pages

When the selected page has more than one application, the window

that is currently active has a red border.

When selecting between active windows, the toolbar changes

accordingly.

To change the active window

1. Press ACTIVE to toggle active status between windows (the red

border moves to highlight the active window).

To toggle between split and single window views

1. In a multiple-window view, press and hold the ACTIVE button to

display the active window at full-screen.

2. Press ACTIVE once more to return to multiple-window view.

Emergencies and warnings

You can use your A-Series display to mark the position of a man

overboard (MOB) or to sound an alarm when a particular situation

occurs, e.g. when a depth limit is reached or a specified period of

time has elapsed.

Man overboard

If you lose a person or object overboard and need to return to the

spot, activate the Man Overboard (MOB) function immediately. The

MOB function is available at all times, whatever application is run-

ning on the A-Series display.

To activate the Man Overboard function

1. Press and hold the WPTS/MOB key for three seconds.

Note: To obtain an MOB position, you A-Series display must have a

GPS fix.

To cancel an MOB alarm:

1. Press and hold the WPTS/MOB button for four seconds.

Once the MOB alarm is cleared:

• the chart application motion mode is reset.

• the databar mode is reset.

• GOTO and route functions are restored.

Soft keys associated with active window

Active window highlighted

Alarms

Alarms are used to alert you of a hazard or particular situation. When

an alarm sounds, a message box appears on-screen to explain the

reason for the alarm.

To cancel an alarm:

1. Press the ACKNOWLEDGE softkey.

Raymarine plc

Anchorage Park,

Portsmouth,

Hampshire PO3 5TD

United Kingdom

Tel: +44 (0) 23 9269 3611

Fax: +44 (0) 23 9269 4642

Raymarine Inc.

21 Manchester Street,

Merrimack,

New Hampshire 03054-4801

USA

Tel: +1 603.881.5200

Fax: +1 603.864.4576

www.raymarine.com

Document number: 86136-1

Date: August 2008

Otros manuales para A Series A50

Tabla de contenidos

Otros manuales de GPS de Raymarine

Raymarine

Raymarine A60 Manual de usuario

Raymarine

Raymarine C-Series Manual de usuario

Raymarine

Raymarine Apelco DXL-6100 Manual de usuario

Raymarine

Raymarine GPS 15 Manual de usuario

Raymarine

Raymarine Apelco DXL-6000 Manual de usuario

Raymarine

Raymarine Rotary Drive Manual de usuario

Raymarine

Raymarine 435i Guía del usuario

Raymarine

Raymarine Compass Manual de usuario

Raymarine

Raymarine Apelco 6700 Manual de usuario

Raymarine

Raymarine AXIOM Manual de usuario

Raymarine

Raymarine Pathfinder Manual de usuario

Raymarine

Raymarine A60 Guía del usuario

Raymarine

Raymarine C120 Manual de usuario

Raymarine

Raymarine RS130 GPS Manual de usuario

Raymarine

Raymarine NMEA 0183 Guía del usuario

Raymarine

Raymarine Raynav 780 Manual de usuario

Raymarine

Raymarine C-Series Manual de usuario

Raymarine

Raymarine Raystar 125 Guía del usuario

Raymarine

Raymarine HSB Chartplotter Manual de usuario

Raymarine

Raymarine GPS 11 Manual de usuario

Raymarine

Raymarine GPS Plotter Guía del usuario

Raymarine

Raymarine RAYSTAR 120 Guía del usuario

Raymarine

Raymarine Apelco 6400 Manual de usuario

Raymarine

Raymarine Raychart 320 Manual de usuario

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Garmin

Garmin SOUNDER 125 Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Garmin

Garmin ECHOMAP PLUS Manual de usuario

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Garmin

Garmin 15 H Series Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

Garmin

Garmin DEZL OTR500 Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario
