RASOR FP862MT Instrucciones de montaje

PNEUMATIC SCISSORS

USE MANUAL

FP862

THE COMPANY

ACKNOWLEDGMENT

Rasor®Elettromeccanica S.r.l. was established in Milan in 1946 by the two promoting partners

Spinelli and Ciminaghi. For more than sixty years it has been producing automatic cutting

systems, cutting units for textile applications and electric and pneumatic cutters.

Initially considered as a point of reference for cutting systems in the

textile applications, the Rasor®products are nowadays widely used in

other fields: chemical, automotive, nautical and sport sectors and in

furniture manufacturing.

Rasor®can rely on the professional continuity of three generations,

thanks to the precious support of the promoting partner, to his passion, dedication and

great experience of seventy years.

The main characteristic of Rasor®is that each working phase, starting from the manufacturing

of the product up to its packing and delivery is carried out in Rasor®premises by qualified

operators who have professionaly grown up following the spirit of the company and of its

founders. This ensures the high quality which Rasor®has always considered as essential

since the beginning of its activity.

Following the innovative spirit mentioned above, our company is constantly focused on the

improvement of the product quality, on the study and development of new materials and

technologies.

Dear Customer,

thank you for choosing a Rasor®Elettromeccanica S.r.l. product.

Rasor®has been a reference point in the field of cutting systems in the textile, clothing,

furniture, tailoring, sport, chemical, automotive, nautical and insulating material sectors for

years. Its production has been always synonymous with reliability attested by many of

satisfied customers.

Rasor®quality system supervises all the company activities in order to provide the Customer

with a service that meets its needs and expectations in terms of product quality, delivery

reliability and stock of finished products.

All the parts of the devices have been planned and produced to guarantee an optimum

performance. In order to keep the high quality level and the long reliabilty of the Rasor®

products, it is recommended to use only original spare parts and to contact the head

office for any maintenance work.

1. GENERAL SAFETY RULES

This manual is an integral part of pneumatic scissors FP862MT and must be

carefully read before using it since it gives important indications with regards

to its safe installation, use and maintenance. Keep it with care.

Before using pneumatic scissors FP862MT, read carefully the following general

safety rules.

• PACKAGING.

After taking off the packaging make sure that the machine is intact. In case

of doubt do not use it and contact an authorized service centre. Do not leave

pieces of packaging (plastic bags, foam polystyrene, boxes, etc.) within the

reach of children or disabled persons since they are potential sources of danger.

•AVOIDDANGEROUSENVIRONMENTS.

•KEEPCHILDRENAWAY.

Unauthorized persons, in particular children, must be kept away from the

working area.

• KEEP THE WORKING AREA ALWAYS IN ORDER.

The workplace must always be kept in order and well lightened.

•ALWAYS USE PNEUMATIC SCISSORS FP862MT PROPERLY.

Use the scissors only to carry out the works they have been designed for; do

not use them improperly.

•OBSERVETHEUSEOFTHETOOLS.

Do not cut excessively thick materials and always check blade conditions.

•AVOID ACCIDENTAL STARTINGS.

Before connecting pneumatic scissors FP862MT, make sure that everything

is installed properly.

• CLOTHING.

Do not use large clothes or accessories that might get stuck in the moving

parts.

• GOGGLES AND PROTECTIVE METAL MESH GLOVES.

Always use goggles, protective metal mesh gloves approved by Rasor®during

use and maintenance operations (according to UNI EN 388:2004 standard).

•SPAREPARTS.

During maintenance and replacement operations use only original spare parts.

Blade maintenance must be only performed by Rasor®technicians.

• INSTALLATION.

Any installation that is not in conformity with these specifications could jeopardize

your safety and cancels the warranty.

The original configuration of the pneumatic scissors must not be changed at all.

On receiving the machine make sure the supply corresponds to what has been ordered.

In case of non-compliance immediately inform Rasor®.

Also make sure the scissors have not been damaged during transport.

Customer Care Technical Service

WARNING

Informative letter

WARNING

The installer and the maintenance man must know the content of this manual. Although

the main features of the machine described in this manual are not subject to change,

Rasor®Elettromeccanica S.r.l. reserves the right to modify the components, details

and accessories it deems necessary to improve the machine or to meet manufacturing

or commercial requirements at any time and without being obliged to update this

manual immediately.

ALL RIGHTS ARE RESERVED ACCORDING TO THE

INTERNATIONALCOPYRIGHTCONVENTIONS,

The reproduction of any part of this manual, in any form, is forbidden without

the prior written authorization of Rasor®Elettromeccanica S.r.l.

The content of this guide can be modified without prior notice. Great care has

been taken in collecting and checking the documentation contained in this

manual to make it as complete and comprehensible as possible.

Nothing contained in this manual can be considered as a warranty, either

expressed or implied - including, not in a restrictive way, the suitability warranty

for any special purpose. Nothing contained in this manual can be interpreted as a

modification or confirmation of the terms of any purchase contract.

Rasor® Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of

explosions and at high risk of fire.

In case of damage or malfunction, pneumatic scissors FP862MT must not be used until the

Customer Care Technical Service has repaired them.

For any information, please contact

RASOR®ELETTROMECCANICAS.r.l.

ViaV. Caldesi, 6; 20161,MILANO (MI) - ITALY

Phone: +39.02.66221231;Fax: +39.02.66221293

e-mail: info@rasor-cutter.com

web: www.rasor-cutters.com

2. TRANSPORT AND PACKING

3. PLATE DATA

Serial number

Year of production

Model

Motor data READ THE INSTRUCTION MANUAL

USE METAL GLOVES

USE GOGGLES

SHEARING RIS

DO NOT REMOVE THE SAFETY

DEVICES

The pneumatic scissors are delivered in a cardboard box, inside which there are various

optionals. The code of the ordered product and its serial number are indicated outside the

package (see picture 1). The following accessories are contained in a bag inside the package:

1) Octagonal blade (8 sides);

2) Butterfly key for blade nut disassembly;

3) Drift for blade disassembly.

The manufacturer's identification and 2006/42/EC STANDARD conformity plate (see picture

below) is located on the front part of the pneumatic scissors.

The plate must not be removed at all, even if the machine is resold. Always refer to the serial

number (written on the plate itself) when contacting the manufacturer.

Several safety warnings are printed on a card which is applied to the scissors feeding cable;

such warnings must be strictly followed by everyone dealing with the machine. The company

is not to be held responsible for damage to property or accidents to people which might

occur if the above-mentioned warnings are not observed. In such a case, the operator is the

only person responsible.

FP862MT MT

1400

4. PRODUCT DESCRIPTION

12 4

The fixture described in this manual is a pneumatic scissor model FP862MT which has been

designed to cut composite materials such as Kevlar, fiberglass or carbon fibre. It is extremely

versatile, light and precise in the cutting operation, suitable also for very difficult cuttings.

One special feature of pneumatic scissors FP862MT is their ability to sharpen the blade in

each moment without disassembling it by means of a grinding wheel mounted on the

scissors head. After carrying out this operation, it is possible to start cutting again. The

pneumatic scissors are provided with a threaded connection to the pneumatic circuits. The

turbine, perfectly balanced, with a high number of revolutions and totally free of maintenance,

reduces the vibrations and the noise to the minimum.

The pneumatic scissors can be used also outdoor and to cut damp or wet materials and

therefore particularly recommended in tannery, dyeworks, etc.

The pneumatic scissors FP862MT are extremely light (they weight only 1 Kg) and handy

and allow carrying out quick and precise cuts, even with curve profiles. The use of compressed

air as source of energy allows working continuously without problems of heating or

motor overload. The mechanical parts are made up of steel and high resistant bronze and

require a lubrication after many working hours.

11/4" gas connection for the air

connector 9 Sharpening button

2Safet device to enable the control

lever 10 Front guard of the blade (movable)

3 Control lever 11 Rear guard of the blade (fixed)

4 Supporting foot 12 Motor support

5 Polygonal blade 13 Silencer

6 Greaser 14 Reference drift

7 Pneumatic motor 15 Counterblade

8Sharpener

Device components

7. FIELD OF APPLICATION

6. NOISE LEVEL

5. TECHNICAL FEATURES

The technical data are only indicative and they can be changed without notice.

8sidebladeØ86mm,inH.S.S.steel

5sidebladeØ86mm,inH.S.S.steel

8 side blade Ø 86 mm, in H.S.S. steel treated

with titanium

8 side blade Ø 86 mm, in H.S.S. steel covered

with Teflon

5 side blade Ø 86 mm, in H.S.S. steel covered

with Teflon

8sidebladeØ86mm,inintegralhardmetal

(Widia)

Features of the available blades

86THSS

86THSSTN

86TMD

86PHSSTN

86THSSTF

86PHSS

The maximum acoustic pressure level emitted by pneumatic scissors FP862MT is about 60 dB

(A).

Noise tests have been carried out in compliance with Standard ISO 11202. The device noise

levels, measured at different distances (without any sound wave filtering system), vary in

the extent of few db (A). The noise level has beeen detected with the silencer supplied

with the fixture assembled on the exhaust. The silencer must never be removed.

NOTE

It is advisable for pneumatic scissors FP862MT owners to verify the compliance with the

standard concerning safety of workers: refer to the Local Law. The use of ear

protecting devicesiscompulsory.

Pneumatic scissors FP862MT have been designed, manufactured and assembled to cut every

kind of fabrics or materials, with the exception of metal, plastic or wood, by means of rotary

pentagonal or octagonal blades.

This equipment must not work:

-inareaspronetoexplosions;

- in presence of fine dust or corrosive gases;

- to cut plastic, metal and wooden materials.

It is forbidden to use pneumatic scissors FP862MT for purposes different from the

above-mentioned ones.

86 mm with hard-metal counterblade

1400 rev./min

about 20 mm

400 W with max. pressure

max. 6 bar

1100 g

2000 g

9 litres/sec.

LUX 200

< 2,5 m/s2

0 ~ 55°C

10 ~ 95% without condensate

Cutting working depth

Power

Weight

Pneumatic scissors FP862MT features

Blade diameter

Blade speed

Working pressure

Temperature

Humidity

Weight with package

Air consumption

Minimum light for working operations

Vibrations at the start up

8. USE WARNINGS

We recommend following the indications below in order to always work in safety conditions.

All the operations must be carried out complying strictly with the safety rules of the

country where the machine is to be installed.

It is STRICTLY FORBIDDEN to smoke during the installation or adjustment operations of

the pneumatic scissors.

The Customer undertakes to comply with and make his staff observe all the rules and

regulations in force concerning safety, prevention of accidents and health in the work

place. Therefore, the Customer assumes the responsibility to strictly follow all the rules and

regulations in force, as well as the special provisions in force in sport and public installations

the Customer declares to know after receiving all the relative necessary information.

The pneumatic scissors work also without their safety protective device and

when the protection guard is lifted. This protective device must NEVER be

removed.

Always check the resistance of the material to be cut and the kind of blade which is being

used.

The Customer shall equip his own personnel with all the individual safety protections for

the execution of the works, as well as with the ones which might be prescribed by the

Manufacturer due to specific danger conditions of the plant or of the area where the

personnel must work.

Only one operator must use the pneumatic scissors always standing behind the guide

handle. Do not make any adjustment while the blade is working.

Always pay attention to the position of the air pipe to prevent it from being cut or

damaged by the blade.

It is allowed to assemble pneumatic scissors FP862MT on machines O.E.M. on condition

that their original structure is not modified. Otherwise, the intervention must be certified

by Rasor®.

The pneumatic scissors FP862MT are equipped with double safety push button with a

lever and a ratchet on the handle: the ratchet prevents the start push button from being

enabled accidentally, the lever operates the scissors. Never remove the ratchet.

9. RESIDUAL RISKS

10. USE

Thecuttingbladecanworkevenwhentheprotectivedeviceisdisassembled.

Even though the pneumatic scissors are safe, operators must pay attention to preserve their

and other people’s safety.

To use the pneumatic scissors manually, proceed as follows:

1) Lay the material to be cut on the table;

2) Connect the air hose to the quick connection “A” (not supplied) (see picture 3);

3) Adjust the pressure gauge (optional) on 6 bar;

4) Put the material on the cutting foot (see picture 4);

5) Push the starting lever after moving the safety device (see picture 5);

6) Push the pneumatic scissors in the desired direction, being careful to keep the material

in front of them as stretched as possible and preventing it from curling in the front

part of the scissors.

NOTE

The thrust on the pneumatic scissors must be as uniform as possible. To carry out linear cuts

with precision (and to follow predetermined paths), we also recommend using the arrow

pointonthefrontprotection(seepoint“B”infigure6).

12. BLADE SHARPENING

11. AIR PRESSURE GAUGE (OPTIONAL)

The sharpener button can be used only if the

transparent guard is completely lowered.

WARNING

13. LUBRICATION

The blade must never be dirty with grease or oil.

WARNING A

The pneumatic scissors must be necessarily fed with

lubricated air with a pressure of maximum 6 bar.

Rasor®offers, as optional, a reduction unit filter with

a pressure gauge already calibrated with the quantity

of oil to be delivered as optional.

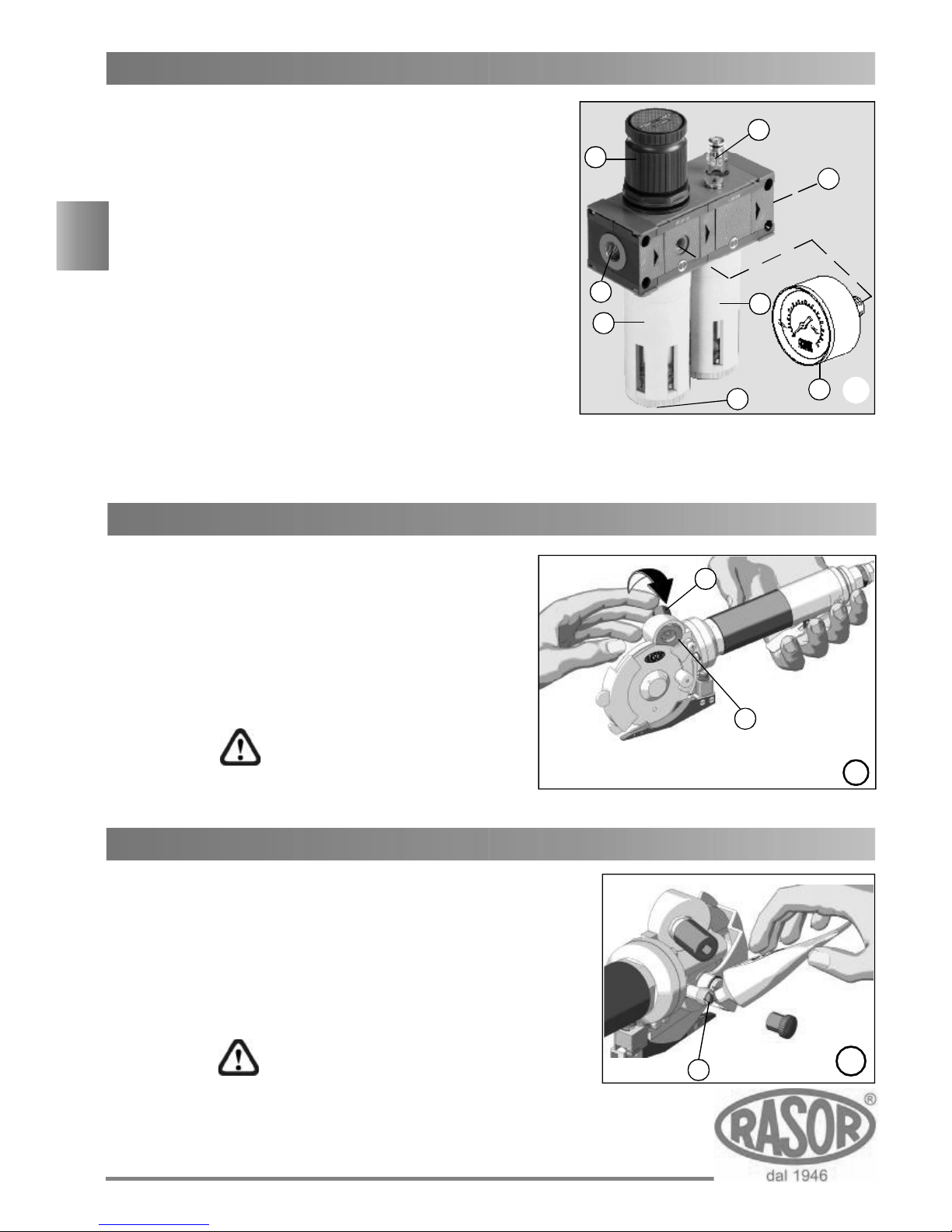

The unit shown also in picture 7 is made up of:

1 - pressure reducer;

2 - valve to drain the condensate;

3 - drip-feed oiler unit;

4-oiltank;

5 - pressure gauge;

6-condensatetank;

7 - pipe fitting to connect the quick connection to

the network;

8 - pipe fitting to connect the quick connection to the scissor.

For the use and maintenance read the instruction sheet supplied with the filter.

After using the machine for some hours without

interruption, or if the machine cutting capacity

is reduced, it is necessary to sharpen the blade.

To carry out this operation, start the blade and

press sharpener “2” on the blade itself (by means

of push button “1”, as shown in picture 8) for 3-

4 seconds. Repeat this operation 2-3 times.

Every 3-4 working hours, it is necessary to lubricate the

gear pair. In order to carry out this operation, remove

protective plug “A” located on the head of the pneumatic

scissors and fill it with the grease supplied. Screw plug

“A” again a few turns. Screw plug “A” a few turns every

2-3 working hours (see picture 9).

Tabla de contenidos

Otros manuales de Cortador de RASOR

RASOR

RASOR FORZA Instrucciones de operación

RASOR

RASOR GRT86 Guía de configuración rápida

RASOR

RASOR SW12SSX Manual de usuario

RASOR

RASOR GRT10 Manual de usuario

RASOR

RASOR FP100 Instrucciones de montaje

RASOR

RASOR FP120DT Instrucciones de montaje

RASOR

RASOR FP861A2 Instrucciones de montaje

RASOR

RASOR SW12SSM Manual de usuario

RASOR

RASOR DD120R Manual de usuario

RASOR

RASOR SW12S Instrucciones de montaje

RASOR

RASOR FP120M Manual de usuario

RASOR

RASOR DD120LC Manual de usuario

RASOR

RASOR GRT12SX Manual de usuario

RASOR

RASOR SW100 Instrucciones de montaje

RASOR

RASOR FP861V Manual de usuario

RASOR

RASOR FP120SM Manual de usuario

RASOR

RASOR FP861/A1 Instrucciones de montaje

RASOR

RASOR GRT-MINI Instrucciones de montaje

RASOR

RASOR DD120L Manual de usuario

RASOR

RASOR GRT12 Manual de usuario

RASOR

RASOR SW12M Instrucciones de montaje

RASOR

RASOR SW100S Instrucciones de montaje

RASOR

RASOR D86P2 Instrucciones de montaje

RASOR

RASOR GRT12M Manual de usuario

Manuales populares de Cortador de otras marcas

Milwaukee

Milwaukee HEAVY DUTY M12 FCOT Manual de usuario

Makita

Makita DCS552 Manual de usuario

SignWarehouse.com

SignWarehouse.com Bobcat BA-60 Manual de usuario

Makita

Makita 4112HS Manual de usuario

GEISMAR STUMEC

GEISMAR STUMEC MTZ 350S Manual de usuario

Hitachi

Hitachi CM 4SB2 Guía de solución de problemas

Dexter Laundry

Dexter Laundry 800ETC1-20030.1 Manual de usuario

GCC Technologies

GCC Technologies AFJ-24S Manual de usuario

DeWalt

DeWalt XR LI-ION DCS350N Manual de usuario

Baudat

Baudat ES1 Manual de usuario

Mafell

Mafell ZAF 200 Guía

Makita

Makita 4100NH Manual de usuario

Formax

Formax FD 574 Manual de usuario

EINHELL

EINHELL TE-MA 1500 Manual de usuario

Husqvarna

Husqvarna Cut-n-Break K 760 Manual de usuario

CLEAN ROOM DEVICES

CLEAN ROOM DEVICES CRD130SS Manual de usuario

TRI tool

TRI tool 301A Manual de usuario

Roller

Roller King 1 1/4 Manual de usuario
