Be safe

You need clean fresh air - so does your cooker. Burner ﬂames produce exhaust

gases, heat and moisture. Make sure that the kitchen is well ventilated: keep

natural ventilation holes open or install a powered cooker hood that vents outside.

If you have several burners on or use the cooker for a long time, open a window or

turn on an extractor fan. For more detail see the Installation Instructions.

We recommend you read the ‘General Safety Instructions’ section if you have not

used a gas cooker before. We describe some basic guidelines on how to use a gas

cooker safely.

Gas and Electricity on

Make sure that the gas supply is turned on and that the cooker is wired in and

switched on.

The cooker needs electricity.

Peculiar smells

When you ﬁrst use your cooker it may give off a slight odour. This should stop after

a little use.

Contents

Hotplate Burners Page 4

The Griddle Page 5

The Wok Ring Page 6

The Grill Page 7

The Ovens Page 8

The Left Hand Oven Page 8

The Right Hand Tall Oven Page 8

The Clock Page 9

Both Ovens Page 11

Multi-function oven Page 12

Handyrack Page 13

Oven shelves Page 14

Tall oven shelves Page 14

Multi-function Oven cooking guide Page 15

Oven Cooking chart Page 16

Cleaning your cooker Page 17

Moving your cooker Page 20

Troubleshooting Page 20

General Safety Instructions Page 22

Installation Page 24

Conversion to LP gas Page 30

Circuit Diagram Page 37

Technical Data Page 38

Hotplate Burners

The drawing by each knob indicates which burner that

knob controls.

Push in and turn a knob to the large ﬂame symbol ( ) and

press the igniter button or light with a match.

Adjust the ﬂame height to suit by turning the knob. On

this cooker the low position is beyond high, not between

high and off. The small ﬂame marks the ‘low position’.

Turn the knob towards it after the contents of a pan have

boiled.

Make sure ﬂames are under the pans. Using a lid will help

the contents boil more quickly.

Pans and kettles with concave bases or down turned

base rims should not be used.

Simmering aids, such as asbestos or mesh mats, are

NOT recommended. They will reduce burner performance

and could damage the pan supports.

Avoid using unstable and misshapen pans that may tilt

easily and pans with a very small base diameter e.g. milk

pans, single egg poachers. The minimum pan diameter

recommended is 120mm (about 43/4").

The Wok burners are designed to provide even heat over

a large area. They are ideal for large pans and stir frying.

For heating smaller pans the smaller burners may be

more efﬁcient.

When ignition button knob is pressed in,

sparks will be made at every burner, this is

normal.

If after lighting, a hotplate burner’s ﬂame goes

out, turn it off and leave it for one minute before

relighting it.

You can remove the burner cap and trim

rings for cleaning, see pages 18/19.

You should wipe the enamel top surface of the

cooker around the hotplate burners as soon as

possible after spills occur. Try to wipe them off

while the enamel is still warm.

Avoid using unstable and misshapen pans,

which may tilt easily, and pans with a very

small base diameter, e.g. milk pans, single egg

poachers.

The minimum pan diameter recommended is

120mm (43/4"). Smaller pans will be unstable.

Pans and kettles with down turned base rims

should not be used.

Note:

Use of aluminium pans may cause metallic

marking of the pan supports. This does not

affect the durability of the enamel and may

be cleaned off with a metal cleaner such as

'Brasso'.

The Griddle

The griddle ﬁts the left pan support, front to back. It is

designed for cooking food on directly. Don’t use pans of

any kind on it. The griddle surface is non-stick and metal

cooking utensils (e.g. spatulas) will damage the surface.

Use heat resistant plastic or wooden utensils.

Don’t put it on the centre Wok burner - it is not designed

to ﬁt the Wok burner pan support and will be unstable.

Position the griddle over the hotplate burners resting on

the pan support.

Check that it is securely located.

The griddle can be lightly brushed with cooking oil before

use. Light the hotplate burners. Adjust the ﬂame heights

to suit.

Preheat the griddle for a maximum of 5 minutes before

adding food. Leaving it longer may cause damage. The

controls can be turned to a lower position simply by

turning the control knobs towards the lower position

marked with the small ﬂame symbol.

Always leave space around the griddle for the gases to

escape. Never ﬁt two griddles side by side. Large pans

should also be spaced well apart.

Use the following heat settings as a guide for

griddle cooking.

High/medium:

Drop scones, Bacon, Chops, Steak, Burgers.

Medium/low:

Potato cakes, Eggs, Fish cakes.

Experience will soon familiarise you with the

correct setting to use for cooking.

After cooking allow the griddle to cool before

cleaning.

Don’t put it on a Wok burner - it is not designed

to ﬁt the Wok burner pan supports.

The Wok cradle

The Rangemaster Wok cradle is designed to ﬁt a

TyphoonTM Professional 14” Wok.

This is available from CookCraft (www.cookcraft.com) and

also from other retailers.

If you use a different Wok make sure that it ﬁts the cradle.

Woks vary very widely in size and shape. It’s important

that the Wok sits down on the pan support - but if the Wok

is too small the cradle will not support it properly.

The cradle should be used on the triple ring Wok burner

only.

When you ﬁt the cradle check that the Wok is properly

located on the front and rear ﬁngers and that it is

supported properly on a pan support.

Make sure the cradle is stable and that the Wok is sitting

level in the ring.

The cradle will get very hot in use - allow plenty of

time for it to cool before you pick it up.

Care and Cleaning

Essential information

Never use paint solvents, washing soda, caustic

cleaners, biological powders, bleach, chlorine

based bleach cleaners, coarse abrasives or salt.

Recommended cleaning materials are hot soapy

water, a moistened soap pad, cream cleaner or

a nylon scourer.

The Grill

CAUTION: Accessible parts may be hot when

the grill is in use. Young children should be

kept away.

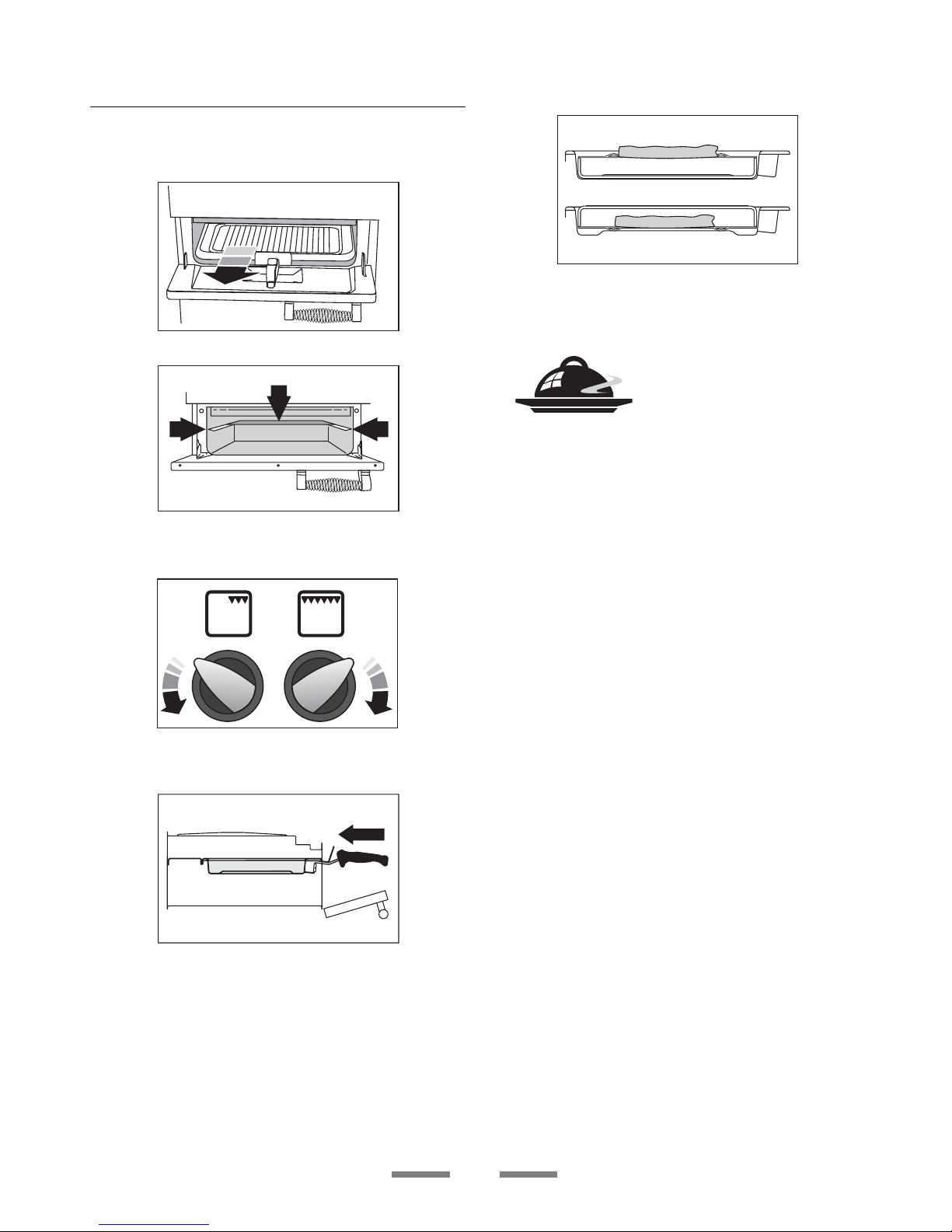

Remove the pan from the bottom of the grill compartment.

After placing your food on the grill tray pan, slide the grill

pan onto the side supports just below the elements. Make

sure it is pushed right in and touches the backstop.

The grill has two elements that allow either the whole

area of the pan to be heated or just the right hand half.

Turn the knob to position 3.

For best results preheat for 2 minutes with the grill pan in

position. After placing your food on the grill pan grid, slide

the grill pan onto the side supports. Adjust the heat to suit

by turning the knob.

Make sure it is pushed right in and touches the back

stop.

Never close the grill door when the grill is on.

The grill pan grid can be turned over to give two grilling

positions.

Don’t leave the grill on for more than a few

moments, without the grill pan underneath it.

For best results, especially with toast,

preheat the grill with the grill pan in the

cooking position for two minutes before use.

The grill trivet can be removed and the food

placed on it while you are waiting for the grill to

preheat.

The grill pan grid can be turned over to give

two grilling positions.

You can brown the top of dishes cooked in the

oven, under the grill by placing the dish onto

the base of the grill pan, which can easily slide

along the ﬂoor of the grill cavity.

The Ovens

During use the appliance becomes hot. Care should be taken to avoid the touching heating

elements inside the oven.

The clock must be set to the time of day before the ovens will work. See ‘The Clock’ section for

instructions on setting the time of day.

The Left Hand Oven The Right Hand Tall Oven

The left hand oven is a Multi-function oven. As well as

the oven fan and fan element, it is ﬁtted with two extra

heating elements, one visible in the top of the oven and

the second under the oven base. Take care to avoid

touching the top element and element deﬂector when

placing or removing items from the oven. For more detail

on this oven see the section ‘Multi-function oven’.

The fan in the right hand oven circulates hot air

continuously, which means faster more even cooking.

The recommended cooking temperatures for a fanned

oven are generally lower than a non-fanned oven.

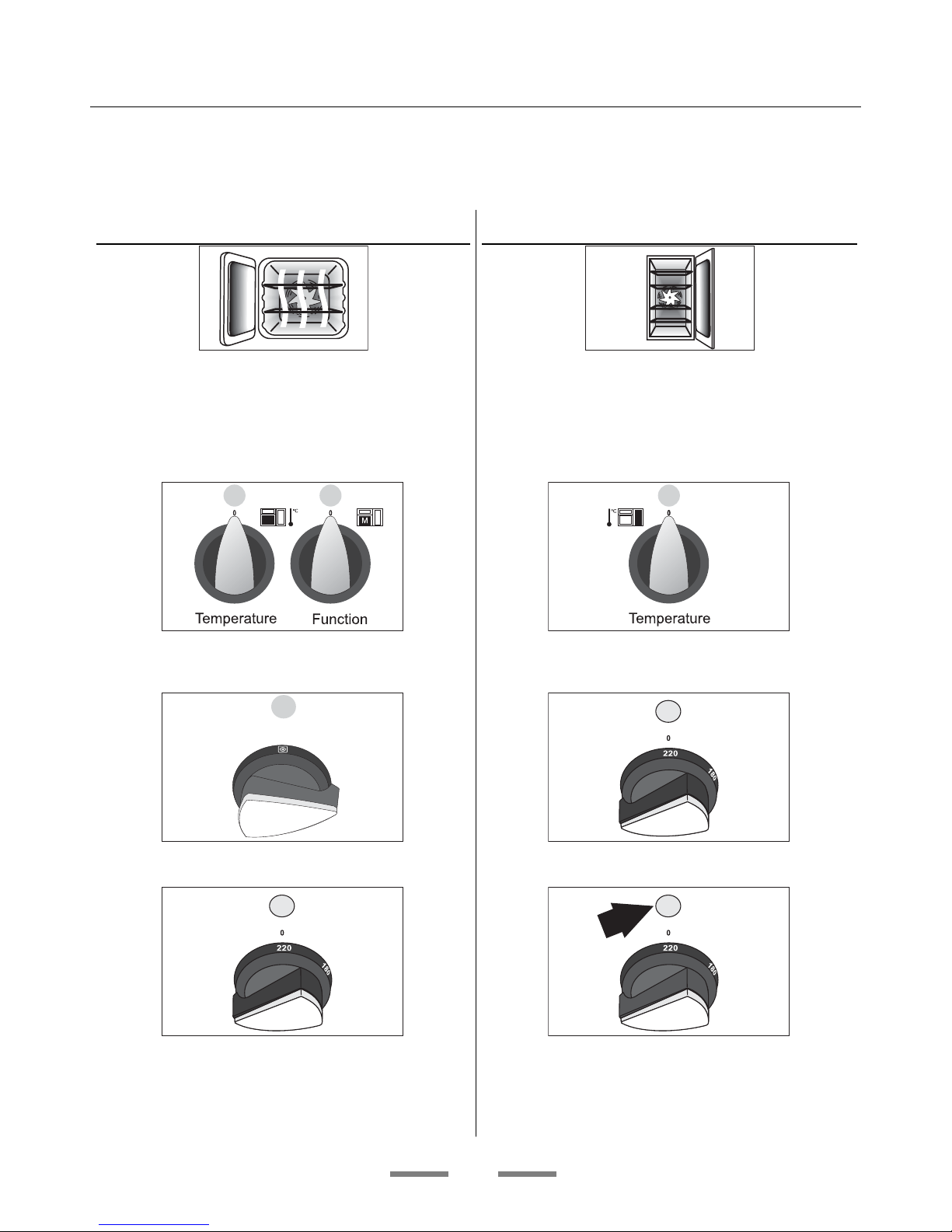

The Multi-function oven has two controls, a function

selector and a temperature setting knob..

The right hand fan oven control is at the right hand end

of the control panel.

Turn the function selector control to a cooking function.

This is the fan oven setting.

Turn the oven temperature knob to the temperature you

need.

Turn the oven temperature knob to the temperature you

need.

The oven heating light will glow until the oven has

reached the temperature you selected. It will then cycle

on and off during cooking.

The oven indicator light will glow until the oven has

reached the temperature you selected. It will then cycle

on and off during cooking

The Clock

You can use the timer to turn the ovens on and

off. The clock must be set to the time of day

before the ovens will work.

Setting the time of day

Timer knob Adjusting knob

When the clock is ﬁrst connected the display will

ﬂash ( ) and ( ) alternately.

To set the clock to read the time of day turn and

hold the Timer knob to the clock symbol ( )

and at the same time turn the Adjusting knob

left or right until the clock shows the time of day.

Remember this is a 24 hour clock. Let go of the

Timer knob and it will spring back to the vertical

(

) oven manual setting.

To time something that’s cooking

(minute minder)

Turn the Timer knob

to the right to the ( )

minute minder setting - it

should click into position.

Use the Adjusting knob to

set the time you need.

You can turn the knob back to the ( ) manual

setting to keep an eye on the time of day or

leave it in the ( ) minute minder position as the

time ticks down.

To stop the beeper when it sounds

Turn the Adjusting knob anticlockwise

To stop automatically

Use when you have started the oven manually.

Turn the Timer knob to the

() position.

Use the Adjusting knob to

set the time you need.

‘Stop Time’ shows.

AUTO will show in the

display.

Turn the Timer knob to the (AUTO) setting.

When your cooking is ﬁnished the beeper

sounds. Turn the Timer knob to the vertical (

)

to return to manual cooking.

To start and stop the oven

automatically

Before you set the clock, you must have two

numbers clearly in mind.

The ‘cook time’, which is the period of time you

want the oven to cook.

The ‘stop time’, which is the time of day you

want the oven to stop cooking.

You cannot set a start time directly - this is set

automatically by setting the cooking period and

stop time.

Turn the Timer knob to the

() position.

Use the Adjusting knob to

set the ‘cooking time’ you

need.

Turn the Timer knob to the

( ) position. The display

will show the current

time of day plus the ‘cook

period’ you just set.

Use the Adjusting knob

to set the ‘Stop time’ you

need.

‘Stop Time’ shows. AUTO

will show in the display.

Set the oven(s) to the cooking temperature you

need (don’t forget to set a function if using the

Multi-function oven).

Turn the Timer knob to the (AUTO) setting.

When your cooking is ﬁnished the beeper

sounds. Turn the Timer knob to the vertical ( )

to return to manual cooking.

If you are out, don’t worry about the beeper

going off, it stops after a while. When you return,

turn the Timer knob to the vertical ( ) to return

to manual cooking. Turn the thermostat to the off

position.

AUTO is showing, you want to reset

to manual cooking.

You can cancel any automatic settings by

turning the Timer knob to the vertical manual

symbol ( ).

Clock Special Features - Key Lock

When the key lock is activated, the clock can

be operated as usual but the ovens are locked

and will not come on. This means that your child

could select a cook program but the program will

not be activated and ovens will not switch on.

To activate the key lock

Make sure that the clock is in manual mode and

cancel any active programs.

Turn and hold the Timer

knob to the clock symbol (

) for about 8 seconds.

‘On’ will appear on the

display.

Keep holding the Timer

knob turned to the clock

symbol ( ) and turn the

Adjusting knob clockwise

until the key symbol (

) and ‘Of’ shows on the

display. Let go of the knobs

The ovens are now locked.

After a few seconds the

display will revert to show

the time of day and the key

symbol.

To turn off the key lock

Turn and hold the Timer

knob to the clock symbol (

) for about 8 seconds.

‘Of’ will appear on the

display.

Keep holding the Timer

knob turned to the clock

symbol (

) and turn the

Adjusting knob clockwise

until the key symbol

() goes out on the display

and ‘On’ shows. Let go of

the knobs.

After a few seconds the

display will revert to show

the time of day.

The ovens can now be

used normally.

Otros manuales para 90 Dual Fuel

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Horno de Range Master

Range Master

Range Master Classic Deluxe 110 Dual Fuel Manual de instrucciones

Range Master

Range Master Single Built in Oven Manual de usuario

Range Master

Range Master U102110-07 Manual de usuario

Range Master

Range Master Double Built in Oven Manual de usuario

Range Master

Range Master Hi-LITE 110 Manual de instrucciones

Range Master

Range Master RMB7248BL/SS Manual de usuario

Range Master

Range Master U108910-01 Manual

Range Master

Range Master Classic 60 Gas Manual de usuario

Range Master

Range Master RMB610PBL/SS Manual

Range Master

Range Master Classic Deluxe 100 Dual Fuel Manual de instrucciones

Range Master

Range Master RMB604BL/SS Manual de usuario

Range Master

Range Master RMB9048BL/SS Manual

Range Master

Range Master RMB9045BL/SS Manual

Range Master

Range Master R609 Manual

Range Master

Range Master R6012 Manual

Range Master

Range Master RMB7245BL/SS Manual de usuario

Range Master

Range Master Elise SE 110 Manual de instrucciones

Range Master

Range Master RMB610BL/SS Manual de usuario

Range Master

Range Master RMB45SCBL/SS Manual

Range Master

Range Master RMB6010BL/SS Manual

Range Master

Range Master Kitchener Manual de instrucciones

Range Master

Range Master 60S Guía de referencia rápida

Range Master

Range Master Excel 110 Ceramic Manual de instrucciones

Range Master

Range Master Classic Deluxe 90 Induction Manual de instrucciones

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
