R&S RT-ZP05S Manual de usuario

R&S®RT-ZP05S

Probe

User Manual

1179512402

Version 01

(;ÝÁH2)

This document describes the following R&S®RT-ZP05S models:

●R&S®RT-ZP05S (1333.2401.02)

Mühldorfstr. 15, 81671 München, Germany

Phone: +49 89 41 29 - 0

Email: [email protected]

Internet: www.rohde-schwarz.com

Subject to change – data without tolerance limits is not binding.

R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.

Trade names are trademarks of the owners.

1179.5124.02 | Version 01 | R&S®RT-ZP05S

Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, e.g.

R&S®RT-ZP05S is indicated as R&S RT-ZP05S.

Safety and Regulatory Information

R&S®RT-ZP05S

3User Manual 1179.5124.02 ─ 01

1 Safety and Regulatory Information

The product documentation helps you use the R&S RT-ZP05S safely and effi-

ciently. Follow the instructions provided here and throughout the manual.

Use the product only for its intended use and within its performance limits. If the

probe assembly is used in a manner not specified by the manufacturer, the pro-

tection provided by it may be impaired.

Operating site

Only use the product indoors, and keep it dry. The product has no casing and is

sensitive to moisture and humidity.

Do not use the probe in explosive atmospheres.

The product is suitable for pollution degree 2 environments where nonconductive

contamination can occur. Occasionally a temporary conductivity that is caused by

condensation must be expected. Temporary condensation occurs only when the

product is out of service.

Using the probe

Take the following measures for your safety:

●Before connecting the probe to a circuit under test, make sure the probe is

connected to a grounded measurement instrument.

●Do not connect a probe to any voltage that exceeds the maximum permissible

input voltage specified in the data sheet.

●Do not use the probe for measurements on mains circuit.

●Do not use the probes in circuits with measurement category II, III or IV.

●With increasing frequency the voltage on the probe tip should not be higher

than illustrated in the derating curve.

●Always connect the probe lead to earth ground.

Declaration of Conformity

The manufacturer declares the conformity of this product with the actual required

safety standards in accordance with the Low Voltage Directive IEC 61010-031

Safety requirements for electrical equipment for measurement, control and labo-

ratory use.

Safety and Regulatory Information

R&S®RT-ZP05S

4User Manual 1179.5124.02 ─ 01

Part 031: Safety requirements for hand-held probe assemblies for electrical mea-

surement and test

Measurement Categories

IEC 61010-2-030 defines measurement categories that rate instruments on their

ability to resist short transient overvoltages that occur in addition to the working

voltage. Use the measurement instrument and accessories only in electrical envi-

ronments for which they are rated.

●0 - Instruments without rated measurement category

For measurements performed on circuits not directly connected to mains, for

example, electronics, circuits powered by batteries, and specially protected

secondary circuits. This measurement category is also known as CAT I.

●CAT II:

For measurements performed on circuits directly connected to the low-voltage

installation by a standard socket outlet, for example, household appliances

and portable tools.

●CAT III:

For measurements performed in the building installation, such as junction

boxes, circuit breakers, distribution boards, and equipment with permanent

connection to the fixed installation.

●CAT IV:

For measurements performed at the source of the low-voltage installation,

such as electricity meters and primary overcurrent protection devices.

Disposal

This electronic product is classified within the WEEE/ RoHS category list as

monitoring and control equipment (category 9). Category 9 products are

exempted from the restrictions under the scope of the RoHS directive.

Rohde & Schwarz has developed a disposal concept for the ecofriendly disposal

or recycling of waste material. Rohde & Schwarz fully assumes its obligation as a

producer to take back and dispose of electrical and electronic waste. Contact

your local service representative to dispose of the product.

EC Directives

●WEEE Directive 2002/96/EC - Waste Electrical and Electronic Equipment

●RoHS Directive 2002/95/EC - Restriction of the use of certain Hazardous Sub-

stances in Electrical and Electronic Equipment

Safety and Regulatory Information

R&S®RT-ZP05S

5User Manual 1179.5124.02 ─ 01

Meaning of safety labels

Safety labels on the product warn against potential hazards.

Potential hazard

Read the product documentation to avoid personal injury or product damage.

Electrical hazard

Indicates live parts. Risk of electric shock, fire, personal injury or even death.

Specifications

R&S®RT-ZP05S

6User Manual 1179.5124.02 ─ 01

2 Specifications

Table 2-1: Electrical specifications

Attenuation ratio 10 : 1

Bandwidth 500 MHz (meas.), –3 dB

Rise time 0.7 ns (meas.)

Input impedance 10 MΩ II 10 pF (meas.)

Input voltage max. 300 VRMS (450 V transient overvoltage)

Table 2-2: Miscellaneous

Temperature range 0 °C to 40 °C

Relative humidity max. 80%, without condensation

Altitude max. 2000 m

Pollution degree 2

Cable length ca. 1.30 m

Derating

The input impedance of the probe decreases as the frequency of the applied sig-

nal increases.

Figure 2-1: Derating curve

Specifications

R&S®RT-ZP05S

7User Manual 1179.5124.02 ─ 01

Included in delivery

Figure 2-2: Parts included in delivery

1 = Probe

2 = Ground clip

3 = Protection cap

4 = Ground lead

5 = Retractable hook

6 = Adjustment tool

7 = BNC adapter

8 = IC Insulating cap

9 = Identification tags

10 = Additional probe tip

Adjustment

R&S®RT-ZP05S

8User Manual 1179.5124.02 ─ 01

3 Adjustment

The probe can be adjusted for low (LF) and high frequency compensation (HF).

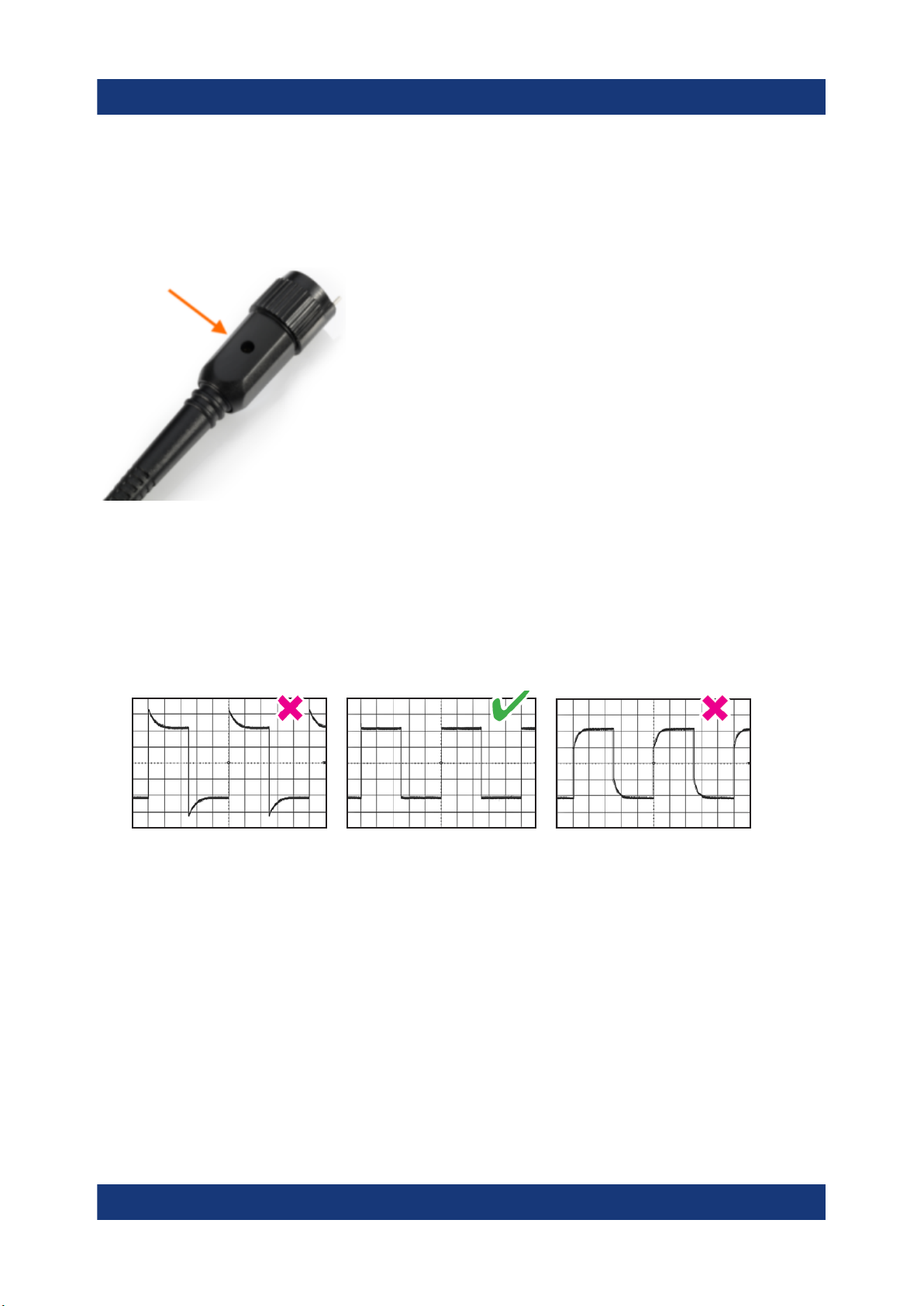

Figure 3-1: LF compensation trimmer

LF adjustment

1. Connect the probe to a 1 kHz square wave signal.

2. Adjust LF compensation trimmer T1 for optimum square wave response.

Figure 3-2: LF adjustment with 1 kHz signal

Maintenance

R&S®RT-ZP05S

9User Manual 1179.5124.02 ─ 01

4 Maintenance

4.1 Cleaning

1. Clean the outside of the product using a soft cloth moistened with either distil-

led water or isopropyl alcohol. Keep in mind that the casing is not waterproof.

Note: Do not use cleaning agents. Solvents (thinners, acetone), acids and

bases can damage the labeling or plastic parts.

2. Dry the product completely before using it.
