RAKwireless RAK7249 Manual de usuario

Industrial Outdoor LoRa Gateway

RAK7249

Quick Start Guide

[email protected]

www.rakwireless.com

Step 1: Attach the antennas

First and foremost screw on the antennas. All 5 of them should be installed

(WiFi, LoRa, LTE on the top, and GPS on the bottom).

Note: Do not power the device if the antenna port has been left open (not

connected to the antenna).

Step 2: Power on the Gateway

It is recommended to use a CAT5 cable to provide power to the Gateway.

Attach one end to the PoE injector and the other to the Ethernet port on the

bottom of the casing.

Step 3: Connecting to the Gateway

Use either the Ethernet Port or WiFi.

In both modes you can access the Management UI via a web browser

pointing to the IP address of the Gateway (check your router DHCP list).

WiFi AP mode

By default the Gateway is configured to work in Access Point (AP) mode.

It has the following parameters:

SSID: RAK7249_xxxx, “xxxx” means the last 4 characters of MAC (no

password is required to connect via WiFi).

Access Web UI: Connect via a browser to the default IP (192.168.230.1) of

the gateway.

UI user: root

UI password: root

WAN port (DHCP IP) mode

Connect the Ethernet cable to the port marked “ETH” on POE injector and the

other end to your Router. Find the IP address of your gateway on the DHCP

list in your Router.

Access Web UI: Connect via a browser to the IP address of your gateway.

UI user: root

UI password: root

First Time Power Up

Step 4: Connecting the Gateway to TTN

The Gateway EUI can be found via the Overview page in the Web UI.

Go to your TTN console (you need to register an account first) and register your

new gateway using the link below:

https://console.thethingsnetwork.org/gateways/register

Make sure to select the “I’m using the legacy packet forwarder” option, before

entering the Gateway EUI.

Select your Frequency Plan depending on your location. This should populate the

Router field. Optionally you can choose to enter the Gateway coordinates in the

map’s upper right corner and select if the gateway is indoor or outdoor via the

Antenna placement field below the map.

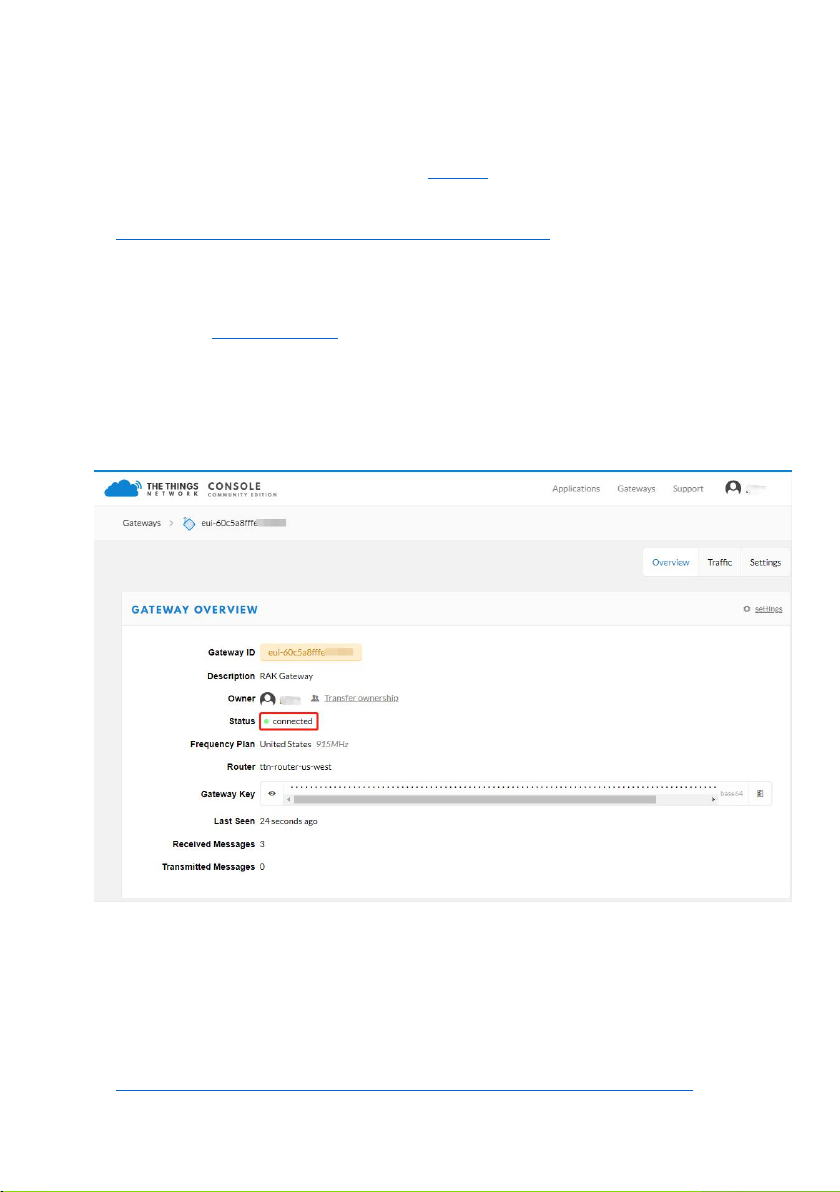

Upon successful registration you should see the following screen:

Your Gateway should now be registered with TTN and you should be able to

forward LoRa packets.

Note: By Default the Gateway is set to connect to TTN (using it as its LoRa

Network server). For detailed information about advanced configuration

options refer to the Configuration Guide via the link:

https://www.rakwireless.com/en/download/LoRa/DIY-Gateway-RAK7249

Gateway Device

Mounting Kit PoE Injector GPS WiFi LTE LoRa

Casing and Ports

Package Content

The gateway has already assembled before shipment. Also you can refer to

the guide or video of the assembly procedure in case you want to know how

to put the components together. Please email us for the guide and video.

Step 1: Fix the device bracket to the backside of the enclosure with four

M6x12 screws

Assembly

Mounting

Step 2: Tighten the pole clamp with hexagonal bolts M6x110, washers

and nuts

Step 3: Connect the clamp and the bracket on the backside of the casing

with hexagonal bolts M6x30, washers and nuts

Note: All the necessary components (bolts, washers, buts) come with

the mounting kit.

Support center: https://forum.rakwireless.com/

Email us: info@rakwireless.com
