RadiSys PM6165B ONT Manual de usuario

Quick

Installation Guide

PM6165B ONT

Document Revision 0.1 (draft)

Interfaces Specication

VoIP 1 FXS ports (RJ11)

USB USB 2.0 Type A

Power Adaptor Input 90-240VAC, 50/60Hz

Power Adaptor Output +12VDC nominal, 2A

Operating Temperature 0 to 40°C (32 to 104°F)

Operating Humidity 5 to 90% (non-condensing)

Dimensions 220 x 160 x 40 mm (W x D x H)

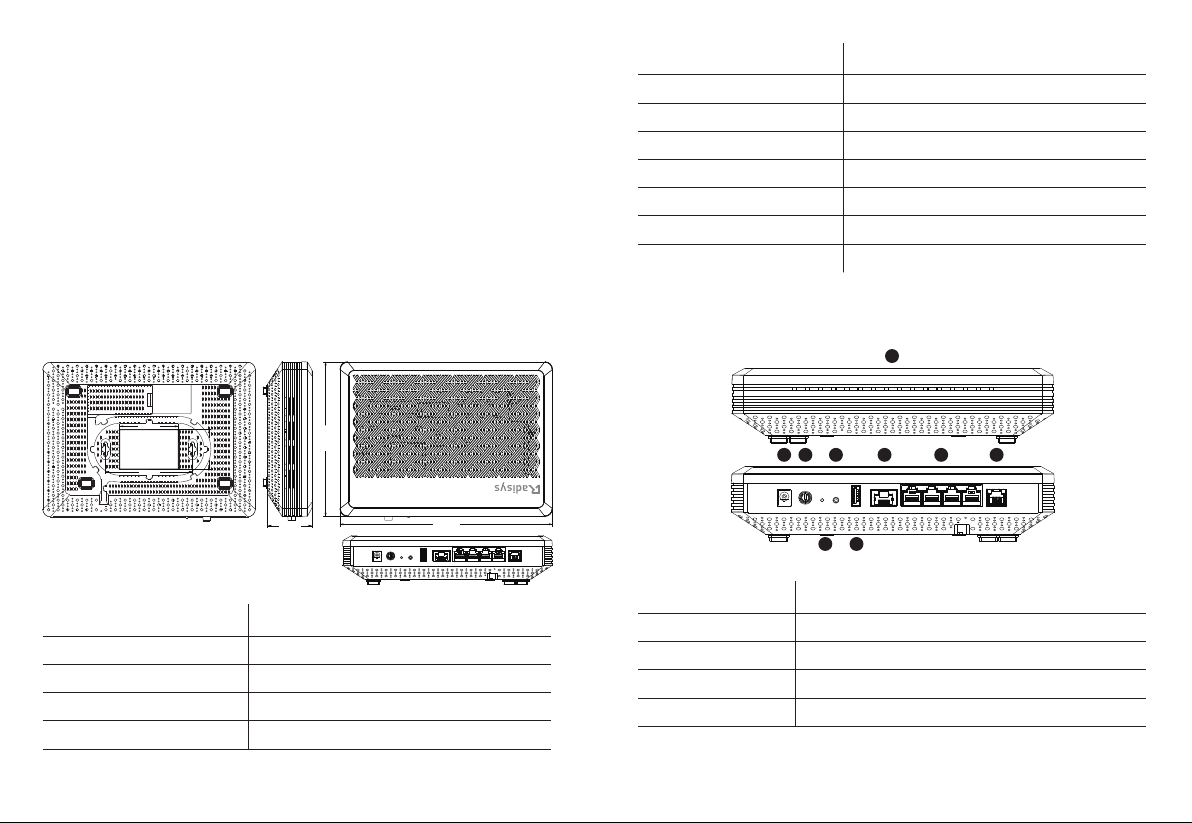

2.3 Interfaces

Item Description

1 LEDs Status LEDs

2 POWER Power port for external Power Adaptor

3 ON/OFF Button Turn power ON or OFF

4 RESET Reboot ONT (quick push)

1 Introduction

The Radisys PM6165B XGS-PON Home Gateway Unit (HGU) is a Wi-Fi6

dual-band XGS-PON complying with the ITU-T G.9807.1 standard. The

gateway is best suited for FTTH residential and small ofce use.

2.1 Contents

- PM6165B ONT

- Quick Installation Guide

- Power Adaptor

2.2 ProductSpecications

Interfaces Specication

WAN Uplink GPON port (SC/APC)

Ethernet 1 100/1000/10G Base-T port (RJ45)

4 10/100/1000 Base-T ports (RJ45)

Wi-Fi 2x2/2x2 Wi-Fi 6 (internal antennas)

41. 00 mm

61. 00 mm

90. 00 mm

RESETPOWER PHONE

LAN1LAN2

LAN3

LAN4

USBWPS

ON/OFF 10G LAN

46 m m 22 0 mm

16 0 mm

RESETPOWER PHONE

LAN1LAN2

LAN3

LAN 4

USBWPS

ON/OFF 10G LAN

POWER

XGS-PON

LOS Internet 10G LAN

LAN4LAN1USB2.4GHzLAN3

LAN25GHz PHONEWPS

2 3 5

4 6

7 8 9

Label Color Status Denition

LAN1-4 Green ON Ethernet port interface is linked

Activity (ash) Data transmitting

OFF Ethernet port is disabled or no service

10G LAN Green ON Ethernet port interface is linked

Activity (ash) Data transmitting

OFF Ethernet port is disabled or no service

2.4GHZ Green ON 2.4GHz Wi-Fi radio is enabled

Slow Blink (1/s) 2.4GHz Wi-Fi radio transmitting data

trafc

OFF 2.4GHz Wi-Fi radio is disabled

5GHZ Green ON 5GHz Wi-Fi radio is enabled

Slow Blink (1/s) 5GHz Wi-Fi radio transmitting data

trafc

OFF 5GHz Wi-Fi radio is disabled

WPS Green Slow Blink (1/s) WPS push-button activated

OFF WPS is not active

PHONE Green ON Telephone port registered for service

Slow Blink (1/s) Telephone line is off hook

OFF Telephone port is disabled or un-reg-

istered

USB Green ON Device is connected to USB port

OFF No device connected

Item Description

Reset to factory (press and hold for 10 seconds)

5 WPS Press to initiate WPS connection

6 USB USB port for ancillary equipment

7 10GE 10GE Ethernet ports for PC or LAN (RJ45)

8 GE 1-4 1GE Ethernet ports for PC or LAN (RJ45)

9 TEL 1 Phone port for telephony (RJ11)

2.4 LED Status Indicators

Label Color Status Denition

POWER Green ON Normal operation

Rapid blink Reset to factory defaults, not cong-

ured for service

Slow blink (1/s) Initializing, start of boot process

XGS-PON Green ON WAN interface ranged and linked

Slow Blink (1/s) WAN ranging in process

OFF Not ready for ranging or provisioning

LOS RED OFF No alarm

ON Loss of Signal (LOS) alarm

INTERNET Green ON Internet service available, IP address

OFF Internet service not available, IP or

DNS failure

POWER

XGS-PON

LOS Internet 10G LAN

LAN4LAN 1USB2.4GHzLAN3

LAN 25GHz PHONEWPS

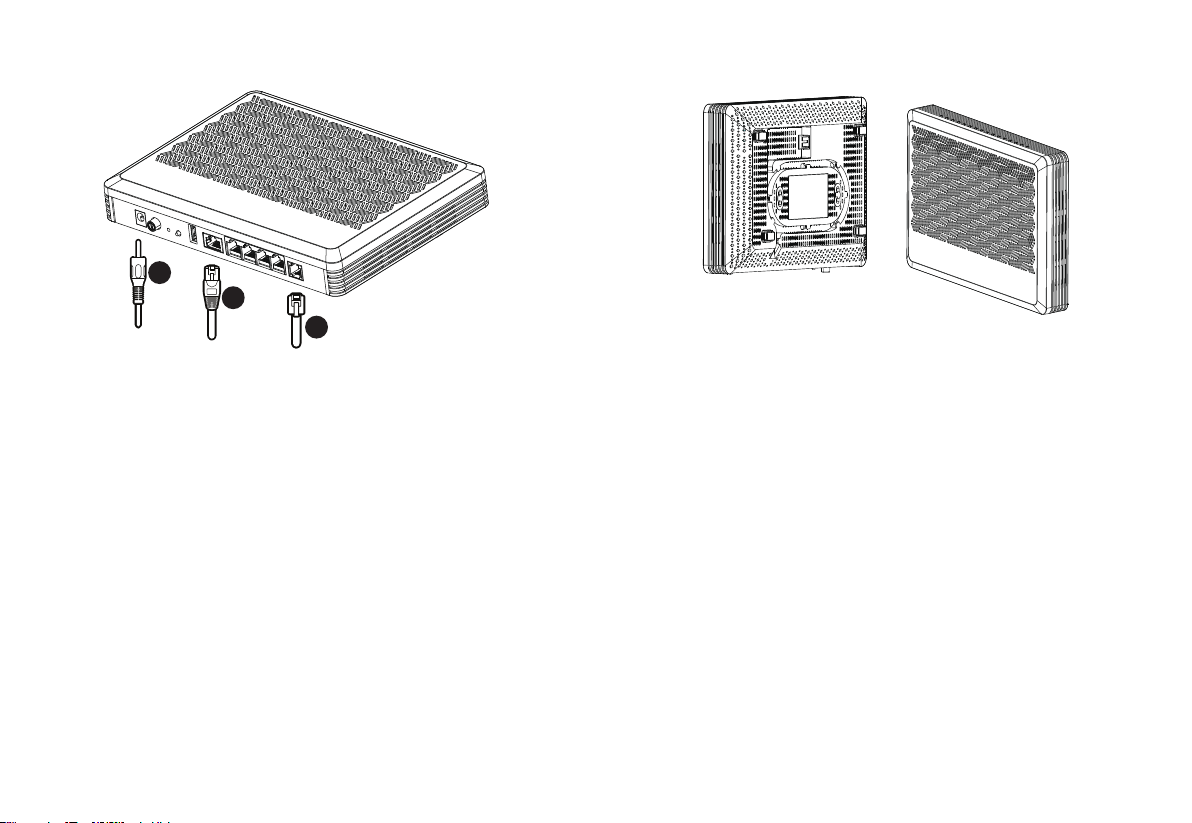

3.2 Mounting ONT on a wall

ONT has two mounting holes that can be used for wall mount placement.

Please see diagram for screw separation and location.

ONT should be mounted with LEDs facing up and service interfaces facing

down to avoid dust and contamination.

4 Web Graphical User Interface

You can access the ONT through a web browser using the following steps:

- Connect an Ethernet cable from your computer to any of the 10G

or LAN 1 - 4 ports.

- Launch a web browser or telnet session and connect to a

ddress 192.168.1.1.

- After response, enter the following:

1. Username : user

2. Password: user

After initial login, it is recommended that password be changed.

3.1 Installation

1. Remove ONT from packaging.

2. Lay ONT at on surface or attach ONT to wall.

3. Remove protection plug (black) from WAN port.

4. Connect ber optic cable with SC/APC termination to WAN port.

5. Connect telephone cable (5) with RJ11 termination to PHONE.

6. Connect Ethernet cable (6) with RJ45 termination to 10G LAN

and LAN 1-4. Recommend CAT6 or better Ethernet cable for

10GE port.

7. Connect Power Adaptor cable (7) with 2-pin barrel to POWER port.

8. Plug in Power Adaptor into electrical outlet.

9. Push ON/OFF button. Check LED power up sequence.

User note: ONT may be upgraded to newer software image prior to

provisioning of services. ONT may reset after initial boot up sequence is

complete or software image is upgraded.

RESET

POWER

PHONELAN1LAN2LAN3LAN 4

USB

WPS

ON/OFF 10G LAN

POWER

XGS-PON

LOS Internet 10G LAN

LAN4LAN1 USB2.4GHzLAN3

LAN2 5GHz PHONEWPS

6 Limited Warranty

The product warranty does not cover damage resulting from hardware

being installed in areas subject to rain, high humidity, water ingress and

dust or debris. Disassembling product or removing enclosure cover from

the assembly is a safety hazard and will void warranty. PM6165B may only

be repaired by authorized service personnel.

5 Caution

Please follow the instructions below to avoid physical injury:

- This unit is for indoor use only.

- All Ethernet, telephone and power wiring are limited to inside

of the building.

- You should not install ONT during lighting storms to avoid

electrical shock.

- Never look directly at the ber port and ber cable ends when

they are powered on.

- DO NOT plug in, turn on or attempt to operate an obviously

damaged unit.

- DO NOT use near water.

- DO NOT operate ONT in a location where maximum ambient

temp. exceeds 40°C.

- DO NOT place near high temperature source.

- Set up the unit away from direct sunlight or other electrical

equipment.

- Open optical connections must use a protective cap under all

circumstances to protect against physical damage and dirt.

- Avoid impact stresses when handling connectors.

- Physical damage to optical connections impairs transmission quality.

- Avoid a bend radius in excess of 30 mm for ber optic links.

- Check the available voltage supply.

- Only connect approved accessories.

- This equipment is not suitable for use in locations where children

are to be present.

- DO NOT disassemble the unit.

This page is intentionally left blank This page is intentionally left blank

Radisys 6165B ONT Quick Installation Guide12

RSYSQG6165BONT12062023A
