Radio Shack PRO-2096 Manual de usuario

Please read this user’s guide before installing,

setting up and using your new product

www.radioshack.com

20-496

PRO-2096 Digital Trunking

Mobile/Base Scanner

Contents

user’s guide • quick start guide • preloaded data addendum

Thank you for purchasing your Pro-2096 digital trunk scanner

from RadioShack. You can mount your scanner in a ﬁxed

position and use it as a base scanner or you can use it as

a mobile scanner by mounting it in a vehicle. This scanner

is the ﬁrst of an innovative and exciting new generation,

capable of receiving digital voice modulation from the

newest and most sophisticated conventional and trunked

radio networks. No additional hardware or add-on cards are

needed.

AC adapter

DC cable w/fuse

DIN sleeve and keys (2)

Scanner

Antenna

Mounting

bracket

Knob (2)

Rubber washer (2)

Lock washer (2)

Screw (2)

Rubber foot (3)

The Basics

contents

your scanner’s keypad 7

your scanner’s rear view 9

your scanner’s display 10

step 1: install your scanner 11

mounting your scanner in your dashboard 11

mobile mounting in your vehicle 11

using your scanner as a base station 12

step 2: power your scanner 13

from a wall outlet 13

through your vehicle’s ignition 13

from your vehicle’s cigarrette lighter 14

step 3: connect your scanner 15

connect the supplied antenna 15

connect an external antenna 15

connect an external speaker or headphones 16

step 4: set up your scanner 17

squelch 17

storing conventional frequencies 17

deleting frequencies from channels 18

searching and tuning 19

basic scanning 20

about channel-storage banks 20

monitoring a single channel 20

using CTCSS and DCS 21

searching a preprogrammed frequency range 21

search bank charts 22

The Basics

searching for active frequencies 27

using Zeromatic 27

using seek search 27

manually tuning to a frequency 28

frequency copy 29

copying a frequency into a speciﬁed channel 29

copying a frequency to a vacant channel

into a speciﬁed bank 30

copying a frequency to the priority channel 30

listening to the weather band 31

same standby mode 31

testing weather alert 32

using delay 33

locking out channels/frequencies 33

locking out channels 33

locking out frequencies 34

reviewing locked-out search frequency 34

clearing locked-out search frequencies 35

clearing locked-out frequencies in search banks 35

changing the receive mode 35

using attenuator 36

global attenuator 37

turning the key tone on or off 37

using the dimmer 38

changing the display contrast 38

virtual scanner 39

using V-scanner 40

using digital AGC 45

cloning programmed data 45

cloning v-scanner data 46

full cloning 47

selective cloning 47

The Basics

trunking operation 50

setting squelch for trunk scanning 50

talkgroup ID hold 50

turning an ID sub-bank on or off 50

open and closed mode operation 51

toggling open and closed modes 52

manual ID lockout toggle 52

activate ID lockout while scanning 53

reviewing locked-out talkgroup IDs 53

changing from ID text tag display

to ID code display 53

trunked delay function 53

clearing talkgroups IDs 54

clearing all talkgroup IDs in one bank 55

programming trunked systems 56

Motorola analog, digital, and APCO-25 systems 56

EDACS systems 57

Motorola VHF and UHF systems 58

Motorola 800MHz splinter systems 59

ﬂeet maps 59

programming the priority channel 61

programming a stored channel frequency

in the priority channel 61

programming the priority channel directly 61

programming a weather channel as the priority channel 62

turning priority on or off 62

programming CTCSS/DCS channels 63

storing talkgroup ids 65

text tags 67

assigning a text tag to a channel 67

assigning a text tag to a group ID 68

assigning a text tag to a channel-storage bank 68

The Basics

text input chart 69

using channel receive modes 69

updating the DSP ﬁrmware 69

truobleshooting 70

resetting/initializing your scanner 71

resetting your scanner 71

initializing your scanner 72

care 73

replacing the fuse 73

service and repair 73

speciﬁcations 74

The FCC wants you to know 77

scanning legally 77

glossary 78

warranty 84

RadioShack, RadioShack.com. Hypersearch, Hyperscan, V-Scanner, and Adaptaplug are

trademarks used by RadioShack Corporation.

Motorola, Smartnet, ASTRO and Privacy Plus are registered trademarks of Motorla Inc.

EDACS is a registered trademark of MA-COM Inc.

The IMBE(TM) Voice Coding Technology embodied in this product is protected by intellectual

property rights including patent rights, copyrights and trade secrets of Digital Voice Systems,

Inc. This voice coding Technology is licensed solely for use witthin this Communications

Equipment. The user of this Technology is explicitly prohibited from attempting to decompile,

reverse engineer, or disassemble the Object Code, or in any other way convert the Object

Code into a human readable form.

U.S. Pat. Nos. 5,870,405 and 5,517,511.

This device made under license under one or more of the following U.S. Patents: 4,590,473;

4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229

The Basics

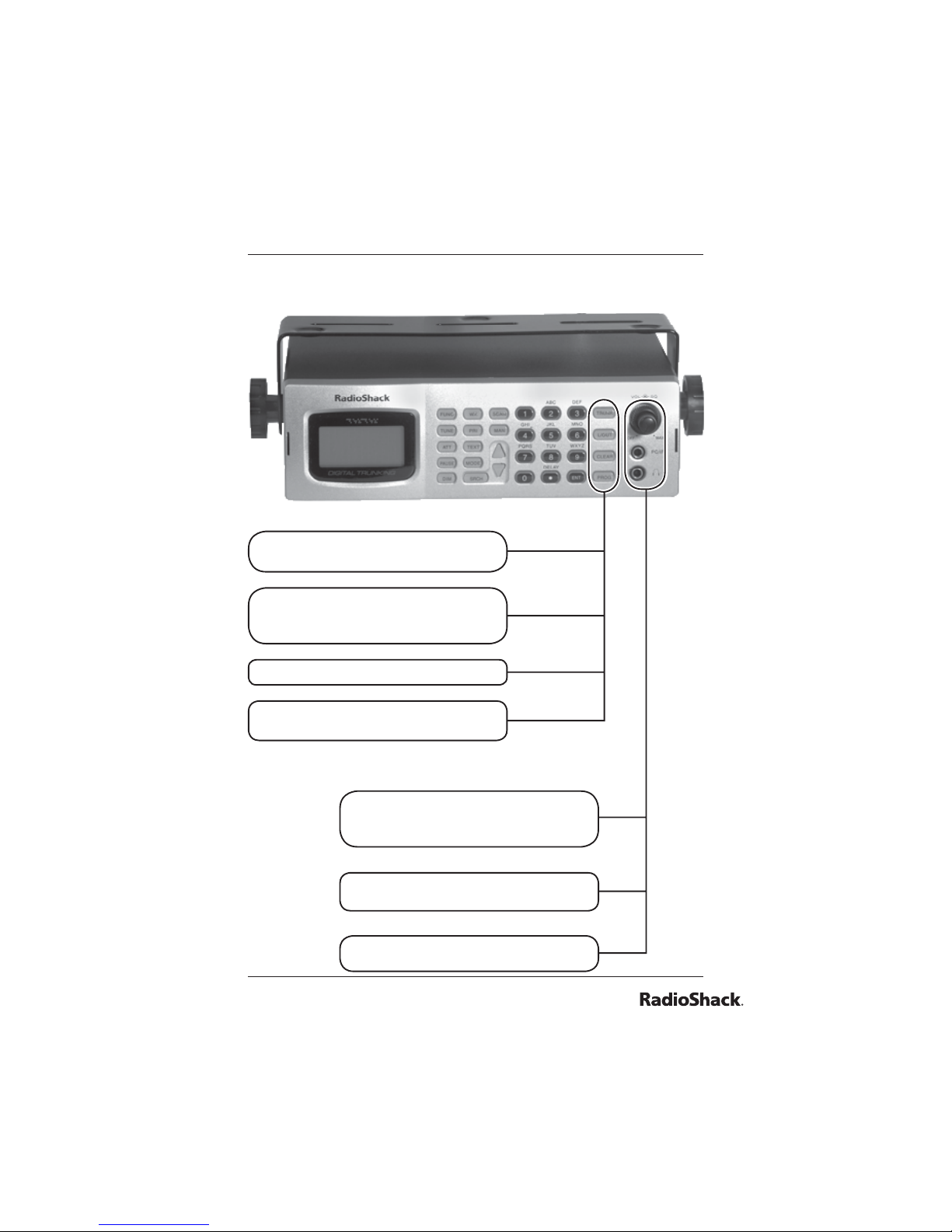

your scanner’s keypad

TRUNK — stores the trunking ID code or

holds the trunking ID while scanning.

L/OUT — locks out selected channels

and ID codes, and skips speciﬁed

frequencies during a search.

CLEAR — clears an incorrect entry.

PROG — programs frequencies in

selected channels.

PWR/VOL/SQ — long knob turns OFF/ON,

and controls volume. Short knob controls

squelch.

PC/IF — connect data cable for cloning

or connecting to a PC.

s— attach headphones with

1/8” jack here.

The Basics

ATT — Press to activate

attenuation (reduce scanner

sensitivity, block strong signals).

Press again to deactivate

attenuation.

PAUSE — pauses search or

tune operation.

DIM — adjusts the backlight

level (Light, Dark, or OFF).

TUNE — Press TUNE, PAUSE

then eor dto tune to a

frequency.

FUNC — press in

combination with other keys to

perform various functions.

WX — press to scan

programmed weather channels.

See p. 31

PRI — turns the priority

function on or off.

TEXT — press to input text.

MODE — press to change the

receive mode.

SRCH — press to search

through search banks.

SCAN — press to scan

programmed channels.

MAN — press to manually

enter a channel number.

eor d— press to scan or

search in either direction.

The Basics

EXT SP — connect an

external speaker here.

ENT — press to conﬁrm

frequency and text entries.

your scanner’s rear view

ANT — connect the supplied

antenna or an external

antenna here. DC 13.8V — connect a

power source here.

SCREW HOLE — use to mount

the scanner in a car with some

hardware (screw not supplied).

RESET— press

to reset your

scanner.

Press to enter a number or

a character (in text mode).

./DELAY — press to enter

a decimal point, space, or

hyphen. Press to program delay

time for a channel/search bank.

The Basics

your scanner’s display

Scan Mode

Search Mode

(M)anual Mode

(P)rogram

(S)can

Bank 0-(9)

Channel 00-(49)

Receiving a Signal ( no signal)

Priority On/Off Indicator

Search Range Number

Frequency

Zeromatic On/Off Indicator

Sub-Group

Search Range Name

Attenuator On/Off Indicator

Delay On/Off Indecator

Lockout On/Off Indecator

(While Scanning, ScanningDirection, or .)

Open/Closed Mode Indecator

Receiving Mode

Receiving Frequency

Detected ID Display

(Trunking & CTCSS/DCS)

Stored Text

or Bank and Channel Numbe r

Bank Off

Open Mode

Closed Mode
