Rack Solutions 4Post Manual de usuario

4Post and 2Post Rails for

Dell PowerEdge R210

Installation Instructions

Kit P/N: 109-1953

109-1956

4Post

Page 2

2Post Center

Page 4

2Post Flush

Page 6

Page 2

4Post Installation Instructions

Kit Contents

Step 1. Install cage nuts as shown at the rear of a square hole rack: (4) 12-24 black

cage nuts.

Step 2a. The rail kit is pre-set for rack depths of 15.00” to 19.75” [381mm to 501mm]: If

your rack is greater than 19.75” [501mm] deep, move the hardware attaching the

Rear Slider brackets to get the needed adjustment range. Moving the hardware

attaching the Rear Slider can achieve any depth from 15” to 23.5” [381mm to

596mm].

Rear of Rack

(4) 12-24 black cage nuts

Pre-Set Range 15.00" to 19.75"

[381mm to 501mm]

Kit Contents:

(1) Right Rail Assembly

(1) Left Rail Assembly

Mounting Hardware:

(2) Hook Plates (Left & Right)

(2) Angle Bracket

(4) 8-32 x .500 Pan Head

(4) 8-32 x .375 Flat Head

(4) 8-32 Keps Nut

Rack Mount 4x:

(4) 10-32 x .500 Pan Head

(4) 12-24 x .500 Pan Head

(4) 12-24 Square Nut

(4) 12-24 Cage Nut

Step 2b.For rack depths greater than 20.00” [508mm]: Attach Angle Bracket to both rails

using supplied hardware as shown.

Angle Bracket

4Post Installation Instructions

Page 3

Step 3. Attach the rails to the rack:

- Attach the front and Rear of the rails to the 4Post rack using (4) supplied Pan

Head Screws on each side

- Tighten the front and rear Pan Head Screws on the right side rail. Leave the

front and rear Pan Head Screws on the left side rail slightly loose.

Step 4. Install the equipment: Slide the equipment onto the rails so the Equipment

Mounting Lugs on each side slide into the Rail Slot on both sides. Slide the

equipment all the way in. Tighten the (2) Pan Head Screws on the back of the

left slide rail. Slide the equipment out about 8 inches and tighten the (2) Pan

Head Screws on the front of the left slide rail.

Note: When tightening the loose rails, support the bottom of the server to ensure proper

rail adjustment.

Front Left

(4) 8-32 Pan Head Screws

(4) 10-32 or 12-24

Pan Head Screws

Front Right

Rear

Rear Bracket

Rail Slot

Equipment Mounting Lugs

(2) on each side

Page 4

2Post Center Installation Instructions

Step 1. Installing Rail Kit: Installing this rail kit in a 2Post center rack requires the

NLWZLWKQRFKDQJHWRWKHSUHDVVHPEOHGUDLOFRQ¿JXUDWLRQ

Step 2. Attach the rails to the rack:

- Attach the 2Post Adapter Bracket per the "2 Post Racking System"

Instructions.

- Attach the Front and Rear of the rails to the 2Post rack using (4) supplied Pan

Head Screws on each side.

- Tighten the front and rear Pan Head Screws on the right side rail. Leave the

front and rear Pan Head Screws on the left side rail slightly loose.

Front Left Front Right

Rear

Pre-Set Range 15.00" to 19.75"

[381mm to 501mm]

(4) 8-32 Pan Head Screws

(4) 10-32 or 12-24

Pan Head Screws

2Post Center Installation Instructions

Page 5

Step 3. Install the equipment: Slide the equipment onto the rails so the Equipment

Mounting Lugs on each side slide into the Rail Slot on both sides. Slide the

equipment all the way in. Tighten the (2) Pan Head Screws on the back of the

left slide rail. Slide the equipment out about 8 inches and tighten the (2) Pan

Head Screws on the front of the left slide rail.

Note: When tightening the loose rails, support the bottom of the server to ensure proper

rail adjustment.

Equipment Mounting Lugs

(2) on each side

Rail Slot

Page 6

2Post Flush Installation Instructions

Step 1. Install Rails:,QVWDOOLQJWKLVUDLONLWLQD3RVWÀXVKUDFNUHTXLUHVDFKDQJHWRWKH

SUHDVVHPEOHGUDLOFRQ¿JXUDWLRQDVIROORZV5HYHUVHWKHUHDUVOLGHUVRWKDWWKH

ÀDQJHLVWRZDUGWKHIURQW1RWHWKLVZLOOUHTXLUHD´ZUHQFKRUUDWFKHW

Rack Mount

Flanges Range 3" to 6"

[76mm to 152mm]

Step 2. Attach the rails to the rack:

- Attach the Front and Rear of the rails to the 2Post rack using (4) supplied Pan

Head Screws on each side.

- Tighten the front and rear Pan Head Screws on the right side rail. Leave the

front and rear Pan Head Screws on the left side rail slightly loose.

Front Left Front and

Rear Right

(4) 8-32 Pan Head Screws (4) 10-32 or 12-24

Pan Head Screws

Hook

Plate Hook Plate

Pre-Set Range 15.00" to 19.75"

[381mm to 501mm]

2Post Flush Installation Instructions

Page 7

Equipment Mounting

Lugs (2) on each side

Step 3. Install the equipment: Slide the equipment onto the rails so the Equipment

Mounting Lugs on each side slide into the Rail Slot on both sides. Slide the

equipment all the way in. Tighten the (2) screws on the back of the left slide rail.

Slide the equipment out about 8 inches and tighten the (2) screws on the front of

the left slide rail.

Note: When tightening the loose rails, support the bottom of the server to ensure proper

rail adjustment.

Warranty Statement

Innovation First, Inc. warrants our products against defects in material and workmanship for a

period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to

repairing or replacing, at our option, any defective product.

19561953

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rack y soporte de Rack Solutions

Rack Solutions

Rack Solutions 122-4818 Manual de usuario

Rack Solutions

Rack Solutions RACK-117-MOBILE KIT Manual de usuario

Rack Solutions

Rack Solutions 105-2670 Manual de usuario

Rack Solutions

Rack Solutions 119-1752 Manual de usuario

Rack Solutions

Rack Solutions FORZA DESIGNS Elite Controller Wall Mount Manual de usuario

Rack Solutions

Rack Solutions 124-2247 Manual de usuario

Rack Solutions

Rack Solutions 104-2411 Manual de usuario

Rack Solutions

Rack Solutions 5U Manual de usuario

Rack Solutions

Rack Solutions 101-5205 Manual de usuario

Rack Solutions

Rack Solutions 1UKYB-126 Manual de usuario

Rack Solutions

Rack Solutions 122-3491 Manual de usuario

Rack Solutions

Rack Solutions 4UKIT-003BLK Manual de usuario

Rack Solutions

Rack Solutions 104-2323 Manual de usuario

Rack Solutions

Rack Solutions 104-5191 Manual de usuario

Rack Solutions

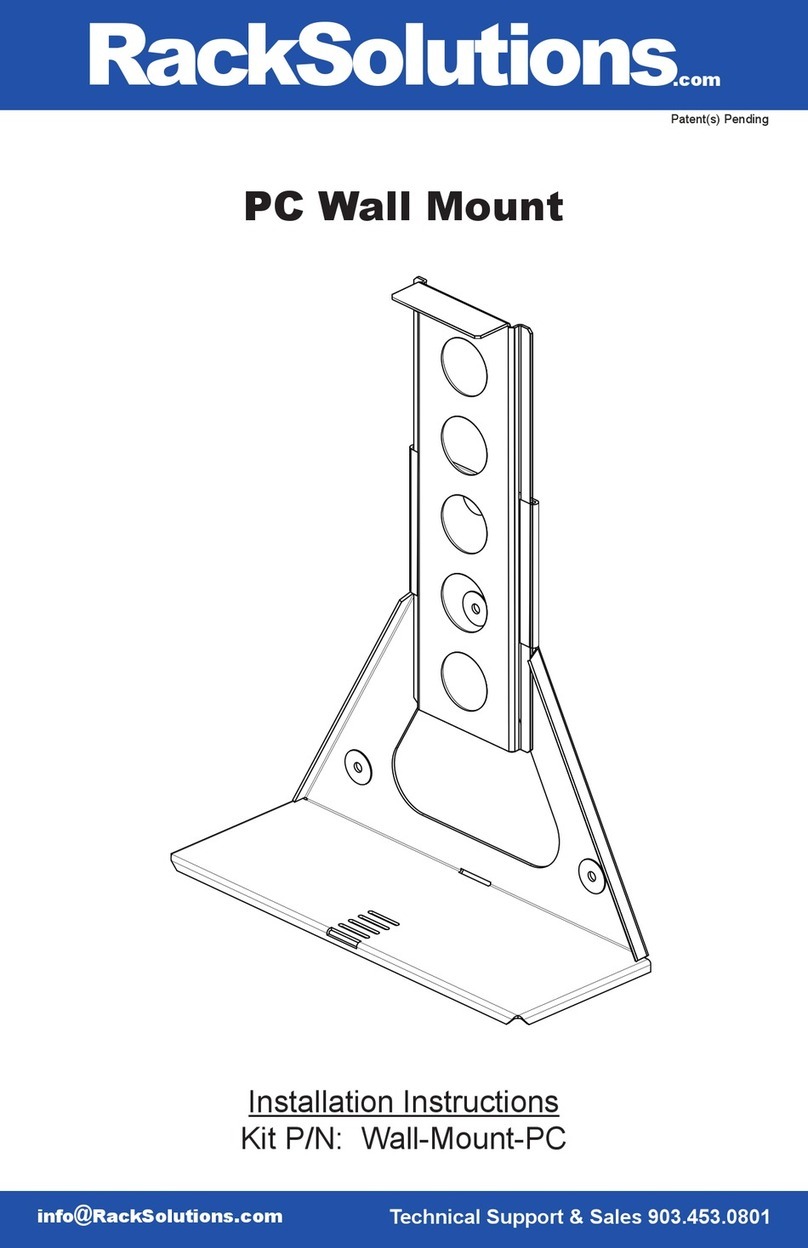

Rack Solutions Wall-Mount-PC Manual de usuario
