Quectel BC95 Manual de usuario

BC95 Power Consumption

Testing on EVB User Guide

NB-IoT Module Series

Rev. BC95_Power_Consumption_Testing_on_EVB_User_Guide_V1.0

Date: 2017-06-21

www.quectel.com

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 1 / 10

Our aim is to provide customers with timely and comprehensive service. For any

assistance, please contact our company headquarters:

Quectel Wireless Solutions Co., Ltd.

7th Floor, Hongye Building, No.1801 Hongmei Road, Xuhui District, Shanghai 200233, China

Tel: +86 21 5108 6236

Email: [email protected]om

Or our local office. For more information, please visit:

http://www.quectel.com/support/salesupport.aspx

For technical support, or to report documentation errors, please visit:

http://www.quectel.com/support/techsupport.aspx

Or email to: Support@quectel.com

GENERAL NOTES

QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION

PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT

TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT

MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT

ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR

RELIANCE UPON THE INFORMATION. ALL INFORMATION SUPPLIED HEREIN IS SUBJECT TO

CHANGE WITHOUT PRIOR NOTICE.

THE INFORMATION CONTAINED HERE IS PROPRIETARY TECHNICAL INFORMATION OF

QUECTEL CO., LTD. TRANSMITTING, REPRODUCTION, DISSEMINATION AND EDITING OF THIS

DOCUMENT AS WELL AS UTILIZATION OF THE CONTENT ARE FORBIDDEN WITHOUT

PERMISSION. OFFENDERS WILL BE HELD LIABLE FOR PAYMENT OF DAMAGES. ALL RIGHTS

ARE RESERVED IN THE EVENT OF A PATENT GRANT OR REGISTRATION OF A UTILITY MODEL

OR DESIGN.

Quectel

Confidential

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 2 / 10

About the Document

History

Revision

Date

Author

Description

1.0

2017-06-21

Ewent LU

Initial

Quectel

Confidential

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 3 / 10

Contents

About the Document...................................................................................................................................2

Contents.......................................................................................................................................................3

Table Index...................................................................................................................................................4

Figure Index.................................................................................................................................................5

1Introduction..........................................................................................................................................6

2GSM EVB Modifications......................................................................................................................7

3PSM Power Consumption Testing Procedures................................................................................8

4Appendix A References.....................................................................................................................10

Quectel

Confidential

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 4 / 10

Table Index

TABLE 1: RELATED DOCUMENTS.................................................................................................................. 10

TABLE 2: TERMS AND ABBREVIATIONS........................................................................................................ 10

Quectel

Confidential

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 5 / 10

Figure Index

FIGURE 1: GSM EVB MODIFICATIONS DIAGRAM .......................................................................................... 7

FIGURE 2: GSM EVB CONNECTION DIAGRAM .............................................................................................. 8

FIGURE 3: DC POWERANALYZER AND GSM EVB CONNECTION DIAGRAM ............................................. 9

FIGURE 4: DISPLAY OF POWER CONSUMPTION DATA................................................................................ 9

Quectel

Confidential

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 6 / 10

1Introduction

Quectel GSM EVB can be used for power consumption testing after modifications. This document mainly

introduces how to modify the GSM EVB to facilitate power consumption testing in power saving mode

(PSM) for Quectel NB-IoT BC95 series module, and to help customers obtain the accurate power

consumption data.

Quectel

Confidential

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 7 / 10

2GSM EVB Modifications

In order to use the GSM EVB to test the power consumption of NB-IoT BC95 series module, following

modifications should be conducted:

1. Remove resistors on R101, R102 and R110 for an external power source to supply power to the

module independently;

2. Solder a 0R resistor on R224 for the 5V power adaptor to supply power for RS-232 level shifter IC

independently.

R101

R110

R224

R102

Figure 1: GSM EVB Modifications Diagram

Quectel

Confidential

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 8 / 10

3PSM Power Consumption Testing

Procedures

Once the GSM EVB is modified, please follow the steps below to test the power consumption in PSM for

BC95 series module:

1. Connect BC95-TE-Ato 60-pin connector, and fix it with studs and nuts;

2. Insert a USIM card;

3. Connect the main and debug port to the PC respectively with USB to UART converter cables;

4. Regulate the output voltage to 3.6V on DC power analyzer, and connect the binding posts to J103

according to the negative and positive electrodes, to supply power for the module separately;

5. Connect the GSM EVB to the 5V power adaptor, and switch S202 to ON state;

6. Press ON button on DC power analyzer to turn on the power supply in “Power Supply Outputs”area

to test the power consumption of the module;

7. Send AT+NCONFIG=AUTOCONNECT,FALSE and AT+CFUN=0 commands to let the module enter

PSM. For details aboutAT commands, please refer to document [1].

USB to UART

Converter Cable

5V Power Supply

USB to UART

Converter Cable

USIM Card

RF Antenna

J103

S202

BC95-TE-A

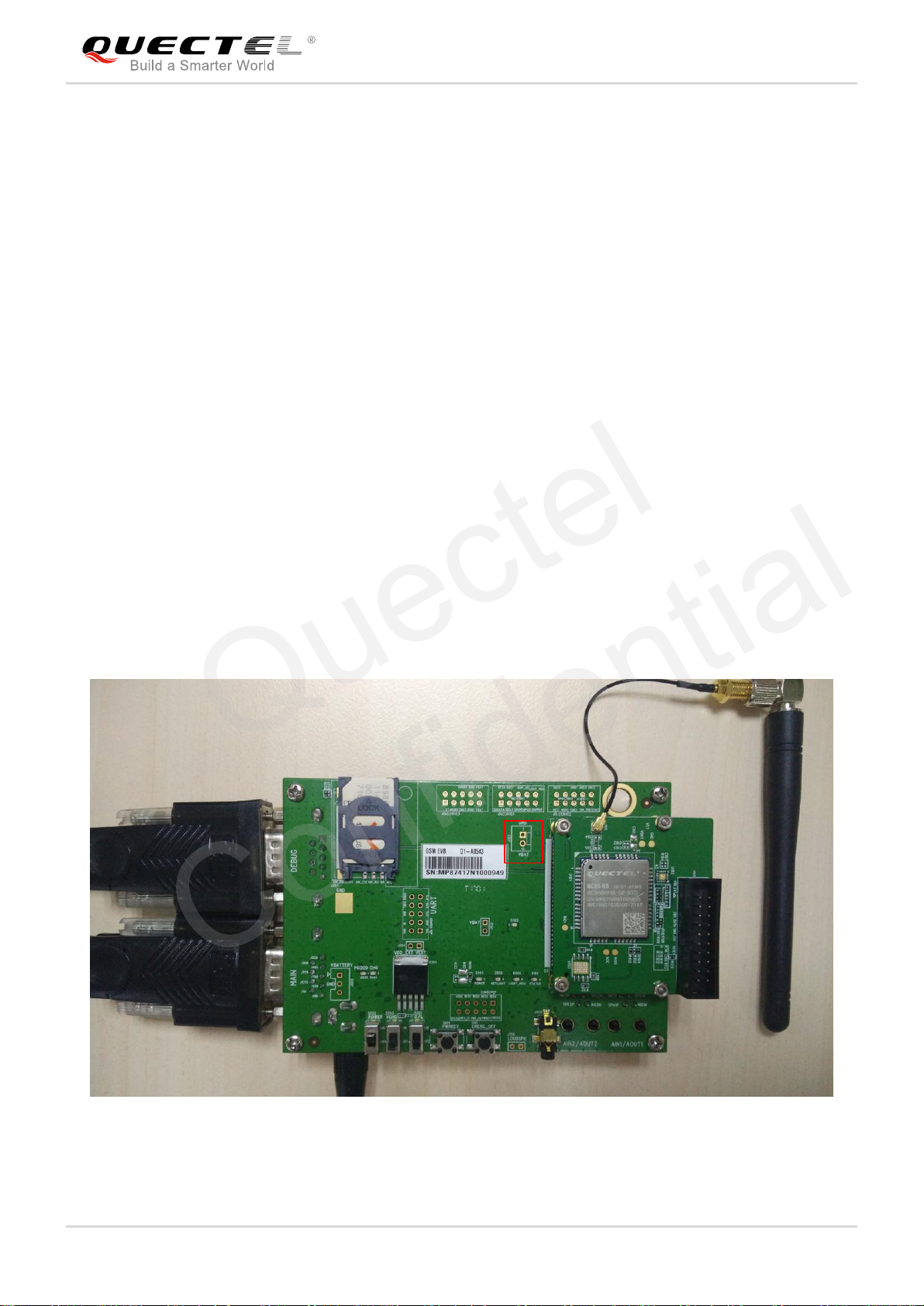

Figure 2: GSM EVB Connection Diagram

Quectel

Confidential

NB-IoT Module Series

BC95 Power Consumption Testing on EVB User Guide

BC95_Power_Consumption_Testing_on_EVB_User_Guide Confidential / Released 9 / 10

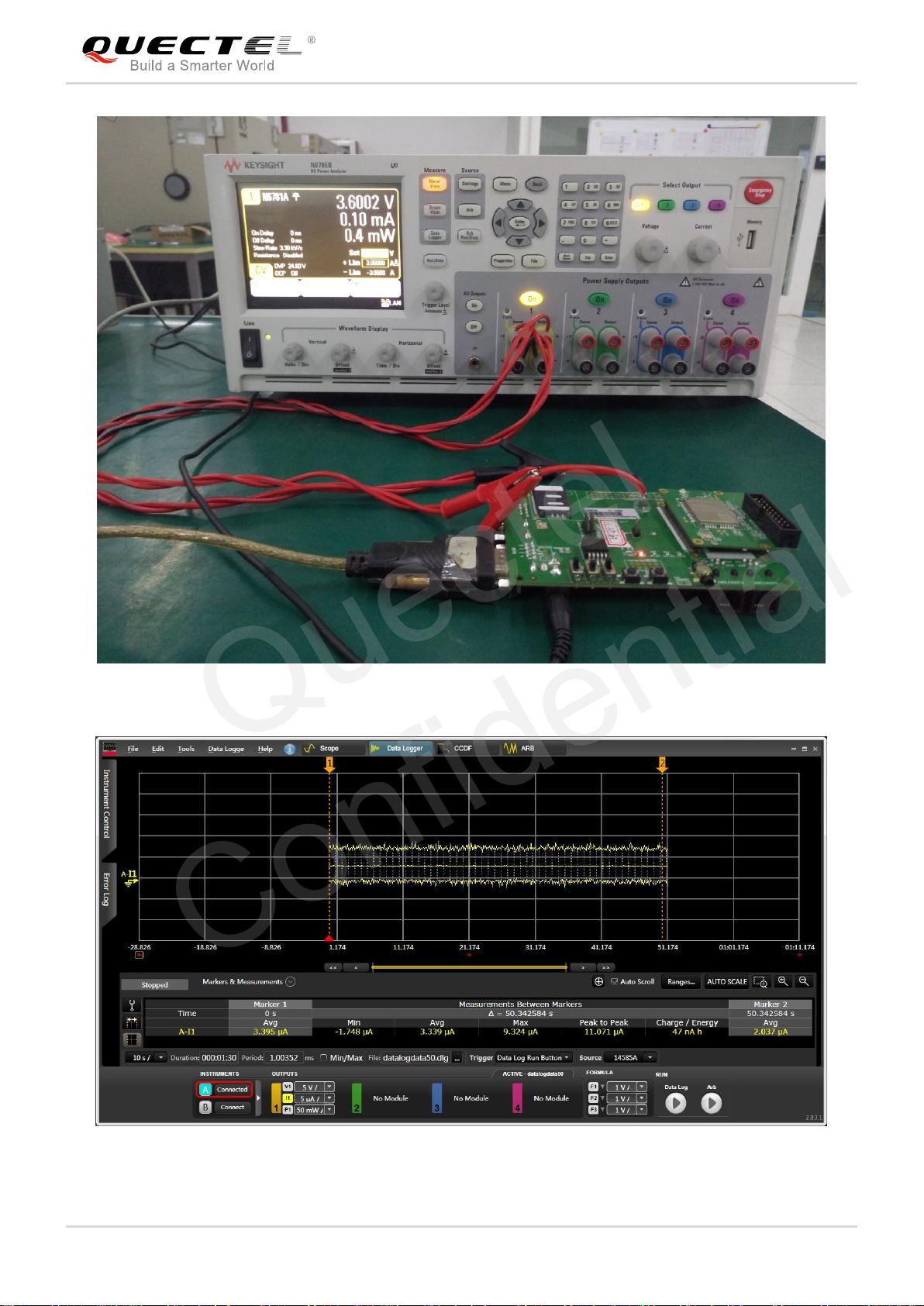

Figure 3: DC Power Analyzer and GSM EVB Connection Diagram

Figure 4: Display of Power Consumption Data
