Qudo charging station Manual de usuario
rev. 1.0
QUDO / Installation Manual ENGLISH//NORSK
2
Content
Safety Instruction
Product Specifications
Product Overview
Features
Circuit Breaker Rating / Maximum Output
Installation
Using QUDO
Troubleshooting
Contact
3
5
6
7
8
9
14
19
40
Norsk English
3
IMPORTANT SAFETY INFORMATION
Read all instructions before using this product. Save these instructions. QUDO
features built-in RCD Type A + DC 6mA.
The charging station must be protected by a max. 40A type A 30mA RCD circuit
breaker.
This manual contains important instructions for QUDO that shall be followed during
installation, operation and maintenance. Please review all warnings and cautions
before installing and using the product.
Do not install or use the QUDO near flammable, explosive, hazardous, or
combustible materials, chemicals, or vapors.
This device should be supervised when used around children.
Use the QUDO only within the specified operating parameters.
Do not use the QUDO if the flexible power cord or cable is frayed, broken,
or otherwise damaged or fails to operate.
Disconnect power before installing or cleaning the QUDO.
The QUDO must be earthed through a permanent wiring system.
Do not use the QUDO if it is defective, appears cracked, frayed, broken or
otherwise damaged or fails to operate.
Do not attempt to disassemble, repair, tamper with, or modify the
QUDO. QUDO is not user serviceable. Contact QUDO for any repairs or
modification.
When transporting the QUDO, handle with care. Do not subject it to strong
force or impact or pull, twist, tangle, drag, or step on the QUDO, to prevent
damage to it or any components.
Do not insert fingers or foreign objects into any part of the QUDO.
Do not forcefully fold or apply pressure to any part of the QUDO or damage
it with sharp objects.
4
IMPORTANT SAFETY INFORMATION
Do not use private power generators as a power source for charging.
Do not operate the QUDO in temperatures outside its operating range of
-30˚C to 50˚C.
QUDO should only be installed by personnel who are trained and qualified
to work on electrical systems.
Ensure that QUDO is within storage temperature when moving, transporting,
or storing.
Use of the QUDO may aect or impair the operation of any medical or
implantable electronic devices, such as an implantable cardiac pacemaker
or an implantable cardioverter defibrillator. Check with your electronic
device manufacturer concerning the eects that charging may have on such
electronic devices before using the QUDO.
Norsk English
5
PRODUCT SPECIFICATIONS
Dimensions (mm) H: 302.5 x W: 211.5 x D: 116.5
Weight 2.2 kg
Installation circuit Max. 40A fuse on installation circuit for charging
stations
Installation network,
Voltages
TN, IT and TT
230VAC ± 10%
400VAC ± 10%
50/60 Hz
Max. current and charging
output
22kW at 32A/3-phase (TN networks)
12.7kW at 32A/3-phase (IT networks)
7.4kW at 32A/1-phase IT/TN
Charging socket IEC 62196-2 Type 2 Female
Electronic lock, can be permanently locked by user
Earth fault protection Built-in RCD for ground fault protection (30 mA
AC/6 mA DC) according to EN 61008-1 and IEC
62955 Electronic, automatic reset by replugging
Type 2 cable
Standards and approvals CE compliance in accordance with IEC 61851-1:2017
and IEC 62955, and the Radio Equipment Directive
2014/53/EU and ROHS Directive 2011/65/EU
Operating Temperature -30˚C to 50˚C
Storage Temperature -40˚C to 85˚C
Degree of protection IP54 (IP22 without cover)
IK Rating IK08
UL Rating UL94 5VA flammability rating
UV Resistance YES
Electrical protection Protection class II (4kV AC and 6kV impulse,
insulation) Overvoltage category III (4kV)
Means of Disconnect External branch circuit breaker
Terminal Blocks Single Cable: 2.5-16mm2, copper only
Parallel Connection: 2.5-10 mm2, copper only
6

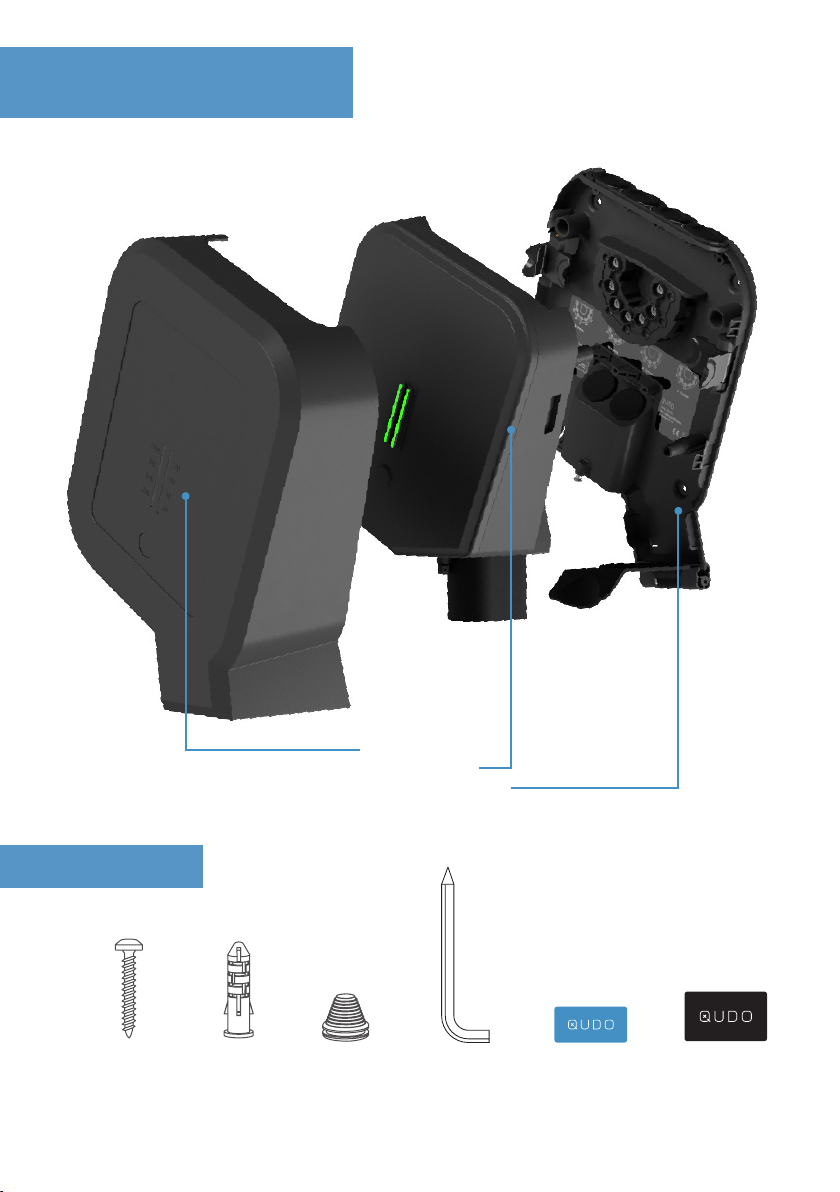

PRODUCT OVERVIEW
Installation kit
Front Cover
Main Unit
Mounting Backplate
X4 X4 X2 X2 X1X1
Norsk English
7

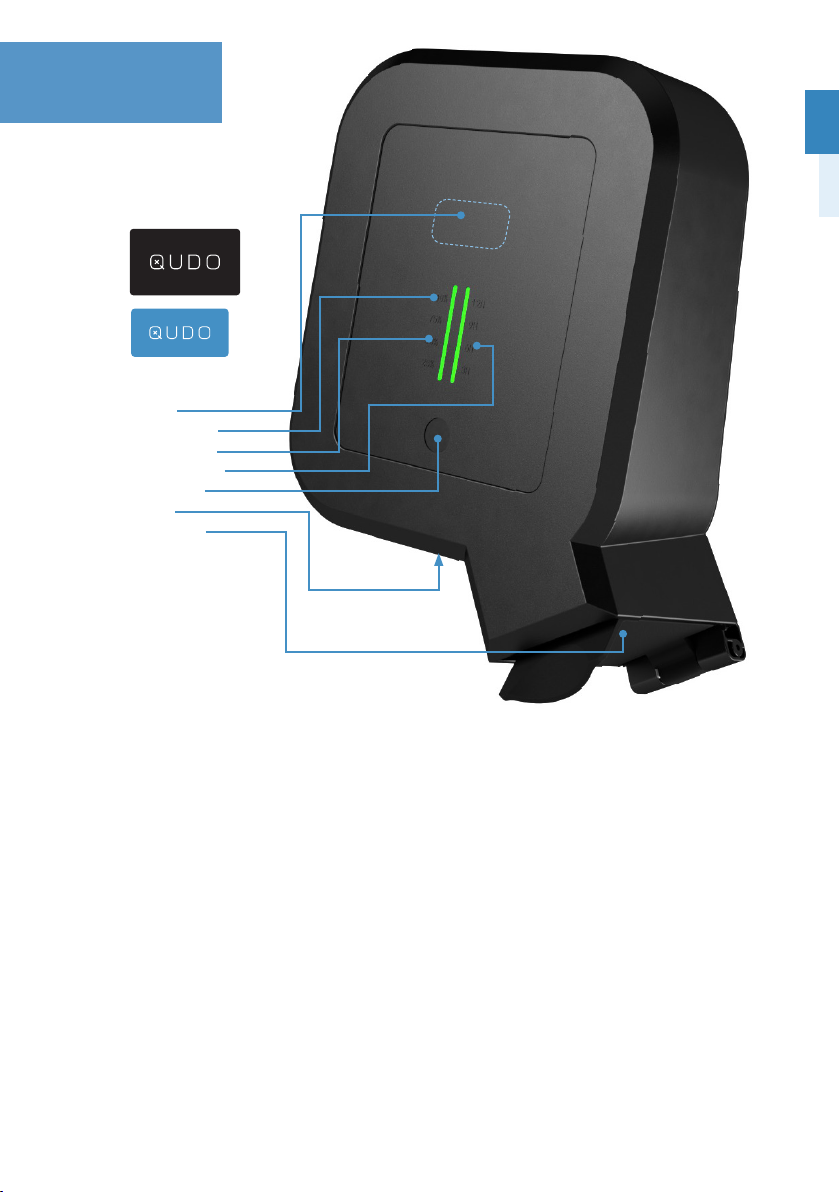

FEATURES
Daylight Sensor
RFID Area
Power Light Bar
Delay Light Bar
Touch Button
Area Light
Type 2 Socket
MODE
CARD
ID
CARD
RFID Area: The integrated RFID reader enables access control of locking or
unlocking the charging cable with QUDO ID card. You could also change charge
mode with QUDO mode card. (See page 17.)
Daylight sensor: Automatically adjust the indicator brightness and control the area
light ON/OFF.
Power light bar:The light bar is used to display charging power percentage and the
status of QUDO.
Delay light bar: The light bar is used to display delay time and the status of QUDO.
Touch button: With the touch button it is possible to set the charging power
(25%/50%/75%/100%,Min.6A) and delay charging time. It is also used to control the
Area light. (See page 15,16.)
Area light: It is useful to quickly find QUDO at night.
Type 2 socket: The type 2 socket is completely universal and allows you to charge
any type of electric vehicle using the appropriate charging cable.
8
Maximum current
output (A)
230V 1-phase
power output (kW)
400V 3-phase
power output (kW)
32 7.4 22.1
25 5.8 17.3
20 4.6 13.8
16 3.7 11
13 3.0 9.0
10 2.3 6.9
61.4 4.1
0 0 0
For the best charge rate, install a circuit breaker to match the grid type and desired
current output. QUDO features built-in RCD Type A + DC 6mA. Maximum current
output (amps) can be adjusted by the installer as part of the commissioning process
between 6 A and 32 A can be selected. Estimate power output for various grid
connections below.
The charging station must be protected by a max. 40A type A 30mA RCD circuit
breaker.
CIRCUIT BREAKER RATING / MAXIMUM OUTPUT
Power Output
Check that the vehicle supports the distribution network IT 3-phase before
mounting. If the car does not support IT 3-phase use only 1 phase connection.
Norsk English
9
1Loosen the screw with the following multitool supplied and remove the
front cover. Then release both clips at the same time, until the main unit
disconnects.
Open Type 2 socket cover before
disconnecting main unit.
INSTALLATION
1
2
3
4
6
5
10
INSTALLATION

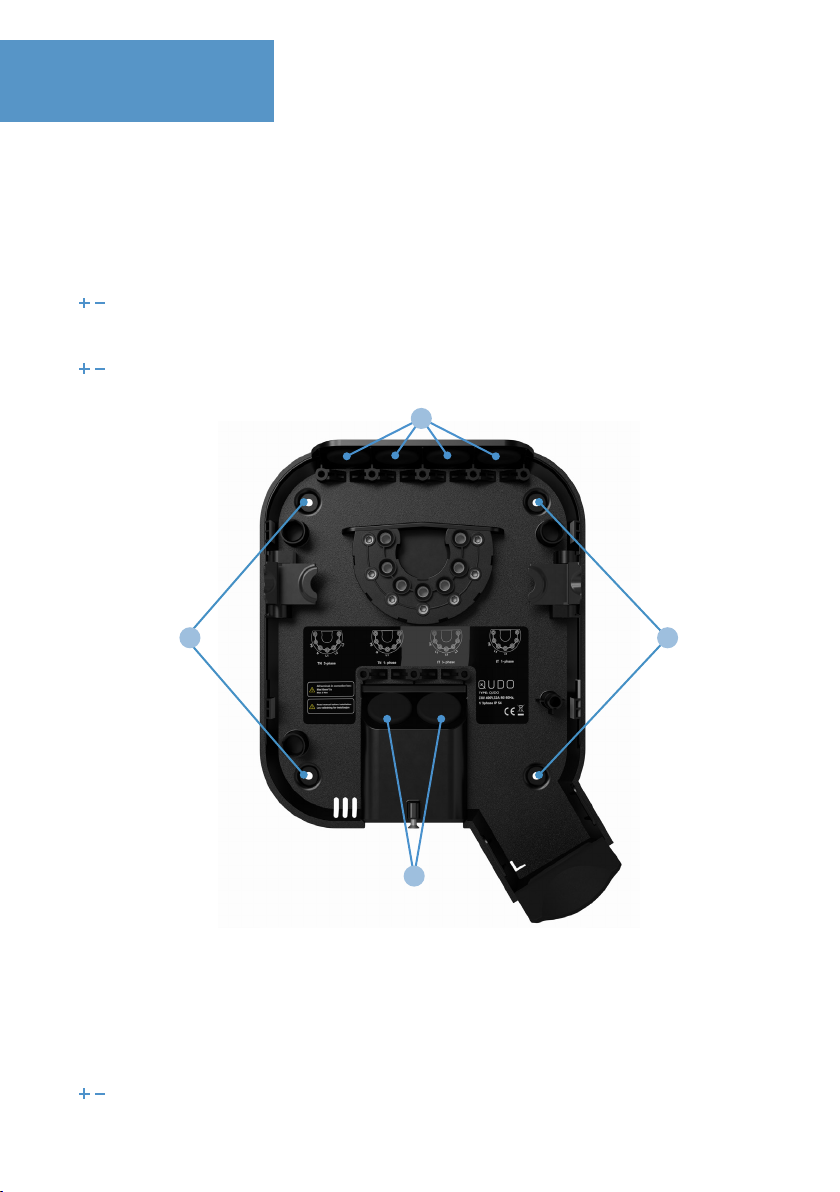

2Fix the mounting plate to a wall or structure with sucient load-bearing
capacity using the 4 screws provided in the mounting kit.
Use suitable wall plugs for mounting. Recommended installation height
130-150cm or after end-customer`s special needs.
3Shorten the sealing plug to fit the cable. The hole should be slightly smaller
to ensure a good seal. Insert the cable through one of the six cable entries
and secure it to the mounting plate with the strain relief provided. Close all
cable entries that are not in use with the blind sealing plugs supplied.
11
3
Turn o the power before proceeding with the installation.
The installation wall must cover the entire backside of the product.
We recommend mounting the QUDO under roof for even longer lifetime of the
product.
We recommend use of cable entry at the bottom for even better protection.
3
