Quatech QSC(LP)-100 Manual de usuario

QSC(LP)-100

Four Channel Low Profile RS-232

Asynchronous Communications Adapter

for PCI bus

User's Manual

QUATECH, INC. TEL: (330) 655-9000

5675 Hudson Industrial Parkway FAX: (330) 655-9010

Hudson, Ohio 44236 http://www.quatech.com

WARRANTY INFORMATION

Quatech, Inc. warrants the QSC(LP)-100 to be free of defects for

five (5) years from the date of purchase. Quatech, Inc. will repair or replace

any board that fails to perform under normal operating conditions and in

accordance with the procedures outlined in this document during the warranty

period. Any damage that results from improper installation, operation, or general

misuse voids all warranty rights.

Please complete the following information and retain for your records.

Have this information available when requesting warranty service.

DATE OF PURCHASE:

MODEL NUMBER: QSC(LP)-100

PRODUCT DESCRIPTION: Four Channel Low Profile RS-232

Asynchronous PCI Bus

Communications Adapter

SERIAL NUMBER:

ii QSC(LP)-100 User's Manual

2006, Quatech, Inc.

NOTICE

The information contained in this document cannot be reproduced in any

form without the written consent of Quatech, Inc. Likewise, any software

programs that might accompany this document can be used only in accordance

with any license agreement(s) between the purchaser andQuatech, Inc. Quatech,

Inc. reserves the right to change this documentation or the product to which it

refers at any time and without notice.

The authors have taken due care in the preparation of this document and

every attempt has been made to ensure its accuracy and completeness. In no event

will Quatech, Inc. be liable for damages of any kind, incidental or consequential,

in regard to or arising out of the performance or form of the materials presented in

this document or any software programs that might accompany this document.

Quatech, Inc. encourages feedback about this document. Please send any

written comments to the Technical Support department at the address listed on the

cover page of this document.

DOS, Windows 95/98/2000/ME, Windows NT are trademarks or registered trademarks of

Microsoft Corporation. OS/2 is a registered trademark of IBM Corporation. All other trademarks

or registered trademarks are property of their respective owners.

iii QSC(LP)-100 User's Manual

Declaration of Conformity

Manufacturer's Name: Quatech Inc.

Manufacturer's Address: 5675 Hudson Industrial Parkway

Hudson, Ohio 44236 (USA)

Application of Council Directive: 89/336/EEC

Standards to which

Conformity is Declared: * EN50081-1 (EN55022,

EN60555-2, EN60555-3)

* EN50082-1 (IEC 801-2,

IEC 801-3, & IEC 801-4)

Type of Equipment: Information Technology

Equipment

Equipment Class: Commercial, Residential, & Light

Industrial

Product Name: PCI Quad Serial Communications

Card

Model Number : QSC(LP)-100

iv QSC(LP)-100 User's Manual

10 Troubleshooting .................................

9 Specifications ......................................

8 PCI Resource Map ...............................

7 External Connections ............................

6.3.1 QTPCI.EXE ..................................... 30

6.3 DOS and other operating systems ................... 30

6.2 OS/2 ............................................... 30

6.1 Windows NT ....................................... 30

6 Other Operating Systems .......................

5.6.1 Changing Resource Settings with Device Manager .21

5.6 Viewing Resources with Device Manager ............ 19

5.5 Using the "New Hardware Found" Wizard .......... 19

5.4 Windows 95 ........................................ 18

5.3 Windows 98 ........................................ 17

5.2 Windows 2000 ...................................... 16

5.1 Windows Millennium ............................... 16

5 Windows Configurations ........................

4.4.2 Clock Rate Multiplier ............................ 14

4.4.1 Enhanced Serial Adapter Identification ........... 14

4.4 Options Register .................................... 13

4.3 Interrupt Status Register ............................ 13

4.2 Enabling the Special Registers ...................... 12

4.1 Base Address and Interrupt Level (IRQ) ............. 12

4 Address Map and Special Registers ...........

3 Hardware Installation ...........................

2.3 Force High-Speed UART Clock (X2, X4, or X8,

J3-J5) ...................................................

2.2 Enable Scratchpad Register (SPAD, J2) .............. 8

2.1 Factory Default Configuration ....................... 8

2 Hardware Configuration .........................

1 General Information ..............................

v QSC(LP)-100 User's Manual

1 General Information

The Quatech, Inc. QSC(LP)-100 provides four RS-232 asynchronous serial

communication interfaces for Low Profile IBM-compatible personal computer

systems using the PCI expansion bus. The QSC(LP)-100 uses Quatech's new

Enhanced Serial Adapter design. Legacy serial port data rates are limited to a

maximum of 115,200 bits per second. Quatech Enhanced Serial Adapters can

achieve data rates as high as 921,600 bits per second.

As a PCI device, the QSC(LP)-100 requires no hardware configuration.

The card is automatically configured by the computer's BIOS or operating system.

The four serial ports share a single interrupt line and are addressed in a

contiguous block of 32 bytes. A special interrupt status register is provided to

help software to manage the shared interrupt.

The QSC(LP)-100's serial ports are implemented using 16550 Universal

Asynchronous Receiver/Transmitters (UARTs). These UARTs contain hardware

buffers (FIFOs) which reduce processing overhead and allow higher data rates to

be achieved.

The QSC(LP)-100 is supported under several popular operating systems

and environments. Contact the sales department for details on current software

offerings. Most device drivers are available for download from the Quatech world

wide web site at http://www.quatech.com.

QSC(LP)-100 User's Manual 6

2 Hardware Configuration

The QSC(LP)-100 is automatically configured at boot time by the

computer's BIOS or operating system. There are no required switches or jumpers

to set for installation.

This chapter lists a number of optional jumper settings that control various

hardware features. Jumpers J2-J5 are grouped together at the end of the board

opposite the HD-44 connector. Any changes from the factory default should be

made before installing the QSC(LP)-100 in the computer.

2.1 Factory Default Configuration

Figure 2 shows the jumper configuration as shipped from the factory, with

two spare jumpers applied in neutral positions. Remove one or both and apply as

shown in following sections to set optional features.

SPAD

Figure 2 --- Factory default jumper configuration

2.2 Enable Scratchpad Register (SPAD, J2)

In the default configuration, an Interrupt Status Register(see section 4.3)

and an Options Register (see section 4.4) replace the scratchpad (base address + 7)

of each UART. If the SPAD jumper is applied as in Figure 3, the UART

scratchpad registers are enabled, and the Interrupt Status Register and the Options

SPAD

Figure 3 --- Enable scratchpad registers

QSC(LP)-100 User's Manual 7

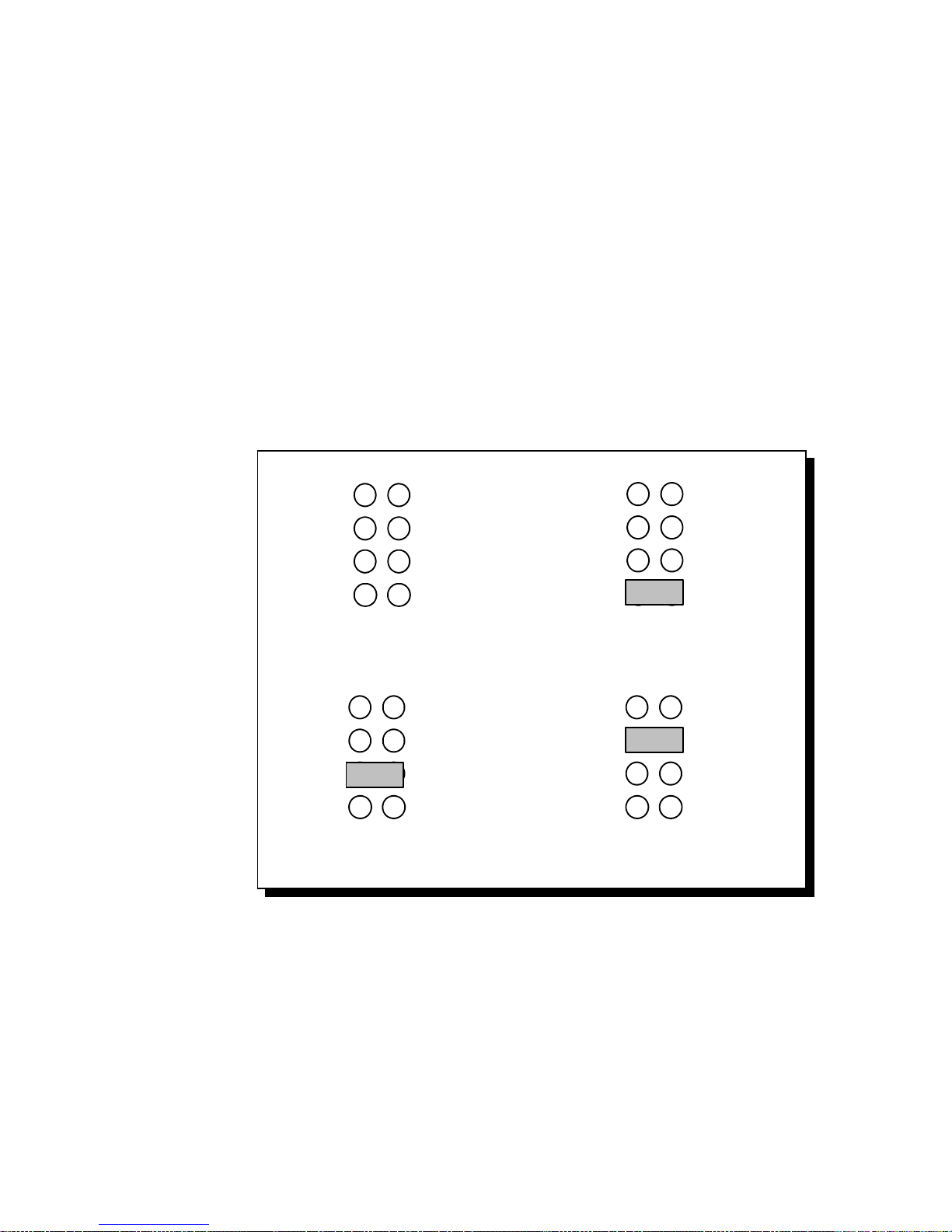

2.3 Force High-Speed UART Clock (X2, X4, or X8, J3-J5)

These jumpers force an increase of the UART input clock frequency by a

factor of two, four, or eight. This feature can allow legacy software to use baud

rates above 115,200 bits per second. It is also useful if the serial port device

driver does not directly support setting the higher baud rates through the Options

If one of these jumpers is applied, it overrides any value written to the

Options Register to set the clock multiplier by software. The effective baud rate

will be either two, four, or eight times the value for which the UART itself is

programmed.

The factory default is none of these jumpers applied, which allows for

software control of the clock multiplier via the Options Register. The Options

compatibility with standard serial ports.

SPAD

Force times-eight clock

Baud rates u

to 921.6 kb

SPAD

Force times-two clock

Baud rates u

to 230.4 kb

SPAD

Factory default

software control

SPAD

Force times-four clock

Baud rates u

to 460.8 kb

Figure 4 --- Clock multiplier jumper options

QSC(LP)-100 User's Manual 8

3 Hardware Installation

1. Turn off the power of the computer system in which the QSC(LP)-100 is

to be installed.

2. Remove the system cover according to the instructions provided by the

computer manufacturer.

3. Make any desired optional jumper setting changes.

4. Install the QSC(LP)-100 in any empty PCI expansion slot. The board

should be secured by installing the Option Retaining Bracket (ORB)

screw.

5. Replace the system cover according to the instructions provided by the

computer manufacturer.

6. Attach and secure the cable connectors to the desired equipment.

7. Turn on the power of the computer system.

The output of the QSC(LP)-100 is a 44-pin D-connector. A cable is

provided to convert the D-44 into four standard male D-9 connectors with all

control signals provided to each port (RTS, DTR, CTS, DSR, DCD, and RI).

SPAD

Clock multiplier/

scratchpad select

Figure 5 --- Jumper/connector locations

QSC(LP)-100 User's Manual 9

4 Address Map and Special Registers

This chapter explains how the four UARTs and special registers are

addressed, as well as the layout of those registers. This material will be of interest

to programmers writing driver software for the QSC(LP)-100.

4.1 Base Address and Interrupt Level (IRQ)

The base address and IRQ used by the QSC(LP)-100 are determined by the

BIOS or operating system. Each serial port uses 8 consecutive I/O locations. The

four ports reside in a single block of I/O space in eight byte increments, for a total

of 32 contiguous bytes, as shown in Figure 6.

Base Address + 24 to Base Address + 31Serial 4

Base Address + 16 to Base Address + 23Serial 3

Base Address + 8 to Base Address + 15Serial 2

Base Address + 0 to Base Address + 7Serial 1

I/O Address RangePort

Figure 6 --- Port Address Map

All four serial ports share the same IRQ. The QSC(LP)-100 signals a

hardware interrupt when any port requires service. The interrupt signal is

maintained until no port requires service. Interrupts are level-sensitive on the PCI

bus. The base address and IRQ are automatically detected by the device drivers

Quatech supplies for various operating systems. For cases where no device driver

is available, such as for operation under DOS, Quatech supplies the "QTPCI"

DOS software utility for manually determining the resources used. Seesection

6.3.1 for details.

QSC(LP)-100 User's Manual 10

Otros manuales para QSC(LP)-100

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Adaptador de Quatech

Quatech

Quatech SSP-200 Manual de usuario

Quatech

Quatech DSC-100 Manual de usuario

Quatech

Quatech MPAC-100 Manual de usuario

Quatech

Quatech PCD-X/U142-E Manual de usuario

Quatech

Quatech Audio/Video Capture USB 2.0 Manual de usuario

Quatech

Quatech DSC-300 Manual de usuario

Quatech

Quatech PCD-B/PCI-E Manual de usuario

Quatech

Quatech QSC(LP)-100 Manual de usuario

Quatech

Quatech SSU2-100 Manual de usuario

Quatech

Quatech Asynchronous Communications Adapter... Manual de usuario

Quatech

Quatech PCD-X/U132-E Manual de usuario

Quatech

Quatech DSU-200 Manual de usuario

Quatech

Quatech SS-USB-100 Manual de usuario

Quatech

Quatech DSP-100 Manual de usuario

Quatech

Quatech QSCLP-200 Manual de usuario

Quatech

Quatech ESU-100-EMB Manual de usuario

Quatech

Quatech SPPXP-100 Manual de usuario

Quatech

Quatech QSC-100 Manual de usuario

Quatech

Quatech RS-422 Manual de usuario

Quatech

Quatech DSP-200/300 Manual de usuario

Quatech

Quatech DSU2-100 Manual de usuario

Quatech

Quatech MPAC-100 Manual de usuario

Quatech

Quatech RS-232 Manual de usuario

Quatech

Quatech SS-BLT-100 Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
