Quantum QN-I-200 Manual de usuario
Command Line Interface Guide
Models: QN-I-200, QN-I-220, QN-O-230, QN-H-220
Copyright Information
Copyright & trademark specifications are subject to change without prior notice. Copyright © 2018
Quantum Networks (SG) Pte. Ltd. All Rights Reserved. Quantum NetworksTM& the logo are
trademarks of Quantum Networks (SG) Pte. Ltd. Other brands or products mentioned may be
trademarks or registered trademarks of their respective owners. Mentioned contents of this
document can’t be used, translated or transmitted in any form or by any means without taking prior
written permission from Quantum Networks (SG) Pte. Ltd..
Document Abstract
This document describes the use of Command Line Interface, here in after referred as CLI through
SSH to access the Access Point parameters, configuration and offers several troubleshooting tools.
Currently, the guide applies to QN-I-200, QN-I-220, QN-O-230 and QN-H-220 models only.
Prerequisites
In order to access device using CLI, SSH supported utility is required. CLI access is operating system
independent. You may use Windows® or MAC® or Linux®. The command terminal should support
SSH. In Windows®, you may use third party application like Putty whereas the MAC® and Linux®
command terminals already support SSH. Default port used by SSH is 22. Please use the same
device username and password as defined during Site creation in cloud controller
(https://cc.qntmnet.com) and for standalone use preconfigured device login username and
password. We used admin as the Device username and 192.168.25.6 is the Access Point IP address.
Example of a SSH command (IP Address 192.168.25.6 has been used in test scenario only):
command_prompt>[email protected]8.25.6 {press Enter Key}
How to access CLI?
Using Windows® platform?
Step 1: Download Putty for windows and follow as below (For test scenario we used 192.168.25.6 as
the assigned IP address to Access Point).
Step 2: On first connection from Windows® using Putty, click “Yes” to accept host key.
Step 3: Enter the username and password defined during Site creation in Cloud Controller and press
Enter.
Step 4: You are successfully logged into Access Point with command prompt as “QNTM”. You may
execute CLI commands now.
For Linux® and Apple®devices, SSH is, by default, supported. In usual cases any third party
application is not required.
Using Apple® Platform?
We used an Apple® Macbook with macOS High Sierra Version 10.13.4 to brief commands ahead.
Feel free to consult for updated versions issued ahead.

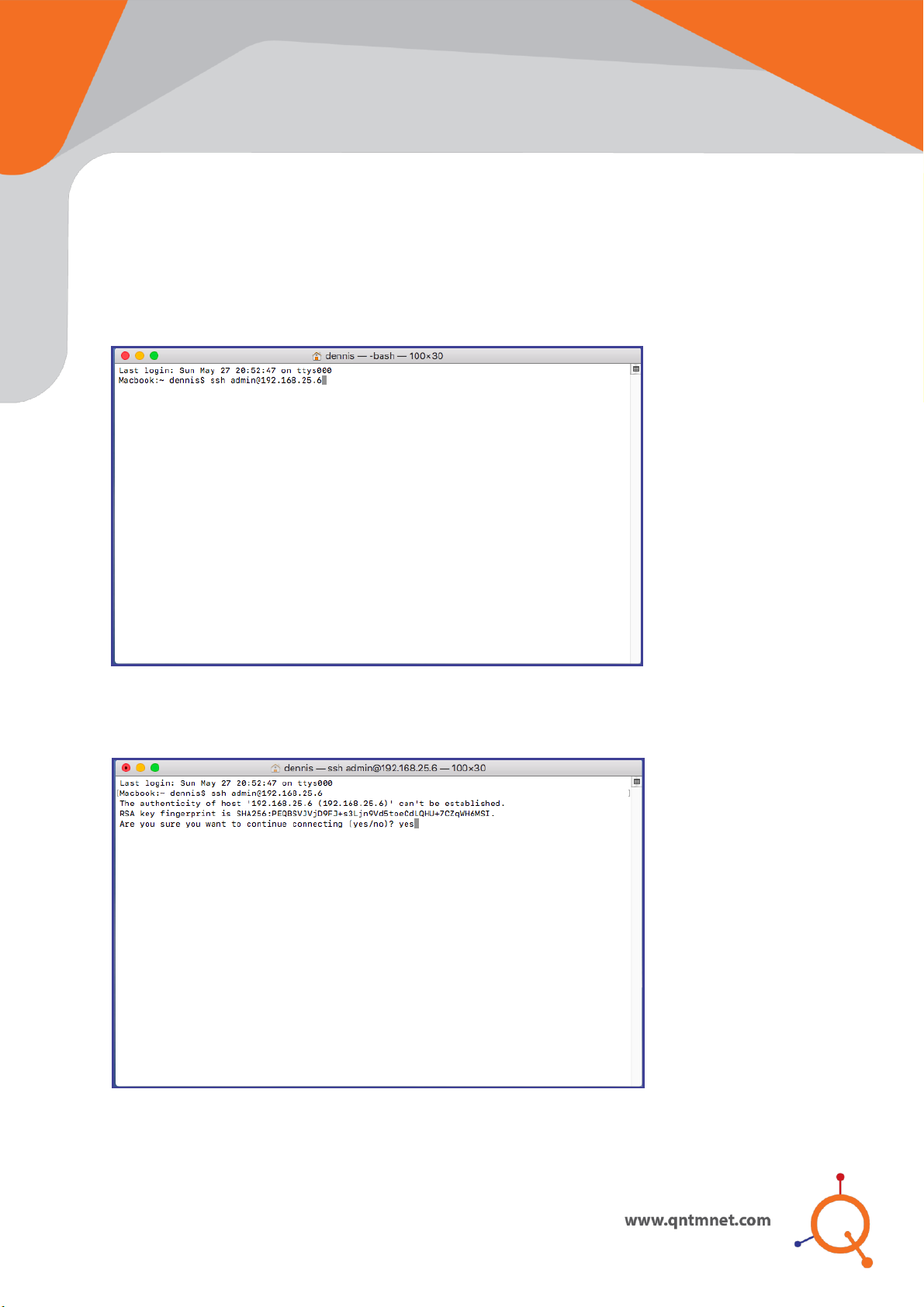

Step 1: Start Terminal and execute below SSH command followed by Enter key (For test scenario
we used 192.168.25.6 as the assigned IP address to Access Point).
Step 2: For first connection to the Access Point using SSH, you may be prompted to accept the host
key. Do so by clicking “Yes” and press Enter.
Step 3: Please enter the password as defined to access the Access Point during Site creation in
Cloud Controller and press Enter.
Step 4: You are successfully logged into Access Point with command prompt as “QNTM”(Device
Name). You may execute CLI commands now.
Understanding Commands:
General Commands:
Command Prompt>help
Description: help command would display basic commands available through terminal.
Command Prompt>?
Description: ?command would display all (except basic) commands available through terminal.
Command Prompt>clear
Description: clear command would clear the terminal screen.
Command Prompt>date
Description: date command would display current date and time in Access Point. Date are Time
can’t be modified from Terminal as they are automatically updated as per selected Country in Cloud
Controller or in standalone configuration.
