Quadient IJ-15K Manual de usuario

Franking Machine

Installation Guide

IJ-15K

Table of Contents

IJ-15K Modem to Adapter PCB Conversion Instructions.............3

Connect Box IJ-15K Setup................................................................... 7

IJ-15K Credit Procedure with new Adapter PCB.......................... 13

Page 1

© 2022 Quadient®, Inc. Page 3

IJ-15K Modem to Adapter PCB Conversion Instructions

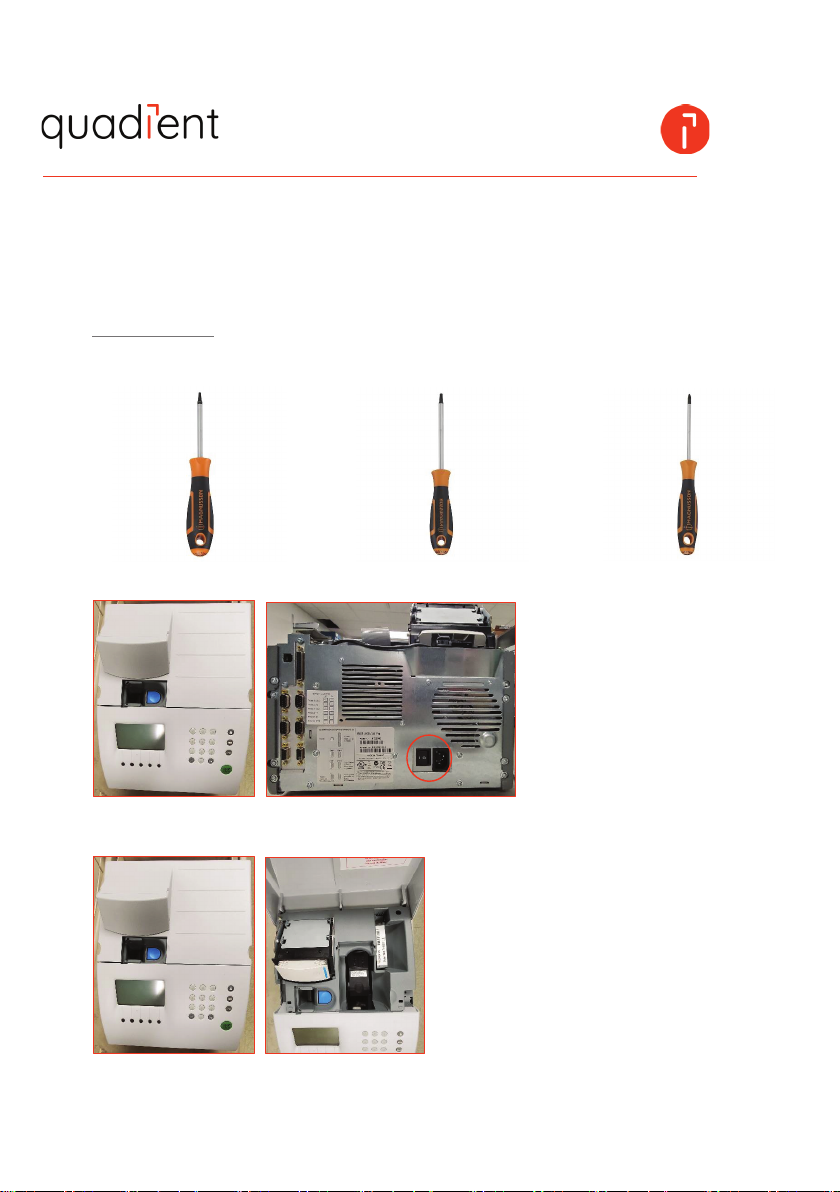

Required Tools:

T10 Torque Screwdriver T20 Torque Screwdriver #1 Phillips Screwdriver

1. Power off the IJ-15K base

2. Open the Top Cover

© 2022 Quadient®, Inc.

Page 4

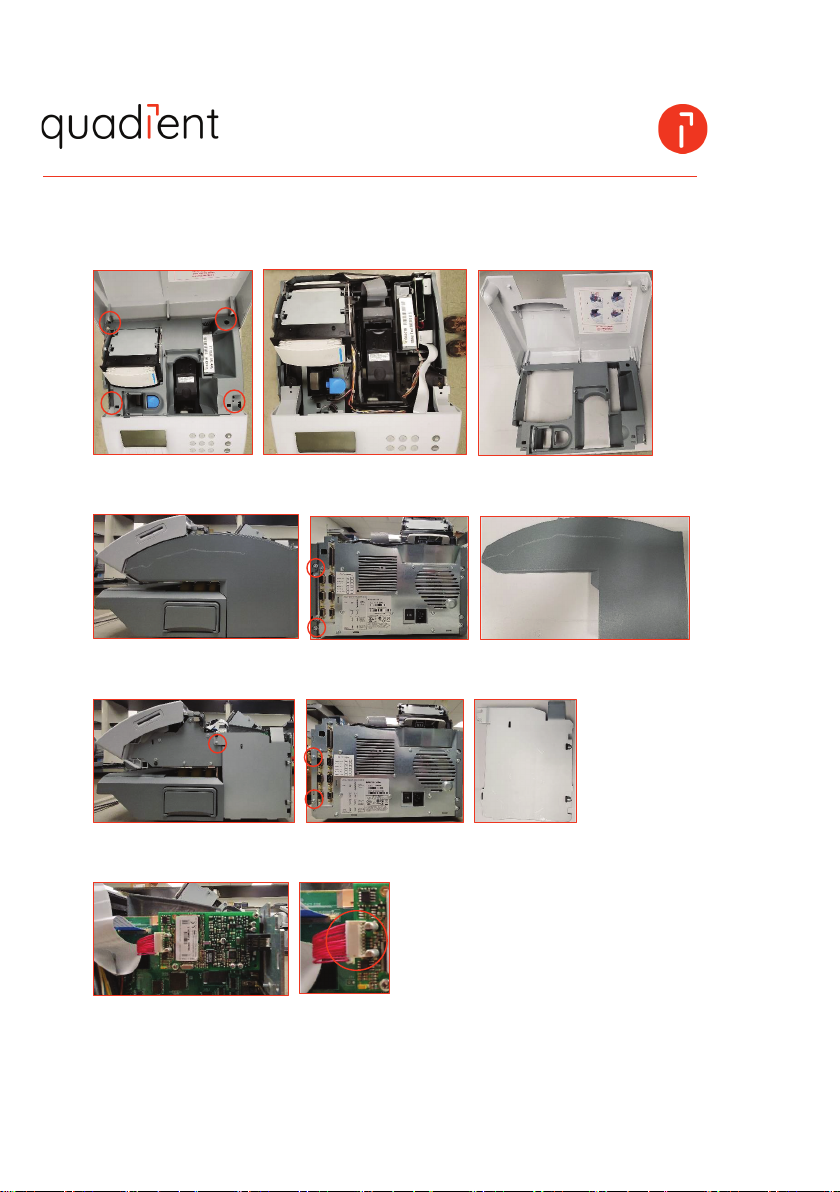

3. Remove the Top Cover (4 screws using a T10 Torque screwdriver)

4. Remove the Right Side Cover (2 screws in the rear using a T20 Torque screwdriver)

5. Remove the Right Side Plate (3 screws (2-rear/1-side) using a T20 Torque screwdriver)

6. Unplug the Modem PCB

© 2022 Quadient®, Inc. Page ϱ

7. Remove the Modem PCB (2 screws using a #1 Phillips screwdriver)

8. Install the new Adapter PCB (2 screws from the previous step using a #1 Phillips

screwdriver)

9. Plugin the new Adapter PCB

10. Install the Right Side Plate (3 screws (2-rear/1-side) using a T20 Torque screwdriver)

© 2022 Quadient®, Inc.

Page ϲ

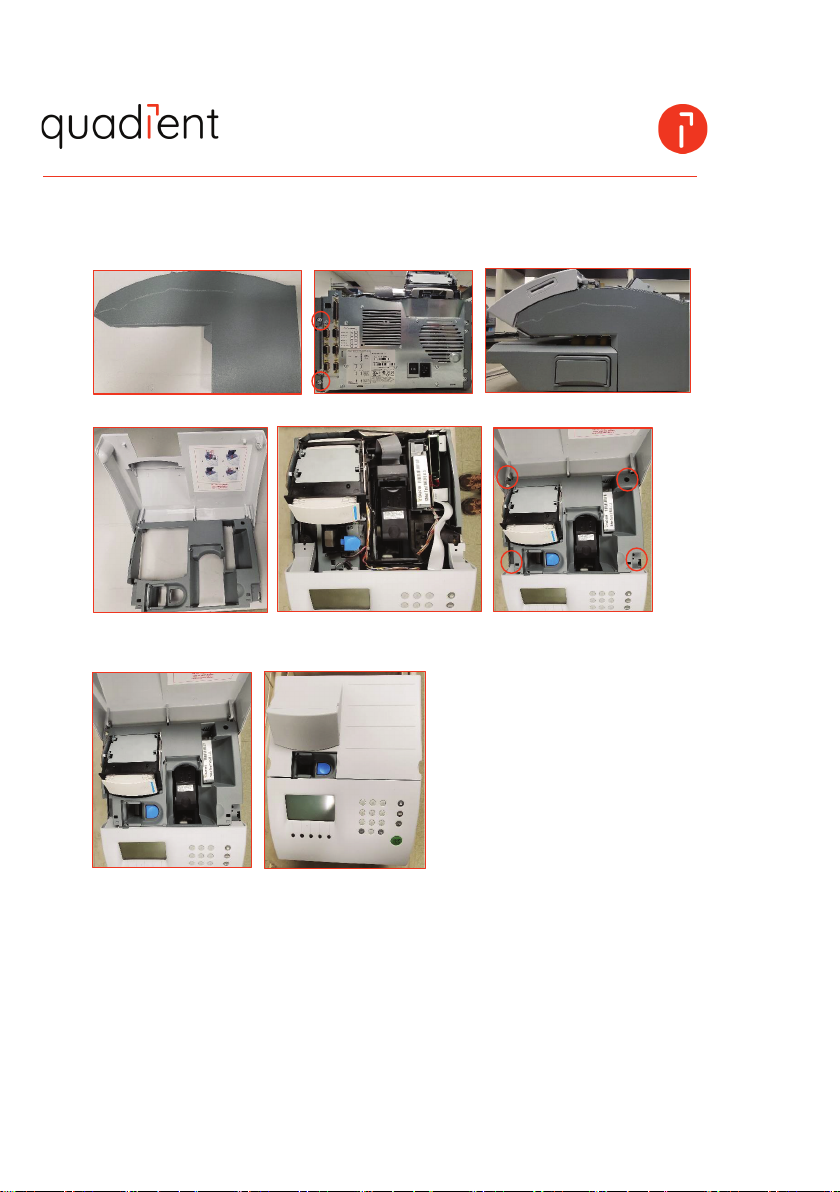

11. Install the Right Side Cover (2 screws in the rear using a T20 Torque screwdriver)

12. Install the Top Cover (3 screws using a T10 Torque screwdriver)

13. Close the Top Cover

Classification: EXTERNAL

© 2022 Quadient® , Inc.

Connect Box: IJ-15K Setup

Author:

Jean Maurice Sanon

Valid from:

12-14-2022

Version No.:

V1.0

Page 7

Classification: EXTERNAL

Document name: Connect Box: IJ-15K Setup

© 2022 Quadient®, Inc.

Page ϴ

Change Control

Modification Notice

Author

Date

Version

Changes Highlight

Initial Document

Jean Maurice Sanon

12-14-2022

V1.0

Classification: EXTERNAL

Document name: Connect Box: IJ-15K Setup

© 2022 Quadient®, Inc. Page ϵ

Overview

Description

The Connect Box from Quadient provides our customers with expanded connection, communication, and security

options when configuring a Quadient Mailing System on their network. The Connect Box provides the ability to use

Wi-Fi to connect the IJ-15K to the customer’s network, as well as the ability to utilize TLS 1.2 encryption and

securing of data.

Upon connecting the Connect Box to the customer’s Wi-Fi network and properly configuring the Mailing System,

any communication originating from the Mailing System will use the Connect Box to transmit data over the

customer’s Wi-Fi network.

Configuring the Connect Box

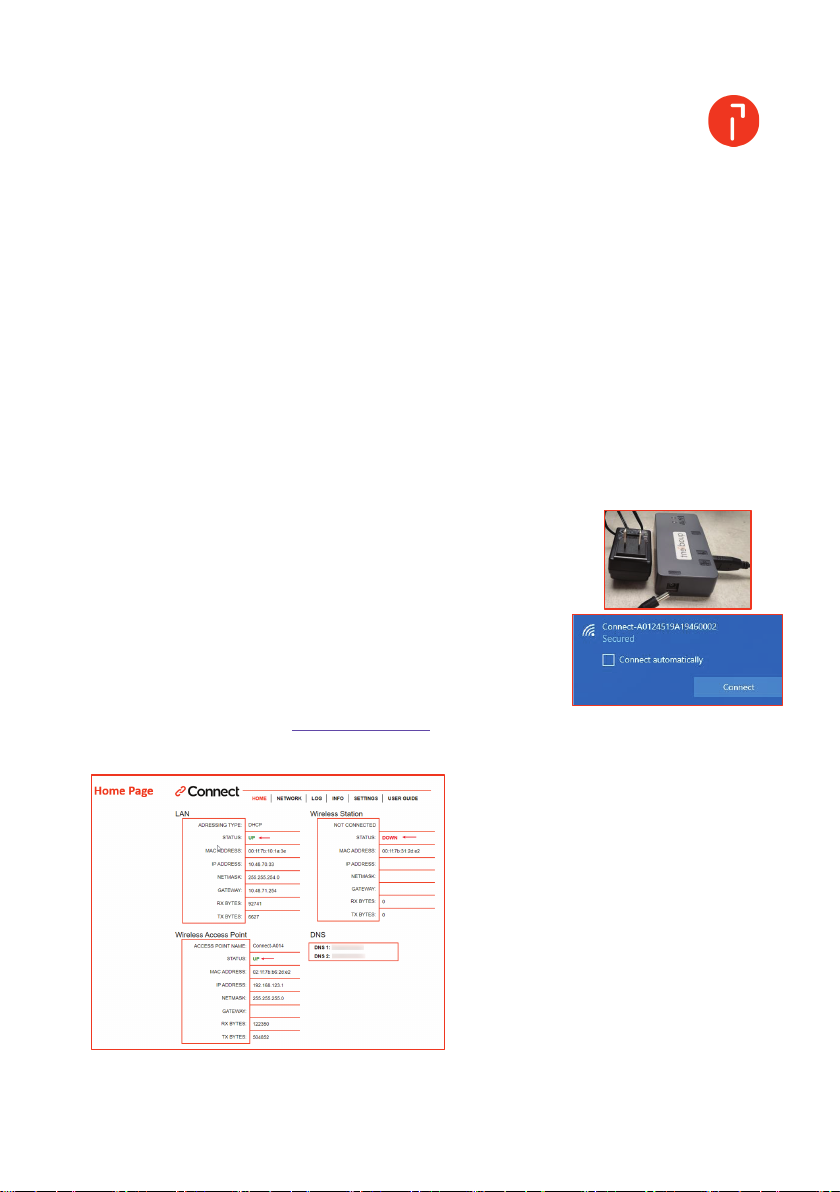

1Make a wireless connection to the Connect box

xPower up the Connect box using the power supply

xSSID format : A0124519XAASS1111

xClick connect to gain access

xSSID Wireless default password => Nconnect

2 Log in to the Connect Box

Open a Web Browser and enter https://192.168.123.1 press enter

Login: admin & Password: admin
