1. Preface
About This Guide
This guide provides information about the device and step-by-step instructions on installing the hardware. It
also provides instructions on basic operations and troubleshooting information.
Audience
This document is intended for consumers and network administrators. This guide assumes that the user has
a basic understanding of network, storage, and backup concepts.
Document Conventions
Symbol Description
Notes provide default configuration settings and other supplementary
information.
Important notes provide information on required configuration settings and other
critical information.
Tips provide recommendations or alternative methods of performing tasks or
configuring settings.
Warnings provide information that, when ignored, may result in potential loss,
injury, or even death.
QMiroPlus-201W User Guide
Preface 4
2. Product Overview
This chapter provides basic information about the QNAP device.
About the QMiroPlus-201W
The QMiroPlus-201W is QNAP's first tri-band wireless mesh network (WMN) router with built-in network-
attached storage (NAS) capabilities. The QMiroPlus-201W features four internal antennas, four 1 GbE ports,
and supports SD-WAN deployment. The router is equipped with NAS functions and two SATA drive bays for
various application and expansion options.
You can create and manage wireless mesh networks with multiple QMiro and QMiroPlus routers using the
QuRouter web interface, QTS application, or the QuRouter mobile application.
Hardware Specifications
Warning
If your QNAP product has hardware defects, return the product to QNAP or a QNAP-
authorized service center for maintenance or replacement. Any attempt to repair or
perform maintenance procedures on the product by you or an unauthorized third party
invalidates the warranty.
QNAP is not responsible for any damage or data loss caused by unauthorized
modifications and installation of unsupported third-party applications.
For details, see the QNAP Warranty Terms and Conditions.
Tip
Model specifications are subject to change without prior notice. To see the latest
specifications, go to https://www.qnap.com.
Component QMiroPlus-201W
Router Storage
Processor
CPU Qualcomm® IPQ4019 SoC Intel® Celeron® J4125
Frequency 4-core 716.8 MHz 4-core 2.0 GHz
Architecture ARM Cortex-A7 x86 64-bit
Memory
Pre-installed
memory
512 MB DDR3 4 GB DDR4
Flash memory 4 MB SPI NOR 4 GB eMMC
Storage
Drive bays 2 x 2.5-inch SATA 3 Gbps
Drive compatibility • 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid-state drives
Hot-swapping Supported
Network
Antennas 4 x internal antennas
Gigabit Ethernet
ports
• 1 x 2.5 GbE RJ45
• 4 x 1 GbE RJ45
QMiroPlus-201W User Guide
Product Overview 5
Component QMiroPlus-201W
Router Storage
External I/O Ports & Expansion Slots
USB ports 2 x USB 3.2 Gen 1 Type-A ports
Interface
Buttons • Power
• Reset
• Wi-Fi Protected Setup (WPS)
• Storage power button
Dimensions
Dimensions (H x W
x D)
143.5 × 105 × 183.5 mm
(5.64 x 4.13 x 7.22 in)
Net weight 1.44 kg (3.17 lbs)
Others
Fans System: 1 x 60 mm, 12V DC smart fan
Operating
temperature
0˚C to 40˚C (32˚F to 104˚F)
Maximum power
consumption
60 W
Relative humidity Non-condensing relative humidity: 5% to 95%
Software Features
Feature Description
System status and management • Device connection status
• Device health status
• WAN status
• Wireless status
• Firmware schedule management
Wired network management • WAN/LAN port configuration
• Network port connection status
• IPv4 address routing management
Security Network Address Management (NAT) and port forwarding
VPN • Remote access support using L2TP, OpenVPN, and QBelt (QNAP
proprietary VPN) protocols
• Client IP pool management
• VPN client management
• Connection logs
• Maximum VPN tunnels: 30
QMiroPlus-201W User Guide
Product Overview 6
Feature Description
Access control • Parental control
• Domain Name Filtering (DNS) and content filtering
System settings • Backup and restore
• Restart, reset
• Manage audio alerts
• Local account and QNAP ID management
• USB settings: USB device user management, USB usage
overview, FTP server management
QuWAN Configure organization, region, site, device name, and device role
Wireless Specifications
Specification Description
Standards • IEEE 802.11b/g/n/ac 2.4 GHz
• IEEE 802.11a/n/ac 5 GHz
Operating frequencies • 2.4 GHz
• 5 GHz-1
• 5 GHz-2
Speeds AC2200
• 5 GHz-1 (867 Mbps): 2 x 2 dual band (20/40/80 MHz)
• 5 GHz-2 (867 Mbps): 2 x 2 single band (20/40/80 MHz)
• 2.4 GHz (400 Mbps): 2 x 2 dual band (20/40 MHz)
Modes • Router mode
• Access point (AP) mode
Guest wireless network 1 x 2.4 GHz
Encryption • WPA2-PSK
• WPA-PSK + WPA2-PSK
• WPA-Enterprise
• WPA2-Enterprise
QMiroPlus-201W User Guide
Product Overview 7
Specification Description
Wireless network management • Supports MU-MIMO technology
• Supports band steering for tri-band (2.4 GHz and 5 GHz band)
access points
• Transmission power (high, middle, and low)
• 20/40/80 MHz bandwidth
• Auto and custom DFS (Dynamic Frequency Selection) channels
• RTS/CTS (Request to Send/Clear to Send) functions
• Smart connect
• Wireless scheduler
• Wi-Fi Protected Setup (WPS)
Bluetooth
Bluetooth version Bluetooth® 5.0
Bluetooth antenna gain 3.42dBi
Package Contents
Item Quantity
QMiroPlus-201W router 1
AC power adapter 1
Ethernet cable 1
Components
Front Panel
QMiroPlus-201W User Guide
Product Overview 8
No. Component
1 Case cover
2 Drive LEDs
For details, see LEDs
3 WPS button
For details, see WPS Button.
4 Status LED
For details, see LEDs

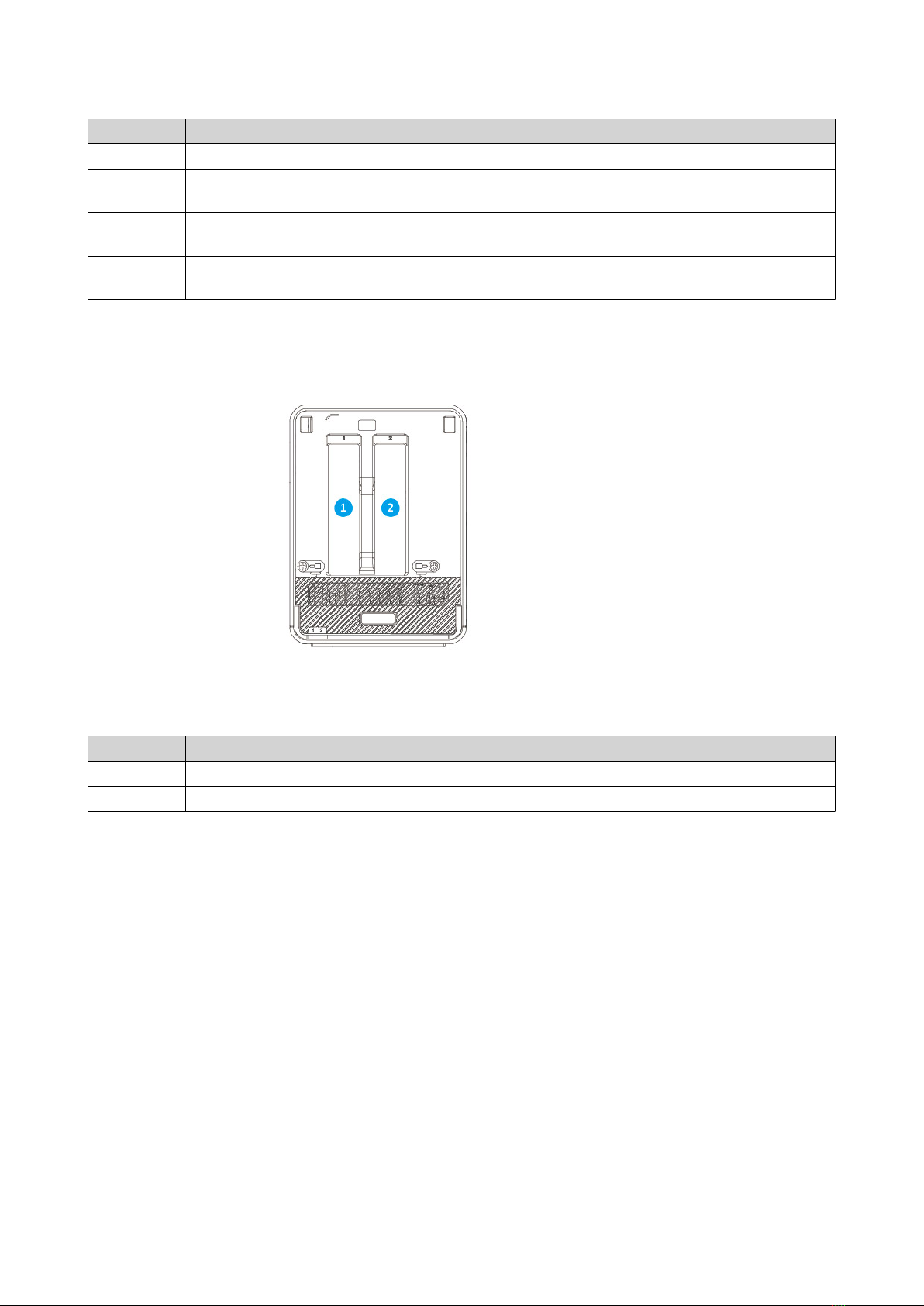

Front Panel without Case Cover
No. Component
1 Drive bay 1
2 Drive bay 2
LEDs
LEDs indicates the overall status of the router, the drives, the storage, and the network ports.
QMiroPlus-201W User Guide
Product Overview 9
Otros manuales para QMiroPlus-201W
1
Tabla de contenidos
Otros manuales de Enrutador inalámbrico de QNAP
