Installation Guide

HyperStack Cable

9000 Series Stackable Chassis Switch

HyperStacking connects two QLogic 9200 model switches through the Inter-Chassis Connection (ICC)

ports on the two pairs of CPU blades. Two HyperStack™ kits are required to successfully connect two

switches. Each HyperStack kit contains one HyperStack license key and two cables. HyperStacking is

not disruptive and can be done with both switches operational or both switches powered off.

Tools Required

Crosshead screwdriver, medium

Tie wraps (6)

1. HyperStack Cables, 25 inch (2) 2. License Key Upgrade, HyperStack (1)

Get other manuals https://www.bkmanuals.com

Installation Guide HyperStack Cable 9000 Series Stackable Chassis Switch

259238-02 A

Mount the Switches

Mount the switches in a rack, one on top of the

other with no more than 1U of space between

them. A cable loom can be installed in this

space.

Horizontal clearance from the CPU blades to the

rack opening or door should be 7–8 inches to

allow for HyperStack cabling.

Refer to the QLogic 9000 Series Stackable

Chassis Switch Rack Mounting Guide for

detailed mounting instructions.

Verify Domain IDs

Verify that the two switches have different

domain IDs. If they do not, change the domain ID

of one of the switches using the

Set Config Switch command.

Switch #> show domains

Principal switch is (local): 10:00:00:c0:dd:07:4a:e8

Domain ID List:

Domain 1 (0x1 ) WWN = 10:00:00:c0:dd:07:4a:e8

Verify Firmware Version 7.8

Enter the Show Version command to verify that

the two switches have firmware version 7.8 or

later.

Switch #>show version

SystemDescription QLogic 9000 Series

HostName <undefined>

EthIPv4NetworkAddress 10.20.11.192

EthIPv6NetworkAddress ::

MACAddress 00:c0:dd:00:71:ee

WorldWideName 10:00:00:c0:dd:00:71:ed

ChassisSerialNumber FAM033100024

SymbolicName Switch

ActiveSWVersion V7.8.x.x.xx.xx

ActiveTimestamp day month date time year

POSTStatus Passed

PrimaryCPU CPU0

SecondaryCPUStatus HotStandby

Install version 7.8 firmware, if necessary. Enter

the Image command to download and unpack

the firmware. Enter the Hotreset command to

perform a non-disruptive activation.

Switch #> admin start

Switch (admin) #> image fetch account_name ip_address

filename

Switch (admin) $> image unpack filename

Wait for the unpack to complete.

Image unpack command result: Passed

Switch (admin) $> hotreset

1U Maximum

Get other manuals https://www.bkmanuals.com

Installation Guide HyperStack Cable 9000 Series Stackable Chassis Switch

59238-02 A 3

Install HyperStack Licenses

Follow the directions on the License Key

Upgrade document for each switch. Apply the

respective license keys to each switch using the

Feature Add command.

Switch #> admin start

Switch (admin) #> feature add #-XXXXXXXXXXXXX

License upgradefor HyperStack(tm) capability.

This feature upgrade does NOT require a switch reset.

Do you want to continue with license upgrade

procedure? (y/n): [n] y

Log Msg: [day mon date hh:mm:ss.sss CST

year][C][8400.006B][Switch][Upgrading License for

HyperStack(tm)capability]

Log Msg: [day mon date hh:mm:ss.sss CST

year][C][8400.0047][Switch][New licenses are being

installed]

Connect the HyperStack

Cables

Use a screwdriver to remove the covers from all

ICC ports.

Connect a HyperStack cable to one of the ICC

ports with the label side up as shown.

Secure the cable connector with the captive

screws.

1. ICC Port Cover 2. Label facing up

Complete the HyperStack

Cable Connections

Connect the remaining HyperStack cable

connectors as shown in the illustration. These

copper cables are very flexible and can be bent

as needed without damage.

NOTE:

This is the only cabling configuration that is

supported. Any other configuration will result in

an error.

Get other manuals https://www.bkmanuals.com

Installation Guide HyperStack Cable 9000 Series Stackable Chassis Switch

Corporate Headquarters QLogic Corporation 26650 Aliso Viejo Parkway Aliso Viejo, CA 92656 949.389.6000 www.qlogic.com

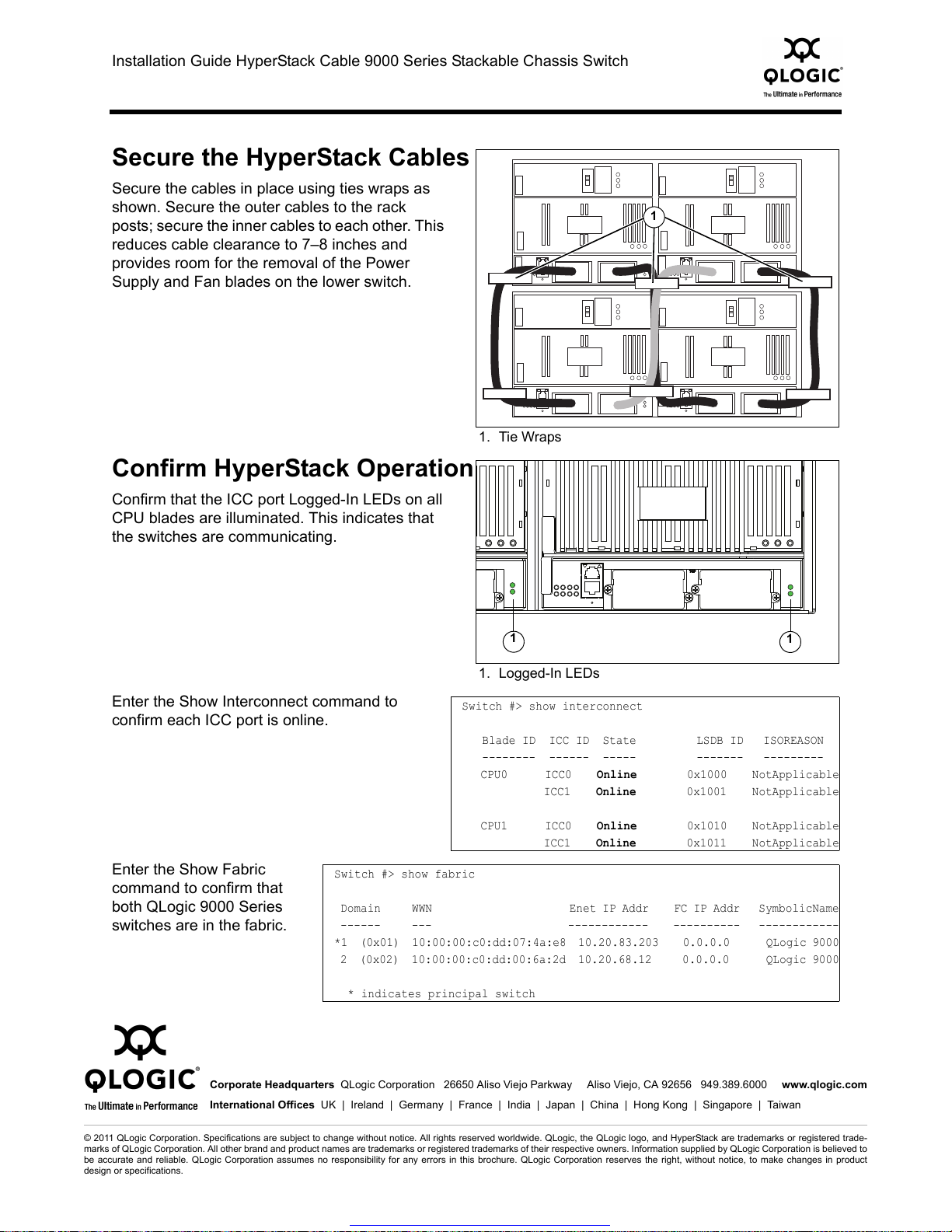

Secure the HyperStack Cables

Secure the cables in place using ties wraps as

shown. Secure the outer cables to the rack

posts; secure the inner cables to each other. This

reduces cable clearance to 7–8 inches and

provides room for the removal of the Power

Supply and Fan blades on the lower switch.

1. Tie Wraps

Confirm HyperStack Operation

Confirm that the ICC port Logged-In LEDs on all

CPU blades are illuminated. This indicates that

the switches are communicating.

1. Logged-In LEDs

Enter the Show Interconnect command to

confirm each ICC port is online.

Switch #> show interconnect

Blade ID ICC ID State LSDB ID ISOREASON

-------- ------ ----- ------- ---------

CPU0 ICC0 Online 0x1000 NotApplicable

ICC1 Online 0x1001 NotApplicable

CPU1 ICC0 Online 0x1010 NotApplicable

ICC1 Online 0x1011 NotApplicable

Enter the Show Fabric

command to confirm that

both QLogic 9000 Series

switches are in the fabric.

Switch #> show fabric

Domain WWN Enet IP Addr FC IP Addr SymbolicName

------ --- ------------ ---------- ------------

*1 (0x01) 10:00:00:c0:dd:07:4a:e8 10.20.83.203 0.0.0.0 QLogic 9000

2 (0x02) 10:00:00:c0:dd:00:6a:2d 10.20.68.12 0.0.0.0 QLogic 9000

* indicates principal switch

marks of QLogic Corporation. All other brand and product names are trademarks or registered trademarks of their respective owners. Information supplied by QLogic Corporation is believed to

be accurate and reliable. QLogic Corporation assumes no responsibility for any errors in this brochure. QLogic Corporation reserves the right, without notice, to make changes in product

design or specifications.
