Qlogic INFINIBAND Manual de usuario

[Quick Start Guide ]

QUICK START GUIDE

INFINIBAND ADAPTER INSTALLATION

Purchasers of OEM products should consult with the OEM for support.

Please feel free to contact your QLogic approved reseller or QLogic Technical Support at

any phase of integration for assistance. QLogic Technical Support can be reached by the

following methods:

Web http://support.qlogic.com

E-mail support@qlogic.com

The QLogic knowledge database contains troubleshooting information for the QLogic

adapters. Access the data base from the QLogic Support Web page,

http://support.qlogic.com. Use the Support Center search engine to look for specific

troubleshooting information.

Products Affected

Product Name Part Number

QLE7140 IB6110401

QLE7240 IB6310406

QLE7280 IB6310406

QLE7340 IB6410401

QLE7342 IB6410401

QME7342 CU0310408

QME7362 CU0310413

QMH7342 CU0410416

Quick Start Guide

Installation Instructions

This Quick Start Guide describes how to install and configure your new QLogic InfiniBand Adapter in three simple steps:

■Step 1. Verify the package contents.

■Step 2. Install the adapter hardware.

■Step 3. Install the QLogic OFED+ host software.

Keep the adapter in the antistatic bag until installation. The adapter contains parts that can be damaged

by ESD. Before handling the adapter, use standard methods to discharge static electricity. Place the

adapter on the bag when examining it. Retain the bag for future use.

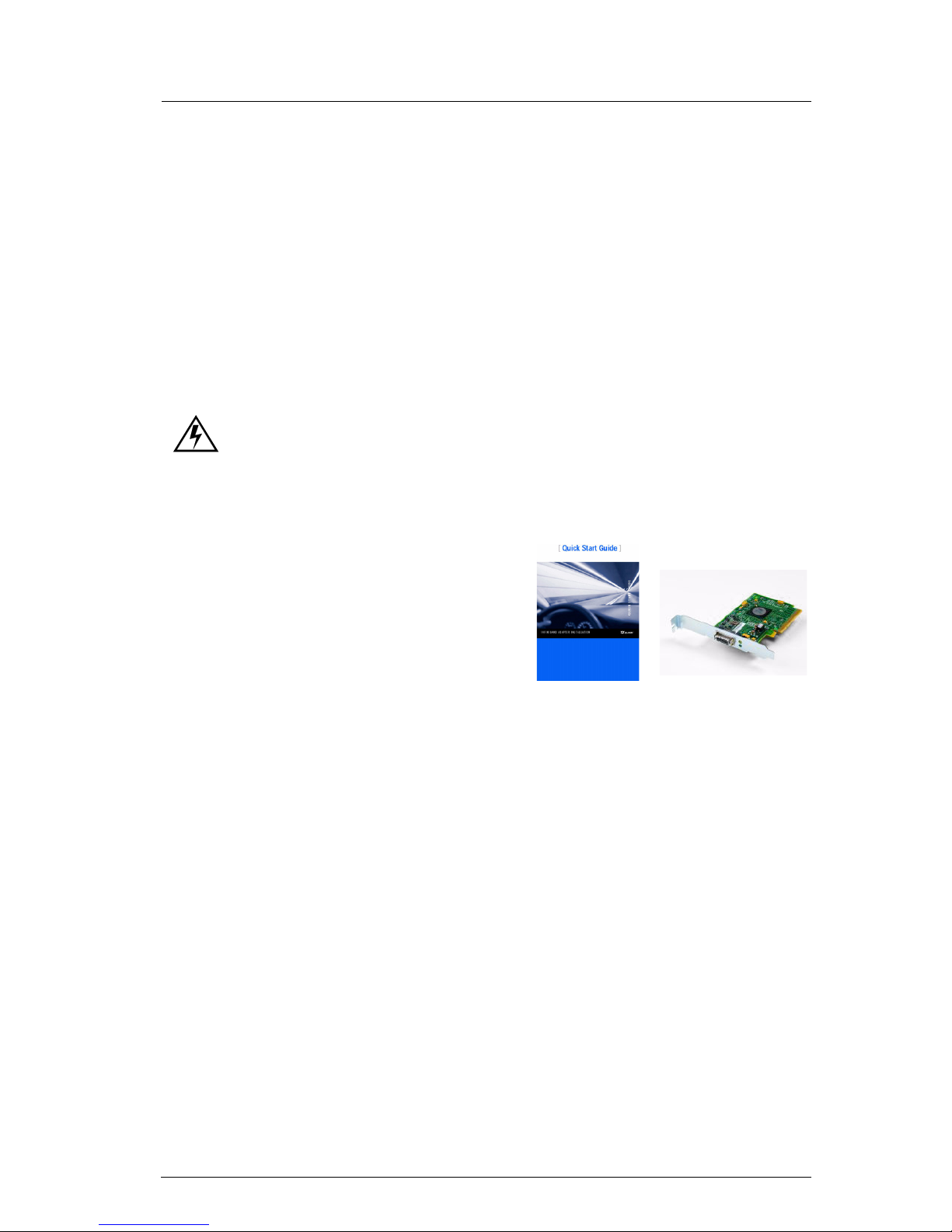

Step 1. Verify the Package Contents

The QLogic adapter is shipped with the following items:

■QLogic adapter

■Low-profile bracket (not available in all models)

■Quick Start Guide (this document)

Step 2. Install the Adapter Hardware

NOTE: For QME7342, QME7362 or QMH7342 mezzanine card installation instructions, please refer to your server

hardware owners manual.

To install the adapter hardware, you need to open the computer and locate the appropriate bus slot. If necessary, consult

your computer system manual for instructions to remove the computer cover.

Follow these steps to install the adapter hardware:

1. Power off the computer and all attached devices such as monitors, printers, and external components.

2. Remove the computer cover and find an empty PCIe x8 (or larger) bus slot.

3. Pull out the slot cover (if any) by removing the screw or releasing the lever.

4. Install the low-profile bracket (if required).

5. Grasp the adapter by the top edge and seat it firmly into the appropriate slot (see Figure 1. on page 4).

6. Refasten the adapter’s retaining bracket using the existing screw or lever.

7. Close the computer cover.

8. Plug an appropriate InfiniBand cable into the adapter.

9. Plug in the power cable and turn on the computer.

CAUTION!

Figure 1. Illustration of Server Motherboard and Slots

Step 3. Install the QLogic OFED+ Host Software

The QLogic OFED+ host software can be downloaded from the QLogic web site, www.qlogic.com. Click the Downloads

tab, and follow the links for your adapter model.

The QLogic OFED+ host software is available in the following configurations:

■TUI installation of the QLogic OFED+ host software

■TUI Installation of RPMs on top of OFED

■Installation of QLogic OFED+ using Clustercorp Rocks®+Roll

■Installation of QLogic OFED+ using the Platform Cluster Manager (PCM) kit

For more information, see the detailed descriptions on the QLogic Downloads page.

In addition to these packages, the InfiniBand Fabric Suite (IFS)™ software allows you to manage, install, update,

configure, and verify InfiniBand clusters. The IFS package is purchased separately. Check with your local QLogic Sales

Representative for details.

To install the QLogic OFED+ Host software, refer to the instructions in the QLogic Fabric Software Installation Guide.

The link to this document can be found on the same page as the software driver downloads.

Congratulations! You have successfully installed your QLogic Adapter!

■To obtain the most current drivers, management tools, user instructions, and documentation, please visit the

QLogic Web site at http://support.qlogic.com/support/drivers_software.aspx and download the latest

versions.

■The following section contains additional information about the QLogic adapter, including the LED scheme,

troubleshooting, warranty, and certification information.

ADAPTER RETAINING

BRACKET

LEVER

SLOT COVERS

SYSTEM

CHASSIS

PCI EXPRESS X8 (OR

LARGER) SLOT RE-

QUIRED FOR QLOGIC

ADAPTERS.

SCREW

ADAPTER

Adapter LEDs

Warranty

For warranty details, please check the QLogic Web site at http://www.qlogic.com/Support/warranty.aspx.

Agency Certification

QLogic Adapters

The following sections contain a summary of EMI test specifications performed on the QLogic interconnect hardware

adapters and mezzanine cards to comply with emission, immunity, product safety standards, and regulatory compliance

markings.

EMI Requirements Compliance Statements

United States

FCC Part 15 compliance: Class A. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

■QME7342

■QME7362

Table 1. QLogic InfiniBand Adapter LED Scheme

LED States Indication

Green Off

Amber Off

The switch is not powered up. The software is neither installed nor started. Loss of

signal.

Verify that the software is installed and configured with ipath_control -i. If the

software is working properly, check both cable connectors.

Green On

Amber Off

Signal detected and the physical link is up. Ready to talk to the Subnet Manager (SM)

to bring the link fully up.

If this state persists, the SM may be missing or the link may not be configured.

Use ipath_control -i to verify the software state. If all adapters are in this state,

then the SM is not running. Check the SM configuration, or install and run opensmd.

Green On

Amber On

The link is configured, properly connected, and ready. Signal detected. Ready to talk

to an SM to bring the link fully up.

The link is configured, properly connected, and ready to receive data and link packets.

Green Blinking (quickly)

Amber On

Indicates traffic

Green Blinking a

Amber Blinking

a.This feature is available only on the QLE7240 and QLE7280 adapters.

Locates the adapter

This feature is controlled by ipath_control -b [On | Off]

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates,uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at their own expense.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause undesired operations.

Changes or modifications not expressly approved by QLogic could void the user’s authority to operate the equipment.

Canada

ICES-003 compliance: Class A.

■This Class A digital apparatus complies with Canadian ICES-003.

■Cet appareil numériqué de la classe A est conformé à la norme NMB-003 du Canada.

The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

■QME7342

■QME7362

Europe

CE Mark 89/336/EEC (modified by 93/68/CEE), 73/23/EEC EMC Directive compliance, 2004/108/EC-2006/95/EC:

WARNING!! This is a Class A product. In a domestic environment this product may cause radio interference. In which

case, the user may be required to take adequate measures.

EN55024:1998, (Amds A1:2001, A2:2003). The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

EN55022:2006 +A1:2007/IEC CISPR 22:2005+A1:2005 Class A. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

■QME7342

■QME7362

EN61000-3-2:2006. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

■QME7362

EN61000-3-3:1995+A1:2001+A2:2005: 2008. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

■QME7342

■QME7362

EN55024:1998, (Amds A1:2001, A2:2003)/CISPR24:1997+A1 2001+A2:2002. The following adapters and mezzanine

cards comply:

■QME7342

■QME7362

Japan

VCCI compliance: VCCI V-3/2009.04; V-4/2009.04 Class A;

VCCI:2007-04 Class A. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

■QME7342

■QME7362

Japanese Language Format-Class A

English translation of the previous statement:

This is class A product based on the standard of the Voluntary Control Council For Interference by Information Technology

Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble

occurs, the user may be required to take corrective actions.

Australia/New Zealand

AS/NZS: EN55022:2006+A1 2007. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QME7342

AS/NZS: CISPR 22:2005 Class A. The following adapters and mezzanine cards comply:

■QME7342

AS/NZS: CISPR 22:2006 Class A. The following adapters and mezzanine cards comply:

■QLE7340

■QLE7342

AS/NZS: CISPR 22:2009 Class A. The following adapters and mezzanine cards comply:

■QME7362

WARNING!! This is a Class A product. In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

Korea

MIC compliance: Class A. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

■QME7342

■QME7362

Korean Language Format-Class A

English translation of the previous statement:

Product Name/Model QLogic Host Channel Adapters

Certification holder QLogic Corporation

Manufactured date Refer to date code listed on product

Manufacturer/Country of origin QLogic Corporation/USA

A class equipment (business purpose info/telecommunications equipment). As this equipment has undergone EMC

registration for business purpose, the seller and/or the buyer is asked to beware of this point and in case a wrongful

sale or purchase has been made, it is asked that a change to household use be made.

Taiwan

BSMI Certification: Class A Certified. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QLE7340

■QLE7342

Chinese Language Format-Class A

English translation of the above statement:

WARNING!! This is a class A product. In domestic environments this product may cause interference, in which case

the user may be required to take adequate measures.

Product Safety Compliance

UL, cUL product safety compliance

Use only with listed ITE or equivalent.

UL60950-1:2003, First Edition. The following adapters and mezzanine cards comply:

■QLE7140

UL60950-1 (1st edition). The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

UL60950-1 (1st edition) 2007. The following adapters and mezzanine cards comply:

■QLE7340

■QLE7342

■QME7342

Product Name/Model QLogic Host Channel Adapters

Certification holder QLogic Corporation

Manufactured date Refer to date code listed on product

Manufacturer/Country of origin QLogic Corporation/USA

UL60950-1 (2nd edition) 2007. The following adapters and mezzanine cards comply:

■QME7362

cUL: CSA C22.2 60950-1 (1st Edition). The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

cUL: CSA C22.2 No. 60950-1-03 1st Ed. April 1, 2003. The following adapters and mezzanine cards comply:

■QLE7140

cUL: CSA C22.2 No. 60950-1-03 1st Ed. 2006-2007. The following adapters and mezzanine cards comply:

■QLE7340

■QLE7342

cUL: CSA C22.2 No. 60950-1-07 2ne Ed. 2007. The following adapters and mezzanine cards comply:

■QME7342

■QME7362

Use only with listed ITE or equivalent.

TUV

EN60950:2001+A11. The following adapters and mezzanine cards comply:

■QLE7140

■QLE7240

■QLE7280

EN60950:2006 +A11. The following adapters and mezzanine cards comply:

■QMH7342

EN60950-1:2006, IEC 60950-1 CB certified (2nd edition). The following adapters and mezzanine cards comply:

■QLE7340

■QLE7342

■QME7342

■QME7362

IEC 60950-1 :2005 2nd Edition. The following adapters and mezzanine cards comply:

■QLE7240

■QLE7280

■QMH7342

Tabla de contenidos

Otros manuales de Adaptador de Qlogic

Qlogic

Qlogic BR-1020 Manual de usuario

Qlogic

Qlogic InfiniPath QLE7140 Manual de usuario

Qlogic

Qlogic QLE2560 Manual de usuario

Qlogic

Qlogic QLE8042 Manual de usuario

Qlogic

Qlogic QLE2740L-DEL Manual de usuario

Qlogic

Qlogic QLE2360 Manual de usuario

Qlogic

Qlogic FastLinQ 3400 Series Manual de usuario

Qlogic

Qlogic QLA234 Series Manual de usuario

Qlogic

Qlogic QME8262-k Manual de usuario

Qlogic

Qlogic 7104-HCA-128LP Manual de usuario

Qlogic

Qlogic QLogic Fibre Channel Switch Manual de usuario

Qlogic

Qlogic SANblade QEM2462 Manual de usuario

Qlogic

Qlogic InfiniPath Manual de usuario

Qlogic

Qlogic QLE7240 Manual de usuario

Qlogic

Qlogic InfiniPath QHT7140 Manual de usuario

Qlogic

Qlogic QLE3044 Manual de usuario

Qlogic

Qlogic QLA12160 Manual

Qlogic

Qlogic QLE2460 Manual de usuario

Qlogic

Qlogic QLE7240 Manual de usuario

Qlogic

Qlogic QME2462 Guía de inicio rápido

Qlogic

Qlogic QLE2462 Manual de usuario

Qlogic

Qlogic 8200 Series Manual de usuario

Qlogic

Qlogic SANblade 2300 Series Manual de usuario

Qlogic

Qlogic QLA2500 Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
